Black plate (25,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010 .
Slow down and keep more space between you and
other vehicles because headlamps can only light
up so much road ahead. .
Watch for animals. .
When tired, pull off the road. .
Do not wear sunglasses. .
Avoid staring directly into approaching headlamps. .
Keep the windshield and all glass on your vehicle
clean — inside and out..
Keep your eyes moving, especially during turns or
curves.
No one can see as well at night as in the daytime.
But, as we get older, these differences increase.
A 50-year-old driver might need at least twice as much
light to see the same thing at night as a 20-year-old.
Driving in Rain and on Wet Roads Rain and wet roads can reduce vehicle traction and
affect your ability to stop and accelerate. Always drive
slower in these types of driving conditions and avoid
driving through large puddles and deep ‐ standing or
flowing water. { WARNING: Wet brakes can cause crashes. They might not
work as well in a quick stop and could cause
pulling to one side. You could lose control of the
vehicle.
After driving through a large puddle of water or a
car/vehicle wash, lightly apply the brake pedal
until the brakes work normally.
Flowing or rushing water creates strong forces.
Driving through flowing water could cause your
vehicle to be carried away. If this happens, you
and other vehicle occupants could drown. Do not
ignore police warnings and be very cautious about
trying to drive through flowing water.
Hydroplaning Hydroplaning is dangerous. Water can build up under
your vehicle's tires so they actually ride on the water.
This can happen if the road is wet enough and you are
going fast enough. When your vehicle is hydroplaning, it
has little or no contact with the road.
There is no hard and fast rule about hydroplaning.
The best advice is to slow down when the road is wet.
6-25

Black plate (26,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Other Rainy Weather Tips Besides slowing down, other wet weather driving tips
include: .
Allow extra following distance. .
Pass with caution. .
Keep windshield wiping equipment in good shape. .
Keep the windshield washer fluid reservoir filled. .
Have good tires with proper tread depth. See Tires
on page 7 ‑ 58 ..
Turn off cruise control.
Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having
it serviced by your dealer before departing.
Things to check on your own include: .
Windshield Washer Fluid: Reservoir full? Windows
clean — inside and outside?.
Wiper Blades: In good shape?.
Fuel, Engine Oil, Other Fluids: All levels checked?.
Lamps: Do they all work and are lenses clean? .
Tires: Are treads good? Are tires inflated to
recommended pressure? .
Weather and Maps: Safe to travel? Have
up-to-date maps?
Highway Hypnosis Always be alert and pay attention to your surroundings
while driving. If you become tired or sleepy, find a safe
place to park your vehicle and rest.
Other driving tips include: .
Keep the vehicle well ventilated. .
Keep interior temperature cool. .
Keep your eyes moving — scan the road ahead
and to the sides. .
Check the rearview mirror and vehicle instruments
often.
6-26

Black plate (27,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Hill and Mountain Roads Driving on steep hills or through mountains is different
than driving on flat or rolling terrain. Tips for driving in
these conditions include: .
Keep the vehicle serviced and in good shape. .
Check all fluid levels and brakes, tires, cooling
system, and transmission. .
Going down steep or long hills, shift to a
lower gear.
{ WARNING: If you do not shift down, the brakes could get so
hot that they would not work well. You would then
have poor braking or even none going down a hill.
You could crash. Shift down to let the engine
assist the brakes on a steep downhill slope. { WARNING: Coasting downhill in N (Neutral) or with the
ignition off is dangerous. The brakes will have to
do all the work of slowing down and they could
get so hot that they would not work well. You
would then have poor braking or even none going
down a hill. You could crash. Always have the
engine running and the vehicle in gear when
going downhill. .
Stay in your own lane. Do not swing wide or cut
across the center of the road. Drive at speeds that
let you stay in your own lane. .
Top of hills: Be alert — something could be in your
lane (stalled car, accident). .
Pay attention to special road signs (falling rocks
area, winding roads, long grades, passing or
no-passing zones) and take appropriate action.
See Off-Road Driving
on page 6 ‑ 13 for information
about driving off-road.
6-27

Black plate (28,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Winter Driving Driving on Snow or Ice Drive carefully when there is snow or ice between the
tires and the road, creating less traction or grip. Wet ice
can occur at about 0°C (32°F) when freezing rain
begins to fall, resulting in even less traction. Avoid
driving on wet ice or in freezing rain until roads can be
treated with salt or sand.
Drive with caution, whatever the condition. Accelerate
gently so traction is not lost. Accelerating too quickly
causes the wheels to spin and makes the surface under
the tires slick, so there is even less traction.
Try not to break the fragile traction. If you accelerate too
fast, the drive wheels will spin and polish the surface
under the tires even more.
The StabiliTrak ®
System on page 6 ‑ 6 improves the
ability to accelerate on slippery roads, but slow down
and adjust your driving to the road conditions. When
driving through deep snow, turn off the traction control
part of the StabiliTrak ®
System to help maintain vehicle
motion at lower speeds. The Antilock Brake System (ABS) on page 6 ‑ 5
improves vehicle stability during hard stops on a
slippery roads, but apply the brakes sooner than when
on dry pavement.
Allow greater following distance on any slippery road
and watch for slippery spots. Icy patches can occur on
otherwise clear roads in shaded areas. The surface of a
curve or an overpass can remain icy when the
surrounding roads are clear. Avoid sudden steering
maneuvers and braking while on ice.
Turn off cruise control, if equipped, on slippery surfaces.
Blizzard Conditions Being stuck in snow can be in a serious situation. Stay
with the vehicle unless there is help nearby. If possible,
use the Roadside Service
on page 9 ‑ 8 . To get help
and keep everyone in the vehicle safe: .
Turn on the Hazard Warning Flashers on
page 4 ‑ 3
. .
Tie a red cloth to an outside mirror.
6-28

Black plate (29,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
{ WARNING: Snow can trap engine exhaust under the vehicle.
This may cause exhaust gases to get inside.
Engine exhaust contains carbon monoxide (CO)
which cannot be seen or smelled. It can cause
unconsciousness and even death.
If the vehicle is stuck in the snow: .
Clear away snow from around the base of
your vehicle, especially any that is blocking
the exhaust pipe. .
Check again from time to time to be sure
snow does not collect there. .
Open a window about 5 cm (two inches) on
the side of the vehicle that is away from the
wind to bring in fresh air. .
Fully open the air outlets on or under the
instrument panel. .
Adjust the Climate Control system to a setting
that circulates the air inside the vehicle and
set the fan speed to the highest setting. See
Climate Control System in the Index.
(Continued)WARNING: (Continued) For more information about carbon monoxide, see
Engine Exhaust on page 3 ‑ 41 .
Snow can trap exhaust gases under your vehicle.
This can cause deadly CO (carbon monoxide) gas
to get inside. CO could overcome you and kill you.
You cannot see it or smell it, so you might not
know it is in your vehicle. Clear away snow from
around the base of your vehicle, especially any
that is blocking the exhaust.
Run the engine for short periods only as needed to
keep warm, but be careful.
To save fuel, run the engine for only short periods as
needed to warm the vehicle and then shut the engine
off and close the window most of the way to save heat.
Repeat this until help arrives but only when you feel
really uncomfortable from the cold. Moving about to
keep warm also helps.
If it takes some time for help to arrive, now and then
when you run the engine, push the accelerator pedal
slightly so the engine runs faster than the idle speed.
This keeps the battery charged to restart the vehicle
and to signal for help with the headlamps. Do this as
little as possible to save fuel.
6-29

Black plate (30,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
If Your Vehicle is Stuck in Sand,
Mud, Ice, or Snow Slowly and cautiously spin the wheels to free the
vehicle when stuck in sand, mud, ice, or snow. See
Rocking Your Vehicle to Get It Out on page 6 ‑ 30 .
If the vehicle has a traction system, it can often help to
free a stuck vehicle. Refer to the vehicle's traction
system in the Index. If stuck too severely for the traction
system to free the vehicle, turn the traction system off
and use the rocking method.
{ WARNING: If the vehicle's tires spin at high speed, they can
explode, and you or others could be injured.
The vehicle can overheat, causing an engine
compartment fire or other damage. Spin the
wheels as little as possible and avoid going above
55 km/h (35 mph) as shown on the speedometer.
For information about using tire chains on the vehicle,
see Tire Chains on page 7 ‑ 78 . Rocking Your Vehicle to Get It Out Turn the steering wheel left and right to clear the area
around the front wheels. Turn off any traction or stability
system. Shift back and forth between R (Reverse) and a
forward gear, spinning the wheels as little as possible.
To prevent transmission wear, wait until the wheels stop
spinning before shifting gears. Release the accelerator
pedal while shifting, and press lightly on the accelerator
pedal when the transmission is in gear. Slowly spinning
the wheels in the forward and reverse directions causes
a rocking motion that could free the vehicle. If that does
not get the vehicle out after a few tries, it might need to
be towed out. Recovery hooks can be used, if the
vehicle has them. If the vehicle does need to be towed
out, see Towing Your Vehicle on page 6 ‑ 38 .
6-30

Black plate (31,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010

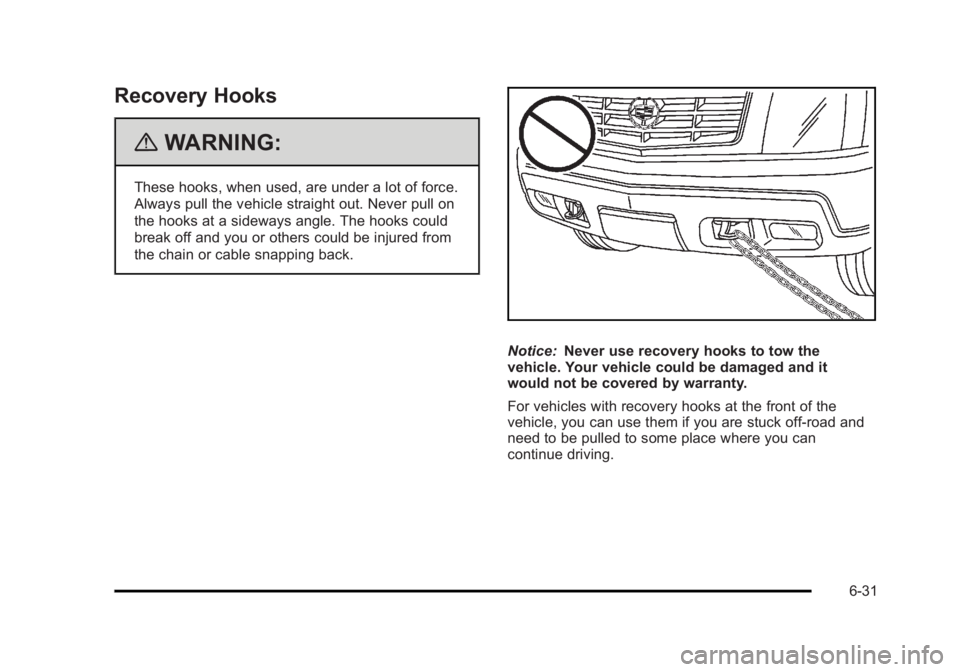

Recovery Hooks
{ WARNING: These hooks, when used, are under a lot of force.
Always pull the vehicle straight out. Never pull on
the hooks at a sideways angle. The hooks could
break off and you or others could be injured from
the chain or cable snapping back.
Notice: Never use recovery hooks to tow the
vehicle. Your vehicle could be damaged and it
would not be covered by warranty.
For vehicles with recovery hooks at the front of the
vehicle, you can use them if you are stuck off-road and
need to be pulled to some place where you can
continue driving.
6-31

Black plate (32,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Loading the Vehicle It is very important to know how much weight your
vehicle can carry. This weight is called the vehicle
capacity weight and includes the weight of all
occupants, cargo, and all nonfactory-installed
options. Two labels on your vehicle show how
much weight it was designed to carry, the Tire and
Loading Information label and the Certification/Tire
label.
{ WARNING: Do not load the vehicle any heavier than the
Gross Vehicle Weight Rating (GVWR),
or either the maximum front or rear Gross
Axle Weight Rating (GAWR). If you do, parts
on the vehicle can break, and it can change
the way the vehicle handles. These could
cause you to lose control and crash. Also,
overloading can shorten the life of the
vehicle. Tire and Loading Information Label
Label Example
A vehicle specific Tire and Loading Information
label is attached to the center pillar (B-pillar).
With the driver's door open, you will find the label
attached below the door lock post (striker).
The tire and loading information label shows the
number of occupant seating positions (A), and the
maximum vehicle capacity weight (B) in kilograms
and pounds.
6-32
