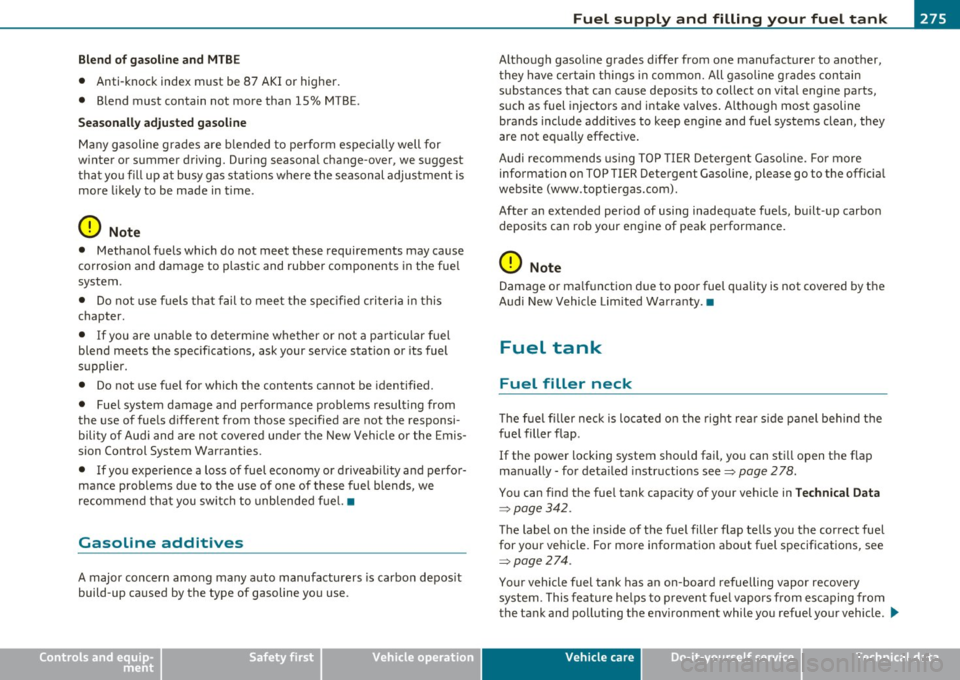

Fuel supply and filling your fuel tank Ill --------------'--':.......::-----=--=--------
Blend of gasoline and MTBE
• Anti-knock index must be 87 AKI or higher.
• Blend must contain not more than 15% MTBE.
Seasonally adjusted gasoline
Many gasoline grades are blended to perform especially well for
winter or summer driving. During seasonal change-over, we suggest
that you fill up at busy gas stations where the seasonal adjustment is
more likely to be made in time.
0 Note
• Methanol fuels which do not meet these requirements may cause
corros ion and damage to plastic and rubber components in the fue l
system .
• Do not use fuels that fail to meet the specified criteria in this
chapter.
• If you are unab le to determine whether or not a particu lar fuel
blend meets the specifications, ask your service station or its fuel
s u pplier.
• Do not use fue l for which the contents cannot be identified.
• Fuel system damage and performance problems resulting from
the use of fuels different from those specified are not the responsi ­
bility of Audi and are not covered under the New Vehicle or the Emis­
sion Control System Warranties.
• If you experience a loss of fuel economy or driveability and perfor­
mance problems due to the use of one of these fuel blends, we
recommend that you switch to unblended f uel. •
Gasoline additives
A major concern among many auto manufacturers is carbon depos it
build -up caused by the type of gasoline you use.
Safety first
Although gasoline grades differ from one manufacturer to another,
t hey have certain things in common. All gasoline grades contain
substances that can cause depos its to collect on v ital engi ne parts,
such as fuel injectors and intake valves. Although most gasoline
brands include additives to keep engine and fuel systems clean, they
are not equally effective .
Audi recommends using TOP TIER Detergent Gasoline. For more
information on TOP TIER Detergent Gasoline, please go to the officia l
webs ite (www.toptiergas.com).
After an extended per iod of using inadequate fuels, built-up carbon
deposits can rob your engine of peak performance .
0 Note
Damage or malfunction due to poor fuel quality is not covered by the
Audi New Vehicle Limited Warranty. •
Fuel tank
Fuel filler neck
The fue l filler neck is located on the right rear side panel behind the
fue l filler flap .
If the power locking system should fai l, you can sti ll open the flap
ma nually- for detailed instructions see:::::>
page 278.
You can find the fuel tank capacity of your vehicle in Technical Data
:::::, page 342.
The label on the inside of the fuel filler flap tells you the correct fuel
for your vehicle. For more information about fuel specifications, see
:::::>
page 2 7 4 .
Your vehicle fuel tank has an on -board refuelling vapor recovery
system. This feature helps to prevent fuel vapors from escaping from
the tank and pollut ing the environment while you refuel your vehicle . .,,_
Vehicle care Technical data

__________________________________ F_ u_ e _ l_s _u ..., P....:- P .... LY =-- a_ n_ d_ f_ i_ l _li _n _,g:...:::; y_o_ u_ r_f_ u _ e_ l_ ta _ n_k __ ,n
To avoid fuel s pillin g or evapo ra ti ng from t he f uel tank a lways clos e
f ue l cap pr oper ly and compl etely.
& WARNING
Improper refueling or handling of fuel can cause fire, explosion
and severe burns.
• Fuel is highly flammable and can cause severe burns and other
injuries.
• Failure to shut the engine off while refueling and/or to insert
the pump nozzle fully into the fuel filler neck could cause fuel to
spray out of filler neck or to overflow. Fuel spray and overflowing
fuel can cause a fire.
• Never use a cellular telephone while refueling. The electromag­
netic radiation can cause sparks that can ignite fuel vapors and
cause a fire.
• Never get back into your vehicle while refueling. If in excep­
tional circumstances you must get back in your vehicle while refu­
eling, make certain that you close the door and touch metal to
discharge static electr icity before touching the filler nozzle again .
Static electricity can cause sparks that can ignite fuel vapors
released during refueling.
• Never smoke o r have an open flame anywhere in or near your
vehicle when refueling or filling a portable fuel container.
• For your safety , we strongly recommend that you do not travel
with a portable fuel container in your vehicle. The container, full or empty may leak and could cause a fire, especially in a crash.
• If, under except ional circumstances, you must transport a
portable fuel container , please obser ve the following:
- Never fill a portable fuel container while it is anywhere in or
on the vehicle (for example, in the luggage compartment, or
on the trunk ). Static electricity can build up while filling and
can ignite fuel vapors causing a fire.
- Always place a portable fuel container on the ground before
filling.
Safety first
& WARNING (co ntinued )
-Alw ays keep the filler nozzle completely inside the portable
container before and during filling.
- If filling a portable container made of metal, the filler nozzle
must always be in contact with the container . Th is will help
prevent static electricity from discharging and cause a fire.
- Never spill fuel inside the veh icle or luggage compartment .
Fuel vapors are highly flammable.
- Always observe local and state/provincial laws regarding the
use, storage and transportation of fuel containers.
- Make certain the fuel containe r meets industry standards
(ANSI/ ASTM F8S2-86).
0 Note
If any f uel has spilled onto the ca r, it should be remove d immed iate ly
to prevent damage to the paint.
As soon as the co rrectly operated nozzle switches off a utomat ica lly
for t he firs t time, the tan k is full. Do no t try to ad d mo re fuel because
fue l may spill ou t. In addi tion, the ex pansion space in the fuel tank
will be fi lled - causing the fue l to overf low w hen it becomes warm and
poll ute the enviro nmen t.
(I] Tips
• Runn ing your engi ne while re fuelling may c ause vapors to es cape
or even cause f uel to spill out of t he tank. This would then shut off the
fue l no zzle before the tank is full.
• Do not ref ue l your veh icle with t he ignit io n turned on . T he fuel
gauge may o therwise no t ind ica te t he correct f ue l level af ter refuel-
ling . .,_
Vehicle care Technical data

___________________________________________ C_ h _ e_c _k _ i_n -=g .._ a_n _ d_ f_i _ll _i _ n -=g '-- ........
Checking and filling
Engine hood
Releasing the engine hood
The engine hood is released from inside the vehicle.
- Open the driver's door.
Fig. 218 Driver's side
footwell : engine hood
release lever
- Pull the release lever on the left under the instrument
panel ::::, fig . 218 in the direction of the arrow.
The hood pops up slightly under spring pressure. •
Vehicle OP-eration
Opening the engine hood
Fig. 219 Release lever
under the engine hood
Before opening the engine hood, make sure that the wind­
shield wipers are flat against the windshield. Otherwise, they
could damage the paint on the hood.
Pull up on the release under the hood::::, fig. 219 . This
releases the catch.
- Open the hood all the way::::,& .
& WARNING
Hot engine coolant can burn you.
• To reduce the risk of being burned, never open the hood if you
see or hear steam or coolant escaping from the engine compart­
ment. Wait until no steam or coolant can be seen or heard before
carefully opening the hood. •
Vehicle care Do-it-yourselt service iTechnical data

_____________________________________________ C_h _ e_ c_ k_in --= g'-- a_n _d_ f_i _ll _i_n -=g ::;__ ____.1111
& WARNING (co ntinued )
-Alway s use extreme caution to prevent clothing , jewelry , or
long hair from getting caught in the radiator fan, V-belts or
other moving parts, or from contacting hot parts. Tie back hair
before start ing , and do not wear clothing that will hang or
d roop into the engine.
• Minimize expo sure to emis sion and chemical hazards~& .
& WARNING
California Proposition 65 Warning:
• Engine exhaust, some of it s constituents, and certain vehicle
components contain or emit chemicals known to the State of Cali ­
fornia to cause can cer and birth defects and reproductive harm . In
addition, certain fluids contained in vehicles and ce rtain products
of component wear contain or emit chemicals known to the State
of California to cause cancer and birth defects or othe r reproduc­
tive harm.
• Battery posts, terminals and related accessories contain lead
and lead compounds, chemicals known to the State of California
to cause cancer and reproductive harms . Wash hands after
handling.
0 Note
When adding fluids , a lways make sure that they are poured into the
proper co nta iner o r filler opening, otherwise serio us damage to
vehicle systems will occur.
<£> For the sake of the environment
To detect leaks in time, inspect the vehicle floor pan from underneath
reg ula rly . If yo u see spot s from o il or o ther vehicle fluid s, have your
vehicle inspected by an authorized Aud i dea ler. •
Vehicle OP-eration
Engine compartment
These are the most i mportan t it ems that you can check.

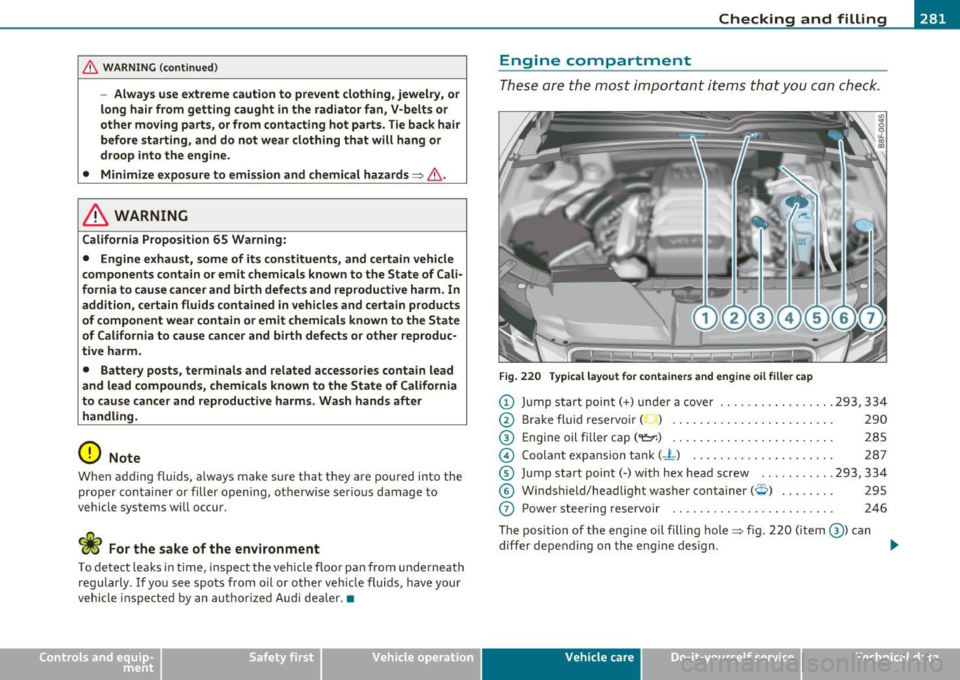

Fig . 220 Typ ical layout for c ontainer s and engine oil filler cap
(D Jump start point( +) under a cover ........ .. .. .. .. . 293, 334
@ Brake fluid reservo ir ( ) . . . . . . . . . . . . . . . . . . . . . . . . 290
@ Engine oil f iller c ap
('1::r. ) . . . . . . . . . . . . . . . . . . . . . . . . 285
© Coolant ex pansion ta nk (-L ) . . . . . . . . . . . . . . . . . . . . . 28 7
© Jump start point( -) w ith he x head screw ..... ... .. . 293 , 33 4
© Winds hield/head light washer container (0 ) . . . . . . . . 295
(j) Power steering reservoir . . . . . . . . . . . . . . . . . . . . . . . . 246
Th e posi tion of the eng ine o il filling hole ~ fig. 220 (i tem @) can
differ depending on the eng ine des ign . ..,.
Vehicle care Do-it-yourselt service iTechnical data

_____________________________________________ C_h_ e_ c_k _in --= g=--- a_n_ d_ f_ i_ll _i_n __.g=-- -•
Changing the engine oil
The engine oil and oil filter must be changed according to the mileage
(kilometers) and time intervals specified in your vehicle's Warranty
&
Maintenance booklet. Do not exceed these intervals -harmful
deposits from old engine oil can reduce engine performance and can
lead to expensive engine repairs.
Changing the oil at the recommended intervals is so very important
because the lubricating properties of oil decrease gradually during
normal vehicle use. If you are not sure when you have your oil
changed, ask your authorized Audi Service Advisor .
Under some circumstances the engine oil should even be changed
more frequently. Change oil more often if you drive mostly short
distances, operate the vehicle in dusty areas or mostly under stop­
and-go traffic conditions, or when you use your vehicle where temper­
atures stay below freezing point for long periods.
Detergent additives in the oil will make fresh oil look dark after the
engine has been running for a short time. This is normal and is not a
reason to change the oil more often than recommended.
Damage or malfunctions due to lack of maintenance
It is essential that you change your oil at the recommended intervals
using only engine oil that complies with Audi oil standard
VW
502 00 . Your Limited New Vehicle Warranty does not cover
damage or malfunctions due to failure to follow recommended main­
tenance and use requirements as set forth in the Audi Owner's
Manual and Warranty
& Maintenance booklet. Your dealer will have
to deny warranty coverage unless you present to the dealer proof in
the form of Service or Repair Orders that all scheduled maintenance
was performed in a timely manner. •
Safety first
Engine oil consumption
The engine in your vehicle depends on an adequate
amount of oil to lubricate and cool all of its moving parts.
In order to provide effective lubrication and cooling of internal
engine components, all internal combustion engines consume a
certain amount of oil. Oil consumption varies from engine to engine
and may change significantly over the life of the engine. Typically,
engines with a specified break-in period (see~
page 250) consume
more oil during the break-in period than they consume after oil
consumption has stabilized.
Under normal conditions, the rate of oil consumption depends on the
quality and viscosity of the oil, the RPM (revolutions per minute) at
which the engine is operated, the ambient temperature and road
conditions. Further factors are the amount of oil dilution from water
condensation or fuel residue and the oxidation level of the oil. As any
engine is subject to wear as mileage builds up, the oil consumption
may increase over time until replacement of worn components may
become necessary.
With all these variables coming into play, no standard rate of oil
consumption can be established or specified. There is no alternative
to regular and frequent checking of the oil level, see
Note.
If the yellow engine oil level warning symbol in the instrument
cluster _ lights up, you should check the oil level as soon as possible
~ page 284. Top off the oil at your earliest convenience~ page 285.
& WARNING
Before you check anything in the engine compartment, always
read and heed all WARNINGS~
& in "Working in the engine
compartment" on page
280.
Vehicle care Technical data

___________________________________________ C_ h _ e_c _k _ i_n -=g ~ a_n _ d_ f_i _ll _i _ n -=g =--- ......J•
Adding engine oil
'e::1.
Fig . 222 En gin e
c om par tm ent: Oil filler
cap lo catio n
Before you c hec k a nythi ng in th e eng ine co mpart ment ,
always read and heed all WARNINGS=> & in "Working in
the e ngi ne compar tmen t" on
page 280.
- Unscr ew the cap~ to the eng in e oil fillin g ho le
=> fig. 222 .
- Care fu lly top of f wi th th e ap pro priate oil i n 0.5 liter doses.
- Screw the cap back o n the fil ling hole a nd close t he eng ine
hood .
- Check t he oi l leve l agai n after two minu tes=>
page 28 4.
- To p off the oil aga in , if nece ssary.
& WARNING
• While topping off, the oil must not come in contact with hot
engine parts -fire hazard!
• The oil filler cap must be properly secured to prevent oil from
being sprayed on the hot engine and exhaust system when the
engine is running -fire hazard!
• If your skin ha s come in contact with the eng ine oil , you must
s ubsequently cleanse it thoroughly .
Vehicle OP-eration
0 Note
• Chec k the oil leve l using t he radio o r the MMI*. If the message
Please reduce oil level appears, contact yo ur authorize d Au di dea ler
or o ther qual ifie d wo rks hop to have ex cess oil ex trac ted if nece ss ar y.
• Audi does not recommend the use of oil additives. They may
damage the engine and adver se ly affect your New Vehicle
Warranty.
<£' For the sake of the environment
• Under no circumstances can the o il come in contact with the
sewage netwo rk o r the soil.
• Observe and fo llow legal reg ulations when dis pos ing of empty oi l
conta iners .•
Changing the eng ine oil
We recommen d th at have your oil chan ged by an autho­
rized Audi dealer or a qualifi ed service stat ion .
Before you check anything in the e ng ine compartment, always read
and heed all WARNINGS~
& in "Wo rking in the eng ine com pa rt ­
me nt" o n
pag e 280.
The eng ine oil must be changed according to the intervals specified in
your Warran ty
& M ain tena nce book let. This is very import ant beca use
the lubricating propert ies of oil d iminish grad ually dur ing norma l
vehicle use .
U nder som e circumstances the eng ine oil s hou ld be chang ed mo re
frequently. C hange o il more often if you drive most ly short dista nces ,
operate the vehicle in dusty a reas o r under p redom inan tly s top-and­
g o traffic conditions, or have your ve hicle where temperatures remain
below freezing for e xtended per iods. .,
Vehicle care Do-it-yourselt service Technical data

___________________________________________ C_ h _ e_c _k _ i_n -=g ~ a_n _ d_ f_i _ll _i _ n -=g =---......J"'
• -31°F(-35°C)USA
• -40°F ( - 40°() Canada .
You can mix the Gl2+ + coolant additive with other additives (G12+ or
G12). Always check with your authorized Aud i dealer.
& WARNING
Before you check anything in the engine compartment, always
read and heed all WARNINGS =>
& in "Work ing in the engine
compartment" on
page 280.
0 Note
• Before winter sets in, have the coolant checked to see if th e
coolant additive in your vehicle is sufficient to meet the climate
conditions . This is especially important if you live in a region where
the winter is extremely cold .
If necessary, increase the proportion of
coola nt additive to 60% .
• When adding coolant additive to your cooling system, remember:
- We recommend using only coolant additive Gl2++ (check the
label) for your vehicle . This coolant additive is available at autho­
r iz ed Audi dealers. Other types of antifreeze can significantly
reduce corrosion protection . The resulting corrosion can cause
a
loss of coolant and serious engine damage.
• Do not add any type of radiator leak sealant to your vehicle's
eng ine coolant . Adding radiator repair fluid may adversely affect the
function and performance of your cooling system and could result in
damage not covered by yo ur New Vehicle Limited Warranty .•
Vehicle OP-eration
Checking the engine coolant level
The engine coolant level can be checked with a quick
glance.
Fig. 223 Engine
compartment: Coolant
expansion tank
Before you check anything in the engine compartment,
always read and heed all WARNINGS ~ & in "Working in
the engine compartment" on
page 280 .
-Turn off the ignition.
- Let the engine cool down .
- Place a thick rag over the coolant expansion tank
~ fi~ . 223 a nd carefully twist the cap counter-clockwise
~& -
- Read the engine coolant level in the open coolant expan­
sion tank~ fig. 223 . With a cold engine, the coolant level
should be between the "min" and "max" markings. When
the engine is warm, the level may be slightly above the
"max" marking .
The location of the coolant expansion tank can be seen in the engine
compartment illustration=>
page 281.
To obtain an accurate reading, the engine must be switched off. ~
Vehicle care Do-it-yourselt service iTechnical data

___________________________________________ C_ h_e _c _k_ i_n ~g_ a_n_ d_ f_ i_ll _i_n _g __ _
& WARNING (co ntinued )
-Protect your face , hand s and arms from e scaping fluid and
steam by covering the cap with a large, thick rag.
- Tu rn the cap slowl y and very carefully in a counter-clockwi se
direction wh ile applying light, downward pre ssure on the top
of the cap .
- To avoid be ing burned , do not spill antifreeze or coolant on
the exhau st sy stem or hot engine parts . Under certain condi­
tions, the ethylene glycol in eng ine coolant can catch fire .
• Antifreeze i s poi sonou s. Alway s store antifreeze in it s original
container and well out of the reach of children.
• If you drain the coolant, it must be caught and saf ely stored in
a proper container clearly marked "poison ".
0 Note
• Coolant pollutes t he environment and could cause an engine fire.
E xcess coo lan t w ill be forced o ut through the pressure rel ie f va lve in
t he cap when the engine becomes hot .
• If, in an eme rgency, o nly w ate r can be ad ded , the co rrec t rat io
between water and antifreeze::::;,
page 286 must be restored as soon
as possi ble.
~ For the sake of the environment
Dr ained coolant sho uld no t be reused. A lways dispose of used coo lan t
wh ile observ ing all environmental regula tions. •
Radiator fan
The radiator fan switches on autom atically by itself.
Th e radiator fa n is d rive n by the engine via t he V-bel t. The v iscous
cl utch reg ulates t he spee d of the fan accord ing to the tem perature of
t he coolan t.
Safety first
An auxiliary e lectric rad iator fa n* switches o n and off depending on
co olan t tempe rature and ot her vehicle ope rating condi tions.
After you sw itch the engine off, the aux iliary fan can continue running
for up to 10 m inutes -even with the ignition
off. It can even switch on
again la ter by itself ::::;, & , if
• the temperature of the eng ine coolant rises due to the heat build­
up from the eng ine in the engi ne comp artment, o r
• the engine compartment heats up because the veh icle is parked in
in tense s unlight.
LJ}. WARNING
• To reduc e the risk of personal injury never touch the radiator
fan .
• The auxiliary electric fan is temperature controlled and can
switch on suddenly even when the engine is not running .
• The auxiliary radiator fan sw itches on automat ically when the
engine coolant rea ches a certain temperature and will continue to
run until the coolant temperature drops .•
Vehicle care Technical data
