2010 Acura RL Owner's Manual

Af ter selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers f or CHildren) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
Af ter installing a child
seat, push and pull the seat
f orward and f rom side-to-side to
verify that it is secure.
A child seat secured with a seat belt
should be installed as f irmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side movement can be expected and
should not reduce the child seat’s
ef f ectiveness.
If the child seat is not secure, try
installing it in a dif f erent seating
position, or use a dif f erent style of
child seat that can be f irmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
canbeseriouslyinjuredinacrash.
The f ollowing pages provide
guidelines on how to properly install
a child seat. A f orward-f acing child
seat is used in all examples, but the
instructions are the same f or rear-
f acing child seats.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Bef ore purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specif ic
vehicle seating position or positions
where the seat will be used.
Look f or FMVSS 213 or CMVSS
213 on the box.
Rear-facing for infants, forward-
f acing f or small children.
Selecting a Child Seat, Installing a Child Seat
Installing a Child Seat
Properly secure t he child seat t o
the vehicle.
Make sure t he child seat is f irmlysecured. Secure the child in the child seat.
T he child seat should meet
Federal Mot or Vehicle Saf et ySt andard 213 or Canadian Mot orVehicle Saf et y St andard 213.
T he child seat should be of theproper type and size to f it the child.
T he child seat should f it thevehicle seat ing posit ion (orposit ions) where it will be used.
1.
2.3. 1.
2. 3.
46
——y

y
(y
y
2010 RL

CONT INUED
To install a LATCH-compatible child
seat:Move the seat belt buckle or
tongue away f rom the lower
anchors.
Your vehicle is equipped with
LATCH (Lower Anchors and
Tethers for CHildren) at the outer
rear seats.
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors.Push the rear head restraint tilt
button on the ceiling console to
pivot the head restraints down.
The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed f or use with
LATCH.

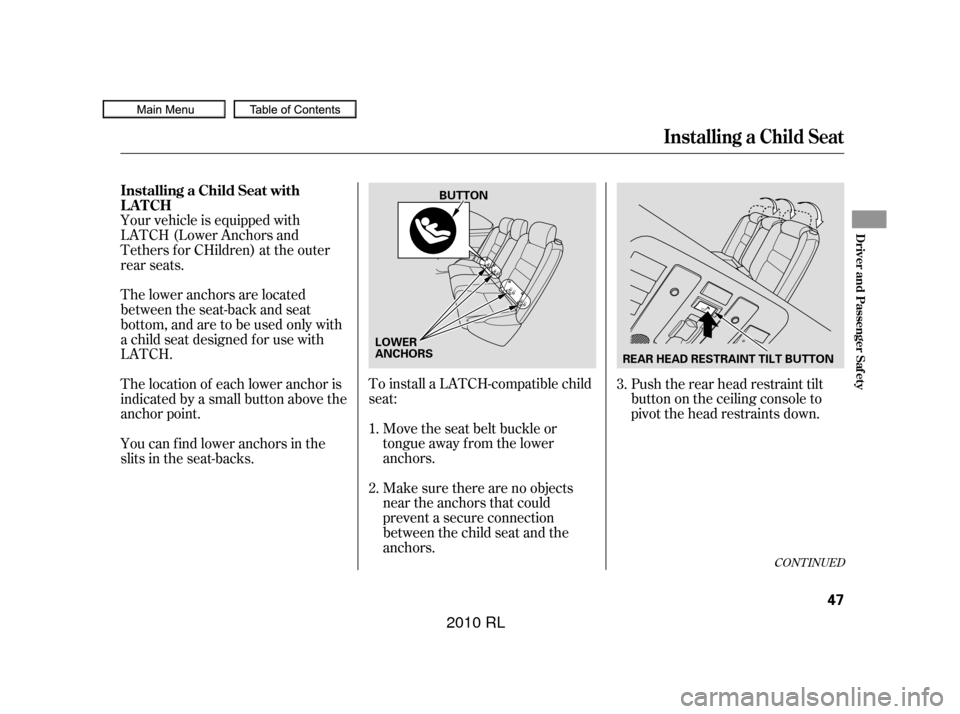

The location of each lower anchor is
indicated by a small button above the
anchor point.
You can f ind lower anchors in the
slits in the seat-backs.
1.
2.3.
Installing a Child Seat
Installing a Child Seat with
LATCH
Driver and Passenger Saf ety
47
LOWER
ANCHORS
REAR HEAD RESTRAINT TILT BUTTON
BUTTON
——y

y
(yy
2010 RL

Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.

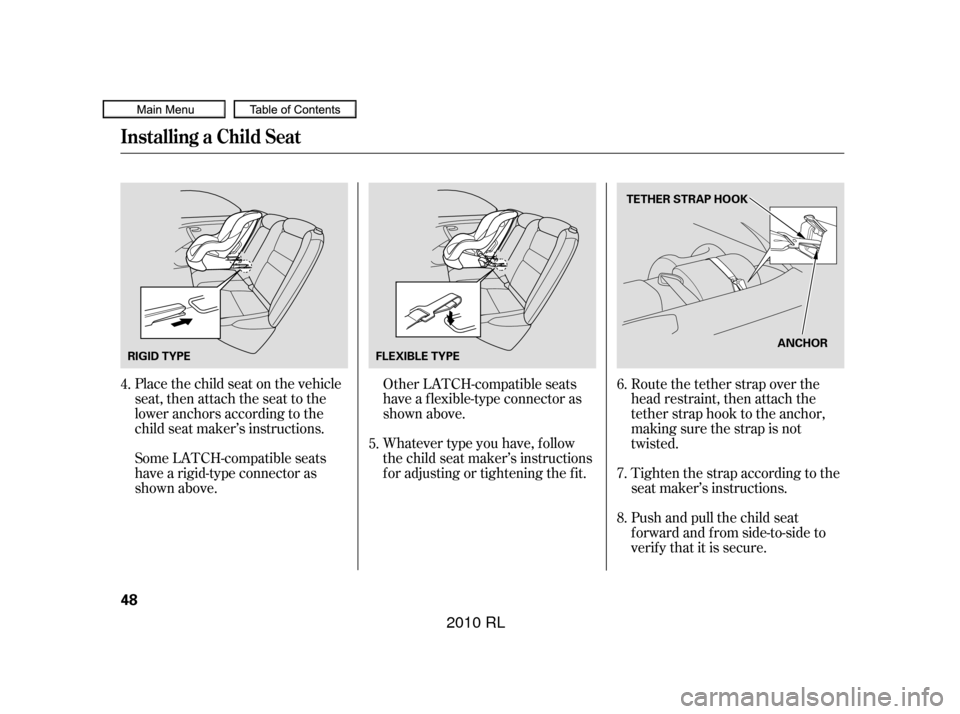

Some LATCH-compatible seats
have a rigid-type connector as
shown above.Other LATCH-compatible seats
have a f lexible-type connector as
shown above.
Whatever type you have, f ollow
the child seat maker’s instructions
f or adjusting or tightening the f it.
Route the tether strap over the
head restraint, then attach the
tether strap hook to the anchor,
making sure the strap is not
twisted.
Tighten the strap according to the
seat maker’s instructions.
Pushandpullthechildseat
f orward and f rom side-to-side to
verify that it is secure.
4.
5.6.
7.
8.
Installing a Child Seat
48
RIGID TYPE
FLEXIBLE TYPE TETHER STRAP HOOK
ANCHOR
——y
y
(yy
2010 RL

CONT INUED
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/

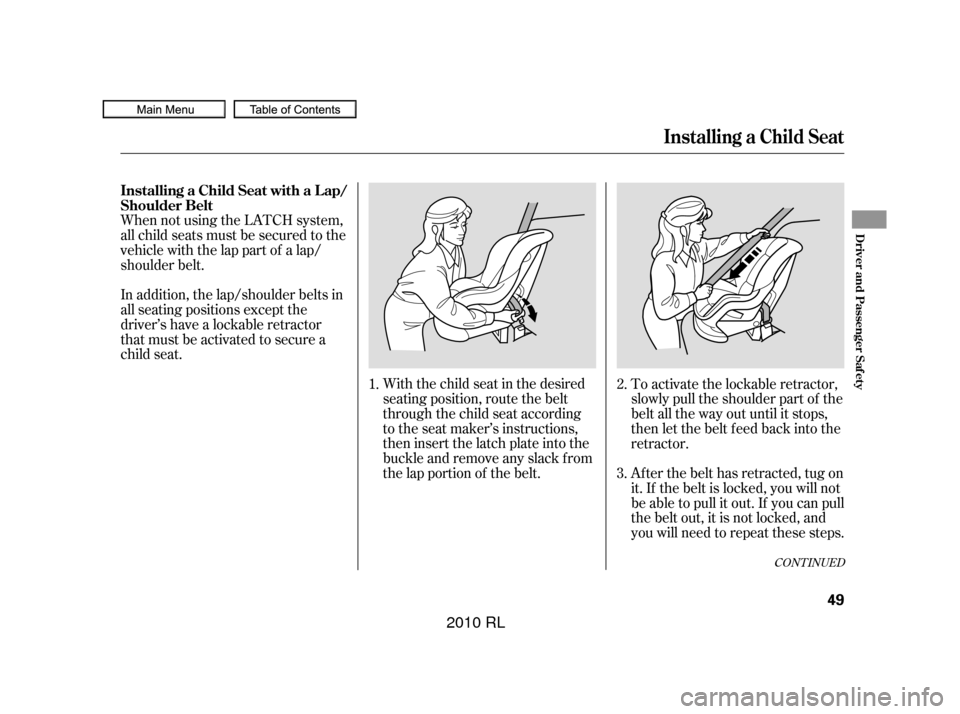

shoulder belt.With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle and remove any slack f rom
the lap portion of the belt.To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
Af ter the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
1.2.
3.
Installing a Child Seat
Installing a Child Seat with a L ap/
Shoulder Belt
Driver and Passenger Saf ety
49
——y
y
(yy
2010 RL

To deactivate the lockable retractor
andremoveachildseat,unlatchthe
buckle, unroute the seat belt, and let
the belt fully retract.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract f ully, then repeat these
steps.

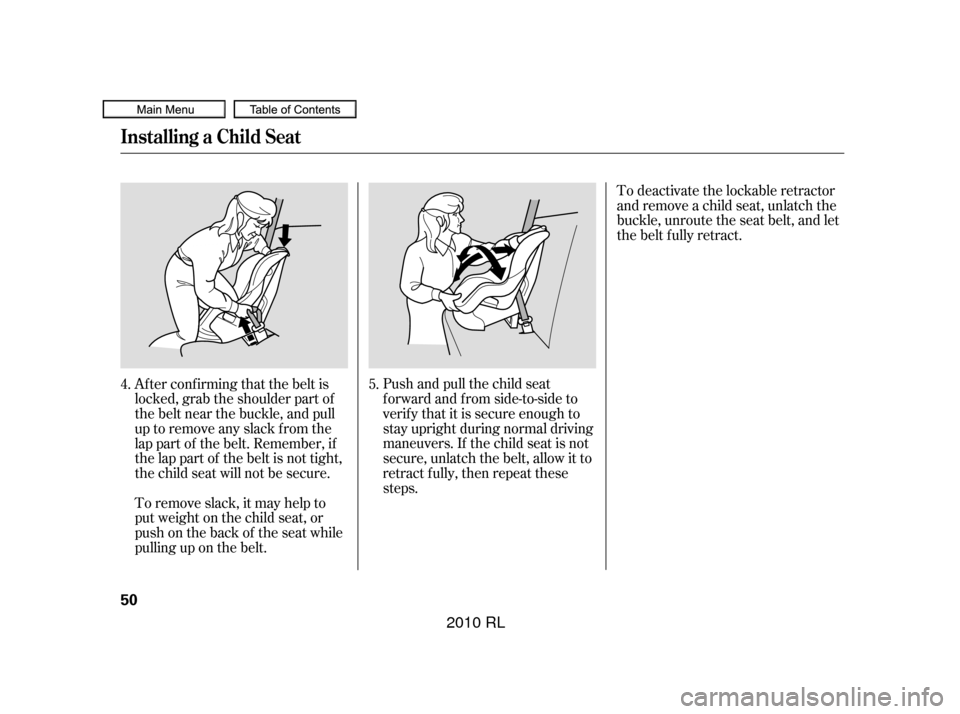

Af ter conf irming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt. 5.
4.
Installing a Child Seat
50
——y
y
(yy
2010 RL

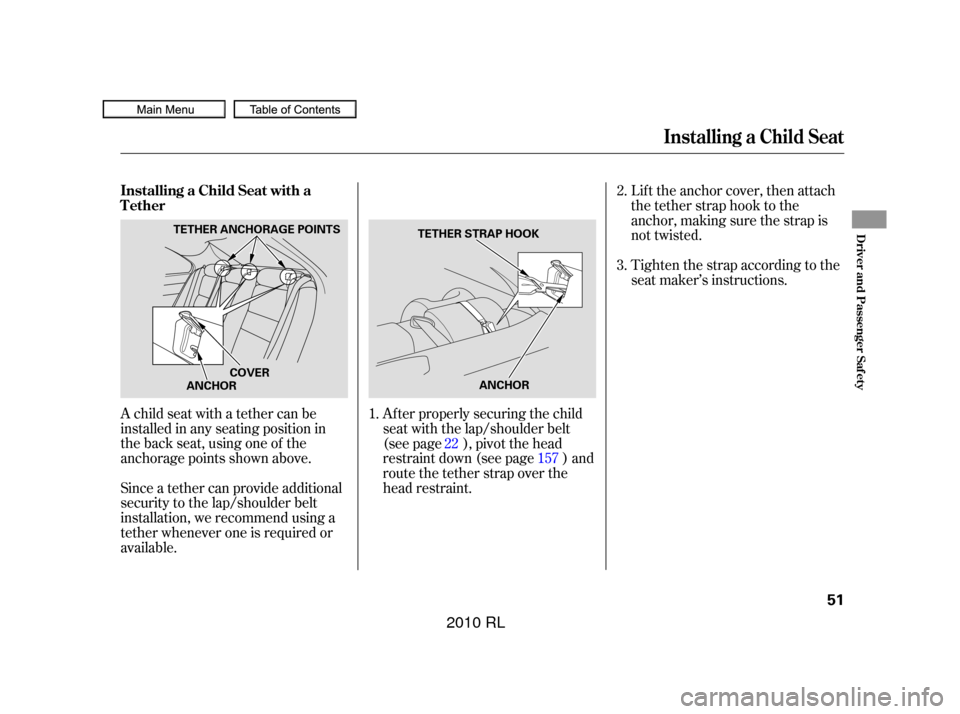

A child seat with a tether can be
installed in any seating position in
the back seat, using one of the
anchorage points shown above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.Lift the anchor cover, then attach
the tether strap hook to the
anchor, making sure the strap is
not twisted.
Tighten the strap according to the
seat maker’s instructions.
Af ter properly securing the child
seat with the lap/shoulder belt
(see page ), pivot the head
restraint down (see page ) and
route the tether strap over the
head restraint.
1. 2.
3.
22 157
Installing a Child Seat
Installing a Child Seat with a
Tether
Driver and Passenger Saf ety
51
COVER
ANCHOR
TETHER ANCHORAGE P
OINTS
TETHER STRAP HOOK
ANCHOR
——y


y
(yy
2010 RL

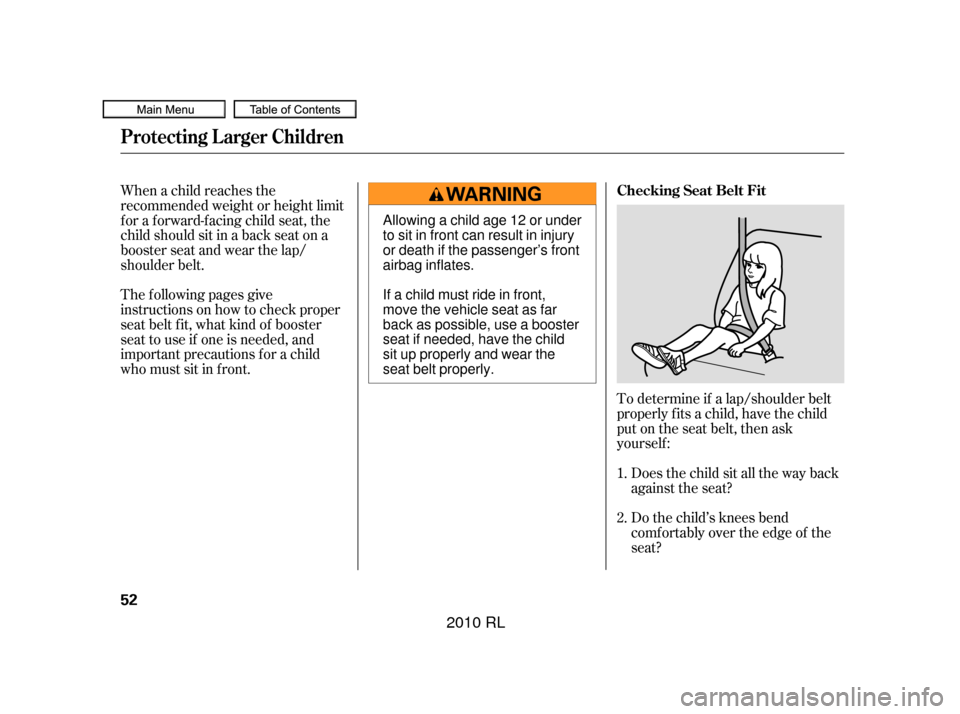

To determine if a lap/shoulder belt
properly f its a child, have the child
put on the seat belt, then ask
yourself :Does the child sit all the way back
against the seat?
Do the child’s knees bend
comf ortably over the edge of the
seat?
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear the lap/
shoulder belt.
The f ollowing pages give
instructions on how to check proper
seat belt f it, what kind of booster
seat to use if one is needed, and
important precautions f or a child
who must sit in f ront.
1.
2. Checking Seat Belt Fit
Protecting L arger Children
52
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
——y

y
(yy
2010 RL

Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the

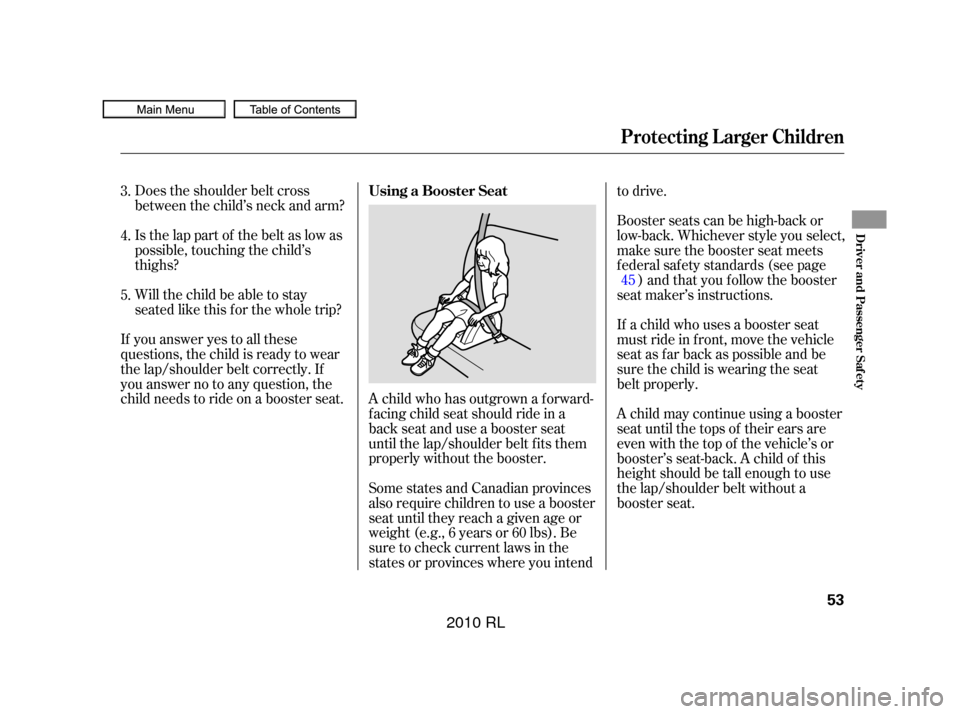

child needs to ride on a booster seat. A child who has outgrown a f orward- f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.If a child who uses a booster seat
must ride in f ront, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat
belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions.
3.
4.
5.
45
Using a Booster Seat
Protecting L arger Children
Driver and Passenger Saf ety
53
——y
y
(yy
2010 RL
