Your vehicle has several identifying
numbers located in various places.
The vehicle identification number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
for warranty purposes. It is also
necessary for licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
see it by looking through the
windshield on the driver's side. It is
also on the certification label
attached to the driver's doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certification label.
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
Identification Numbers47809/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

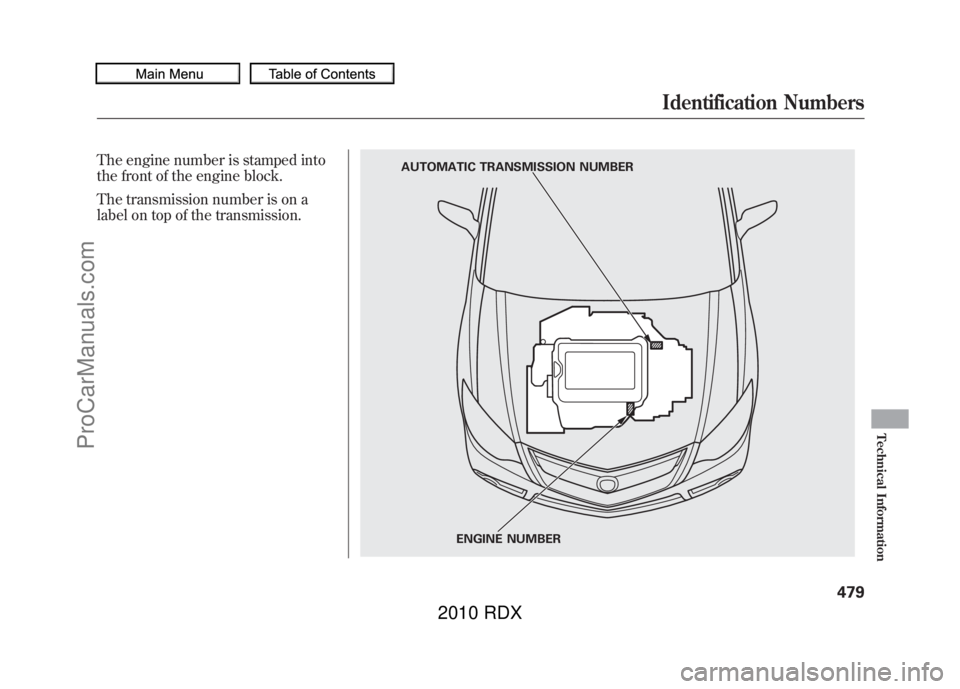

The engine number is stamped into
the front of the engine block.
The transmission number is on a
label on top of the transmission.
AUTOMATIC TRANSMISSION NUMBERENGINE NUMBER
Identification Numbers
479
Technical Information
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

DimensionsLength182.5 in (4,635 mm)
Width 73.6 in (1,870 mm)
Height 65.2 in (1,655 mm)
Wheelbase 104.3 in (2,650 mm)
Track Front 61.9 in (1,572 mm)
Rear 62.6 in (1,590 mm)WeightsGross vehicle weight rating See the certification label attached to
the driver's doorjamb.EngineType Water cooled 4-stroke DOHC i-VTEC
4 cylinder gasoline engine with turbo charger, intercooler
Bore x Stroke 3.39 x 3.90 in (86.0 x 99.0 mm)
Displacement 140.3 cu-in (2,300 cm
3)
Compression ratio 8.8
Spark plugs SILKR8A-S (NGK)
Seating CapacitiesTotal 5
Front 2
Rear 3
CapacitiesFuel tankApprox.
18.0 US gal (68 L)
Engine oil Change
ꭧ 1
Including
filter 5.0 US qt (4.7 L)
Without filter 4.8 US qt (4.5 L)
Total 6.1 US qt (5.8 L)
Engine coolant Change
ꭧ 2
1.85 US gal (7.0 L)
Total 2.22 US gal (8.4 L)
Automatic
transmission fluid Change
2WD 3.0 US qt (2.8 L)
4WD 3.1 US qt (2.9 L)
Total 2WD 8.8 US qt (8.3 L)
4WD 8.2 US qt (7.8 L)
Rear differential
fluid (4WD) Change
2.67 US qt (2.53 L)
Total 2.93 US qt (2.77 L)
Transfer assembly
fluid (4WD) Change
0.45 US qt (0.43 L)
Total 0.48 US qt (0.45 L)
Windshield
washer reservoir U.S. Vehicles 2.6 US qt (2.5 L)
Canada
Vehicles 4.8 US qt (4.5 L)
ꭧ1: Excluding the oil remaining in the engine
ꭧ2: Including the coolant in the reserve tank and that remaining in the engine Reserve tank capacity:
0.18 US gal (0.7 L)
Specifications48009/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

LightsHeadlights High12 V－60 W (HB3)
Low
ꭧ
12 V －35 W (D2S)
Front turn signal/parking lights 12 V －24/2.2 CP (Amber)
Front fog lights 12 V－55 W (H11)
Front side marker lights 12 V －3CP
Rear turn signal lights 12 V－21 W
Brake/Taillights (in fenders) 12 V －21/5 W
Taillights (in tailgate) 12 V－3CP
Back-up lights 12 V－21 W
Rear side marker lights 12 V－2CP
License plate lights 12 V－3CP
High-mount brake light 12 V－16 W
Front ceiling lights/Spotlights 12 V －4CP
Rear ceiling light 12 V－8W
Glove box light 14 V－1.4 W
Console compartment light 14 V －1.4 W
Vanity mirror lights 12 V－2W
Door courtesy lights 12 V－2CP
Cargo area light 12 V－5W
ꭧ : The low beam headlights are high voltage discharged type.
Replacement of a low beam headlight bulb should be performed by
your dealer.
Air ConditioningRefrigerant type HFC-134a (R-134a)
Charge quantity 15.9－17.6 oz (450 －500 g)
Lubricant type SP-10BatteryCapacity12 V－52 AH/5 HR
12 V －65 AH/20 HRFusesInterior See page473or the fuse label
attached to the dashboard.
Under-hood See page474or the fuse box
covers.AlignmentToe-in Front 0.0 in (0 mm)
Rear 0.10 in (2.5 mm)
Camber Front 0 ° 10’
Rear －1°
Caster Front 2 ° 57’TiresSize Front/Rear P235/55R18 99V
Spare T165/80D17 104M
Pressure Front/Rear 32 psi (220 kPa , 2.2 kgf/cm
2)
Spare 60 psi (420 kPa , 4.2 kgf/cm2)
Specifications
481
Technical Information
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

The tires on your vehicle meet all U.
S. Federal Safety Requirements. All
tires are also graded for treadwear,
traction, and temperature
performance according to
Department of Transportation (DOT)
standards. The following explains
these gradings.
Uniform Tire Quality Grading
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades. Treadwear
The treadwear grade is a
comparative rating based on the wear
rate of the tire when tested under
controlled conditions on a specified
government test course. For
example, a tire graded 150 would
wear one and one-half (1 1/2) times
as well on the government course as
a tire graded 100. The relative
performance of tires depends upon
the actual conditions of their use,
however, and may depart
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.
Traction
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction
performance.
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.DOT Tire Quality Grading (U.S. Vehicles)48209/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Temperature
The temperature grades are A (the
highest), B, and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.
DOT Tire Quality Grading (U.S. Vehicles)
483
Technical Information
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Tire SizeWhenever tires are replaced, they
should be replaced with tires of the
same size. Below is an example of
tire size with an explanation of what
each component means.P235/55R18 99V
P －Vehicle type (P indicates
passenger vehicle).
235 －Tire width in millimeters.
55 －Aspect ratio (the tire's
section height as a
percentage of its width).
R －Tire construction code (R
indicates radial).
18 －Rim diameter in inches.
99 －Load index (a numerical
code associated with the
maximum load the tire can
carry).
V －Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identification Number (TIN)The tire identification number (TIN)
is a group of numbers and letters that
look like the following example. TIN
is located on the sidewall of the tire.
DOT B97R FW6X 2202
DOT －This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
B97R －Manufacturer's
identification mark.
FW6X －Tire type code.
TIRE LABELING EXAMPLE
(1)
(1)
(2)
(3)
(4)
(1) Tire Size
(2) Tire Identification Number (TIN)
(3) Maximum Tire Pressure
(4) Maximum Tire Load
2202 －
year
week Date of manufacture.
Tire Labeling48409/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
