The vehicle's fuses are contained in
three fuse boxes.
The interior fuse box is on the
driver's lower left side.
The primary under-hood fuse box is
in the engine compartment on the
driver's side. To open it, push the
tabs as shown.
The secondary under-hood fuse box
is next to the battery. To open it,
push the tabs as shown.
INTERIORFUSE
LABEL
UNDER-HOOD (PRIMARY) TAB
UNDER-HOOD (SECONDARY)
TAB
CONTINUED
Fuses
469
Taking Care of the Unexpected
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Checking and Replacing Fuses
If something electrical in your
vehicle stops working, the first thing
you should check for is a blown fuse.
Determine from the chart on pages
473and 474, or the diagram on the
fuse box lid, which fuse or fuses
control that device. Check those
fuses first, but check all the fuses
before deciding that a blown fuse is
the cause. Replace any blown fuses,
and check if the device works.
1. Turn the ignition switch to the LOCK (0) position. Make sure the
headlights and all other
accessories are off.
2. (Under-hood fuse boxes) Remove the cover from the fuse
box.
3. Check each of the large fuses inthe under-hood fuse box by
looking through the side window
at the wire inside. Remove the
screws with a Phillips-head
screwdriver.FUSE BLOWN
BLOWN
Fuses47009/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

4. Check the smaller fuses in theunder-hood fuse box and all the
fuses in the interior fuse box by
pulling out each one with the fuse
puller provided on the back of the
primary under-hood fuse box
cover.
5. Look for a blown wire inside thefuse. If it is blown, replace it with
one of the spare fuses of the same
rating or lower. The spare fuses
are provided on the back of the
under-hood fuse cover. If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sure you can do without that circuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate that anything is wrong.
Replace the fuse with one of the
correct rating as soon as you can.
FUSE PULLER
BLOWN
CONTINUED
Fuses
471
Taking Care of the Unexpected
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Replacing a fuse with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement fuse with the proper rating
for the circuit, install one with a lower
rating.6. If the replacement fuse of the same
rating blows in a short time, there
is probably a serious electrical
problem in your vehicle. Leave the
blown fuse in that circuit and have
your vehicle checked by a
qualified technician.
On models without navigation systemWhen the audio system is disabled,
the clock setting in the audio system
will be canceled. You will need to
reset the clock (see page 293).
On models with navigation systemIf the navigation system fuse is
removed, the navigation system will
disable itself. The next time you turn
on the ignition switch, the system
will require you to enter a PIN before
it can be used. Refer to the
navigation system manual.
Fuses47209/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

INTERIOR FUSE BOXNo. Amps.Circuits Protected1 7.5 A Power Window / SH-AWD
ꬕ
2 20 A Fuel Pump
3 15 A ACG
4 7.5 A ABS/VSA
5 15 A Heated Seat
6 20 A FR Fog Lights
7 7.5 A Driver's Power Seat Lumbar Support
8 10A RR Wiper
No. Amps. Circuits Protected9 7.5 A OPDS
10 7.5 A Meter
11 10 A SRS
12 10 A Right Headlight High
13 10 A Left Headlight High
14 7.5 A Small Lights (Interior)
15 15 A Small Lights (Exterior)
16 15 A Right Headlight Low
17 15 A Left Headlight Low
No. Amps. Circuits Protected18 20 A Headlight High Main
19 20 A Small Lights Main
20 7.5 A TPMS
21 30 A Headlight Low Main
22
－ Not Used
23 7.5 A Starter Diagnosis
24 20 A Moonroof
25 20 A Door Lock
26 20 A Driver's Power Window
27 － Not Used
28 15 A Accessory Socket (Console Compartment)
29 15 A Accessory Socket (Front)
30 20 A Passenger's Power Window
31 20 A Radio Amplifier
32 20 A Right Rear Power Window
33 20 A Left Rear Power Window
34 － Not Used
35 7.5 A Radio
36 10 A HAC
37 7.5 A Daytime Running Light
38 30 A FR Wiper
39 7.5 A STS
ꭧ : SH-AWD models only
CONTINUED
Fuse Locations
473
Taking Care of the Unexpected
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

UNDER-HOOD FUSE BOXES PRIMARYSECONDARY
Primary Fuse BoxNo. Amps. Circuits Protected1 100 A Main Fuse
30 A SH-AWD ꬕ
2 80 A Option Main 50 A Ignition Switch Main
3 40 A ABS/VSA Motor 20 A ABS/VSA Fail Safe
4 50 A Headlight Main 40 A Power Window Main
5 30 A Passenger's Power Seat Reclining
6 30 A Main Fan Motor
7 30A Sub Fan Motor
8 30A Rear Defogger
9 40A Blower
10 15A HazardSecondary Fuse Box
No. Amps. Circuits Protected1 7.5 A Electric Vacuum Pump
2 20A Passenger's Power seat
Reclining
No. Amps. Circuits Protected11 15 A LAF
12 15 A Stop & Horn
13 20 A Driver's Power Seat Reclining
14 20 A Driver's Power Seat Sliding
15 7.5 A IGPS Oil Level
16 20 A Passenger's Power Seat Sliding
17 15 A Electric Vacuum Pump
18 15 A IG Coil
19 15 A FI Main
20 7.5 A MG Clutch
21 15 A DBW
22 7.5 A Interior Light
23 10 A Back Up
ꭧ : On SH-AWD models only
Fuse Locations47409/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

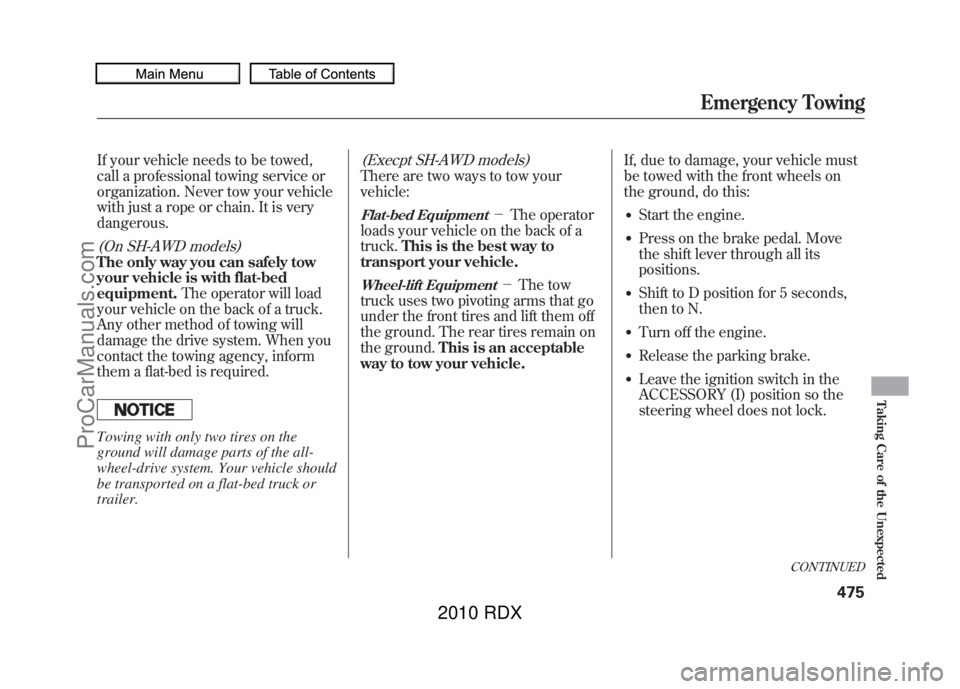

If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.(On SH-AWD models)The only way you can safely tow
your vehicle is with flat-bed
equipment.The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inform
them a flat-bed is required.Towing with only two tires on the
ground will damage parts of the all-
wheel-drive system. Your vehicle should
be transported on a flat-bed truck or
trailer.
(Execpt SH-AWD models)There are two ways to tow your
vehicle:Flat-bed Equipment
－ The operator
loads your vehicle on the back of a
truck. This is the best way to
transport your vehicle.
Wheel-lift Equipment
－ The tow
truck uses two pivoting arms that go
under the front tires and lift them off
the ground. The rear tires remain on
the ground. This is an acceptable
way to tow your vehicle. If, due to damage, your vehicle must
be towed with the front wheels on
the ground, do this:
●Start the engine.●Press on the brake pedal. Move
the shift lever through all its
positions.●Shift to D position for 5 seconds,
then to N.●Turn off the engine.●Release the parking brake.●Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
CONTINUED
Emergency Towing
475
Taking Care of the Unexpected
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

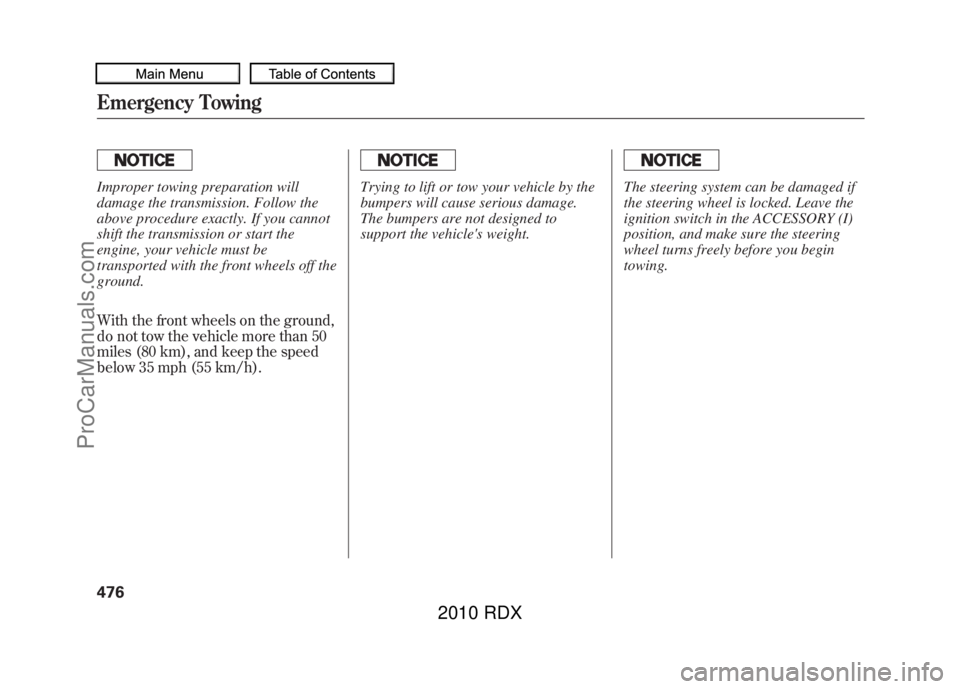

Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shift the transmission or start the
engine, your vehicle must be
transported with the front wheels off the
ground.
With the front wheels on the ground,
do not tow the vehicle more than 50
miles (80 km), and keep the speed
below 35 mph (55 km/h).
Trying to lift or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle's weight.
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns freely before you begin
towing.
