2010 ACURA RDX Owners Manual

DEFAULT ALLTo enter the customizing mode,
press and hold the INFO (
/
)
button for more than 3 seconds.
If you want to set the default settings,
press the INFO (
/
) button to
select DEFAULT ALL, then press the
SEL/RESET button.
To set the default settings, press the
INFO (
/
) button to select SET
then press the SEL/RESET button.
When DEFAULT ALL is set, you will
see the above display for several
seconds, then the screen returns to
CUSTOMIZE ENTRY.
CONTINUED
Multi-Information Display
85
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

If DEFAULT ALL is not set, you will
see the above display for several
seconds, then the screen goes back
to CUSTOMIZE ENTRY. Repeat the
procedure to select DEFAULT ALL.
If you want to cancel DEFAULT ALL,
select EXIT, then press the SEL/
RESET button. The screen goes back
to CUSTOMIZE ENTRY.Change Settings
You can customize some of the
vehicle control settings to your
preference. Here are the settings you
can customize:
●METER SETUP●LIGHTING SETUP●DOOR SETUP
While CHG SETTING in the
CUSTOMIZE ENTRY is shown on
the multi-information display, press
the SEL/RESET button. The screen
changes to METER SETUP in the
CUSTOMIZE GROUP.
Each time you press the INFO (
/
) button, the screen changes as
shown on the next page. Press the
INFO (
/
) button, until you see
the setup you want to customize,
then press the SEL/RESET button to
enter your selection.
Multi-Information Display8609/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

: Press and hold the
: Press the SEL/RESET
: Press the INFO (▲/▼ ) See page
88
See page 97
See page 102
INFO (
▲/▼ ) button
(3 seconds)
button or the select/
reset knob
button or rotate the
select/reset knob
CONTINUED
Multi-Information Display
87
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Meter Setup
Here are the four custom settings for
the meter setup:●LANGUAGE SELECTION●ADJUST OUTSIDE TEMP.
DISPLAY●TRIP A & AVG. FUEL RESET with
REFUEL●ELAP. TIME RESET CONDITION
While METER SETUP is shown in
the CUSTOMIZE GROUP of the
multi-information display, press the
SEL/RESET button.
Each time you press the INFO (
/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
See page 91
See page
89
See page 93
See page 95
: Press the SEL/
: Press the INFO
RESET button or
the select/reset
knob
( ▲ /▼ ) button or
rotate the select/
reset knob
Multi-Information Display8809/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Language SelectionThere are three language selections
you can make: English, French, and
Spanish. To choose the language you
want, follow these instructions:
While METER SETUP is shown in
the CUSTOMIZE GROUP of the
multi-information display, press the
SEL/RESET button. You will see the
above display.
Select the desired language by
pressing the INFO (
/
) button,
then enter your selection by pressing
the SEL/RESET button.CONTINUED
Multi-Information Display
89
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

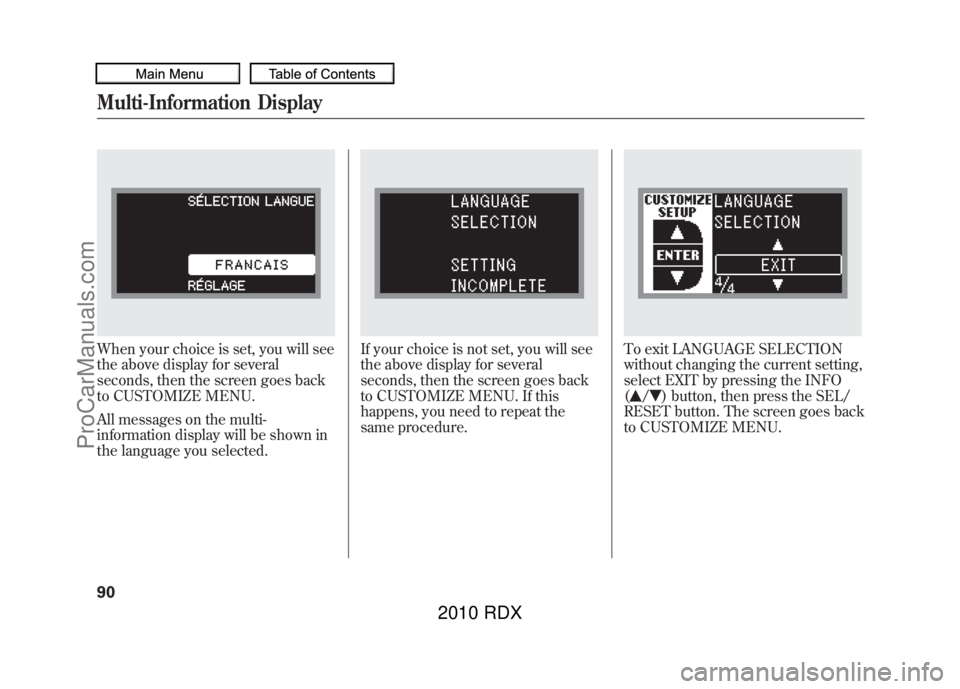

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU.
All messages on the multi-
information display will be shown in
the language you selected.
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
To exit LANGUAGE SELECTION
without changing the current setting,
select EXIT by pressing the INFO
(
/
) button, then press the SEL/
RESET button. The screen goes back
to CUSTOMIZE MENU.
Multi-Information Display9009/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Adjust Outside Temp. DisplayIf you sometimes find that the
temperature reading is a few degrees
above or below the actual
temperature, you can adjust it by
following these instructions:
While METER SETUP is shown in
the CUSTOMIZE GROUP of the
multi-information display, press the
SEL/RESET button. The screen
changes to CUSTOMIZE MENU.
Press the INFO (
/
) button until
you see the above display.
Press the SEL/RESET button. The
screen changes as shown above. The
highlighted number is the current
setting above or below the outside
temperature. Press the INFO (
/
)
button repeatedly until the number
you want appears, then press the
SEL/RESET button to enter your
selection.
U.S.
CanadaCONTINUED
Multi-Information Display
91
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

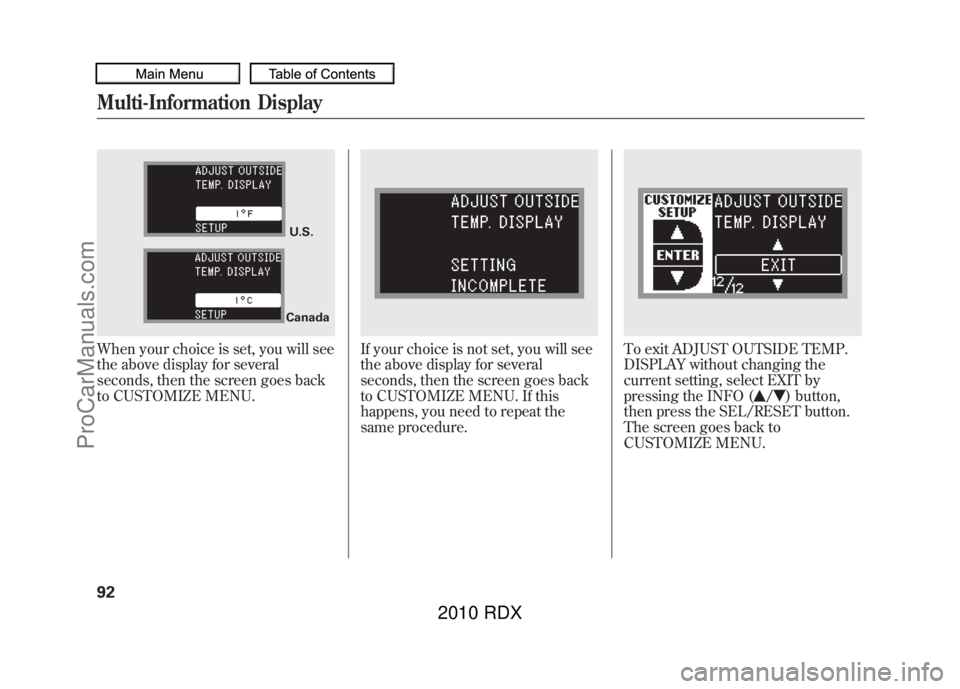

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU.
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
To exit ADJUST OUTSIDE TEMP.
DISPLAY without changing the
current setting, select EXIT by
pressing the INFO (
/
) button,
then press the SEL/RESET button.
The screen goes back to
CUSTOMIZE MENU.
U.S.
Canada
Multi-Information Display9209/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX
