2010 ACURA RDX Owners Manual

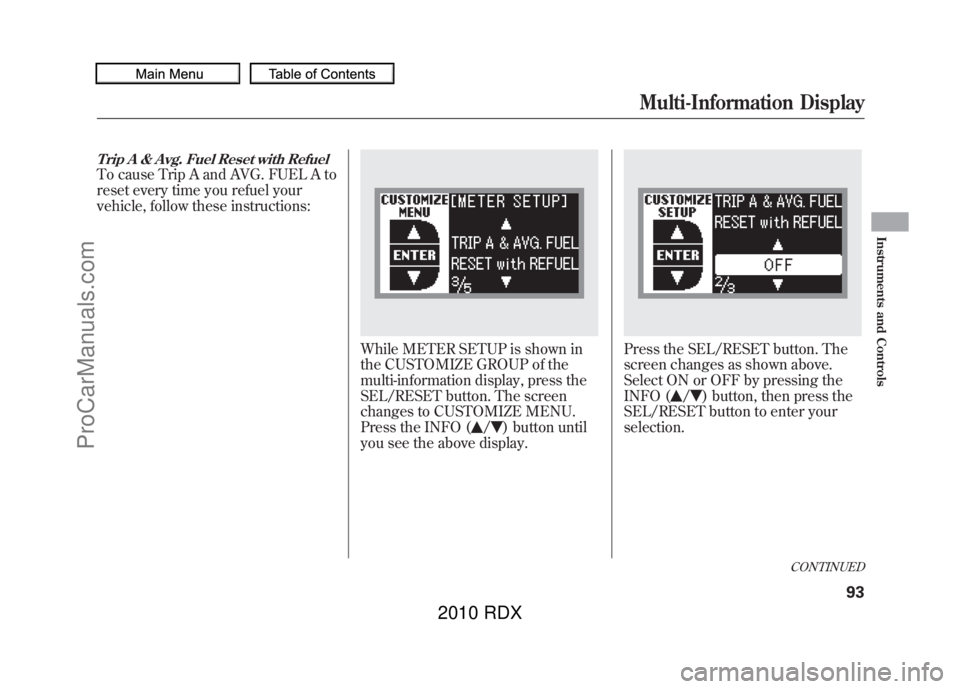

Trip A & Avg. Fuel Reset with RefuelTo cause Trip A and AVG. FUEL A to
reset every time you refuel your
vehicle, follow these instructions:
While METER SETUP is shown in
the CUSTOMIZE GROUP of the
multi-information display, press the
SEL/RESET button. The screen
changes to CUSTOMIZE MENU.
Press the INFO (
/
) button until
you see the above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select ON or OFF by pressing the
INFO (
/
) button, then press the
SEL/RESET button to enter your
selection.
CONTINUED
Multi-Information Display
93
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

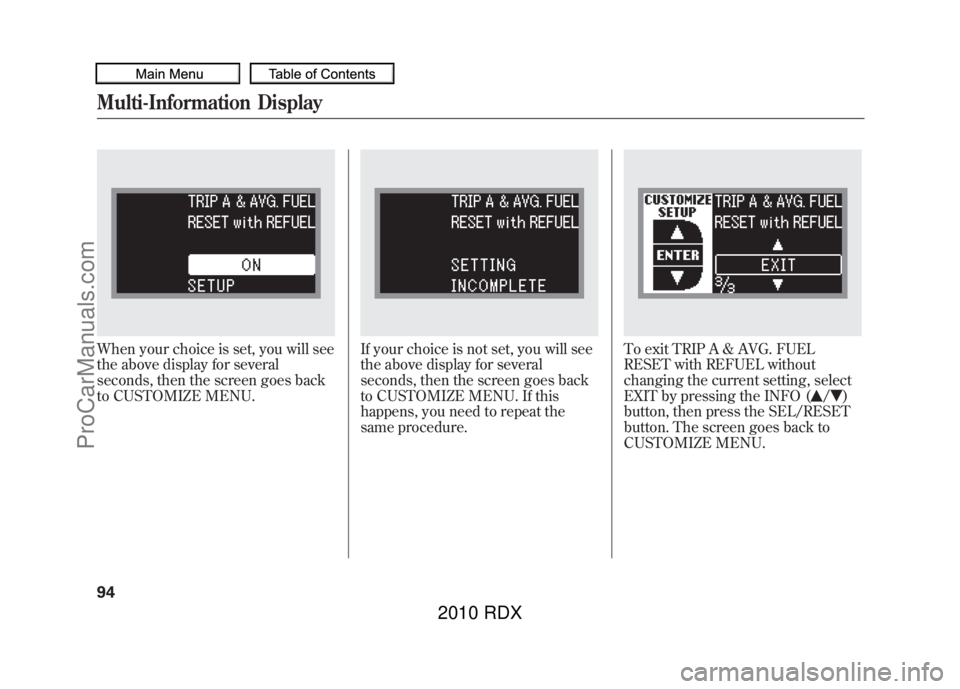

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU.
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
To exit TRIP A & AVG. FUEL
RESET with REFUEL without
changing the current setting, select
EXIT by pressing the INFO (
/
)
button, then press the SEL/RESET
button. The screen goes back to
CUSTOMIZE MENU.
Multi-Information Display9409/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

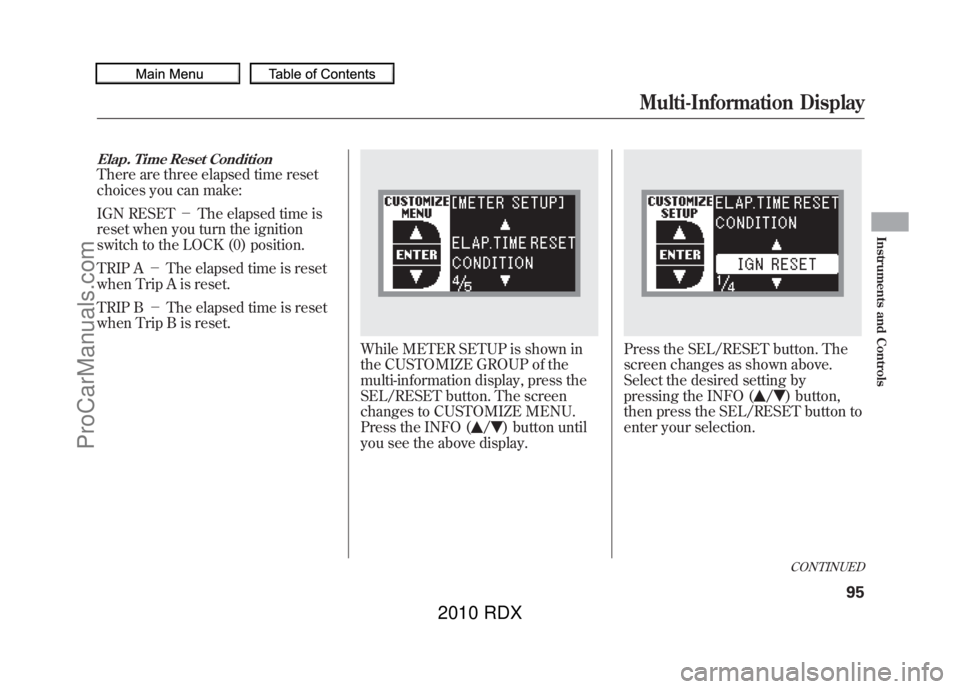

Elap. Time Reset ConditionThere are three elapsed time reset
choices you can make:
IGN RESET－The elapsed time is
reset when you turn the ignition
switch to the LOCK (0) position.
TRIP A －The elapsed time is reset
when Trip A is reset.
TRIP B －The elapsed time is reset
when Trip B is reset.
While METER SETUP is shown in
the CUSTOMIZE GROUP of the
multi-information display, press the
SEL/RESET button. The screen
changes to CUSTOMIZE MENU.
Press the INFO (
/
) button until
you see the above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select the desired setting by
pressing the INFO (
/
) button,
then press the SEL/RESET button to
enter your selection.CONTINUED
Multi-Information Display
95
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU.
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
To exit ELAP. TIME RESET
CONDITION without changing the
current setting, select EXIT by
pressing the INFO (
/
) button,
then press the SEL/RESET button.
The display goes back to
CUSTOMIZE MENU.
Multi-Information Display9609/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

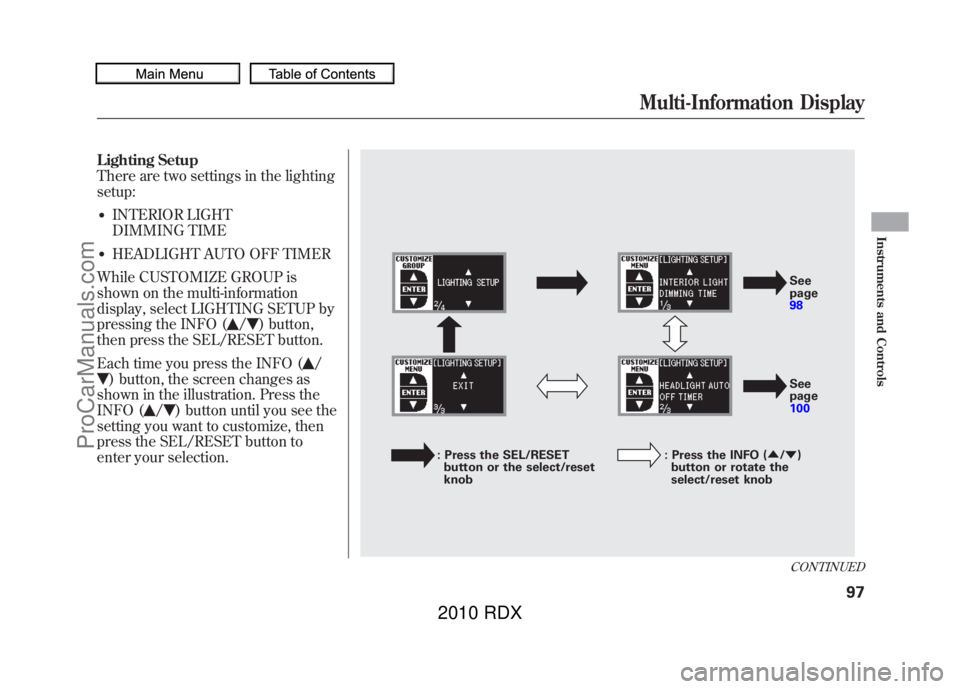

Lighting Setup
There are two settings in the lighting
setup:●INTERIOR LIGHT
DIMMING TIME●HEADLIGHT AUTO OFF TIMER
While CUSTOMIZE GROUP is
shown on the multi-information
display, select LIGHTING SETUP by
pressing the INFO (
/
) button,
then press the SEL/RESET button.
Each time you press the INFO (
/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
See
page
98
See
page
100
: Press the SEL/RESET : Press the INFO (▲/▼ )
button or the select/reset
knob button or rotate the
select/reset knobCONTINUED
Multi-Information Display
97
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Interior Light Dimming TimeThe interior lights fade out when you
close all doors. You can change the
time that the interior lights fade out.
While LIGHTING SETUP is shown
in the CUSTOMIZE GROUP of the
multi-information display, press the
SEL/RESET button. You will see the
above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select how long you want the lights
to stay on before they fade out (15,
30, or 60 seconds) by pressing the
INFO (
/
) button, then press the
SEL/RESET button to enter your
selection.
Multi-Information Display9809/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU.
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
To exit INTERIOR LIGHT
DIMMING TIME without changing
the current setting, select EXIT by
pressing the INFO (
/
) button,
then press the SEL/RESET button.
The screen goes back to
CUSTOMIZE MENU.CONTINUED
Multi-Information Display
99
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

Headlight Auto Off TimerThe headlights, parking lights, side
marker lights, taillights, and license
plate lights go off after the selected
time when you close the driver's
door and take the remote with you.
To change how long the lights stay
on before they go off, follow these
instructions:
While LIGHTING SETUP is shown
in the CUSTOMIZE GROUP of the
multi-information display, press the
SEL/RESET button. The screen
changes to CUSTOMIZE MENU.
Press the INFO (
/
) button until
you see the above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select how long you want the lights
to stay on before they go off (0, 15,
30, or 60 seconds) by pressing the
INFO (
/
) button, then press the
SEL/RESET button to enter your
selection.
Multi-Information Display10009/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX
