 Place the jack 2 in contact with one of the two front A or rear B locations provided on the underbody, whichever is closest to the wheel to be changed.  Extend the jack 2 until its base plate is in contact with the ground. Ensure that the centreline of the jack base plate is directly below the location A or B used.  Raise the vehicle until there is sufficient space between the wheel and the ground to admit the spare (not punctured) wheel easily.
 Remove the bolts and store them in a clean place.  Remove the wheel.

Fitting a steel or "space-saver" spare wheel
If your vehicle is fitted with alloy wheels, when tightening the bolts on fitting it is normal to notice that the
washers do not come into contact with the steel or "space-saver" spare wheel. The wheel is secured by the conical contact of each bolt.
List of operations
 Put the wheel in place on the hub.  Screw in the bolts by hand to the stop.
 Pre-tighten the security bolt using the wheelbrace 1 fitted with the security socket 4 .  Pre-tighten the other bolts using the wheelbrace 1 only.
After changing a wheel
To store the punctured wheel in the boot correctly, first remove the central cover. When using the "space-saver" type spare wheel, do not exceed 50 mph (80 km/h). Have the tightening of the bolts and the pressure of the spare wheel checked by a CITROËN dealer or a qualified workshop without delay. Have the punctured wheel repaired and replace it on the vehicle as soon as possible.

249Practical information
 Lower the vehicle fully.  Fold the jack 2 and detach it.  Tighten the security bolt using the wheelbrace 1 fitted with the security socket 4 . Tighten the other bolts using the wheelbrace 1 only.  Refit the chromed bolt covers on each of
the bolts (according to equipment).  Store the tools in the box.

Changing a bulb
The headlamps are fitted with polycarbonate glass with a protective coating:  do not clean them using a dr y or abrasive cloth, nor with a detergent or solvent product, use a sponge and soapy water,  when using a high pressure washer on persistent marks, do not direct at the lamps or their outlines for too long, so as not to damage their protective coating and seals.
 Do not touch the bulb directly with your fingers, use lint-free cloths. Changing a bulb should only be done after the headlamp has been switched off for a few minutes (risk of serious burns). It is imperative to use only anti-ultraviolet (UV) type bulbs in order not to damage the headlamp. Always replace a failed bulb with a new bulb with the same type and specification.
Risk of electrocution
Xenon bulbs (D1S-35W) must be replaced by a CITROËN dealer or a qualified workshop.
Bulbs with lugs, type H1, H7... take care to position them correctly to ensure the best lighting.

Practical information
Front lamps
Model with xenon and directional headlamps
1. Directional dipped/main beam
headlamps (D1S-35W).2. Direction indicators (PY21W amber).3. Daytime running lamps (P21/5W XL).4. Sidelamps (LEDs).5. Foglamps (H11- 55W).
Model with halogen headlamps
1. Direction indicators (H21 clear).2. Dipped beam headlamps (H7- 55W).
3. Main beam headlamps (H1- 55W).4. Daytime running lamps (P21/5W XL).5. Sidelamps (LEDs).
6. Foglamps (H11- 55W).
Access to bulbs
Depending on the engine and only on the left hand side, you must first carry out the following operations for access to the protective covers on the bulbs.  Remove the air deflector by unclipping each of its three attachment points.  Unclip the bonnet release cable at its two fixings.  Move the cable down. After changing the failed bulb, remember to put everything back in place (cable and air deflector).

Changing dipped beam headlamp bulbs (only on models with halogen headlamps)
 Remove the protective cover by pulling on the tab.  Disconnect the bulb connector.  Spread the springs to release the bulb.  Extract the bulb and change it. To reassemble, carry out these operations in reverse order.

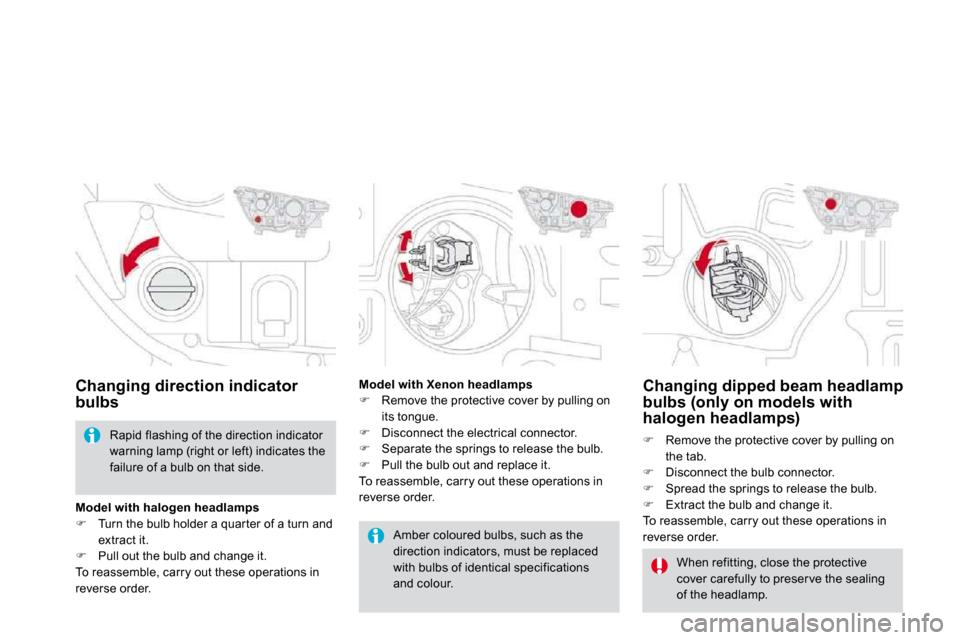

Changing direction indicator bulbs
When refitting, close the protective cover carefully to preser ve the sealing of the headlamp.
Amber coloured bulbs, such as the direction indicators, must be replaced with bulbs of identical specifications and colour.
Rapid flashing of the direction indicator warning lamp (right or left) indicates the failure of a bulb on that side.
Model with Xenon headlamps Remove the protective cover by pulling on its tongue.
 Disconnect the electrical connector.  Separate the springs to release the bulb.  Pull the bulb out and replace it.
To reassemble, carry out these operations in reverse order. Model with halogen headlamps Turn the bulb holder a quar ter of a turn and extract it.  Pull out the bulb and change it. To reassemble, carry out these operations in
reverse order.

Practical information
Changing daytime running lamp bulbs
 Remove the protective cover by pulling on
the tab.  Disconnect the bulb connector.  Turn the bulb holder a quar ter of a turn and extract it.  Pull the bulb and change it. To reassemble, carry out these operations in reverse order.
Changing main beam headlamp bulbs (only on models with halogen headlamps)
 Remove the protective cover by pulling on the tab.  Disconnect the bulb connector.
 Squeeze the springs to release the bulb.  Pull out the bulb and replace it. To reassemble, carry out these operations in reverse order.
Changing integrated direction indicator side repeaters
 Inser t a screwdriver towards the centre of
the repeater between the repeater and the base of the mirror.  Tilt the screwdriver to extract the repeater and remove it.  Disconnect the repeater connector. To reassemble, carry out these operations in reverse order. Contact a CITROËN dealer or a qualified workshop to obtain replacement repeaters.

Changing the side spotlamps
For the replacement of this type of LED lamp, contact a CITROËN dealer or a qualified workshop.
Changing the LED lamps/sidelamps
For the replacement of this type of LED lamp, contact a CITROËN dealer or a qualified workshop.
Changing foglamp bulbs
 Introduce a flat screwdriver in the hole in the finisher.  Pull and lever to unclip the bumper finisher (the parking sensor stays with the finisher).  Remove the two module fixing screws and remove it from its housing.
 Disconnect the bulb holder connector.  Turn the bulb holder a quar ter of a turn and extract it.  Pull the bulb and change it. To refit, carry out these operations in reverse order. To replace these bulbs you may also contact a CITROËN dealer or a qualified workshop.
