2009 YAMAHA GRIZZLY 700 Owners Manual

8-52
8
EBU24900Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02130Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to anaccident or injury.EBU24912Checking and lubricating the front and
rear brake levers The operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.Front brake lever
Recommended lubricant:
Engine oil
Recommended lubricant:
Silicone grease
U43P60E0.book Page 52 Tuesday, May 20, 2008 5:33 PM

8-53
8Rear brake lever
EBU28832Checking and lubricating the brake
pedal The operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.TIPTo access the brake pedal pivot, remove panel H.(See page 8-8.)
EBU24962Checking the wheel hub bearings The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.EBU25021Checking the stabilizer bushes The stabilizer bushes must be checked for cracks
or damage at the intervals specified in the periodic
maintenance and lubrication chart. Recommended lubricant:
Lithium-soap-based grease
U43P60E0.book Page 53 Tuesday, May 20, 2008 5:33 PM

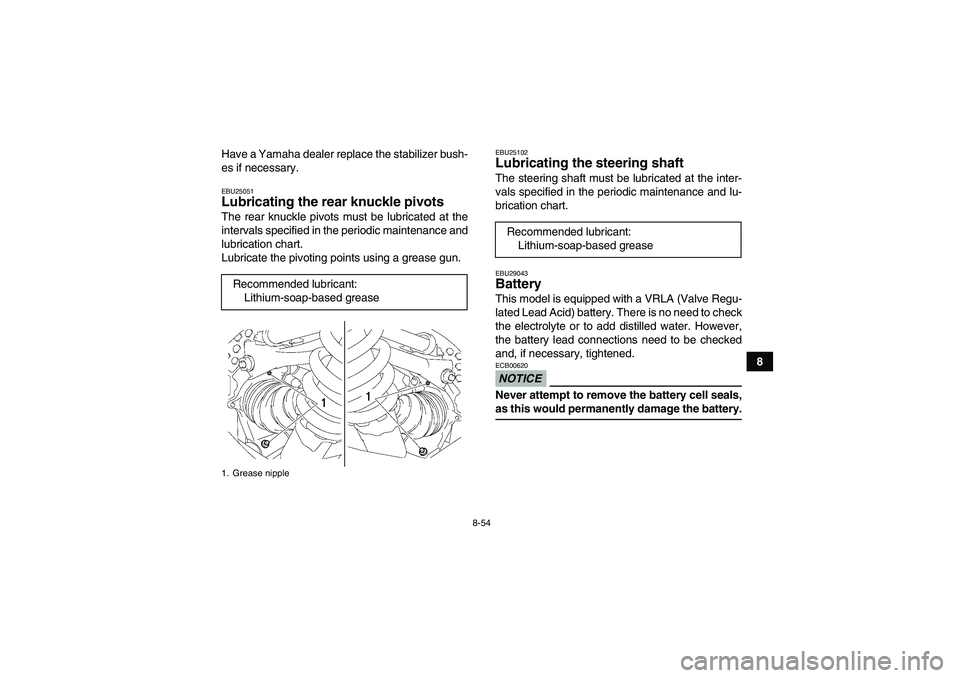

8-54
8 Have a Yamaha dealer replace the stabilizer bush-
es if necessary.
EBU25051Lubricating the rear knuckle pivots The rear knuckle pivots must be lubricated at the
intervals specified in the periodic maintenance and
lubrication chart.
Lubricate the pivoting points using a grease gun.
EBU25102Lubricating the steering shaft The steering shaft must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.EBU29043Battery This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to check
the electrolyte or to add distilled water. However,
the battery lead connections need to be checked
and, if necessary, tightened.NOTICEECB00620Never attempt to remove the battery cell seals,as this would permanently damage the battery. Recommended lubricant:
Lithium-soap-based grease
1. Grease nipple
Recommended lubricant:
Lithium-soap-based grease
U43P60E0.book Page 54 Tuesday, May 20, 2008 5:33 PM

8-55
8
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.KEEP OUT OF REACH OF CHILDREN.
To remove the battery
1. Remove panel A. (See page 8-8.)
2. Remove the front carrier by removing the
bolts.3. Remove the battery holding plate by removing
the nuts.
4. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt.
1. Panel A
2. Bolt
1
2
2
U43P60E0.book Page 55 Tuesday, May 20, 2008 5:33 PM

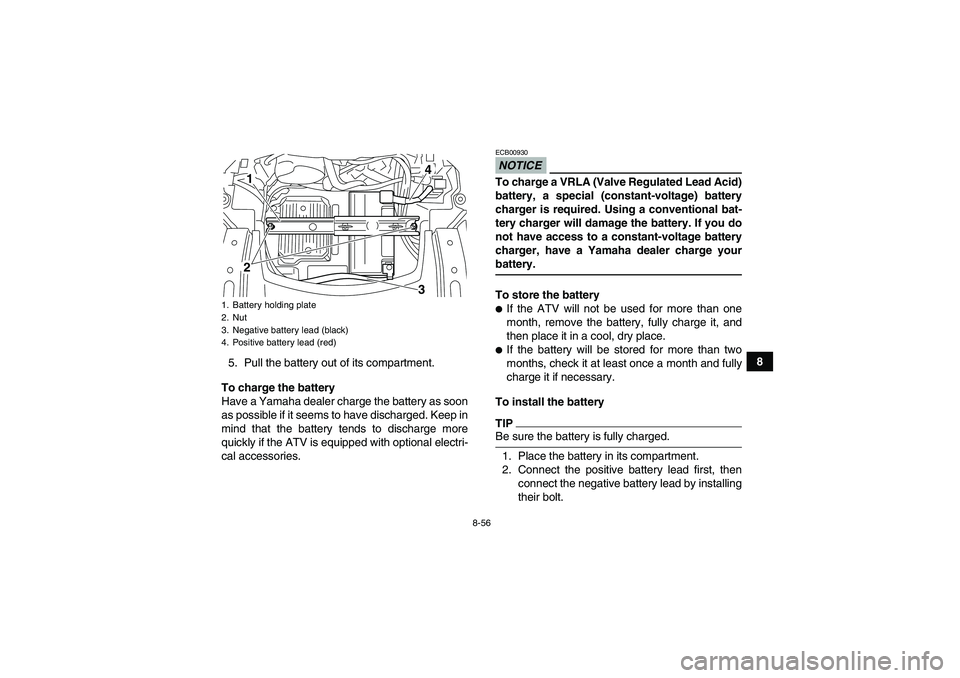

8-56
8
5. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories.
NOTICEECB00930To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional bat-
tery charger will damage the battery. If you do
not have access to a constant-voltage battery
charger, have a Yamaha dealer charge yourbattery.
To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.
To install the batteryTIPBe sure the battery is fully charged.
1. Place the battery in its compartment.
2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt.
1. Battery holding plate
2. Nut
3. Negative battery lead (black)
4. Positive battery lead (red)
12
43
U43P60E0.book Page 56 Tuesday, May 20, 2008 5:33 PM

8-57
83. Install the battery holding plate by installing
the nuts.
4. Install the front carrier by installing the bolts.
5. Install the panel.
NOTICEECB00940Always keep the battery charged. Storing a dis-
charged battery can cause permanent batterydamage.
EBU27750Replacing a fuse
1. Positive battery lead (red)
2. Negative battery lead (black)
12
1. Fuse box
2. Main/EPS spare fuse
3. Main fuse
4. EPS fuse
5. Fuel injection system spare fuse
6. Fuel injection system fuse
U43P60E0.book Page 57 Tuesday, May 20, 2008 5:33 PM

8-58
8
The main fuse, the fuel injection system fuse, the
EPS fuse, and the fuse box are located under pan-
el A. (See page 8-8.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.
NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing afuse.
2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
1. Ignition fuse
2. Headlight fuse
3. Four-wheel-drive motor fuse
4. Radiator fan fuse
5. Signaling system fuse
6. Auxiliary DC jack fuse
7. Spare fuseU43P60E0.book Page 58 Tuesday, May 20, 2008 5:33 PM

8-59
8
WARNING
EWB02171Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.EBU27440Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the cover at the rear of the headlight
by pulling it off. Specified fuses:
Main fuse:
40.0 A
Headlight fuse:
15.0 A
Ignition fuse:
15.0 A
Four-wheel-drive motor fuse:
15.0 A
Signaling system fuse:
5.0 A
Auxiliary DC jack fuse:
15.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
15.0 A
EPS fuse:
40.0 A
