2009 YAMAHA GRIZZLY 700 Owners Manual

8-44
8
TIPThe engine idling speed must be checked, and ad-
justed if necessary, before adjusting the throttle ca-ble free play.
1. Slide the rubber cover back.
2. Loosen the locknut.
3. To increase the throttle cable free play, turn
the throttle cable free play adjusting bolt in di-
rection (a). To decrease the throttle cable free
play, turn the adjusting bolt in direction (b).4. Tighten the locknut.
5. Slide the rubber cover to its original position.
EBU24060Valve clearance The valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.EBU24071Adjusting the drive select lever safety
system cable The drive select lever safety system cable stretch-
es with use, which can result in improper function.
Therefore, the safety system cable should be
checked and adjusted by a Yamaha dealer at the
intervals specified in the periodic maintenance and
lubrication chart.EBU27470Checking the front and rear brake pads The front and rear brake pads must be checked for
wear at the intervals specified in the periodic main-
tenance and lubrication chart. Each brake pad is
provided with a wear indicator groove, which al-
1. Rubber cover
2. Throttle cable free play adjusting bolt
3. Locknut
4. Throttle cable free play
2WD
4WD
3
2
1
4 (b)
(a)
U43P60E0.book Page 44 Tuesday, May 20, 2008 5:33 PM

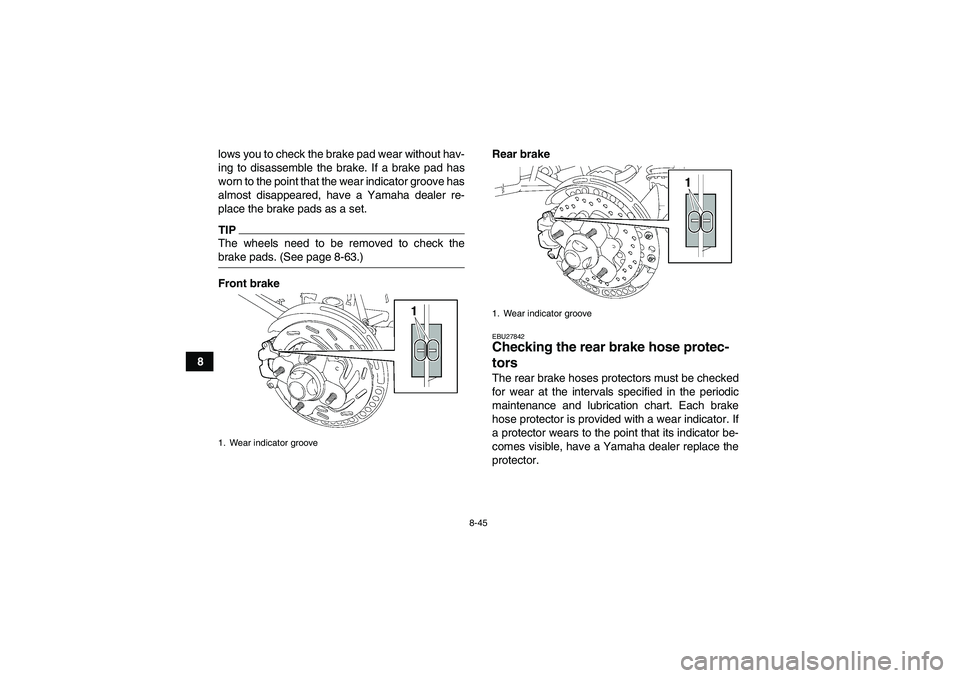

8-45
8lows you to check the brake pad wear without hav-
ing to disassemble the brake. If a brake pad has
worn to the point that the wear indicator groove has
almost disappeared, have a Yamaha dealer re-
place the brake pads as a set.
TIPThe wheels need to be removed to check thebrake pads. (See page 8-63.)
Front brakeRear brake
EBU27842Checking the rear brake hose protec-
tors The rear brake hoses protectors must be checked
for wear at the intervals specified in the periodic
maintenance and lubrication chart. Each brake
hose protector is provided with a wear indicator. If
a protector wears to the point that its indicator be-
comes visible, have a Yamaha dealer replace the
protector.
1. Wear indicator groove
1. Wear indicator groove
U43P60E0.book Page 45 Tuesday, May 20, 2008 5:33 PM

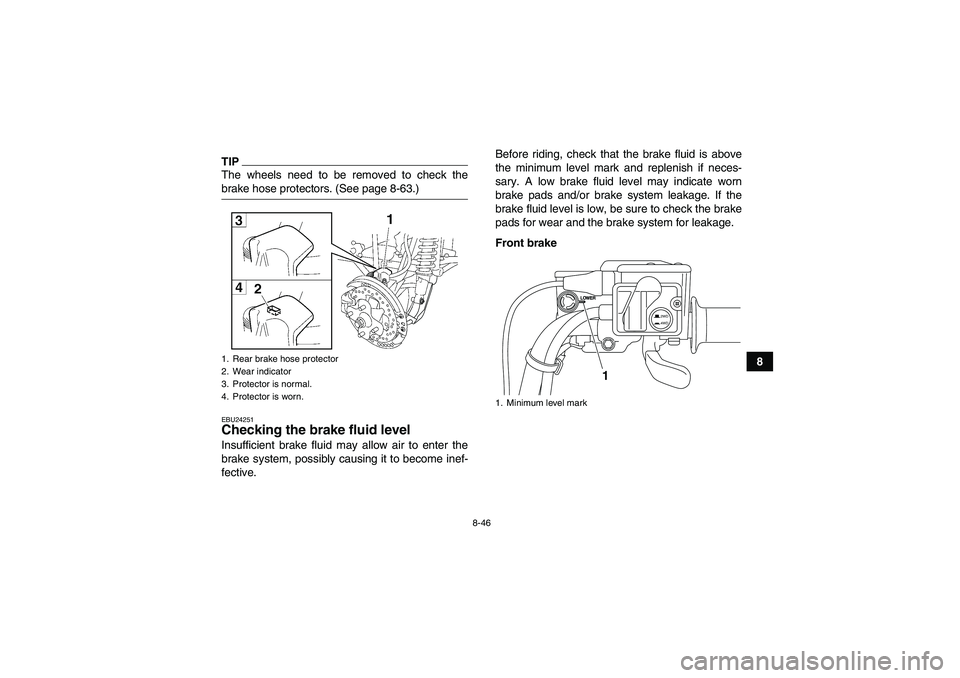

8-46
8
TIPThe wheels need to be removed to check thebrake hose protectors. (See page 8-63.)EBU24251Checking the brake fluid level Insufficient brake fluid may allow air to enter the
brake system, possibly causing it to become inef-
fective.Before riding, check that the brake fluid is above
the minimum level mark and replenish if neces-
sary. A low brake fluid level may indicate worn
brake pads and/or brake system leakage. If the
brake fluid level is low, be sure to check the brake
pads for wear and the brake system for leakage.
Front brake1. Rear brake hose protector
2. Wear indicator
3. Protector is normal.
4. Protector is worn.
1. Minimum level mark
2WD
4WD
1
U43P60E0.book Page 46 Tuesday, May 20, 2008 5:33 PM

8-47
8Rear brake
Observe these precautions:

When checking the fluid level, make sure that
the top of the brake fluid reservoir is level.
Use only the recommended quality brake fluid,
otherwise the rubber seals may deteriorate,
causing leakage and poor braking performance.
Refill with the same type of brake fluid. Mixing
fluids may result in a harmful chemical reaction
and lead to poor braking performance.

Be careful that water does not enter the brake
fluid reservoir when refilling. Water will signifi-
cantly lower the boiling point of the fluid and may
result in vapor lock.
Brake fluid may deteriorate painted surfaces or
plastic parts. Always clean up spilled fluid imme-
diately.
As the brake pads wear, it is normal for the brake
fluid level to gradually go down. However, if the
brake fluid level goes down suddenly, have a
Yamaha dealer check the cause.EBU24291Changing the brake fluid Have a Yamaha dealer change the brake fluid at
the intervals specified in the TIP after the periodic
maintenance and lubrication chart. In addition,
have the oil seals of the master cylinders and cali-
pers as well as the brake hoses replaced at the in-
tervals listed below or whenever they are damaged
or leaking.
Oil seals: Replace every two years.
Brake hoses: Replace every four years.
1. Minimum level markRecommended brake fluid:
DOT 4
U43P60E0.book Page 47 Tuesday, May 20, 2008 5:33 PM

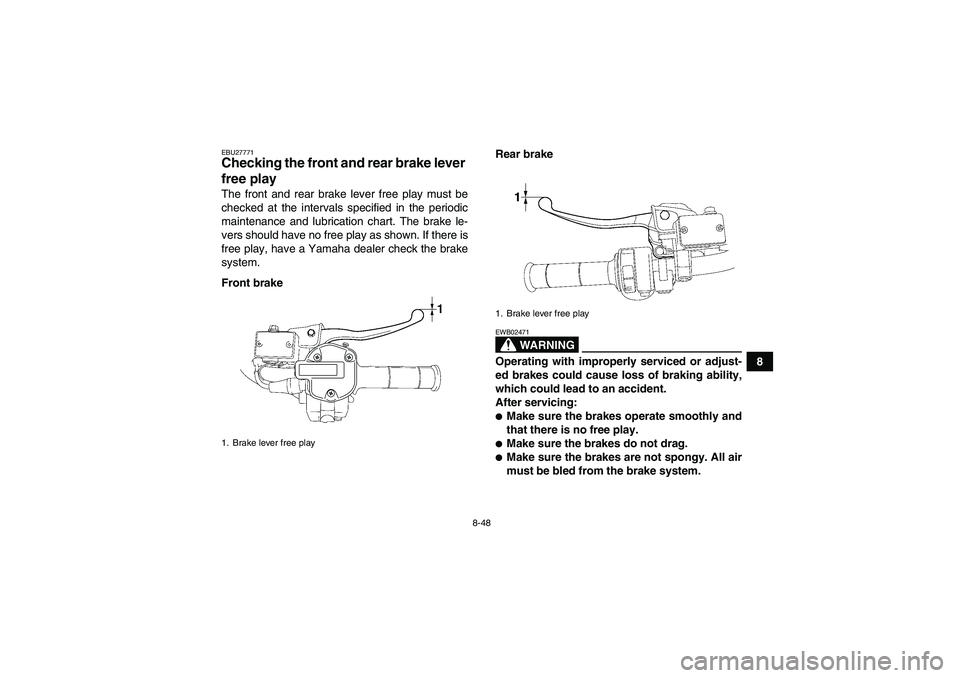

8-48
8
EBU27771Checking the front and rear brake lever
free play The front and rear brake lever free play must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. The brake le-
vers should have no free play as shown. If there is
free play, have a Yamaha dealer check the brake
system.
Front brakeRear brake
WARNING
EWB02471Operating with improperly serviced or adjust-
ed brakes could cause loss of braking ability,
which could lead to an accident.
After servicing:
Make sure the brakes operate smoothly and
that there is no free play.
Make sure the brakes do not drag.
Make sure the brakes are not spongy. All air
must be bled from the brake system.
1. Brake lever free play
1. Brake lever free play
U43P60E0.book Page 48 Tuesday, May 20, 2008 5:33 PM

8-49
8Replacement of brake components requires
professional knowledge. These procedures
should be performed by a Yamaha dealer.EBU29071Adjusting the brake pedal free play The brake pedal free play must be adjusted at the
intervals specified in the periodic maintenance and
lubrication chart.TIP
Always perform this maintenance completely in
the following order whenever adjusting the rear
brake.
Before adjusting the brake pedal free play,check the rear brake pads for wear.
The brake pedal free play should measure 0.0–5.0
mm (0.00–0.20 in) as shown. If the free play is in-
correct, adjust it as follows.1. Remove panel H. (See page 8-8.)
2. Loosen the locknut.
3. Turn the brake pedal free play adjusting nut in
direction (a) to increase the free play, and in
direction (b) to decrease it.
1. Brake pedal free play
U43P60E0.book Page 49 Tuesday, May 20, 2008 5:33 PM

8-50
8 4. Tighten the locknut.
5. After adjusting, there should be slight play at
the brake pedal cable joint as shown. If there
is no play, repeat steps 2 to 4.6. Install the panel.
If the correct free play cannot be obtained, have a
Yamaha dealer adjust it.
TIPWhen adjusting the rear brake pedal free play:
Be sure not to step on the brake pedal.
Make sure the rear brake lever and brake pedaldo not move.
1. Locknut
2. Brake pedal free play adjusting nut
1. Brake pedal cable joint
2. Slight play
1
2
U43P60E0.book Page 50 Tuesday, May 20, 2008 5:33 PM

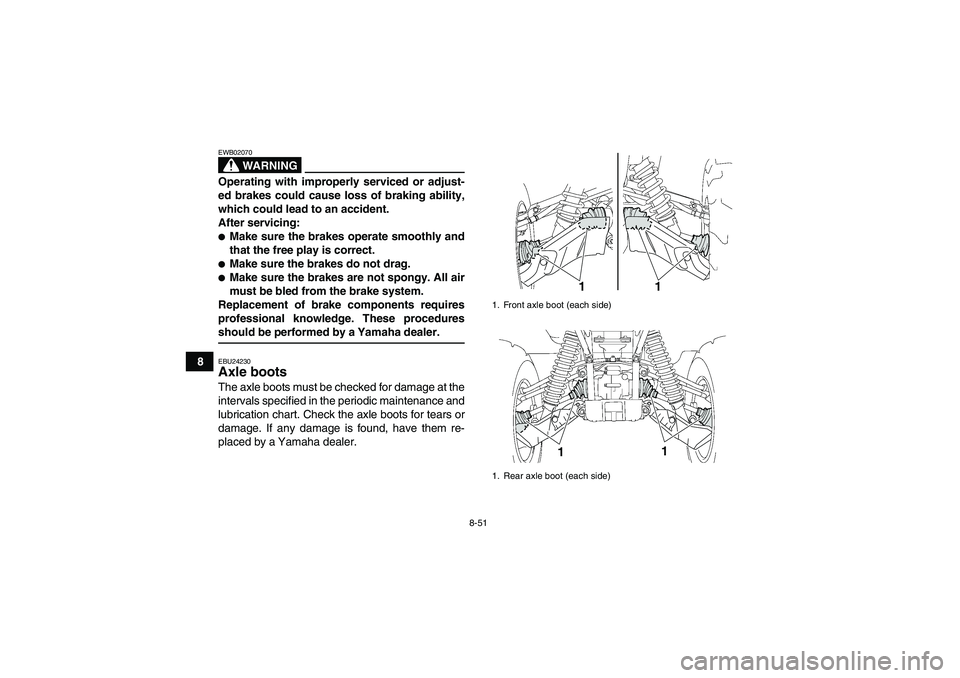

8-51
8
WARNING
EWB02070Operating with improperly serviced or adjust-
ed brakes could cause loss of braking ability,
which could lead to an accident.
After servicing:
Make sure the brakes operate smoothly and
that the free play is correct.
Make sure the brakes do not drag.
Make sure the brakes are not spongy. All air
must be bled from the brake system.
Replacement of brake components requires
professional knowledge. These proceduresshould be performed by a Yamaha dealer.EBU24230Axle boots The axle boots must be checked for damage at the
intervals specified in the periodic maintenance and
lubrication chart. Check the axle boots for tears or
damage. If any damage is found, have them re-
placed by a Yamaha dealer.
1. Front axle boot (each side)
1. Rear axle boot (each side)
1 11
1
