2009 YAMAHA GRIZZLY 700 Owners Manual

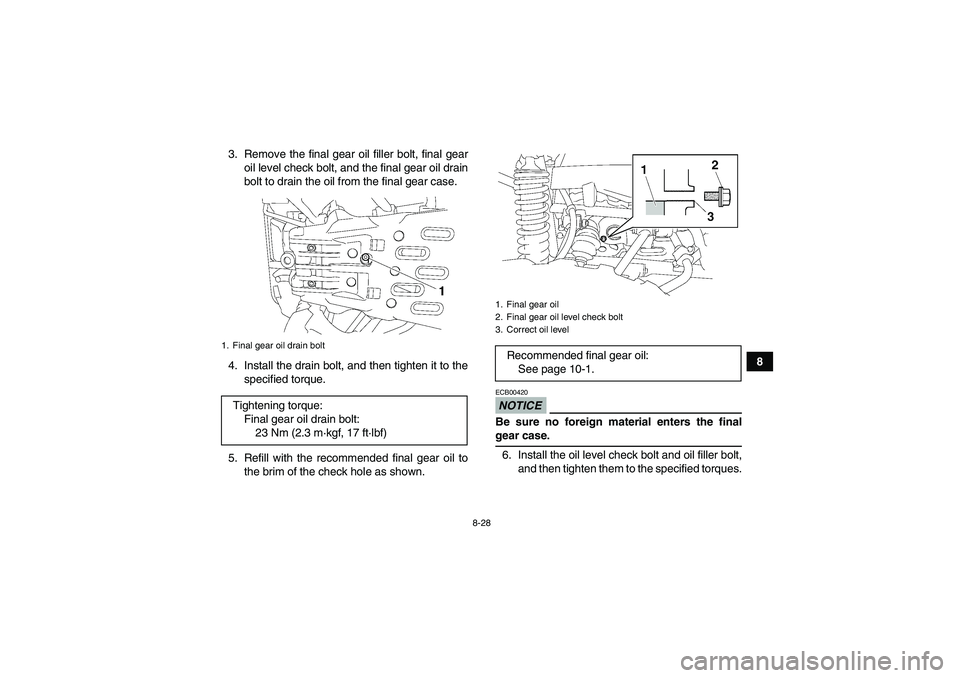

8-28
8 3. Remove the final gear oil filler bolt, final gear
oil level check bolt, and the final gear oil drain
bolt to drain the oil from the final gear case.
4. Install the drain bolt, and then tighten it to the
specified torque.
5. Refill with the recommended final gear oil to
the brim of the check hole as shown.
NOTICEECB00420Be sure no foreign material enters the finalgear case.
6. Install the oil level check bolt and oil filler bolt,
and then tighten them to the specified torques.
1. Final gear oil drain boltTightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Final gear oil
2. Final gear oil level check bolt
3. Correct oil levelRecommended final gear oil:
See page 10-1.
U43P60E0.book Page 28 Tuesday, May 20, 2008 5:33 PM

8-29
87. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
EBU23422Differential gear oil The differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must be
checked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart.
To check the differential gear oil level
1. Place the ATV on a level surface.TIPThe differential gear oil level must be checked ona cold engine.2. Remove the differential gear oil filler bolt, and
then check the oil level in the differential gear
case.
TIPThe oil level should be at the brim of the filler hole.
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Install the oil filler bolt, and then tighten it to the
specified torque. Tightening torques:
Final gear oil level check bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)1. Differential gear oil
2. Differential gear oil filler bolt
3. Correct oil level
U43P60E0.book Page 29 Tuesday, May 20, 2008 5:33 PM

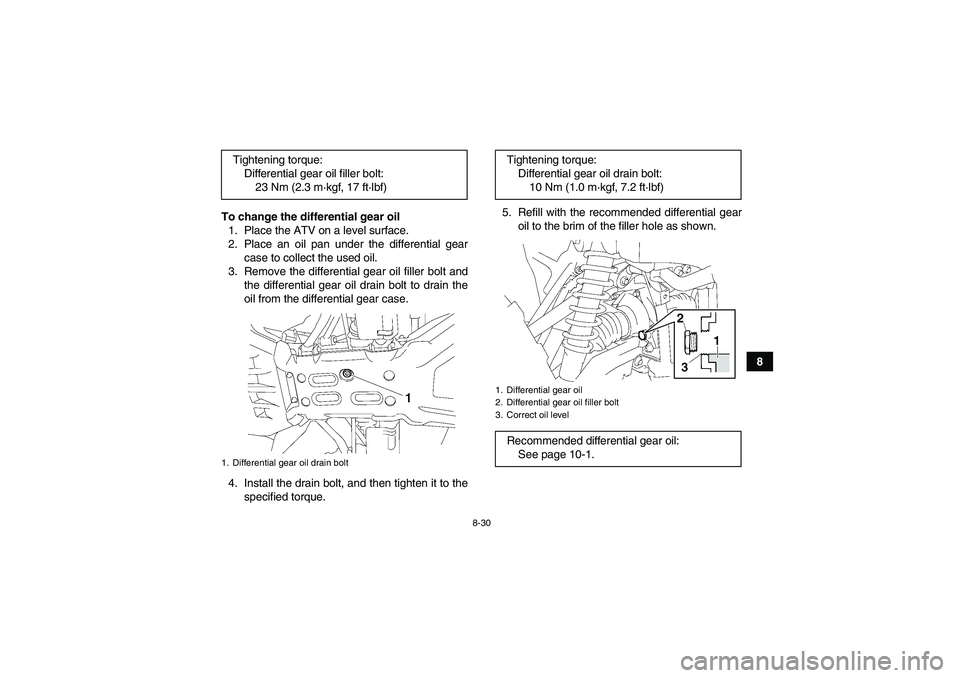

8-30
8 To change the differential gear oil
1. Place the ATV on a level surface.
2. Place an oil pan under the differential gear
case to collect the used oil.
3. Remove the differential gear oil filler bolt and
the differential gear oil drain bolt to drain the
oil from the differential gear case.
4. Install the drain bolt, and then tighten it to the
specified torque.5. Refill with the recommended differential gear
oil to the brim of the filler hole as shown. Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Differential gear oil drain bolt
Tightening torque:
Differential gear oil drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)1. Differential gear oil
2. Differential gear oil filler bolt
3. Correct oil levelRecommended differential gear oil:
See page 10-1.
U43P60E0.book Page 30 Tuesday, May 20, 2008 5:33 PM

8-31
8
NOTICEECB00410Be sure no foreign material enters the differen-tial gear case.
6. Install the oil filler bolt, and then tighten it to the
specified torque.
7. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.EBU23470Coolant The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27123To check the coolant level
1. Place the ATV on a level surface.
TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
2. Check the coolant level in the coolant reser-
voir.TIPThe coolant should be between the minimum andmaximum level marks.
3. If the coolant is at or below the minimum level
mark, remove panel D. (See page 8-8.) Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)1. Maximum level mark
2. Minimum level mark
U43P60E0.book Page 31 Tuesday, May 20, 2008 5:33 PM

8-32
8 4. Remove the coolant reservoir cap, add cool-
ant or distilled water to the maximum level
mark, install the reservoir cap, and then install
the panel.
NOTICEECB00401
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.
If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.TIP
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
If the engine overheats, see page 8-66 for fur-ther instructions.
1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level markCoolant reservoir capacity (up to the maximum
level mark):
0.24 L (0.25 US qt, 0.21 Imp.qt)
U43P60E0.book Page 32 Tuesday, May 20, 2008 5:33 PM

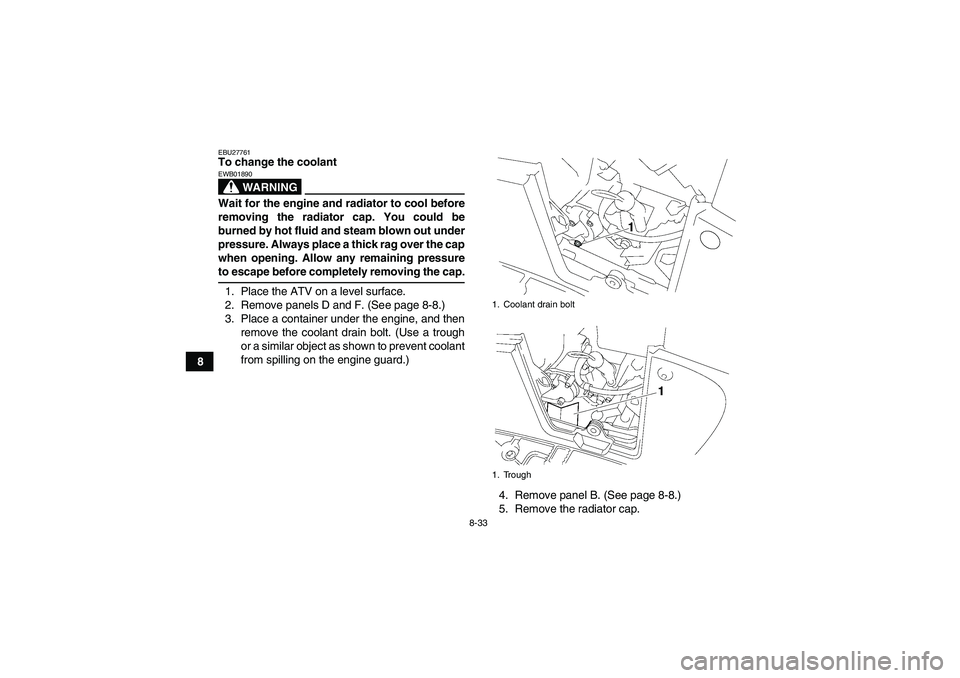

8-33
8
EBU27761To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
1. Place the ATV on a level surface.
2. Remove panels D and F. (See page 8-8.)
3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent coolant
from spilling on the engine guard.)
4. Remove panel B. (See page 8-8.)
5. Remove the radiator cap.
1. Coolant drain bolt
1. Trough
U43P60E0.book Page 33 Tuesday, May 20, 2008 5:33 PM

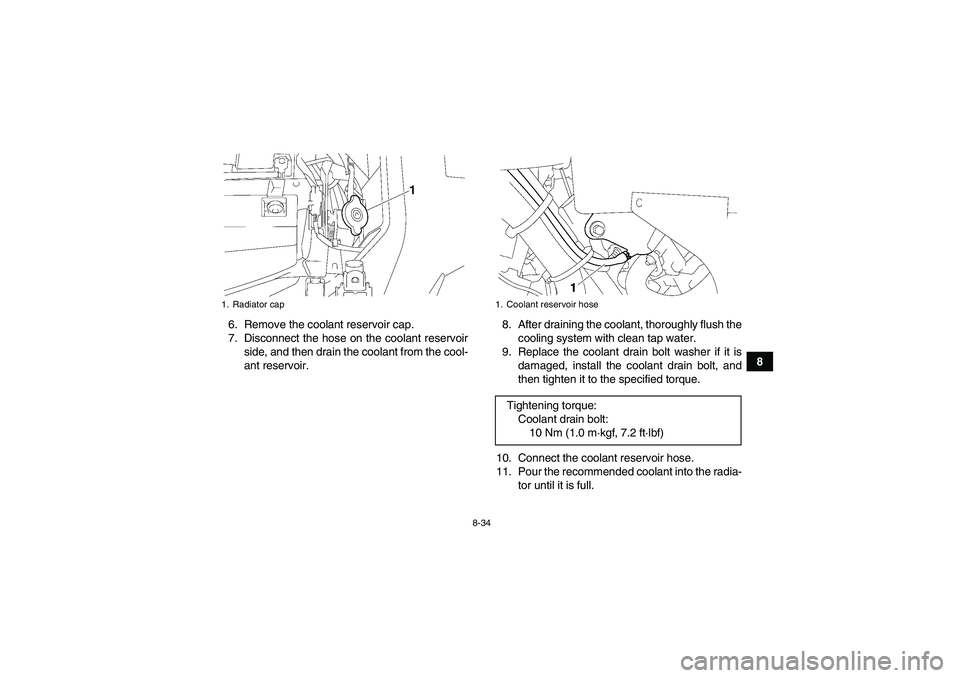

8-34
8 6. Remove the coolant reservoir cap.
7. Disconnect the hose on the coolant reservoir
side, and then drain the coolant from the cool-
ant reservoir.8. After draining the coolant, thoroughly flush the
cooling system with clean tap water.
9. Replace the coolant drain bolt washer if it is
damaged, install the coolant drain bolt, and
then tighten it to the specified torque.
10. Connect the coolant reservoir hose.
11. Pour the recommended coolant into the radia-
tor until it is full.
1. Radiator cap
1. Coolant reservoir hoseTightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U43P60E0.book Page 34 Tuesday, May 20, 2008 5:33 PM

8-35
812. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap.
NOTICEECB00401
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.

If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
13. Loosen the water pump air bleed bolt, without
removing it, to allow all of the air to escape
from the air bleed bolt hole.
14. When coolant begins to flow out of the bolt
hole, tighten the water pump air bleed bolt to
the specified torque. Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.99 L (2.10 US qt, 1.75 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.24 L (0.25 US qt, 0.21 Imp.qt)1. Water pump air bleed bolt
U43P60E0.book Page 35 Tuesday, May 20, 2008 5:33 PM
