2009 YAMAHA GRIZZLY 450 Owners Manual

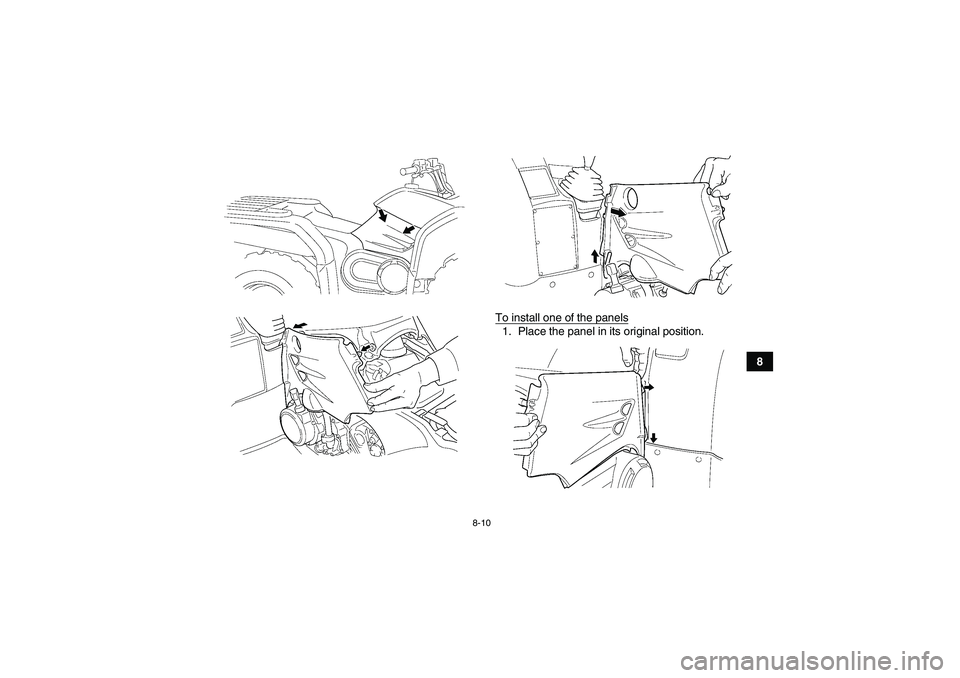

8-10
8 To install one of the panels
1. Place the panel in its original position.
U37S60E0.book Page 10 Thursday, June 5, 2008 6:51 PM

8-11
8
2. Install the seat.Panel B
To remove the panel
Remove the bolt, and then take the panel off.
To install the panelPlace the panel in the original position and install
the bolt.NOTICEECB00380When installing the panel, be sure not to pinchthe cables or wires.1. Panel B
2. Bolt
U37S60E0.book Page 11 Thursday, June 5, 2008 6:51 PM

8-12
8 Panel C
To remove the panel
1. Remove the carrier top bolts.
2. Remove the carrier bolts under the fenders,
and then take the carrier off.3. Remove the quick fastener screws, and then
pull the panel upward to remove it.1. Carrier bolt (top)
1
1
1
1. Carrier bolt (under the fenders)
U37S60E0.book Page 12 Thursday, June 5, 2008 6:51 PM

8-13
8To install the panel
1. Place the panel in the original position, and
then install the quick fastener screws.
2. Place the carrier in the original position, and
then install the carrier bolts under the fenders.
3. Install the carrier top bolts, and then tighten all
bolts to the specified torques.Panel E
To remove the panel
Remove the bolts, and then take the panel off.
1. Quick fastener screw
2. Panel C
1
2
Tightening torques:
Carrier bolt (top):
34 Nm (3.4 m·kgf, 24 ft·lbf)
Carrier bolt (under fenders):
7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Panel E
2. Bolt
U37S60E0.book Page 13 Thursday, June 5, 2008 6:51 PM

8-14
8 To install the panel
Place the panel in the original position and install
the bolts.
Panel F
To remove the panelPull outward on the areas shown.
To install the panelPlace the panel in its original position.
EBU23221Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove panel A. (See page 8-9.)
2. Remove the spark plug cap.
1. Panel FU37S60E0.book Page 14 Thursday, June 5, 2008 6:51 PM

8-15
83. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1. Spark plug wrench
U37S60E0.book Page 15 Thursday, June 5, 2008 6:51 PM

8-16
8 2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
To install the spark plug
1. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
2. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
3. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque. Specified spark plug:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
1. Spark plug gapTightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
U37S60E0.book Page 16 Thursday, June 5, 2008 6:51 PM

8-17
8
TIPIf a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.
5. Install the panel.EBU23326Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Remove panel F. (See page 8-9.)
3. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-tles for an accurate reading.
4. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag.
5. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.1. Engine oil filler cap
