2009 YAMAHA GRIZZLY 450 Owners Manual

8-18
8
TIPThe engine oil should be between the minimumand maximum level marks.
6. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
7. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.
8. Install the panel.To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Place the ATV on a level surface.
2. Remove panel F. (See page 8-9.)
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Place an oil pan under the engine to collect
the used oil.
5. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase.1. Dipstick
2. Maximum level mark
3. Minimum level mark
1. Engine oil drain bolt
U37S60E0.book Page 18 Thursday, June 5, 2008 6:51 PM

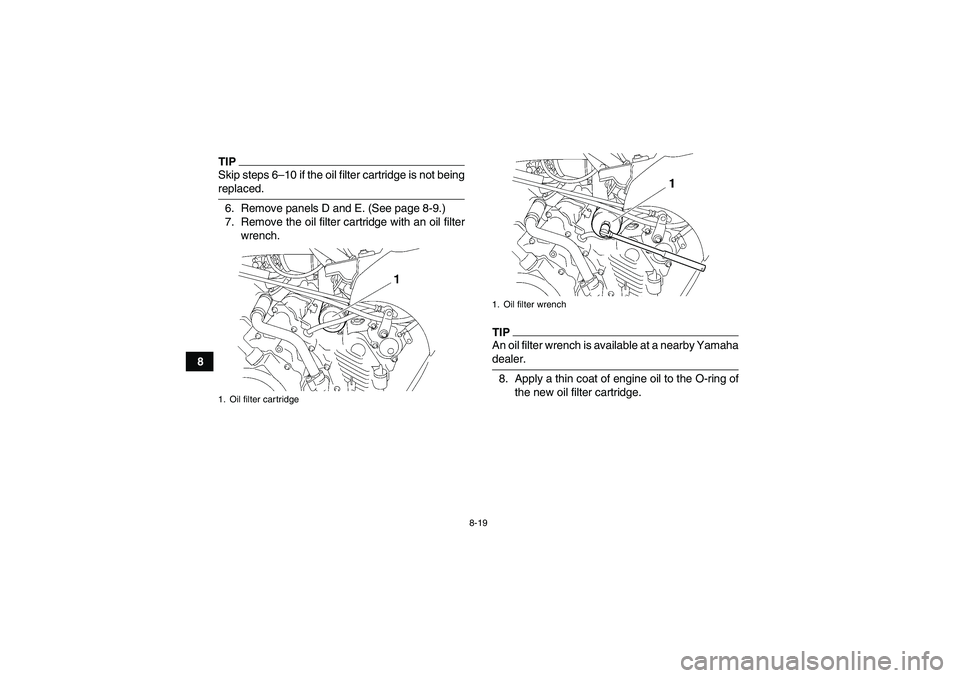

8-19
8
TIPSkip steps 6–10 if the oil filter cartridge is not beingreplaced.
6. Remove panels D and E. (See page 8-9.)
7. Remove the oil filter cartridge with an oil filter
wrench.
TIPAn oil filter wrench is available at a nearby Yamahadealer.
8. Apply a thin coat of engine oil to the O-ring of
the new oil filter cartridge.
1. Oil filter cartridge
1. Oil filter wrench
U37S60E0.book Page 19 Thursday, June 5, 2008 6:51 PM

8-20
8
TIPMake sure that the O-ring is properly seated.
9. Install the new oil filter cartridge with an oil fil-
ter wrench, and then tighten it to the specified
torque with a torque wrench.10. Install panels E and D.
11. Install the engine oil drain bolt, and then tight-
en it to the specified torque.1. O-ring
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U37S60E0.book Page 20 Thursday, June 5, 2008 6:51 PM

8-21
812. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.
TIPBe sure to wipe off spilled oil on any parts after theengine and exhaust system have cooled down.NOTICEECB00300
In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.

Make sure that no foreign material enters thecrankcase.
13. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
14. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
15. Install panel F. Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter cartridge replacement:
2.30 L (2.43 US qt, 2.02 Imp.qt)
With oil filter cartridge replacement:
2.40 L (2.54 US qt, 2.11 Imp.qt)1.“CD” specification
2.“ENERGY CONSERVING II”
1
2
U37S60E0.book Page 21 Thursday, June 5, 2008 6:51 PM

8-22
8
EBU28572Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.TIPThe final gear oil level must be checked on a coldengine.
2. Remove the final gear oil filler bolt, and then
check the oil level in the final gear case.TIPThe oil level should be at the brim of the filler hole.3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Install the oil filler bolt, and then tighten it to the
specified torque.
To change the final gear oil
1. Place the ATV on a level surface.
1. Final gear oil filler bolt
2. Correct oil level
3. Final gear oilTightening torque:
Final gear oil filler bolt:
24 Nm (2.4 m·kgf, 17 ft·lbf)
U37S60E0.book Page 22 Thursday, June 5, 2008 6:51 PM

8-23
82. Remove the engine guard and the final gear
case guard by removing the bolts.
3. Place an oil pan under the final gear case to
collect the used oil.
4. Remove the final gear oil filler bolt and the fi-
nal gear oil drain bolt to drain the oil from the
final gear case.5. Install the drain bolt, and then tighten it to the
specified torque.
6. Refill with the recommended final gear oil to
the brim of the filler hole as shown.
1. Engine guard
2. Final gear case guard
3. Bolt
1. Final gear oil drain boltTightening torque:
Final gear oil drain bolt:
24 Nm (2.4 m·kgf, 17 ft·lbf)
U37S60E0.book Page 23 Thursday, June 5, 2008 6:51 PM

8-24
8
TIPIf the recommended oil is not available, SAE80W-
90 API GL-5 Hypoid gear oil may be used instead.
However, when using this oil, noise from the final
gear case may occur when applying the rearbrake.
NOTICEECB00420Be sure no foreign material enters the finalgear case.
7. Install the oil filler bolt, and then tighten it to the
specified torque.
8. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
9. Install the engine guard and the final gear
case guard by installing the bolts, and then
tightening them to the specified torques.
1. Final gear oil filler bolt
2. Correct oil level
3. Final gear oilRecommended final gear oil:
See page 10-1.
Tightening torque:
Final gear oil filler bolt:
24 Nm (2.4 m·kgf, 17 ft·lbf)
Tightening torques:
Engine guard bolt:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Final gear case guard bolt:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
U37S60E0.book Page 24 Thursday, June 5, 2008 6:51 PM

8-25
8
EBU23422Differential gear oil The differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must be
checked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart.
To check the differential gear oil level
1. Place the ATV on a level surface.TIPThe differential gear oil level must be checked ona cold engine.
2. Remove the differential gear oil filler bolt, and
then check the oil level in the differential gear
case.
TIPThe oil level should be at the brim of the filler hole.
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Install the oil filler bolt, and then tighten it to the
specified torque.1. Differential gear oil
2. Differential gear oil filler bolt
3. Correct oil levelTightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U37S60E0.book Page 25 Thursday, June 5, 2008 6:51 PM
