SAFETY INFORMATION
1-3
1


Do not run engine indoors. Even if
you try to ventilate engine exhaust
with fans or open windows and
doors, carbon monoxide can rap-
idly reach dangerous levels.


Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.


Do not run engine outdoors where
engine exhaust can be drawn into
a building through openings such
as windows and doors.
Loading
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution of
the scooter is changed. To avoid the
possibility of an accident, use extreme
caution when adding cargo or accesso-
ries to your scooter. Use extra care
when riding a scooter that has added
cargo or accessories. Here, along with
the information about accessories be-
low, are some general guidelines to fol-
low if loading cargo to your scooter:The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accident.
When loading within this weight limit,
keep the following in mind:


Cargo and accessory weight
should be kept as low and close to
the scooter as possible. Securely
pack your heaviest items as close
to the center of the vehicle as pos-
sible and make sure to distribute
the weight as evenly as possible
on both sides of the scooter to min-
imize imbalance or instability.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securelyattached to the scooter before
riding. Check accessory mounts
and cargo restraints frequently.
Properly adjust the suspension
for your load (suspension-ad-
justable models only), and
check the condition and pres-
sure of your tires.
Never attach any large or heavy
items to the handlebar, front
fork, or front fender. Such items
can create unstable handling or
a slow steering response.


This vehicle is not designed to
pull a trailer or to be attached to
a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail-
able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and acces-
sories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
Maximum load:
180 kg (397 lb)
U3C6E1E0.book Page 3 Friday, August 8, 2008 10:09 AM

SAFETY INFORMATION
1-4
1aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your scooter. Carefully
inspect the accessory before using
it to make sure that it does not in
any way reduce ground clearance
or cornering clearance, limit sus-
pension travel, steering travel or
control operation, or obscure lights
or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt to lift
the scooter, or the scooter may
become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
scooter’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
scooter were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-12 for tire
specifications and more information on
replacing your tires.
U3C6E1E0.book Page 4 Friday, August 8, 2008 10:09 AM

SAFETY INFORMATION
1-5
1
EAU10372

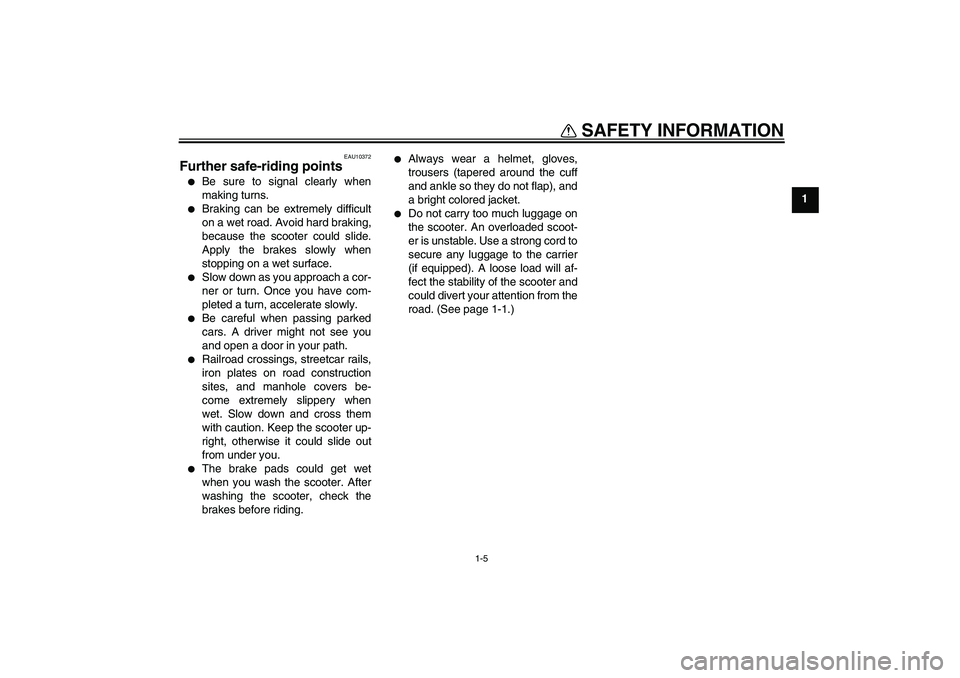

Further safe-riding points

Be sure to signal clearly when
making turns.


Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when
stopping on a wet surface.


Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.


Be careful when passing parked
cars. A driver might not see you
and open a door in your path.


Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up-
right, otherwise it could slide out
from under you.


The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.


Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap), and
a bright colored jacket.


Do not carry too much luggage on
the scooter. An overloaded scoot-
er is unstable. Use a strong cord to
secure any luggage to the carrier
(if equipped). A loose load will af-
fect the stability of the scooter and
could divert your attention from the
road. (See page 1-1.)
U3C6E1E0.book Page 5 Friday, August 8, 2008 10:09 AM

DESCRIPTION
2-1
2
EAU10410
Left view
1
23
4
6 8
9
7
5
1. Rear brake lever (page 3-5)
2. Left handlebar switches (page 3-4)
3. Speedometer unit (page 3-3)
4. Main switch/steering lock (page 3-1)
5. Final transmission oil filler cap (page 6-8)
6. Centerstand (page 6-17)
7. Kickstarter (page 3-9)
8. Air filter element (page 6-10)9. Coolant level check window (page 6-9)U3C6E1E0.book Page 1 Friday, August 8, 2008 10:09 AM

DESCRIPTION
2-2
2
EAU10420
Right view
23
1
4
56
1. Fuel tank cap (page 3-5)
2. Throttle grip (page 6-11)
3. Front brake lever (page 3-5)
4. Coolant reservoir cap (page 6-9)
5. Battery/fuse (page 6-19/6-20)
6. Oil tank cap (page 3-8)
U3C6E1E0.book Page 2 Friday, August 8, 2008 10:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10640
ON“”
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.TIPThe headlight, meter lighting and tail-
light come on automatically when theengine is started.
EAU10661
OFF“”
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to“” or“”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result inloss of control or an accident.
EAU10670
CHECK“”
The 2-stroke engine oil level warning
light should come on. (See page 3-2.)
EAU10681
LOCK“”
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the“” posi-
tion, and then turn it to“” while
still pushing it.
3. Remove the key.To unlock the steering
Push the key in, and then turn it to“”
while still pushing it.
PUSHOPEN
ZAUM0253
U3C6E1E0.book Page 1 Friday, August 8, 2008 10:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11003
Indicator and warning lights
EAU11020
Turn signal indicator light“”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11181
Oil level warning light“”
This warning light comes on when the
key is in the“” position or if the oil lev-
el in the 2-stroke engine oil tank is low
during operation. If the warning light
comes on during operation, stop imme-
diately and fill the oil tank with Ya-
malube 2 or equivalent 2-stroke engine
oil of either JASO grade “FC” or ISO
grades “EG-C” or “EG-D”. The warning
light should go off after the 2-stroke en-
gine oil tank has been refilled.TIPIf the warning light does not come on
when the key is in the“” position or
does not go off after the 2-stroke en-
gine oil tank has been refilled, have a
Yamaha dealer check the electrical cir-cuit.NOTICE
ECA16291
Do not operate the vehicle until you
know that the engine oil level is suf-ficient.
EAU11433
Coolant temperature warning
light“”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.NOTICE
ECA10021
Do not continue to operate the en-gine if it is overheating.TIP

For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.
1. Turn signal indicator light“”
2. High beam indicator light“”
3. Oil level warning light“”
TEMP
123
ZAUM0254
1. Coolant temperature warning light“”
TEMP
Km / h
E1/2
F
1
ZAUM0255
U3C6E1E0.book Page 2 Friday, August 8, 2008 10:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3


If the engine overheats, see page6-24 for further instructions.

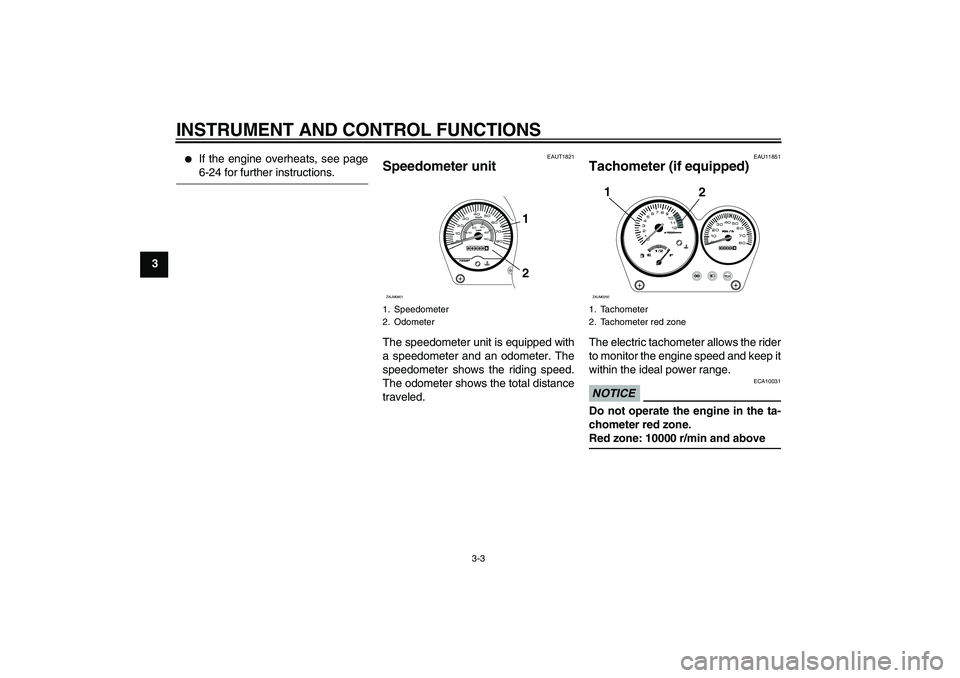

EAUT1821
Speedometer unit The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
EAU11851
Tachometer (if equipped)The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 10000 r/min and above
1. Speedometer
2. Odometer
21
ZAUM0801
1. Tachometer
2. Tachometer red zone
1
2
ZAUM0292
U3C6E1E0.book Page 3 Friday, August 8, 2008 10:09 AM
