2009 VOLVO S40 Owner´s Manual

02

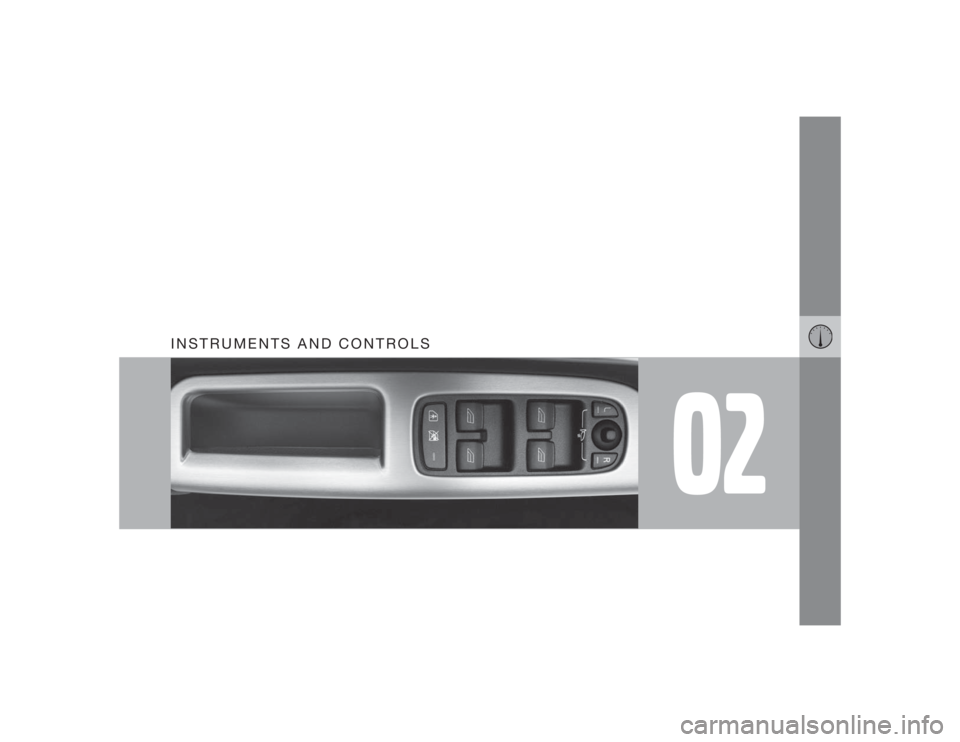

INSTRUMENTS AND CONTROLS

02 Instruments and controlsInstrument overview
0250
G019488

02 Instruments and controls

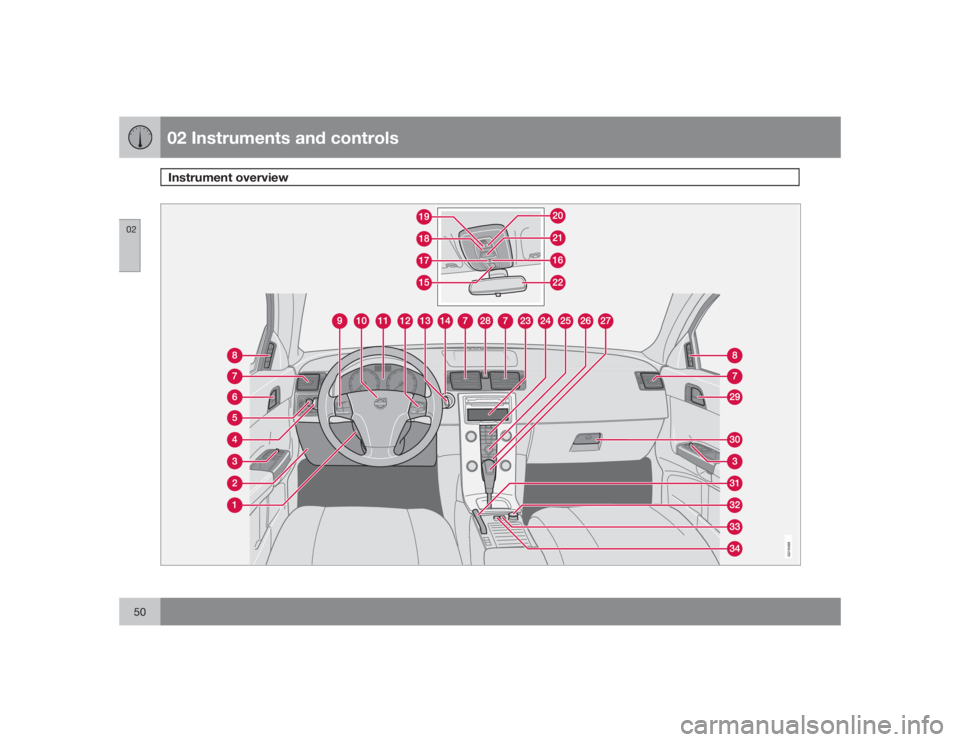

Instrument overview
02``51
Steering wheel adjustmentHood openerControls in front doors (see
page 52)Left steering wheel leverLighting panel, fuel filler door
openerDoor open handle and locking but-
tonClimate system air ventSide window air ventCruise controlHorn, airbagMain instrument panelAudio controls (option)Right steering wheel leverIgnition switchMoonroof control (option)
Not in useNot is useCourtesy lighting switchDriver's side reading lightPassenger's side reading lightSeat belt reminder and Occupant
Weight Sensor indicatorRear-view mirrorDisplay for climate control, personal
settings, and audio systemAudio systemControls for personal settings and
audio systemControls for climate systemGear selectorHazard warning flashersDoor open handle, and locking but-
tonGlove compartment
Parking brake12-volt socketPosition for optional equipmentPosition for optional equipment

02 Instruments and controlsInstrument overview
0252
Control panel in driver's door
G017435
Lockout switch for rear windowsPower windowsDoor mirror button, driver's sideDoor mirror adjustment controlDoor mirror button, passenger's
side

02 Instruments and controls
Instrument panel
02``53 Instrument panel
8
9
11
12
13
14
10
G031465
4 3 2
567
1
SpeedometerTurn signal, leftWarning symbol – See the following pages
for additional information.Information display – The display presents
information and warning messages, the
ambient temperature, clock, etc. When the
ambient temperature is between 23 °F and
36 °F (–5 °C and +2 °C), a snowflake sym-
bol is shown in the display. This symbol
serves as a warning for possible slippery
road surfaces. Please note that this symbol
does not indicate a fault with your car. At
low speeds, or when the car is not moving,the temperature readings may be slightly
higher than the actual ambient tempera-
ture.
Information symbol – See the following
pages for additional information.Turn signal, rightTachometer – Shows engine speed in
thousands of revolutions per minute (rpm).
Do not drive continuously with the needle
in the red area of the dial, which indicates
maximum allowable engine rpm range.
Instead, shift to a higher gear or slow the
vehicle down. The engine management
system will automatically prevent exces-sively high engines speeds. This will be
noticeable as a pronounced unevenness in
engine speed.
Indicator and warning symbolsFuel gauge, see page 267 for fuel tank vol-
ume. When a warning light in the gauge
comes on, the vehicle should be refueled
as soon as possible. see page 68 for
more information on fuel level and con-
sumption in the "Trip computer” section.High beam indicatorFunction display – This window displays
information on functions such as the

02 Instruments and controlsInstrument panel
0254
odometer, trip odometers, optional rain
sensor, and cruise control.Trip odometer reset button – The trip
odometers are used to measure short dis-
tances. Press the button briefly to switch
between the odometer for the car's total
mileage and the two trip odometers, T1
and T2. A long press (more than 2 seconds)
resets the currently selected trip odometer.Temperature gauge – The gauge indicates
the temperature of the engine cooling sys-
tem. If the temperature is abnormally high
and the needle enters the red zone, a mes-
sage is shown in the display. Bear in mind
that auxiliary lamps in front of the air intake
reduce the cooling capacity at high outside
temperatures and high engine loads.Indicator and warning symbols

02 Instruments and controls
Indicator and warning symbols
02``55 Function check
The indicator and warning symbols
1 light up
when you turn the ignition key or the optional
keyless drive start control to the driving posi-
tion (position II) before starting. This shows that
the symbols are functioning.
When the engine starts, all sym-
bols go out. If the engine is not
started within 5 seconds, all of the
symbols except the malfunction
indicator light (CHECK ENGINE)
and the oil pressure warning light
will go out. Certain symbols may
not have their functions illustrated, depending
on the car's equipment.
CHECK
ENGINEThePARK BRAKE symbol will not go out until
the parking brake has been released.
Symbols in the center of the instrument
panel
G026365
Warning symbol
The red warning symbol lights up
to indicate a fault that could affect
the car's drivability.This symbol
illuminates when the vehicle is
traveling at speeds above 5 mph
(7 km/h). A text explaining the nature of the fault
will also be shown in the information display.
The symbol and accompanying text will remain
on until the fault has been corrected. This sym-
bol may also light up in combination with other
indicator or warning symbols.
If the red warning symbol lights up:
1. Stop the car as soon as possible in a suit-
able location.
2. Read the message in the information dis-
play.
3. Follow the instructions provided, or con-
tact a trained and qualified Volvo service
technician. Erase the message by pressing
READ, see page 60.Information symbol
The yellow information symbol
lights up to alert the driver to a
message in the information dis-
play. This symbol illuminates when
the vehicle is traveling at speeds
below 5 mph (7 km/h).
The message can be erased by pressing the
READ button, see page 60, or will disappear
automatically (the length of time required for
the message to disappear varies, depending
on the function indicated).
When the message "
TIME FOR REGULAR
SERVICE
" is displayed, the text can be erased
and the information symbol light can be turned
off by pressing the READ button. The text will
disappear and the symbol light will go out auto-
matically after two minutes.
1On certain engines, the symbol for low oilpressure is not used. Instead, a text warningis provided in the information display, see page 216.

02 Instruments and controlsIndicator and warning symbols
0256
This symbol may also light up in combination
with other indicator or warning symbols.
NOTE
The car can still be driven after the informa-
tion symbol has come on. The car can be
driven for 1–2 weeks after service-related
information has been displayed.
