2009 VOLVO S40 Owner´s Manual

11 SpecificationsDimensions and weights
11``265
Position
Dimension
in. (mm)
H
Width
69.7 in. (177 cm)
I
Width encl. door mirrors
79.6 in. (202 cm)
WeightsCategory
USA
Canada
Gross vehicle weight
FWD
A: 4320 lbs lbs
FWD Turbo: 4320 lbs
AWDB Turbo: 4450 lbs
1960 kg
1960 kg
2020 kg
Capacity weight
FWD: 800 lbs
AWD: 800 lbs
365 kg
365 kg
Permissible axle weight, front
FWD: 2380 lbs
FWD Turbo: 2380 lbs
AWD Turbo: 2420 lbs
1080 kg
1080 kg
1100 kg
Permissible axle weight, rear
FWD: 2130 lbs
FWD Turbo: 2130 lbs
AWD Turbo: 2220 lbs
970 kg
970 kg
1000 kg
Curb weight
FWD: 3165–3300 lbs
AWD: 3415–3455 lbs
1435–1505 kg
1555–1575 kg
Max. roof load
All models: 165 lbs
All models: 75 kg

11 SpecificationsDimensions and weights
11266
Category
USA
Canada
Max. trailer weight (w/o brakes)
C
All models: 1540 lbs
All models: 700 kg
Max. trailer weight (with brakes)
All models: 2000 lbs
All models: 900 kg
Max. tongue weight
All models: 165 lbs
All models: 75 kg
AFWD = Front Wheel DriveBAWD = All Wheel DriveCModels equipped with the B5244S7 engine (engine code 39, which is the 6th and 7th digits from the left in your vehicle's VIN number, see chapter Label information, for the location of the VIN plate),
may not be used to tow trailers or vehicles of any kind. This could cause damage to the vehicle's emission control systems.
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

11 Specifications
Fuel, oils, and fluids
11``267 Specifications and capacities
Category
Specification
Capacity
Fuel tank
Octane rating: unleaded gasoline, minimum
octane requirement AKI 87, recommended rat-
ing AKI 91 or above.
15.9 US gallons (60 liters)
Models with All Wheel Drive have a tank volume
of 15 US gallons (57 liters).
Models with engine code 39 have a fuel tank
capacity of 14 US gallons (53 liters). This code
is the 6th and 7th digits from the left in your
vehicle's VIN number. see page 262 for the
location of the VIN plate.
Engine oil (with filter replacement)
See page 269 for information on engine oil
specifications.
6.1 US quarts (5.8 liters)
Automatic transmission oil
Non-turbo engine: JWS 3309
8.19 US quarts (7.75 liters)
Manual transmission oil
BOT 130
5-speed: 2.2 US quarts (2.1 liters)
6-speed: 2.1 US quarts (2.0 liters) – turbo mod-
els
Coolant
Volvo original coolant/antifreeze (50/50 mixture
of water and anti-freeze)
10.5 US quarts (10 liters) – models with auto-
matic transmission
10 US quarts (9.5 liters) – models with manual
transmission
Brake fluid
DOT 4+ boiling point >536 °F (280 °C), P/N
9437433
0.63 US quarts (0.6 liters)
Power steering fluid
WSS M2C204-A or equivalent
1.3 US quarts (1.2 liters) – system and reservoir
combined

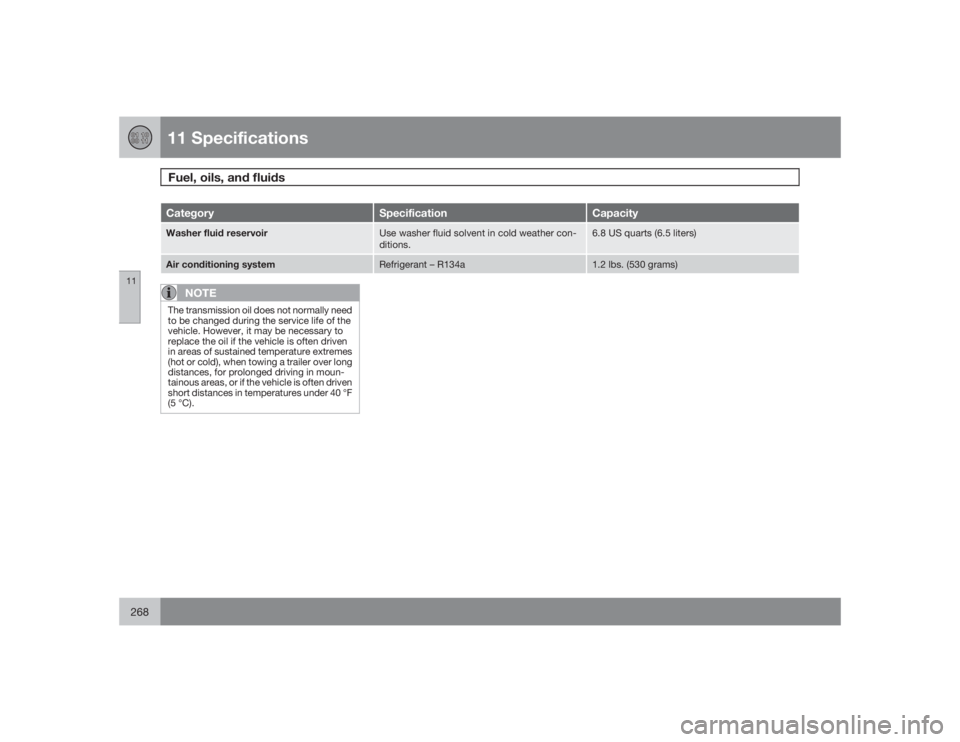

11 SpecificationsFuel, oils, and fluids
11268
Category
Specification
Capacity
Washer fluid reservoir
Use washer fluid solvent in cold weather con-
ditions.
6.8 US quarts (6.5 liters)
Air conditioning system
Refrigerant – R134a
1.2 lbs. (530 grams)
NOTE
The transmission oil does not normally need
to be changed during the service life of the
vehicle. However, it may be necessary to
replace the oil if the vehicle is often driven
in areas of sustained temperature extremes
(hot or cold), when towing a trailer over long
distances, for prolonged driving in moun-
tainous areas, or if the vehicle is often driven
short distances in temperatures under 40 °F
(5 °C).

11 Specifications
Engine oil
11
269 Oil specifications
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volume: 6.1 US qts (5.8 liters).
Volume between the MIN and Max marks on
the dipstick: approximately 1.4 US qts (1.3 lit-
ers).
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer or a trained and qualified Volvo service
technician for recommendations on premium
or synthetic oils.
Oil additives must not be used.
NOTE
Synthetic oil is not used when the oil is
changed at the normal service intervals.
This oil is only used at customer request, at
additional charge. Please consult a trained
and qualified Volvo service technician.
Oil viscosity (stable ambient
temperatures)
G023491
Operation in hot climatesWhen temperatures exceed 104° F (40° C) in
your area, Volvo recommends, for the protec-
tion of your engine, that you use a heavier
weight oil, such as such as SAE 5W-40 or
0W-40. See the viscosity chart.Operation in temperate climatesIncorrect viscosity oil can shorten engine life.
Under normal use when temperatures do not
exceed 104° F (40° C), SAE 5W-30 will provide
good fuel economy and engine protection. See
the viscosity chart.Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements arerecommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:•
The upper section describes the oil's per-
formance level.
•
The center identifies the oil's viscosity.
•
The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.

11 SpecificationsEngine specifications
11270
Engine designation
B5244S4
B5244S7
A
B5254T7
Output
B
kW/rps
125/100
123/100
169/83
hp/rpm
168/6000
165/6000
227/5000
Torque
Nm/rps
230/73
230/73
320/25-80
ft. lbs./rpm
170/4400
170/4400
236/1500-4800
No. of cylinders
5
5
5
Displacement (liters/cubic inches)
2.44/148.6
2.44/148.6
2.52/153.8
Bore (mm/in.)
83/3.27
83/3.27
83/3.27
Stroke (mm/in.)
90/3.54
90/3.54
93.2/3.67
Compression ratio
10.3:1
10.3:1
9.0:1
Spark plugstype
Volvo kit no. 30650843
Volvo kit no. 30650843
Volvo kit no. 30650379
gap inches/mm
(3x) 0.024 ± 0.004 in./0.6
± 0.1mm
(3x) 0.024 ± 0.004 in./0.6
± 0.1mm
0.027in./0.7mm
tightening torque ft. lbs./Nm
22.5 ft. lbs./30 Nm
22.5 ft. lbs./30 Nm
22.5 ft. lbs./30 Nm
ACertain marketsBThe engine specifications for horsepower and torque listed in this table are based on the use of premium fuel.

11 Specifications
Engine specifications
11
271
Charge air cooler (Intercooler)Turbocharged engines employ a turbo-com-
pressor to force air into the engine inlet mani-
fold and a charge air cooler to cool the
compressed inlet air. The resulting increase in
air flow raises pressure in the intake manifold
and increases engine power over that devel-
oped by the normally-aspirated engine. The
charge air cooler (which resembles a radiator)
is located between the turbo-compressor and
inlet manifold.Fuel systemThe engine is equipped with a multiport fuel
injection system.

11 SpecificationsElectrical system
11272
General information12-volt system with voltage controlled gener-
ator. Single wire system in which the chassis
and engine block are used as conductors,
grounded on the chassis.BatteryVoltage
12 V
12 V
Cold start
capacity
(CCA)
600 A
A
700 A
B
Reserve
capacity
(RC)
120 min
135 min
Capacity
(Ah)
70
80
AModels equipped with the High Performance audio systemBModels equipped with the Premium Sound audio system,
the Volvo Navigation System and/or keyless drive
If the battery must be replaced, replace it with
one with the same cold start capacity and
reserve capacity as the original (see the decal
on the battery).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
Bulbs used in the carBulb
Output
Type
Low beam headlight
55W
H7
High beam headlight (applies to vehicles with halogen headlights)
55W
H9
