2009 VOLVO S40 Owner´s Manual

04 Interior
Front seats
04``105
WARNING
Cover sharp edges on the load to help pre-
vent injury to occupants. Secure the load to
help prevent shifting during sudden stops.Power seats (option)The power driver's seat can be adjusted:•
If the ignition key is in position I or II.
•
During a 10 minute period after the doors
have been unlocked if the door remains
open.
•
If the door is closed and the ignition key is
not yet in the ignition, or if the key is in
position0, the seat can be adjusted or dur-
ing a period of 40 seconds. The power
passenger's seat can only be adjusted if
the ignition key is in position I or II, or if the
engine is running.
Adjusting the seat
G020199
Seat adjustment controlsSeat adjustment controls 1, 2, 3, and 4 on the
side of the seat can be used to move the seat
to the position of your choice.
Move this section of the control up or down
to raise/lower the front section of the seat
cushion.Move the control forward/rearward to
move the seat forward or rearward.Move this section of the control up or down
to raise/lower the rear section of the seat
cushion.Backrest tilt.
NOTE
The power seats have an overload protector
that activates if a seat is blocked by any
object. If this occurs, switch off the ignition
(key in position 0) and wait for approxi-
mately 20 seconds before operating the
seat again.Emergency stopIf the seat inadvertently begins to move, press
any of the buttons to stop the seat.Programming the seat memory, driver's
seat only (option)
G020200
Power seat memory buttons

04 InteriorFront seats
04106
Three different seating positions can be stored
in the seat's memory. The memory buttons are
located on the outboard side of the driver's
seat (see the illustration above). The following
example explains how memory button 1 can be
programmed. Buttons 2 and 3 can be pro-
grammed in the same way.
To program (store) a seat position in memory
button1:
1. Adjust the seat to the desired position.
2.
Press and hold down the "M" (Memory)
button.
3.
With the "M" button depressed, press
memory button 1 to store the seat's current
position.
To move the seat to the position that it was in
when memory button 1 was programmed,
press and hold down button 1 until the seat
stops moving.
As a safety precaution, the seat will stop auto-
matically if the button is released before the
seat has reached the preset position.Central locking system remote control
and driver's seat memoryThe remote control transmitter can also be
equipped with an optional function that con-
trols the electrically operated driver's seat in
the following way:1. Adjust the seat to the desired position.
2. When you leave the car, lock it using the
remote control.
3. The next time the driver's door is unlocked
with the same remote control and that door
is opened within 2 minutes, the driver's
seat and side door mirrors will automati-
cally move to the position that they were in
when the doors were most recently locked
with the same remote control.
NOTE
The memory function in the remote control
operates independently the memory func-
tion in the seat.
WARNING
•
Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
car.
•
Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.
•
Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•
The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.

04 InteriorInterior lighting
04``107 Interior lighting
G020201
Front courtesy lights and reading lights
Front driver's side reading light, on/offCourtesy lightingFront passenger's side reading light, on/off
The front and rear reading lights can be acti-
vated when the ignition key is position I or II, or
when the engine is running. The front reading
lights are switched on and off by pressing but-
tons (1) or (3).
The courtesy lighting (2) can be set to three
positions:
•
Press the left side of the button: the interior
courtesy lighting turns on.
•
Neutral position: the interior courtesy light-
ing comes on when a door is opened, and
is switched off 10 seconds after the door is
closed.
•
Press the right side of the button: the inte-
rior courtesy lighting stays off.
Courtesy lighting – automatic functionThe interior lighting has a built-in automatic
function that switches on the courtesy lighting
for 30 seconds when:•
the car is unlocked from the outside using
the key or remote control
•
the engine is switched off and the ignition
key is turned to the 0 position.
The courtesy lighting lights up or remains on
for 5 minutes when:
•
one of the doors is opened and left open.
•
the courtesy lighting has not been
switched off (the right side of button 2
depressed).
The automatic lighting goes out when:
•
the engine is started
•
the car is locked from the outside using the
key or remote control.If the courtesy lighting is not switched off man-
ually, it will be turned off automatically
5 minutes after the engine has been switched
off.
Footwell lightingThe footwell (and courtesy lighting) comes on
or goes off when one of the side doors is
opened or closed.Rear reading lights
G020763
Rear reading lights (in ceiling)
Rear driver's side reading light, on/offRear passenger's side reading light, on/off

04 InteriorInterior lighting
04108
The rear reading lights can be switched on or
off by pressing the respective buttons, and
function if the ignition key is in positions I,II, or
if the engine is running.
The courtesy lighting can be switched on or off
within 30 minutes after the engine has been
switched off, or after a door has been opened
or closed.
These lights switch off automatically 5 minutes
after the engine has been switched off.Vanity mirror
G020210
Raise the cover to switch on the light.

04 Interior

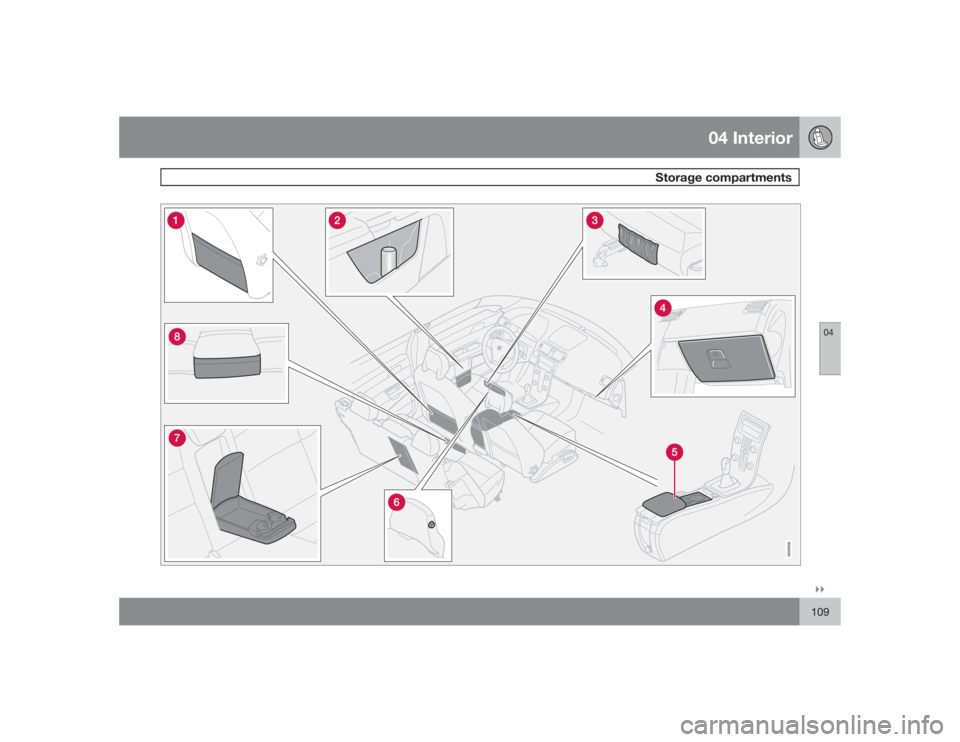

Storage compartments
04``109
G026508

04 InteriorStorage compartments
04110
Storage pocket (on the rear side of the front
seats)Compartment in door panelStorage pocket (on the front side of the
front seat cushion)Glove compartmentStorage compartment for e.g., CDs and
cup holdersJacket hanger (intended for light garments
only)Rear seat storage compartment and cup
holdersStorage pocket (on the front side of the
rear, center seat cushion).WARNING
•
Anchor any heavy objects to prevent
them from moving during sudden stops.
•
Packages on the rear parcel shelf can
obscure vision and may become dan-
gerous projectiles in the event of a sud-
den stop or an accident.
Glove compartment
G024208
The owners manual and maps can be stored
here. There are also holders for coins, pens and
fuel cards. The glove compartment can only be
locked and unlocked using the detachable key
blade from the central locking system's remote
control. See page 120 for information on
removing the key blade from the remote con-
trol, and page 128 for information about lock-
ing the glove compartment.
Jacket hanger
G018137
The jacket hanger is located on the inboard
side of the front passenger's seat head
restraint. It is only intended for hanging light
garments.

04 Interior
Storage compartments
04``111 Storage under the front, center armrest
G018371
There are two storage compartments under the
front, center armrest.•
Press the smaller button on the front edge
of the armrest and lift the armrest cover to
access a shallow storage compartment.
•
Press the larger button and lift the entire
armrest to access a deeper compartment.
CD storage
G026704
The deep storage compartment has room for
10 CD jewel cases. These cases must be
inserted with their spines upward in order to
allow space for 10 cases in the storage com-
partment
Cup holders in the center console
G018372
Two cup holders are located under the sliding
cover in the center console.
The cup holders can be lifted out if necessary.
To do so, grasp the indentation on the rear
edge of the cup holder and lift.
To put the cup holder back in place:
1. Slide the two locating tabs in the front side
of the cup holder into the two correspond-
ing recesses in the center console storage
space.
2. Press down the rear edge of the cup
holder.
To close the sliding cover, grasp the underside
of the front edge and pull.

04 InteriorStorage compartments
04112

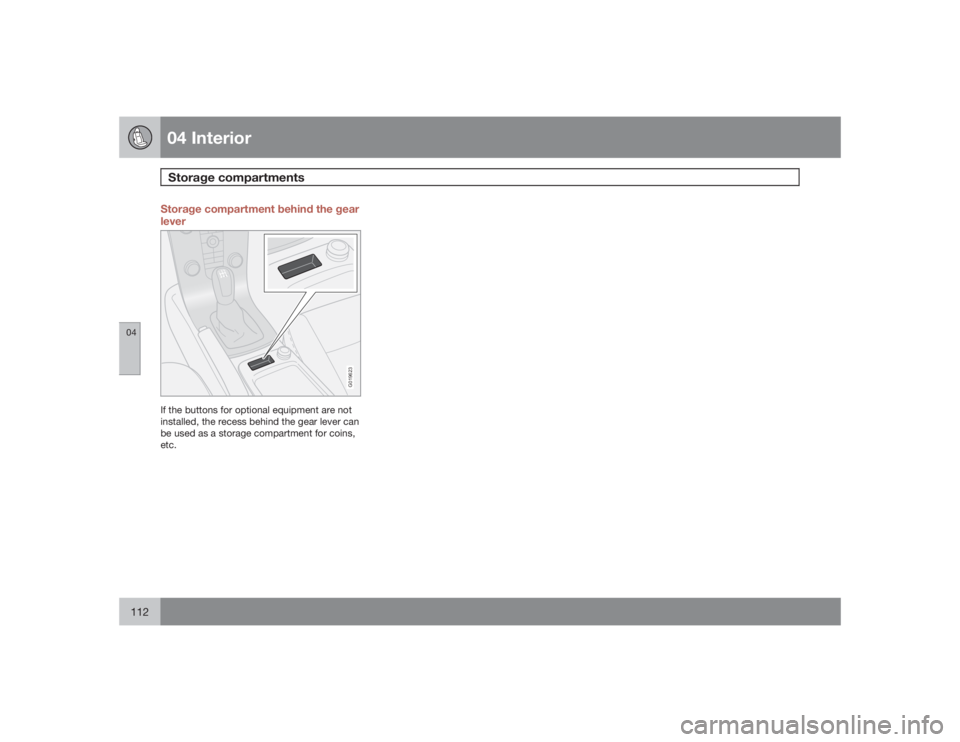

Storage compartment behind the gear
lever
G019623
If the buttons for optional equipment are not
installed, the recess behind the gear lever can
be used as a storage compartment for coins,
etc.
