2009 VOLVO S40 Owner´s Manual

10 Audio
Bluetooth hands-free connection
10``257
audio system searches for the most recently
connected phone, this phone’s name appears
in the display. To manually connect a different
cell phone, press EXIT.Manual connectionTo connect a phone other than the one that
was most recently connected or to switch
between cell phones that are already regis-
tered in the hands-free system:
1. Put the audio system in telephone mode.
2.
PressPHONE in the center console and
select one of the phones on the list.
A connection can also be established in the
menu system under Bluetooth
Connect
phone or Change phone.
Phone bookIn order to use the hands-free system’s phone
book (list of contacts),
TELEPHONE
must be
displayed at the top of the center console dis-
play and the
symbol must be visible.
The audio system stores a copy of the phone
book of each registered cell phone. The phone
book is automatically copied each time a
phone is connected. This function can be acti-
vated in Phone settings
Synchronise
phone book. Searches for contacts are onlymade in the phone book of the currently con-
nected cell phone.
NOTE
If a particular cell phone does not support
copying of the phone book,
List is empty
will be displayed when copying has been
completed.If the phone book contains information about
someone who is trying to call you, this infor-
mation will be shown in the display.Searching for contactsThe easiest way to search for a contact in the
phone book is to press and hold any of the
buttons2–9. This starts a search based on the
first letter on the button that has been pressed.
The phone book can also be accessed by
pressing the navigation buttons
/
on the
center console or by pressing
/
on the
steering wheel keypad. A search can also be
made in the phone book’s search menu in
Phone book
Search:
1. Enter the first letter of the contact’s name
and press ENTER or simply press ENTER.
2. Select the desired contact and press
ENTER to make a call to that person.
Voice controlIf the cell phone that is currently connected
allows calls to be made via voice commands,
this function can be used by pressing and hold-
ingENTER.Voice mail numberThe phone number to your voice mail can be
changed in the menu Phone settings
Call
options
Voice mail number. If no number
has been stored, this menu can be accessed
by a prolonged press on button 1. Once a
phone number has been stored, press and hold
1 to dial this number.
Call listsLists of calls in a particular cell phone are cop-
ied to the hands-free system each time that
phone is connected. These lists are then upda-
ted while the phone is connected. Press
ENTER to show the most recently dialed num-
bers. Other call lists can be found under
Call
register
.NOTE
Certain cell phones display the list of the
most recently dialed numbers in reverse
order.

10 AudioBluetoothŸ hands-free connection
10258
Entering textText is entered by using the number buttons in
the center console. Press a button once to
enter the first letter on the button, twice to enter
the second letter, etc. Continue to press the
button to display other characters.
PressEXIT briefly to erase a character. Press
and hold EXIT to erase all of the characters that
have been entered. Use the
/
buttons on
the center console to navigate among the char-
acters.
Button
FunctionSpace
.1-? ! , : " ' ( )
A B C 2 Ä Å À Æ ÇD E F 3 È ÉG H I 4 ÌJ K L 5M N O 6 Ñ Ö Ò ØP Q R S 7 ß
Button
FunctionT U V 8 Ü ÙW X Y Z 9Press briefly if two characters are
to be entered in succession from
the same button.+ 0 @ * # & $ £ / %Shift between uppercase and
lowercase letters
BluetoothŸ menus1. Missed calls
2. Received calls
3 Dialed calls
4. Phone book
4.1. Search
4.2. Copy fr. mobile phone
5. Bluetooth...
5.1. Change phone
5.2. Connect phone
5.3. Disconnect phone5.4. Connect fr. mobile phone
6. Phone settings
6.1. Call options
6.1.2. Automatic answer
6.1.3. Voice mail number
6.2. Sounds and volume
6.3. IDIS
6.4. Synchronize phone book

10 Audio
10
259

G000000
260
Label information.................................................................................. 262
Dimensions and weights....................................................................... 264
Fuel, oils, and fluids..............................................................................267
Engine oil............................................................................................... 269
Engine specifications............................................................................ 270
Electrical system................................................................................... 272
Three-way catalytic converter............................................................... 274
Volvo programs..................................................................................... 275

11
SPECIFICATIONS

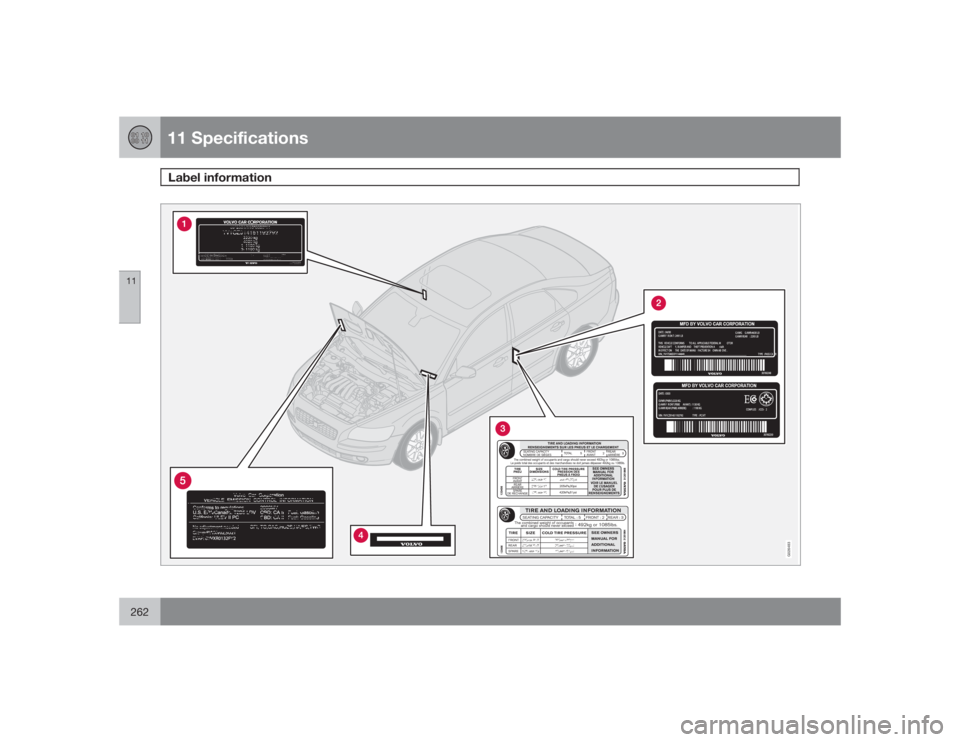

11 SpecificationsLabel information
11262
G032544G026483

11 Specifications
Label information
11
263
Model plateVehicle Identification Number (VIN). Codes for
color and upholstery, etc. Federal Motor Vehicle Safety
Standards (FMVSS) specifications (USA)
and Ministry of Transport (CMVSS)
standards (Canada)Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the facing side of the driver's
door. For further information regarding these
regulations, please consult your Volvo retailer. Loads and Tire PressuresThe appearance of the decal will vary, depend-
ing on the market for which the vehicle is
intended.
Canadian models have the upper decal
U.S. models have the lower decal. Vehicle Identification Number (VIN)
1
The VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped on
the right hand door pillar. Vehicle Emission Control InformationYour Volvo is designed to meet all applicable
emission standards, as evidenced by the cer-tification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.1The Vehicle Identification Number (VIN) should always be quoted in correspondence concerning your vehicle with the retailer and when ordering parts.

11 SpecificationsDimensions and weights
11264
Dimensions
G017401
Position
Dimension
in. (mm)
A
Wheelbase
103.9 in. (264 cm)
B
Length
175.9 in. (447 cm)
C
Load length, floor, seatback down
68.7 in. (175 cm)
D
Load length, floor
38.4 in. (98 cm)
E
Height
57.2 in. (145 cm)
F
Track, front
60.4 in. (154 cm)
G
Track, rear
60.3 in. (153 cm)
