6-1. Specifications
6
Vehicle specifications

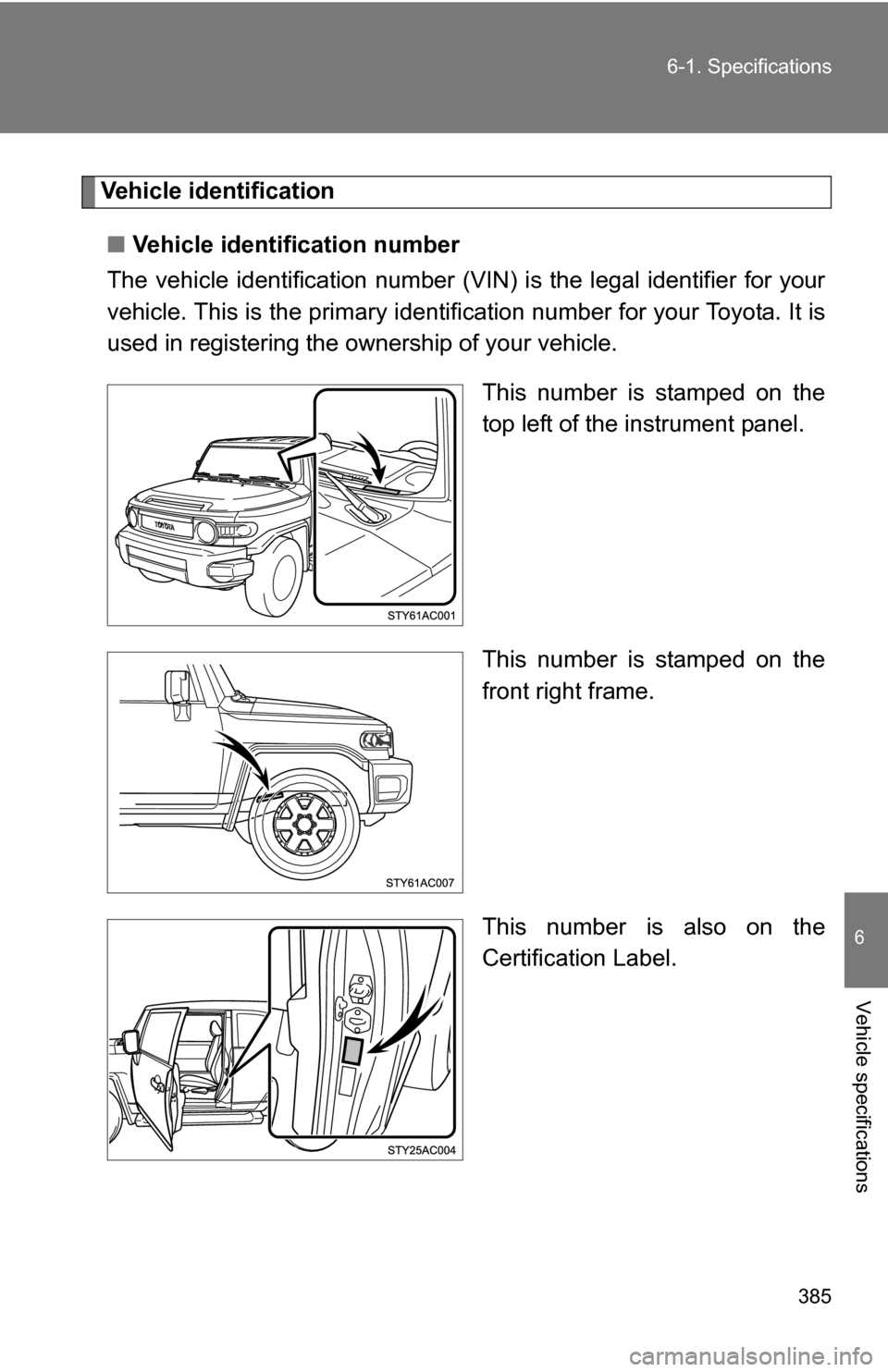

Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is stamped on the
front right frame.
This number is also on the
Certification Label.

386 6-1. Specifications

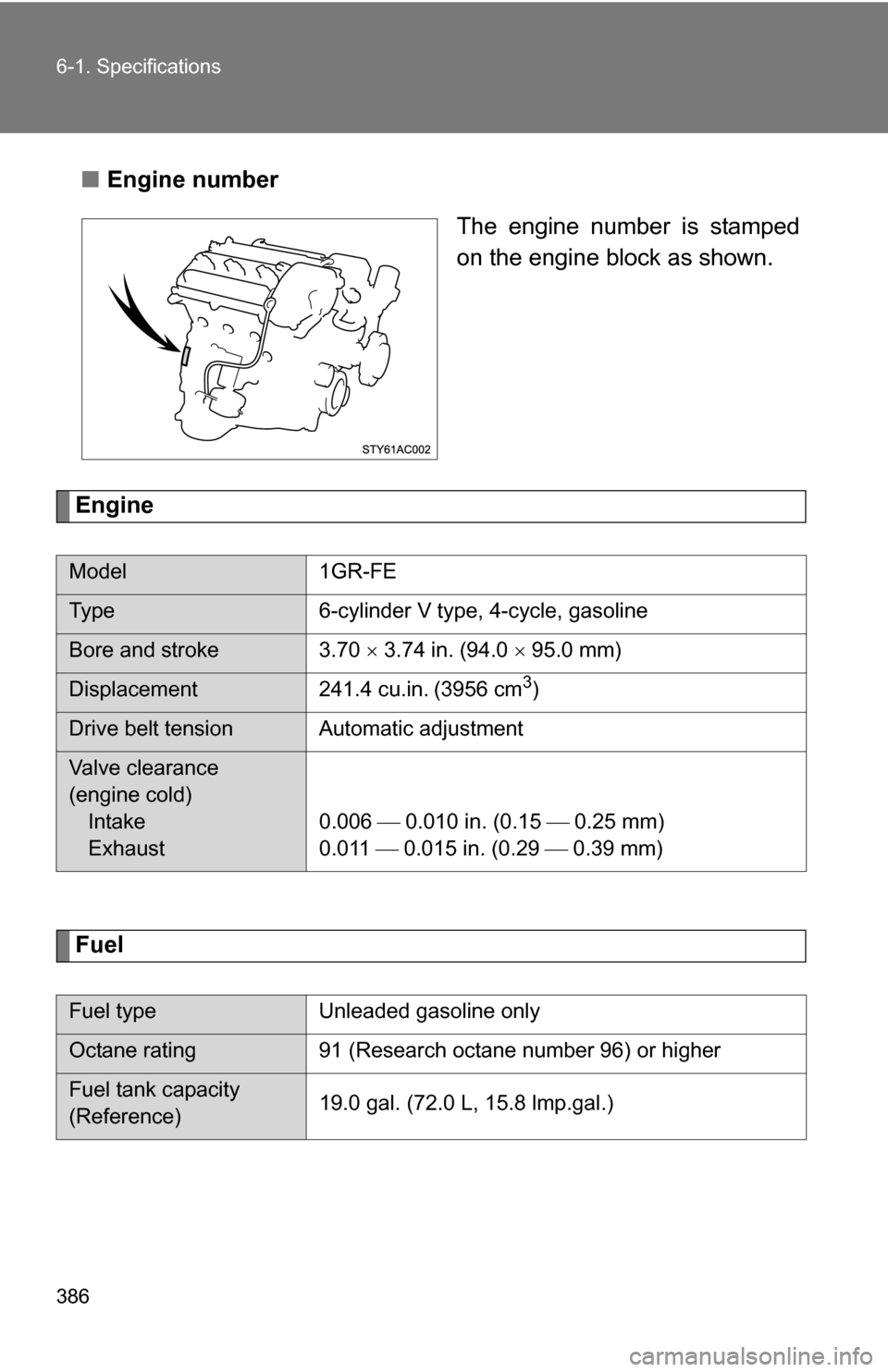

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Fuel
Model1GR-FE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.74 in. (94.0  95.0 mm)
Displacement 241.4 cu.in. (3956 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust 0.006  0.010 in. (0.15  0.25 mm)
0.011  0.015 in. (0.29
 0.39 mm)
Fuel type Unleaded gasoline only
Octane rating 91 (Research octane number 96) or higher
Fuel tank capacity
(Reference) 19.0 gal. (72.0 L, 15.8 lmp.gal.)

387
6-1. Specifications
6
Vehicle specifications

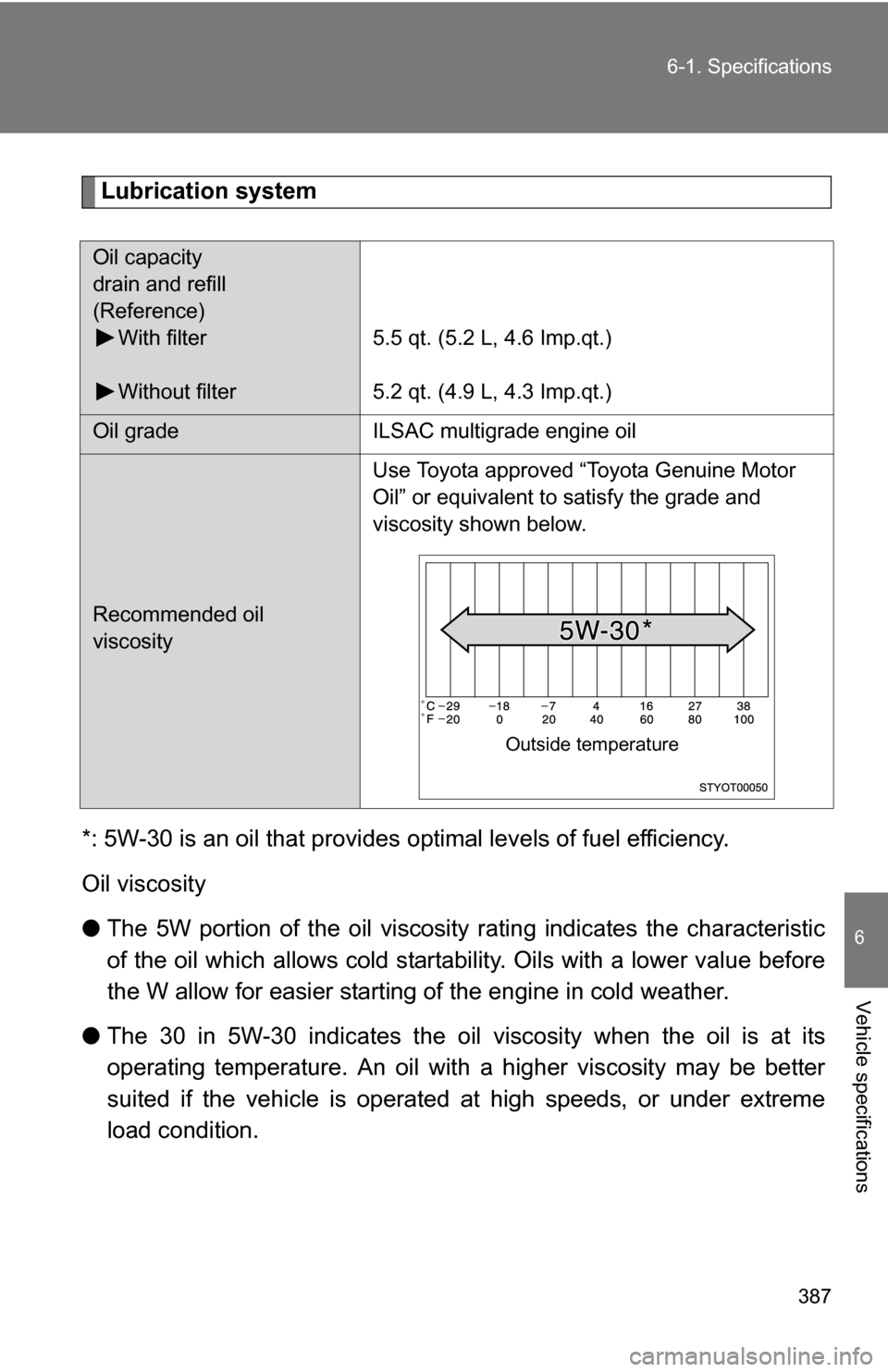

Lubrication system
*: 5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity
● The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is at its
operating temperature. An oil with a higher viscosity may be better
suited if the vehicle is operated at high speeds, or under extreme
load condition.
Oil capacity
drain and refill
(Reference) With filter
Without filter 5.5 qt. (5.2 L, 4.6 Imp.qt.)
5.2 qt. (4.9 L, 4.3 Imp.qt.)
Oil grade
ILSAC multigrade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and
viscosity shown below.
Outside temperature

388 6-1. Specifications
Cooling system
Ignition system
Electrical system
CapacityVehicles with an automatic transmission
10.4 qt. (9.8 L, 8.6 Imp.qt.)
Vehicles with a manual transmission
9.9 qt. (9.4 L, 8.3 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
Make DENSO NGK K20HR-U11
LFR6C11
Gap
0.043 in. (1.1 mm)
Battery
Open voltage at
68F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage checked 20 minutes after
the key is removed with all the lights
turned off)
Charging rates 5 A max.

389
6-1. Specifications
6
Vehicle specifications

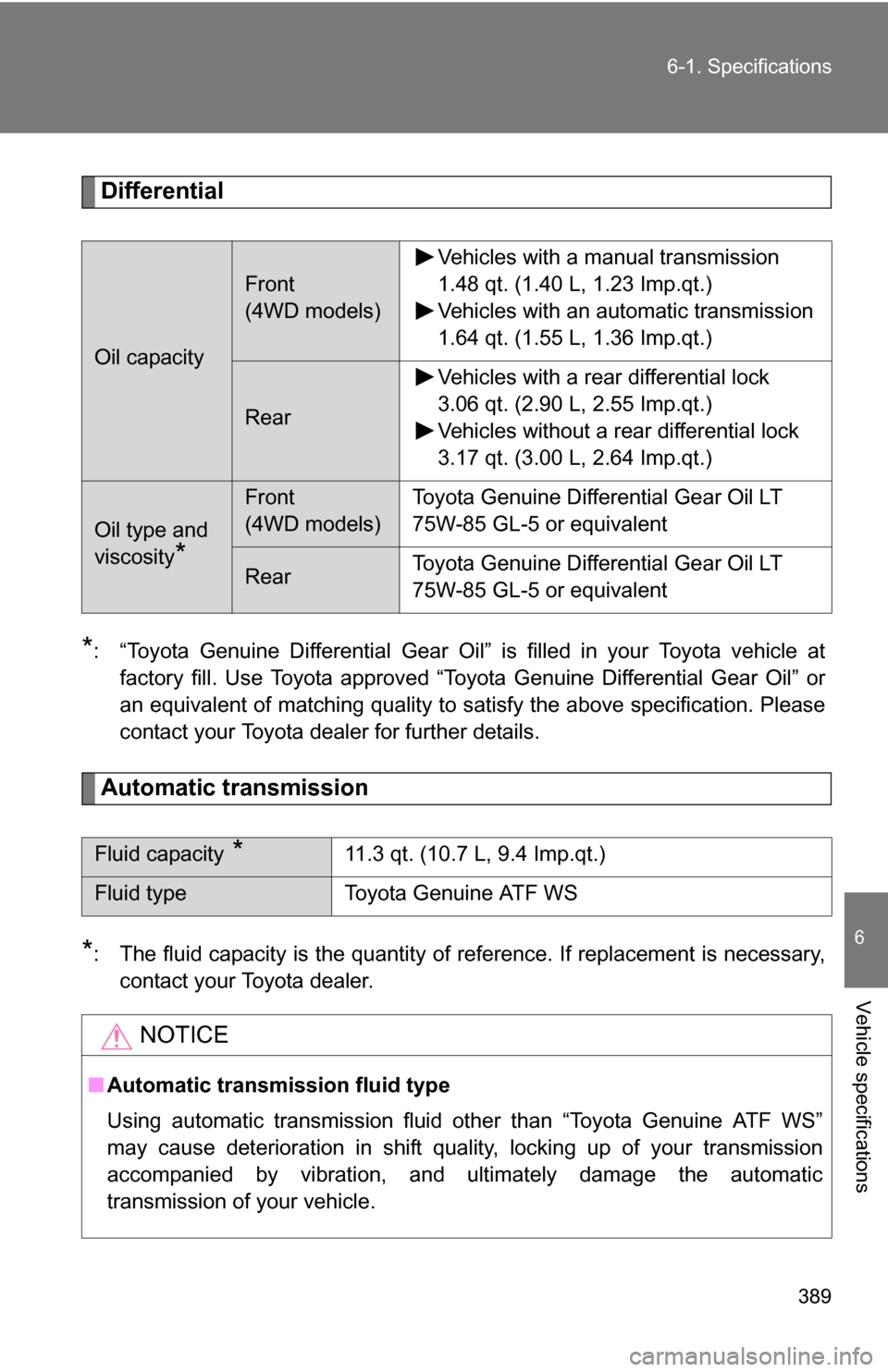

Differential
*: “Toyota Genuine Differential Gear Oil” is filled in your Toyota vehicle at
factory fill. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.
Automatic transmission
*: The fluid capacity is the quantity of reference. If replacement is necessary,contact your Toyota dealer.
Oil capacity
Front
(4WD models) Vehicles with a manual transmission
1.48 qt. (1.40 L, 1.23 Imp.qt.)
Vehicles with an automatic transmission
1.64 qt. (1.55 L, 1.36 Imp.qt.)
Rear
Vehicles with a rear differential lock
3.06 qt. (2.90 L, 2.55 Imp.qt.)
Vehicles without a rear differential lock
3.17 qt. (3.00 L, 2.64 Imp.qt.)
Oil type and
viscosity
*
Front
(4WD models)
Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent
Rear
Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent
Fluid capacity *11.3 qt. (10.7 L, 9.4 Imp.qt.)
Fluid type
Toyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic
transmission of your vehicle.

390 6-1. Specifications

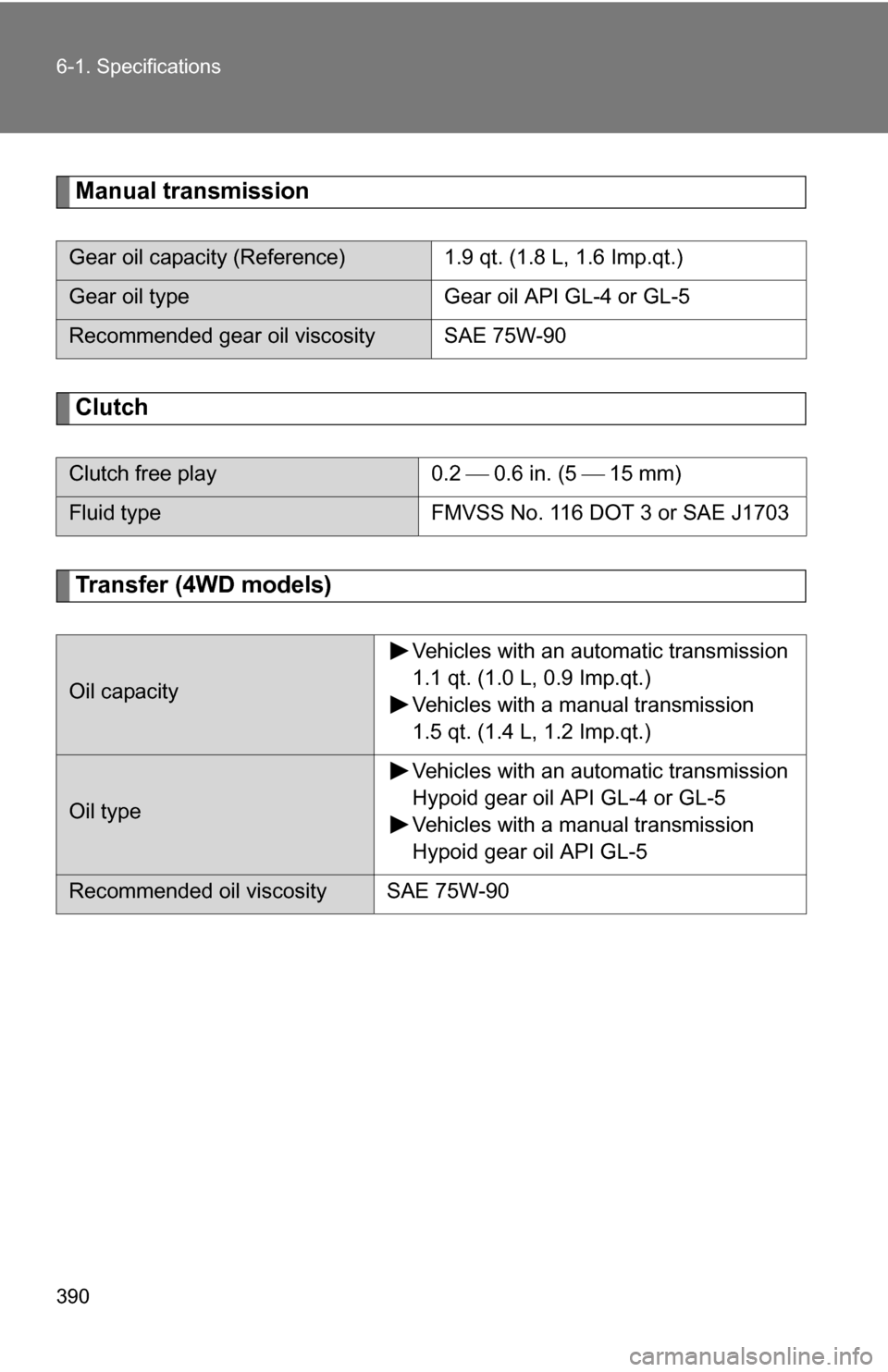

Manual transmission
Clutch
Transfer (4WD models)
Gear oil capacity (Reference) 1.9 qt. (1.8 L, 1.6 Imp.qt.)
Gear oil typeGear oil API GL-4 or GL-5
Recommended gear oil viscosity SAE 75W-90
Clutch free play0.2  0.6 in. (5 15 mm)
Fluid type FMVSS No. 116 DOT 3 or SAE J1703
Oil capacityVehicles with an automatic transmission
1.1 qt. (1.0 L, 0.9 Imp.qt.)
Vehicles with a manual transmission
1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil typeVehicles with an automatic transmission
Hypoid gear oil API GL-4 or GL-5
Vehicles with a manual transmission
Hypoid gear oil API GL-5
Recommended oil viscosity SAE 75W-90

391
6-1. Specifications
6
Vehicle specifications

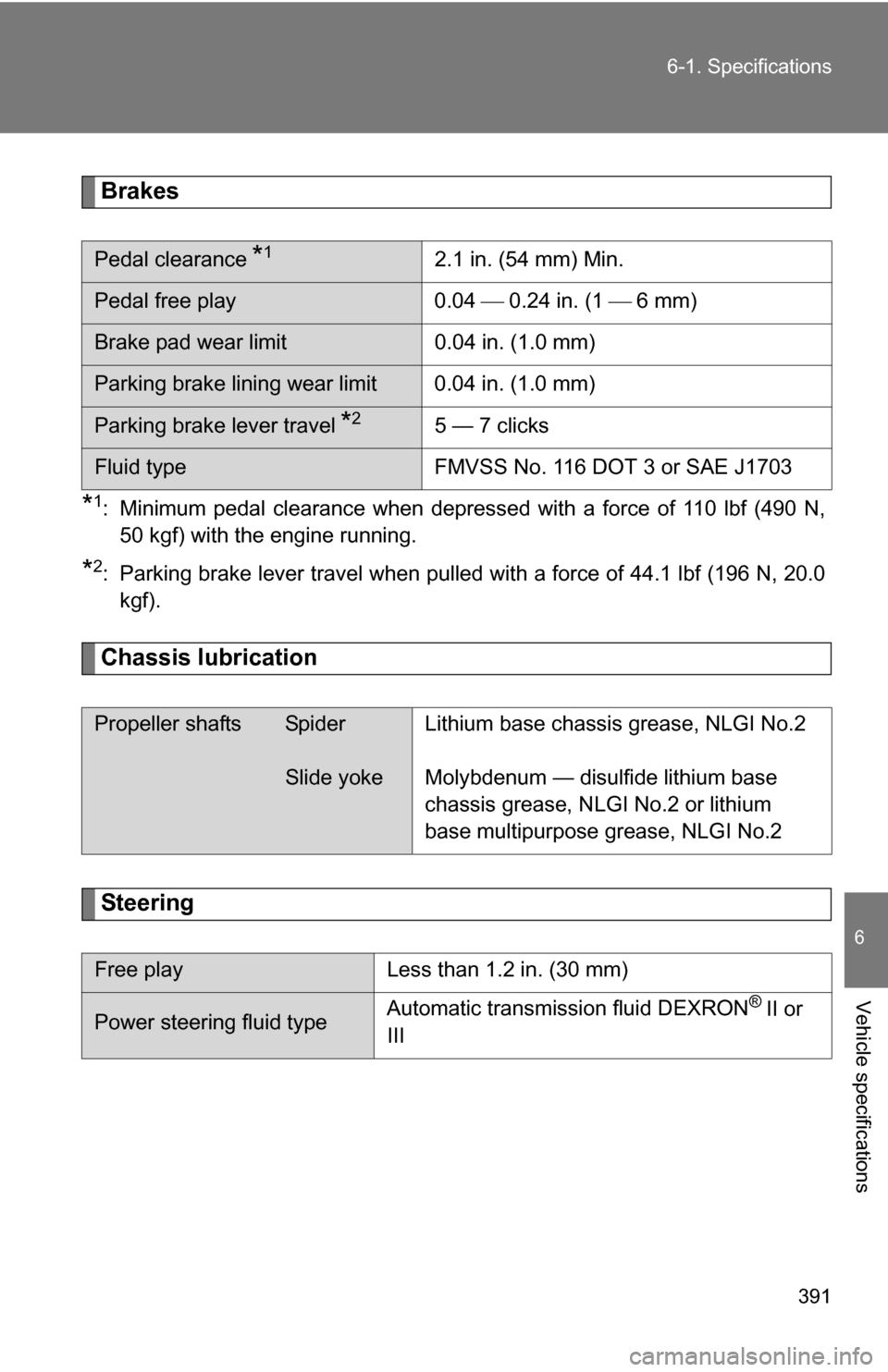

Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) with the engine running.
*2: Parking brake lever travel when pulled with a force of 44.1 lbf (196 N, 20.0kgf).
Chassis lubrication
Steering
Pedal clearance *12.1 in. (54 mm) Min.
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel *25 — 7 clicks
Fluid type FMVSS No. 116 DOT 3 or SAE J1703
Propeller shafts Spider
Slide yokeLithium base chassis grease, NLGI No.2
Molybdenum — disulfide lithium base
chassis grease, NLGI No.2 or lithium
base multipurpose grease, NLGI No.2
Free playLess than 1.2 in. (30 mm)
Power steering fluid type
Automatic transmission fluid DEXRON® II or
III

392 6-1. Specifications
Tires and wheels
Tire sizeP265/75R16 114T, P265/70R17 113S
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare tire:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size 16  7 J, 17  7 1/2 J
Wheel nut torque 85 ft·lbf (113 N·m, 11.5 kgf·m)
