2009 TOYOTA FJ CRUISER Owners Manual

321
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

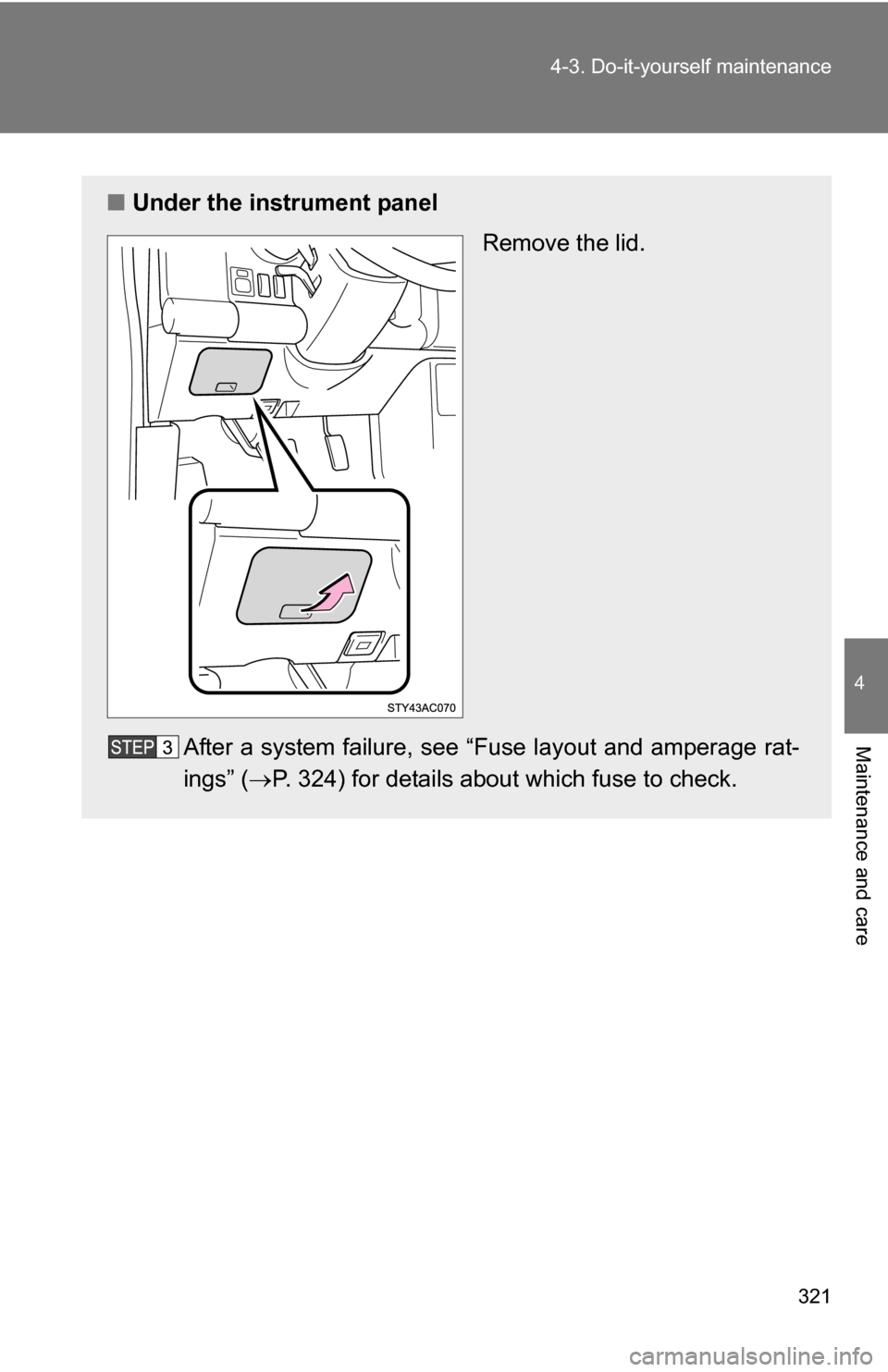

Under the instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 324) for details about which fuse to check.

322 4-3. Do-it-yourself maintenance

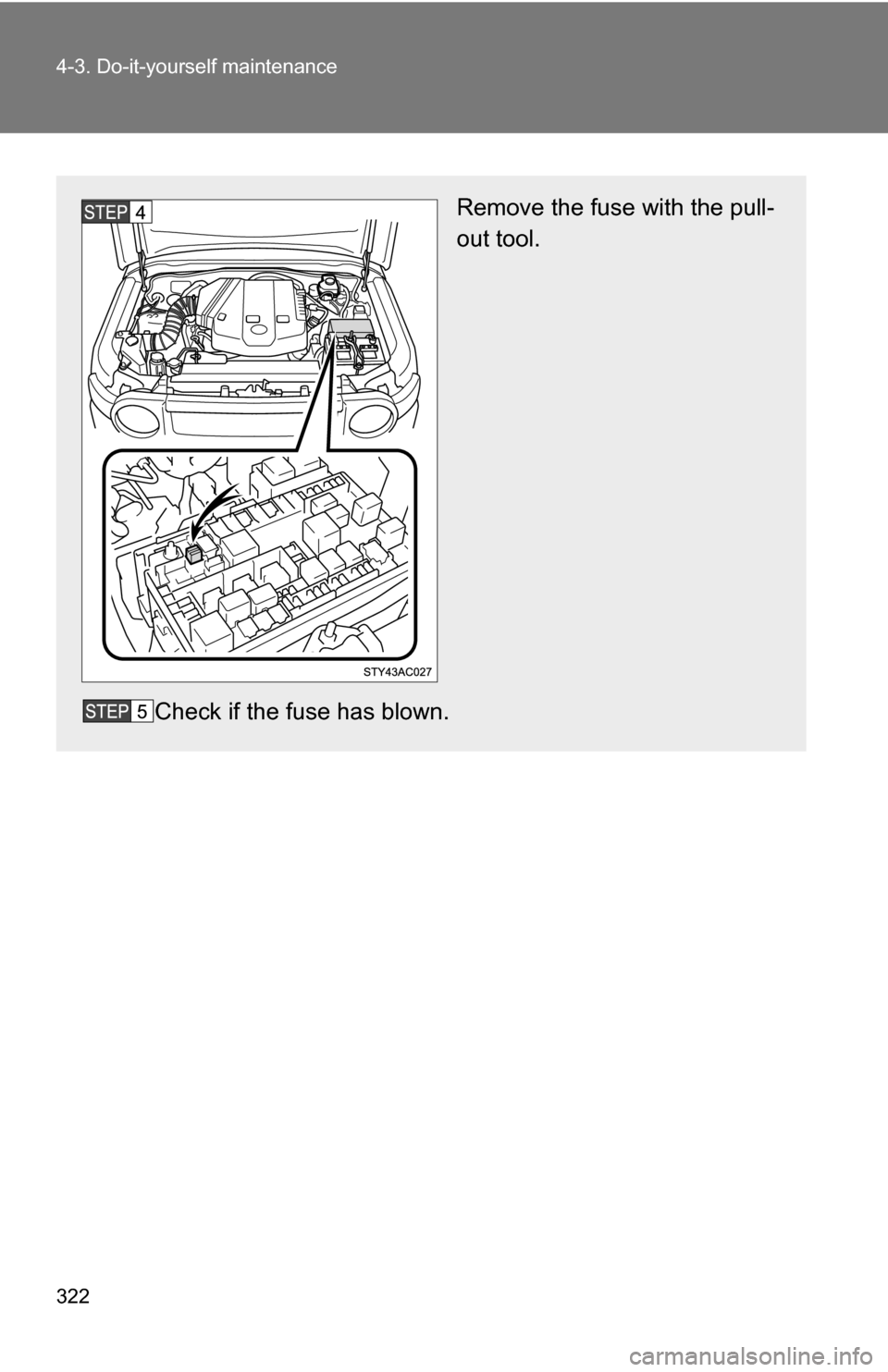

Remove the fuse with the pull-
out tool.
Check if the fuse has blown.

323
4-3. Do-it-yourself maintenance
4
Maintenance and care

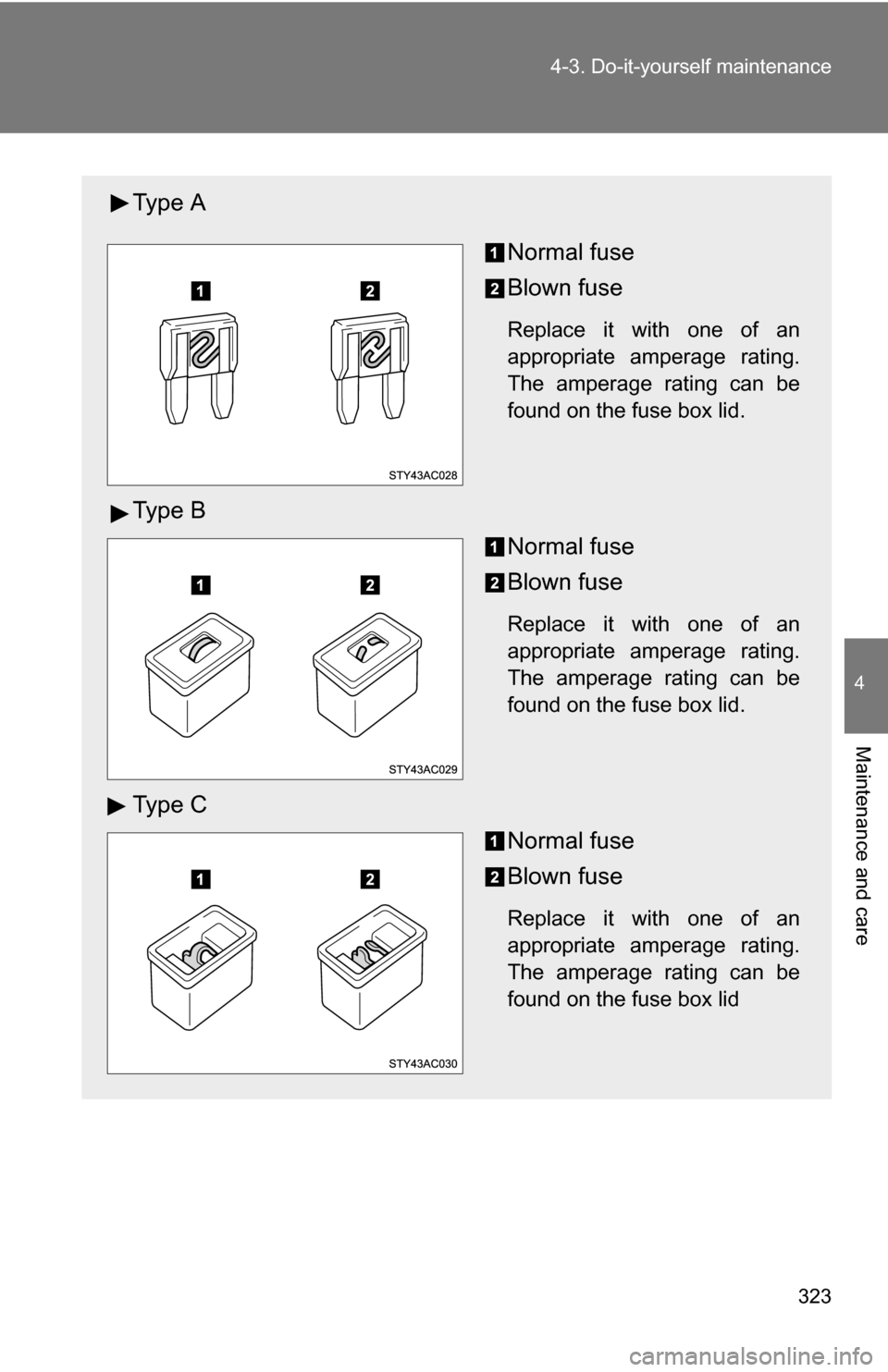

Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid

324 4-3. Do-it-yourself maintenance

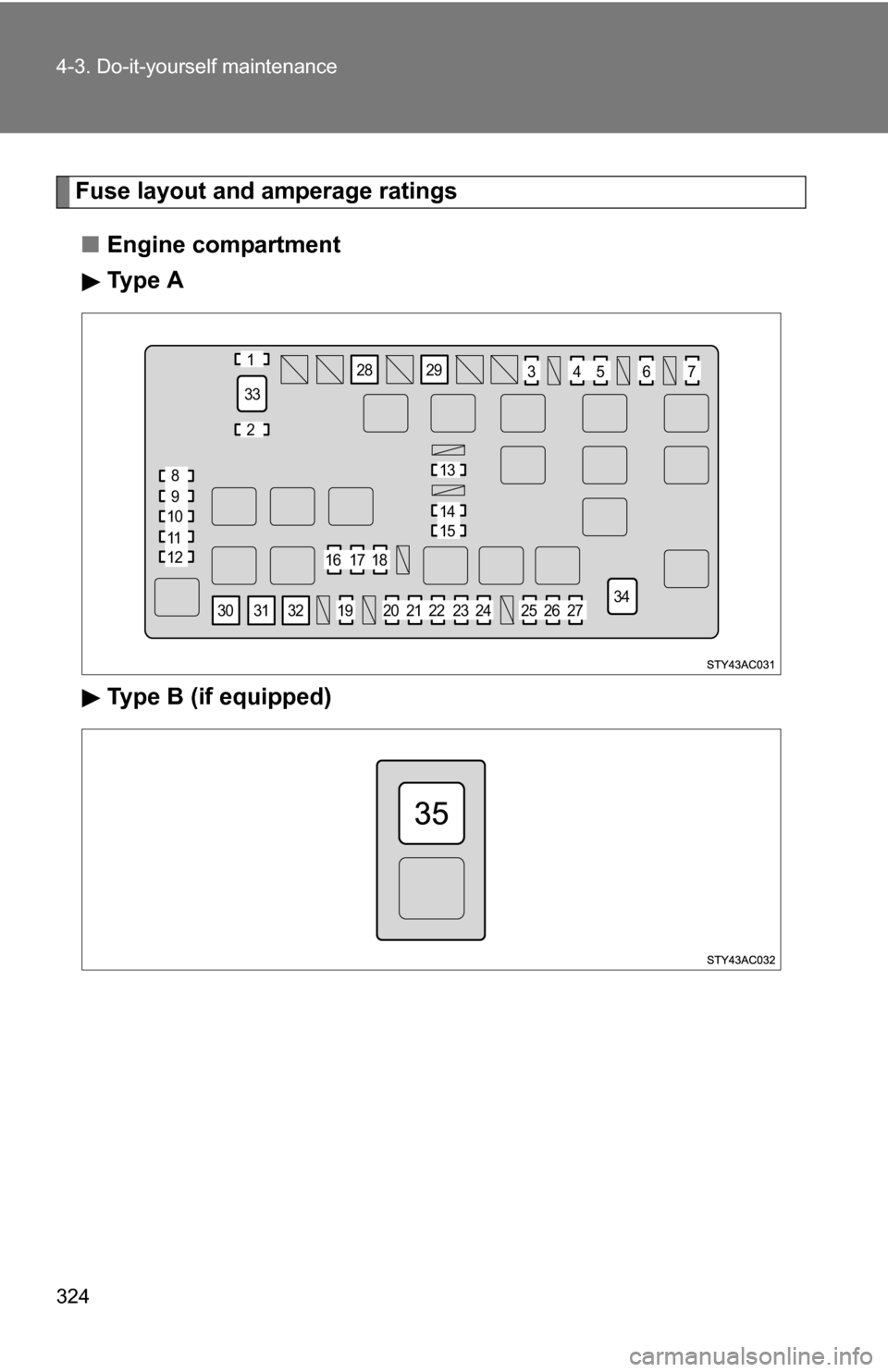

Fuse layout and amperage ratings■ Engine compartment
Ty p e A
Type B (if equipped)
32 34
3130 16 17 18
14
15 13
19 20 22 2321 24 25 2726
33
28 29
54
367
2
8
9
10
12 11 1

325
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
1 SPARE 10 A Spare fuse
2 SPARE 15 A Spare fuse
3 TOWING TAIL 15 A Trailer lights
4 OFFROAD LP 15 A Offroad lamp
5 STOP 10 A Stop lights, high mounted stop-
light, anti-lock brake system, trac-
tion control system, active traction
control system, vehicle stability
control system, AUTO LSD system,
multiport fuel injection system/
sequential multiport fuel injection
system, shift lock system
6 AUX LP 15 A Driving lamp
7 OBD 7.5 A On-board diagnosis system
8 HEAD (LO RH) 10 A Right-hand headlight (low beam)
*1
Right-hand headlight*2
9 HEAD (LO LH) 10 ALeft-hand headlight (low beam)
*1
Left-hand headlight*2
10 HEAD (HI RH) 10 A Right-hand headlight (high beam)
11 HEAD (HI LH) 10 A Left-hand headlight (high beam)
12 EFI NO.2 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
13 DRL 7.5 A Daytime running light system
14 DEFOG 30 A Rear window defogger
15 DEFOG NO.2 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system

326 4-3. Do-it-yourself maintenance

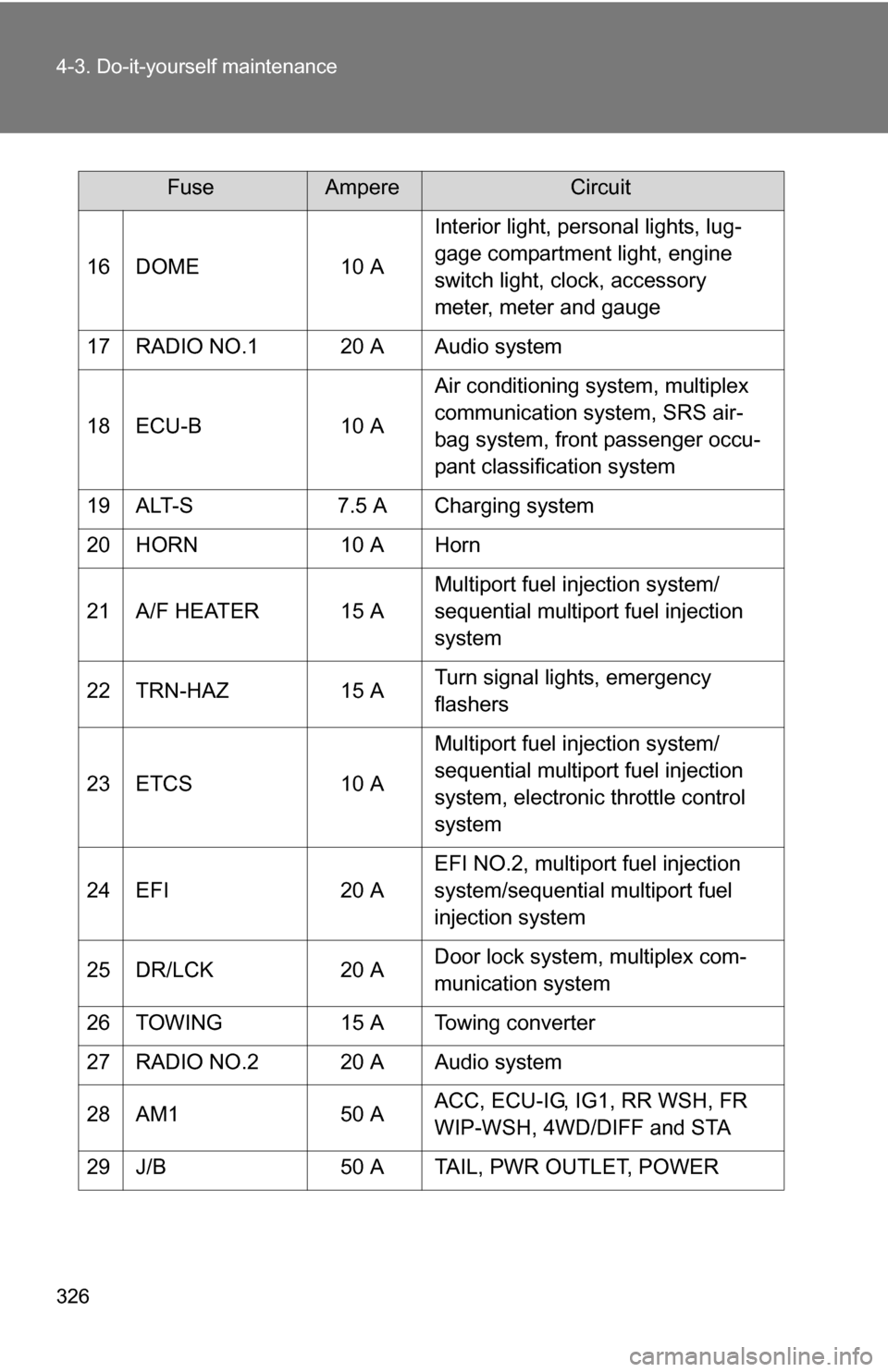

16 DOME10 AInterior light, personal lights, lug-
gage compartment light, engine
switch light, clock, accessory
meter, meter and gauge
17 RADIO NO.1 20 A Audio system
18 ECU-B 10 AAir conditioning system, multiplex
communication system, SRS air-
bag system, front passenger occu-
pant classification system
19 ALT-S 7.5 A Charging system
20 HORN 10 A Horn
21 A/F HEATER 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
22 TRN-HAZ 15 ATurn signal lights, emergency
flashers
23 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle control
system
24 EFI 20 AEFI NO.2, multiport fuel injection
system/sequential multiport fuel
injection system
25 DR/LCK 20 ADoor lock system, multiplex com-
munication system
26 TOWING 15 A Towing converter
27 RADIO NO.2 20 A Audio system
28 AM1 50 AACC, ECU-IG, IG1, RR WSH, FR
WIP-WSH, 4WD/DIFF and STA
29 J/B 50 A TAIL, PWR OUTLET, POWER
FuseAmpereCircuit

327
4-3. Do-it-yourself maintenance
4
Maintenance and care
*1: Vehicles with daytime running light
*2: Vehicles without daytime running light
30 ABS MTR
40 AAnti-lock brake system, vehicle sta-
bility control system, traction con-
trol system, active traction control
system, AUTO LSD system
31 AM2 30 AIGN and GAUGE, multiport fuel
injection system/sequential multi-
port fuel injection system, starting
system
32 ABS SOL 30 AAnti-lock brake system, vehicle sta-
bility control system, traction con-
trol system, active traction control
system, AUTO LSD system
33 ALT 120 AAM1, AC 115V, DEFOG, DEFOG
NO.2, STOP, OBD, J/B, TOWING
TAIL, AUX LP and OFFROAD LP
34 HEATER 60 A Air conditioning system
35 AC 115V 80 A Power outlet
FuseAmpereCircuit

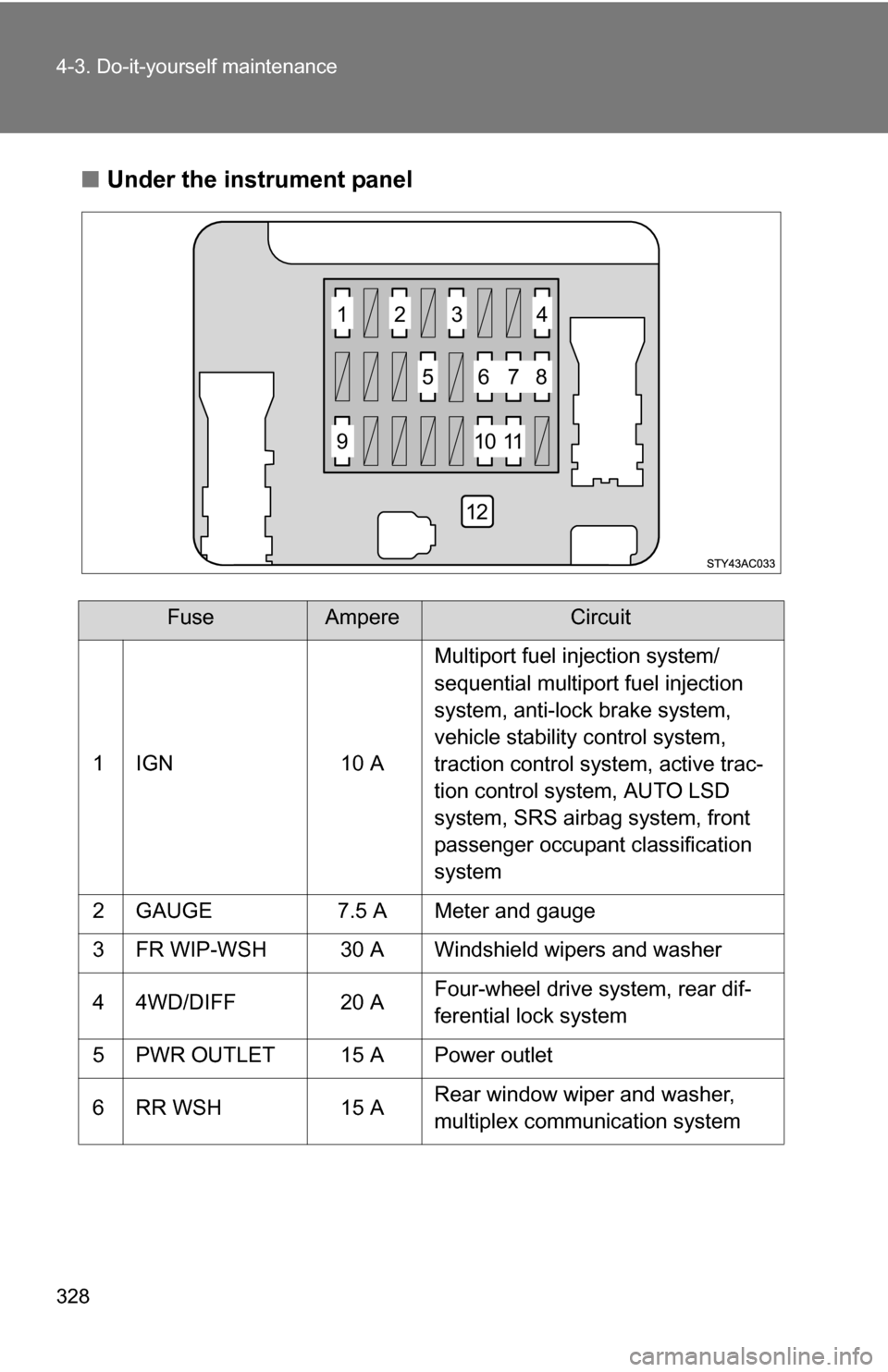

328 4-3. Do-it-yourself maintenance
■Under the instrument panel
FuseAmpereCircuit
1 IGN 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, anti-lock brake system,
vehicle stability control system,
traction control system, active trac-
tion control system, AUTO LSD
system, SRS airbag system, front
passenger occupant classification
system
2 GAUGE 7.5 A Meter and gauge
3 FR WIP-WSH 30 A Windshield wipers and washer
4 4WD/DIFF 20 A Four-wheel drive system, rear dif-
ferential lock system
5 PWR OUTLET 15 A Power outlet
6 RR WSH 15 A Rear window wiper and washer,
multiplex communication system
1
5678
91011
12
23 4
