2009 TOYOTA FJ CRUISER Owners Manual

129
2-1. Driving procedures
2
When driving

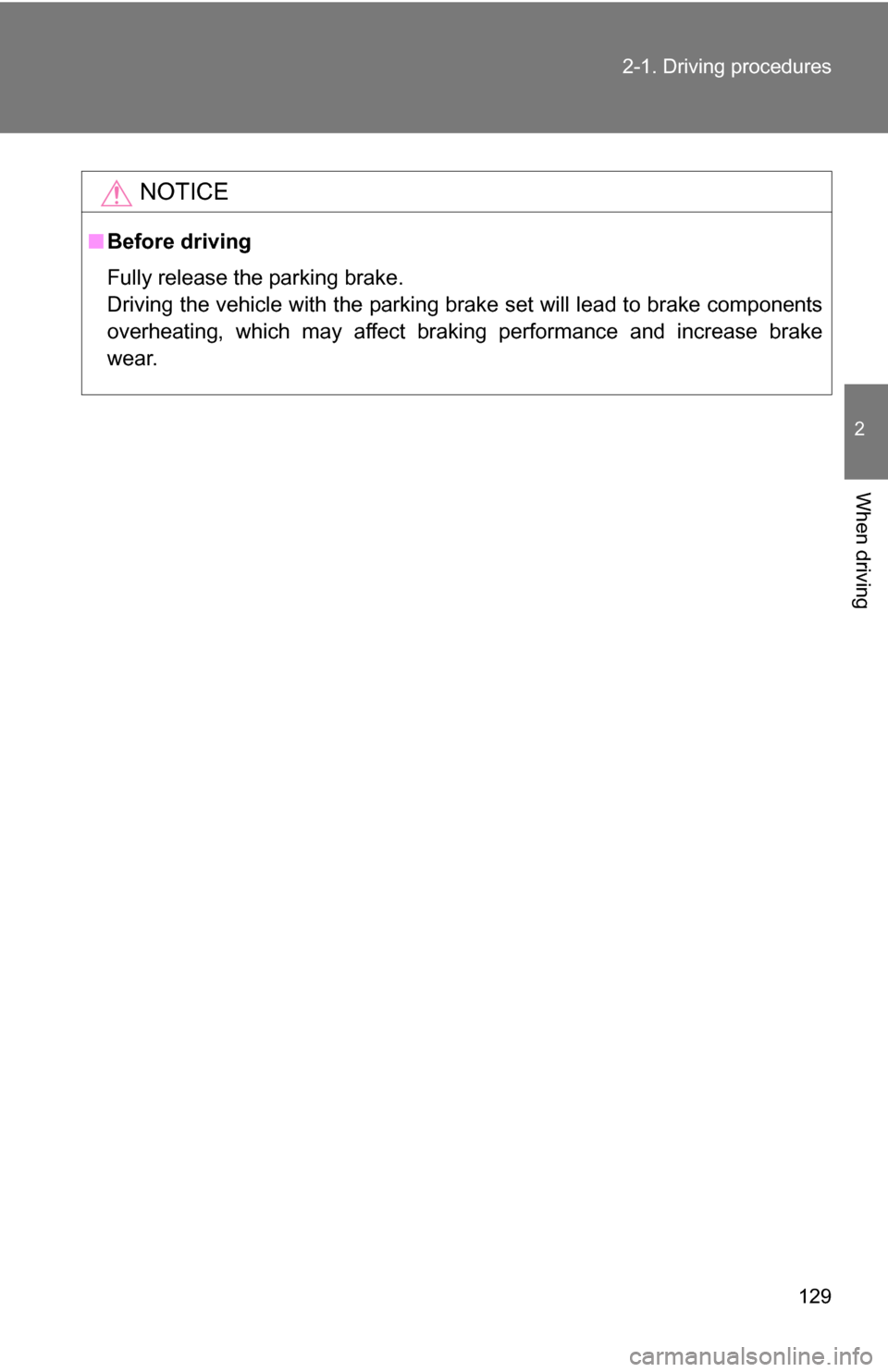

NOTICE
■
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

130
2-1. Driving procedures
Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 58)

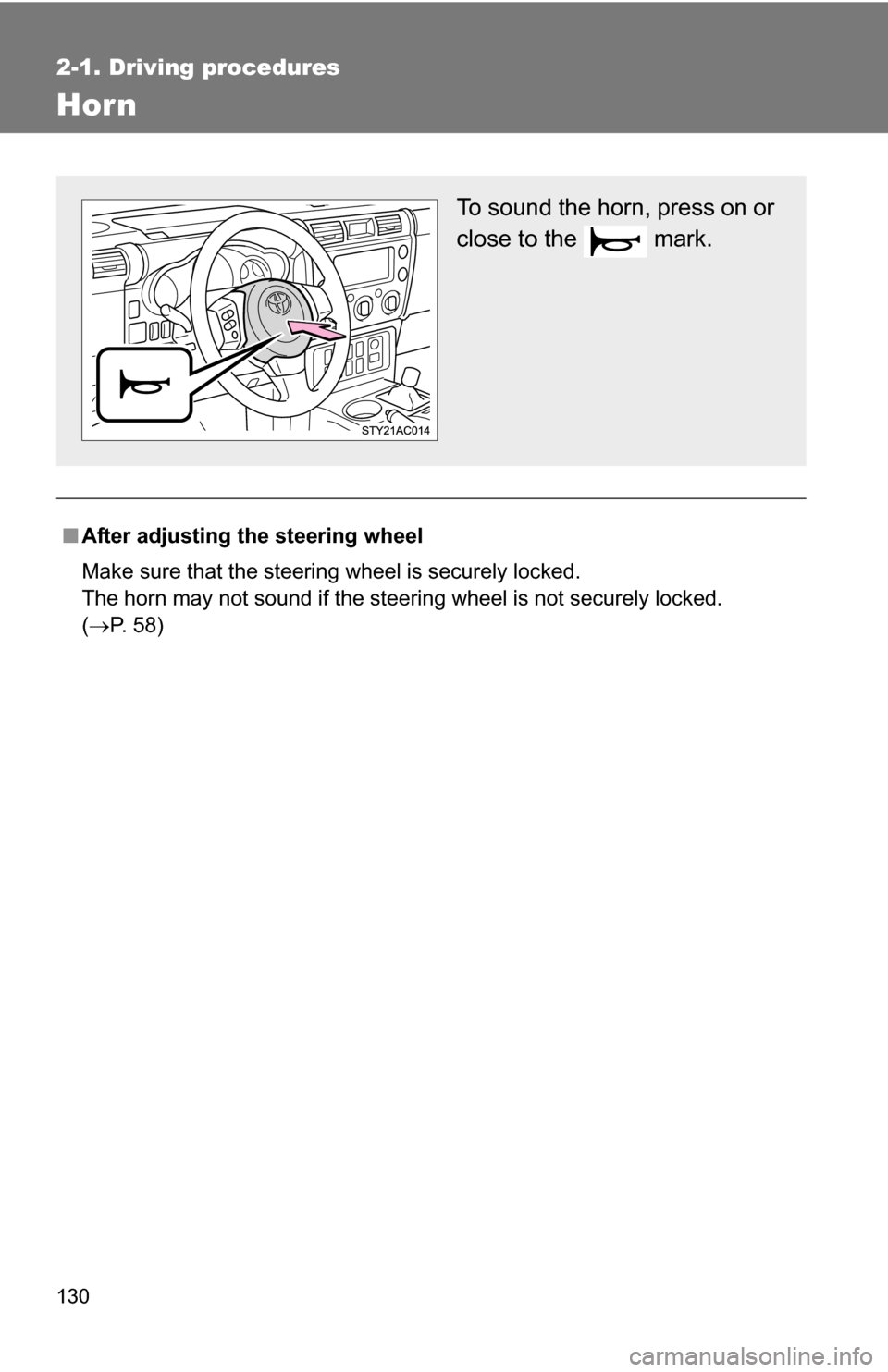

To sound the horn, press on or
close to the mark.

131
2
When driving
2-2. Instrument cluster

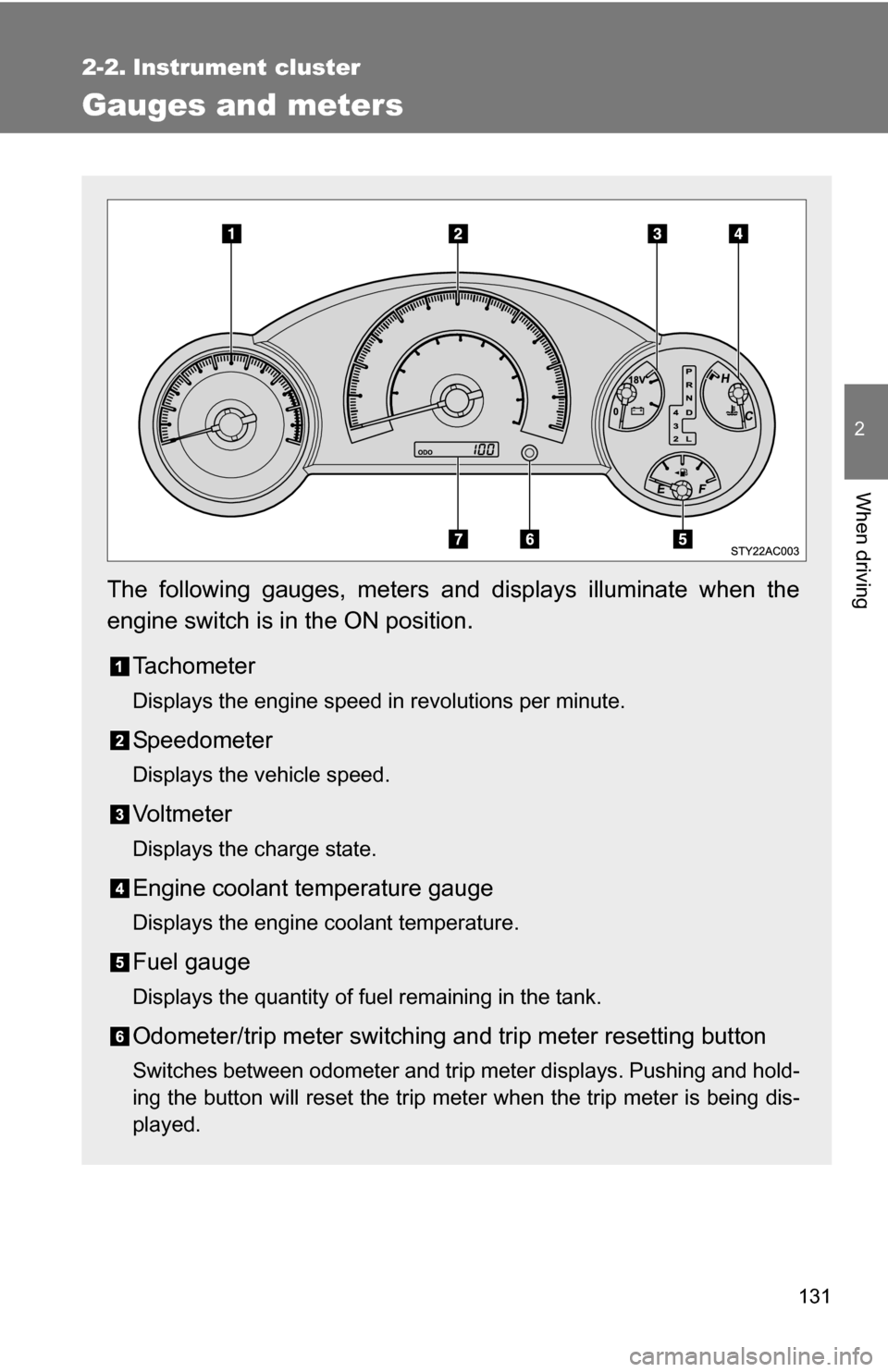

Gauges and meters
The following gauges, meters and displays illuminate when the
engine switch is in the ON position.Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Vo l t m e t e r
Displays the charge state.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter switching and trip meter resetting button
Switches between odometer and trip meter displays. Pushing and hold-
ing the button will reset the trip meter when the trip meter is being dis-
played.

132 2-2. Instrument cluster

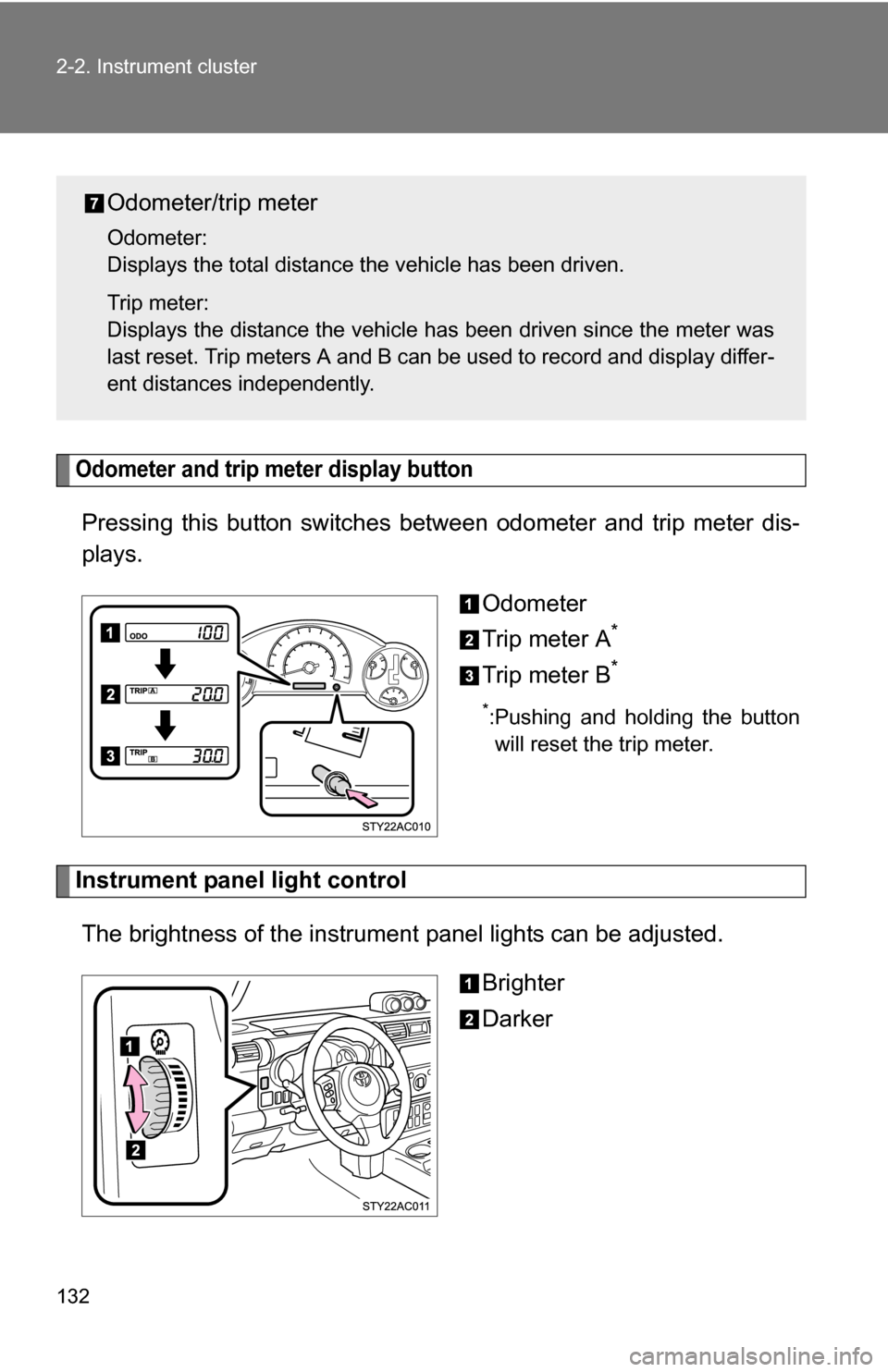

Odometer and trip meter display button
Pressing this button switches between odometer and trip meter dis-
plays.
Odometer
Trip meter A
*
Trip meter B*
*:Pushing and holding the buttonwill reset the trip meter.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
Odometer/trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.

133
2-2. Instrument cluster
2
When driving
NOTICE
■
To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and
check the engine after it has cooled completely. (
P. 378)

134
2-2. Instrument cluster
Indicators and warning lights

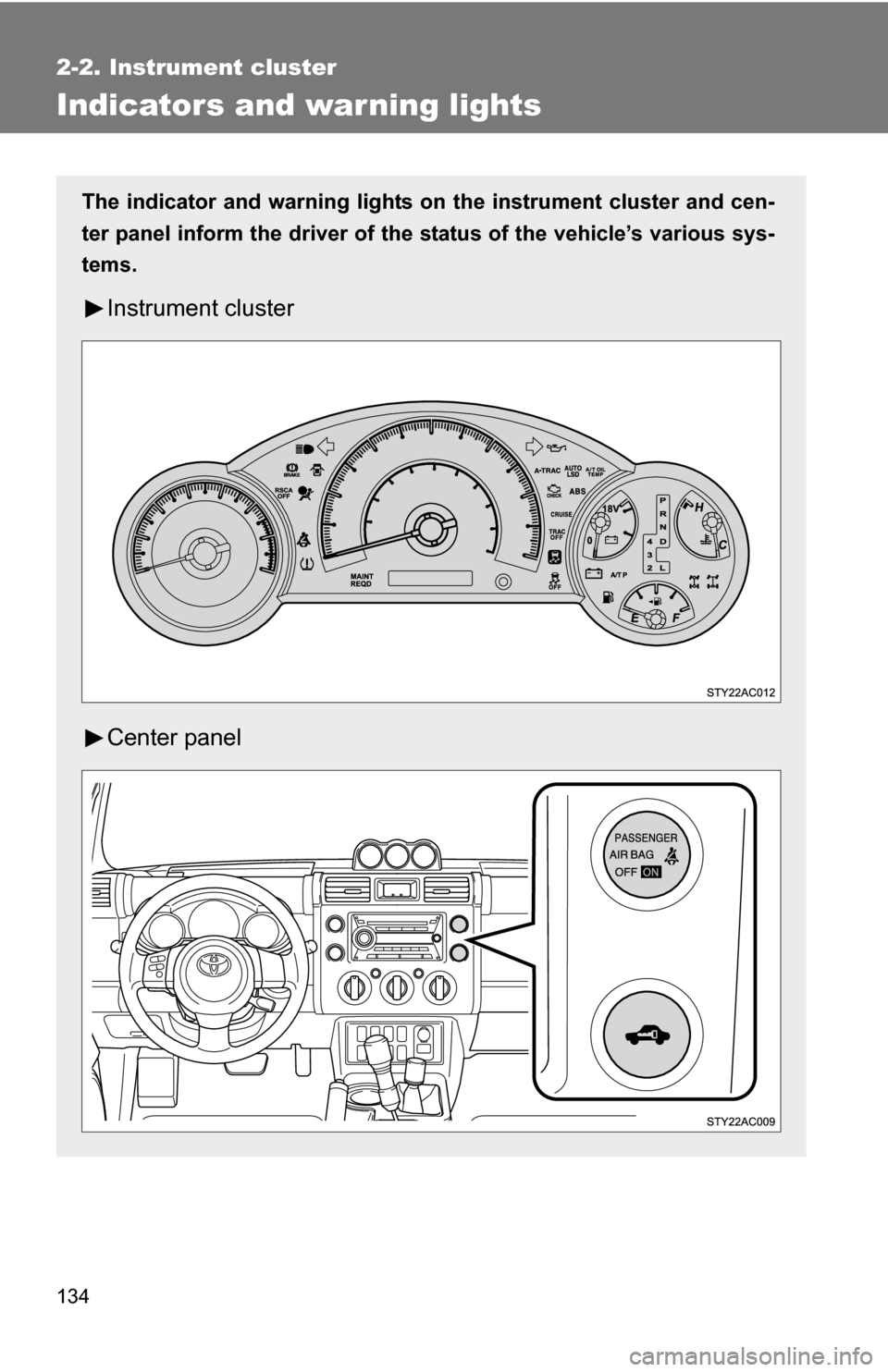

The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel

135
2-2. Instrument cluster
2
When driving
■
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 127)
(if equipped)
Active traction control
system indicator
( P. 160)
Headlight high beam
indicator ( P. 139)*1
(if equipped)
AUTO LSD indicator
(P. 162, 169)
Security indicator
(P. 72)
(if equipped)
Four-wheel drive
indicator( P. 158)
(Automatic
transmission vehicles)
Shift position and shift
range indicators
(P. 123)
(if equipped)
Center differential lock
indicator ( P. 156)
*1
(if equipped)
Rear differential lock
indicator (P. 164)
*1AIR BAG ON indicator
(P. 90)
(if equipped)
Cruise control indicator
(P. 144)*1AIR BAG OFF indicator
( P. 90)
*1,2Slip indicator
(P. 160, 162, 168)*1RSCA OFF indicator
( P. 88)
*1VSC OFF indicator
(P. 162, 169, 170)
(if equipped)
TRAC OFF indicator
( P. 169, 170)

136 2-2. Instrument cluster
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

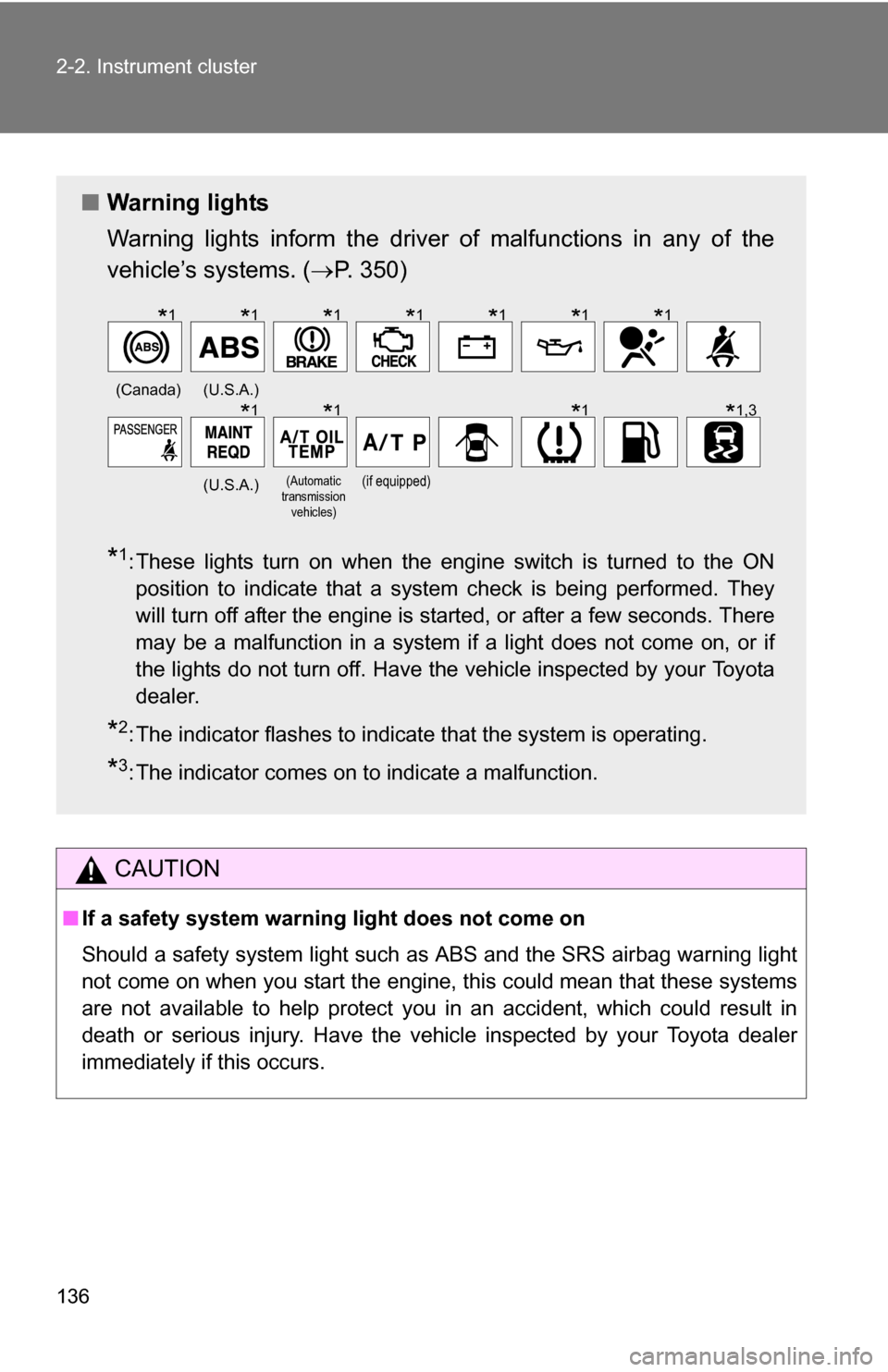

■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( P. 350)
*1: These lights turn on when the engine switch is turned to the ON
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota
dealer.
*2: The indicator flashes to indicate that the system is operating.
*3: The indicator comes on to indicate a malfunction.
(Canada)(U.S.A.)
(U.S.A.)
(Automatic
transmission
vehicles)(if equipped)
*1*1*1*1*1*1*1
*1*1*1*1,3
