2009 TOYOTA FJ CRUISER Owners Manual

249
3-4. Using the
storage features
3
Interior features

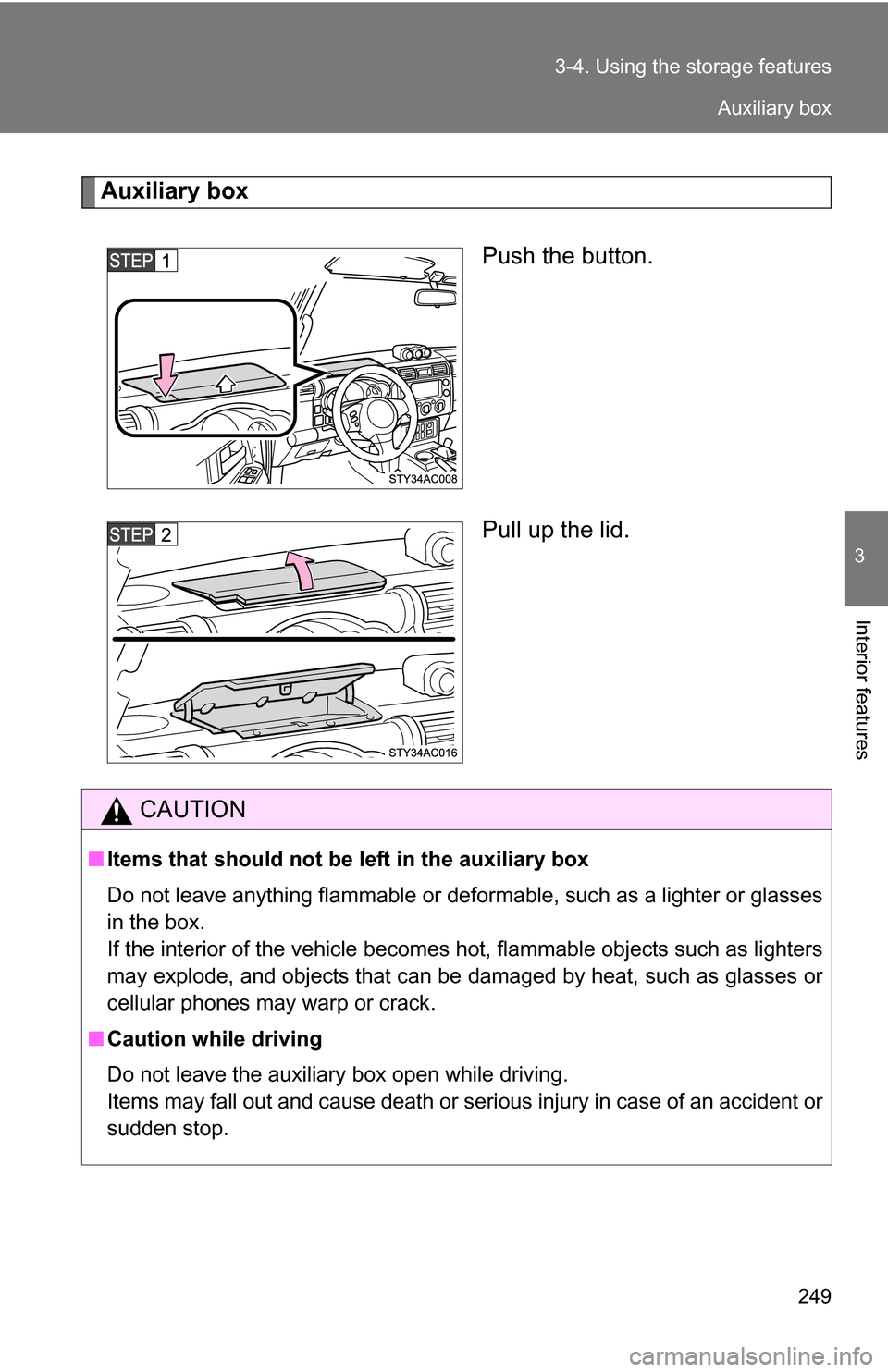

Auxiliary box
Push the button.
Pull up the lid.
CAUTION
■Items that should not be left in the auxiliary box
Do not leave anything flammable or deformable, such as a lighter or glasses
in the box.
If the interior of the vehicle becomes hot, flammable objects such as lighters
may explode, and objects that can be damaged by heat, such as glasses or
cellular phones may warp or crack.
■ Caution while driving
Do not leave the auxiliary box open while driving.
Items may fall out and cause death or serious injury in case of an accident or
sudden stop.
Auxiliary box

250
3-5. Other interior features

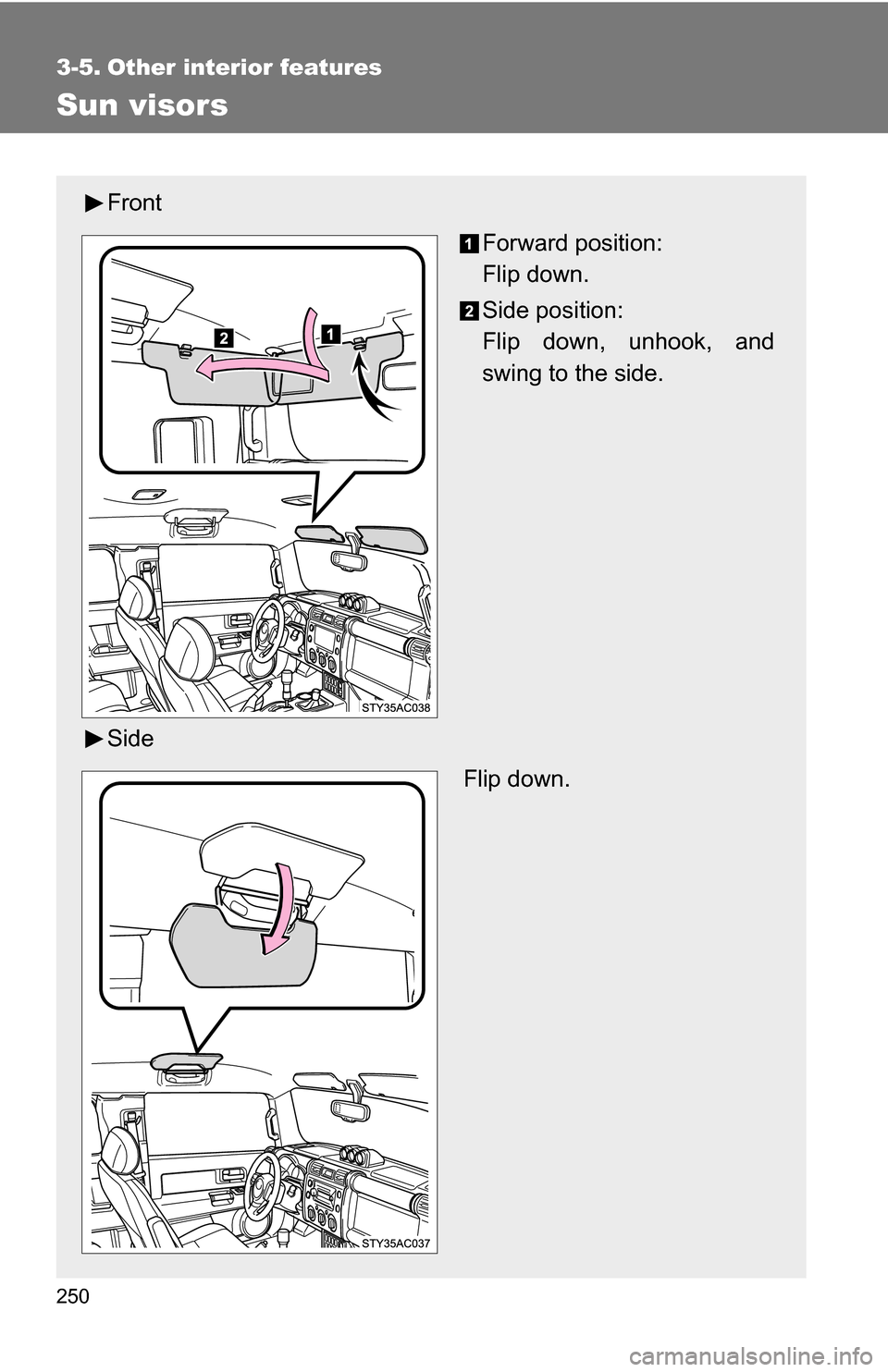

Sun visors
FrontForward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side Flip down.

251
3-5. Other interior features
3
Interior features

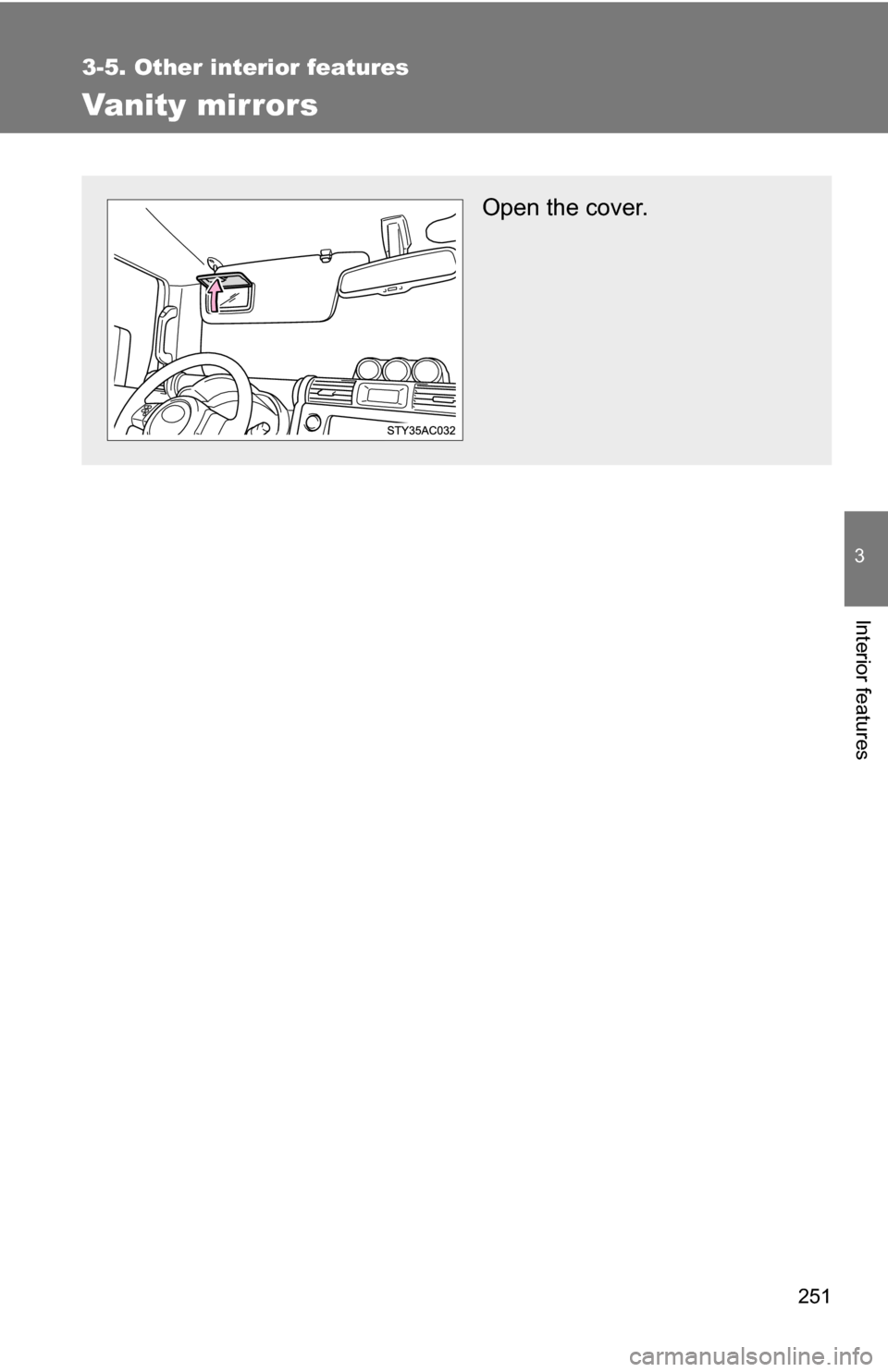

Vanity mirrors
Open the cover.

252
3-5. Other interior features

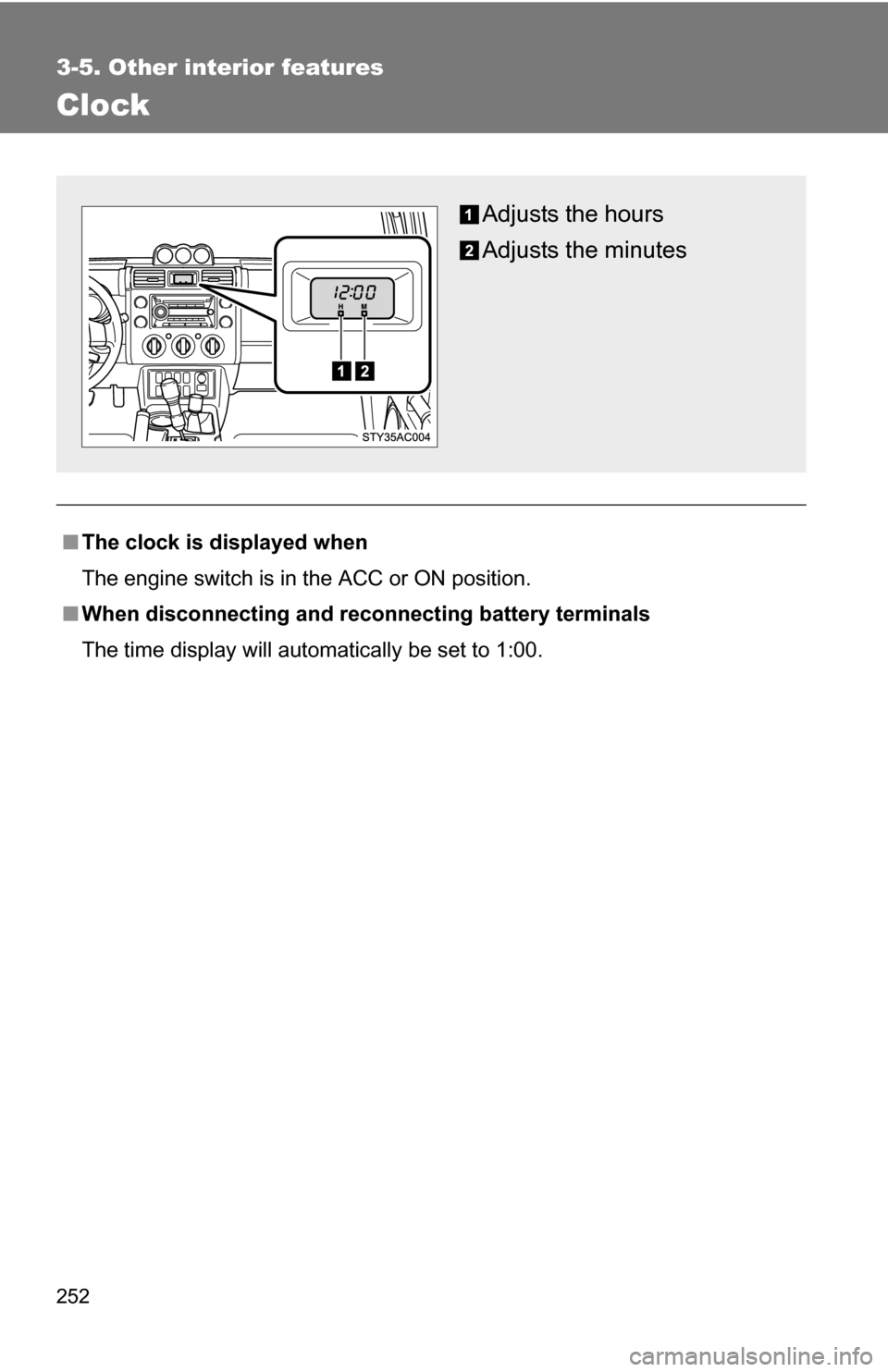

Clock
■The clock is displayed when
The engine switch is in the ACC or ON position.
■ When disconnecting and reco nnecting battery terminals
The time display will automatically be set to 1:00.
Adjusts the hours
Adjusts the minutes

253
3-5. Other interior features
3
Interior features

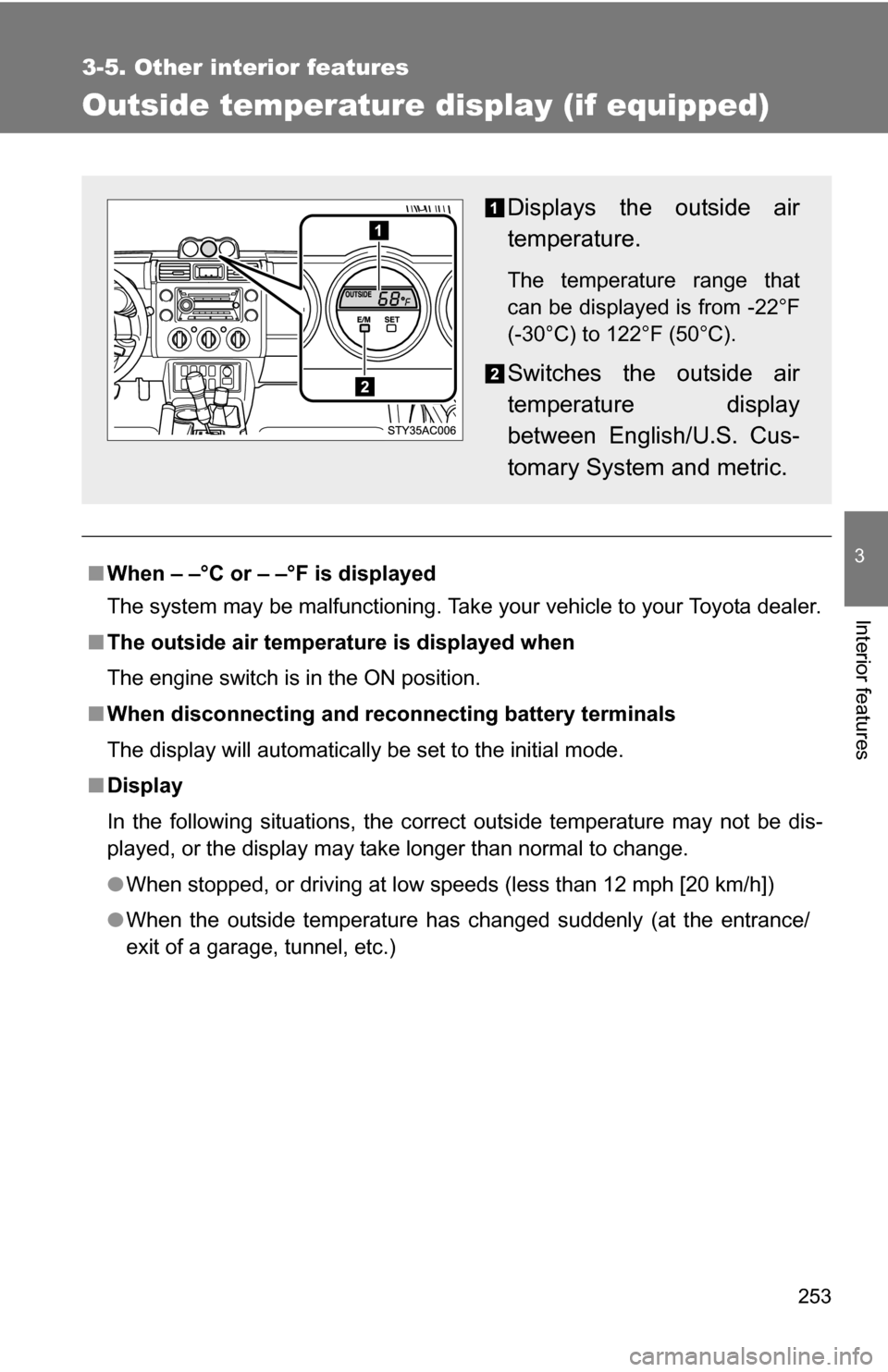

Outside temperature display (if equipped)
■When – –°C or – –°F is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
■ The outside air temperature is displayed when
The engine switch is in the ON position.
■ When disconnecting and reco nnecting battery terminals
The display will automatically be set to the initial mode.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
Displays the outside air
temperature.
The temperature range that
can be displayed is from -22°F
(-30°C) to 122°F (50°C).
Switches the outside air
temperature display
between English/U.S. Cus-
tomary System and metric.

254
3-5. Other interior features

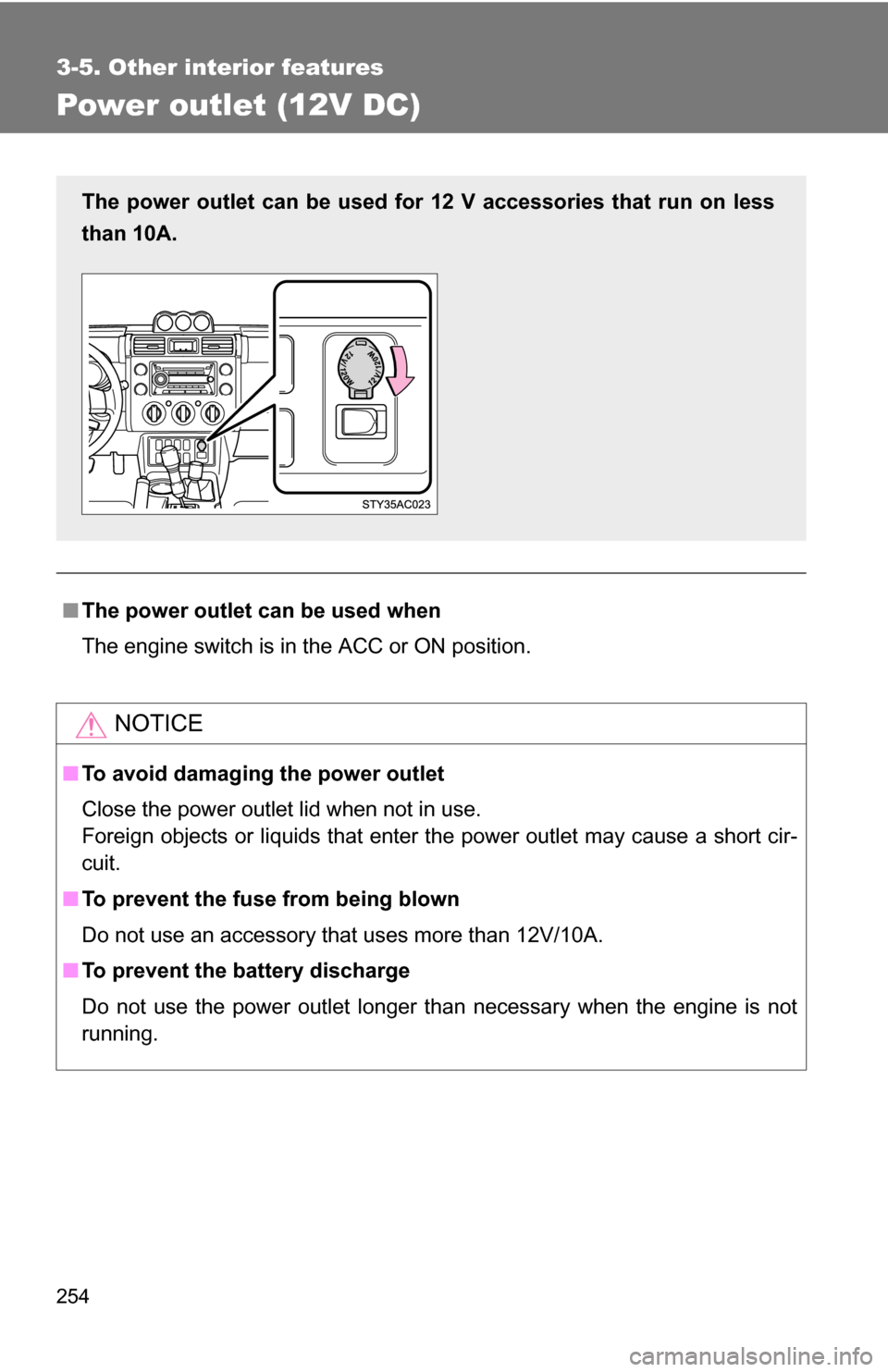

Power outlet (12V DC)
■The power outlet can be used when
The engine switch is in the ACC or ON position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
Do not use an accessory that uses more than 12V/10A.
■ To prevent the battery discharge
Do not use the power outlet longer than necessary when the engine is not\
running.
The power outlet can be used for 12 V accessories that run on less
than 10A.

255
3-5. Other interior features
3
Interior features

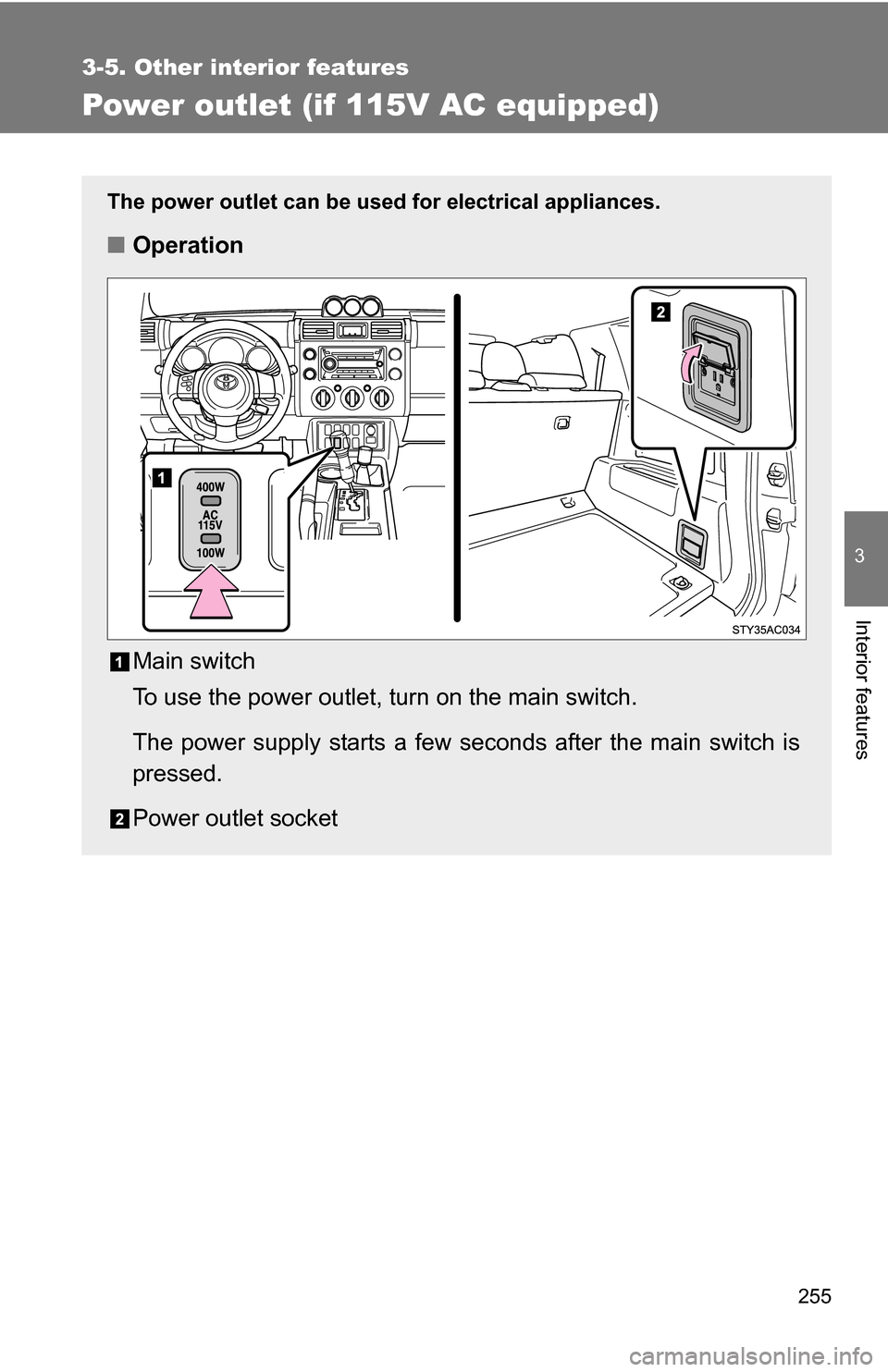

Power outlet (if 115V AC equipped)
The power outlet can be used for electrical appliances.
■Operation
Main switch
To use the power outlet, turn on the main switch.
The power supply starts a few seconds after the main switch is
pressed.
Power outlet socket

256 3-5. Other interior features

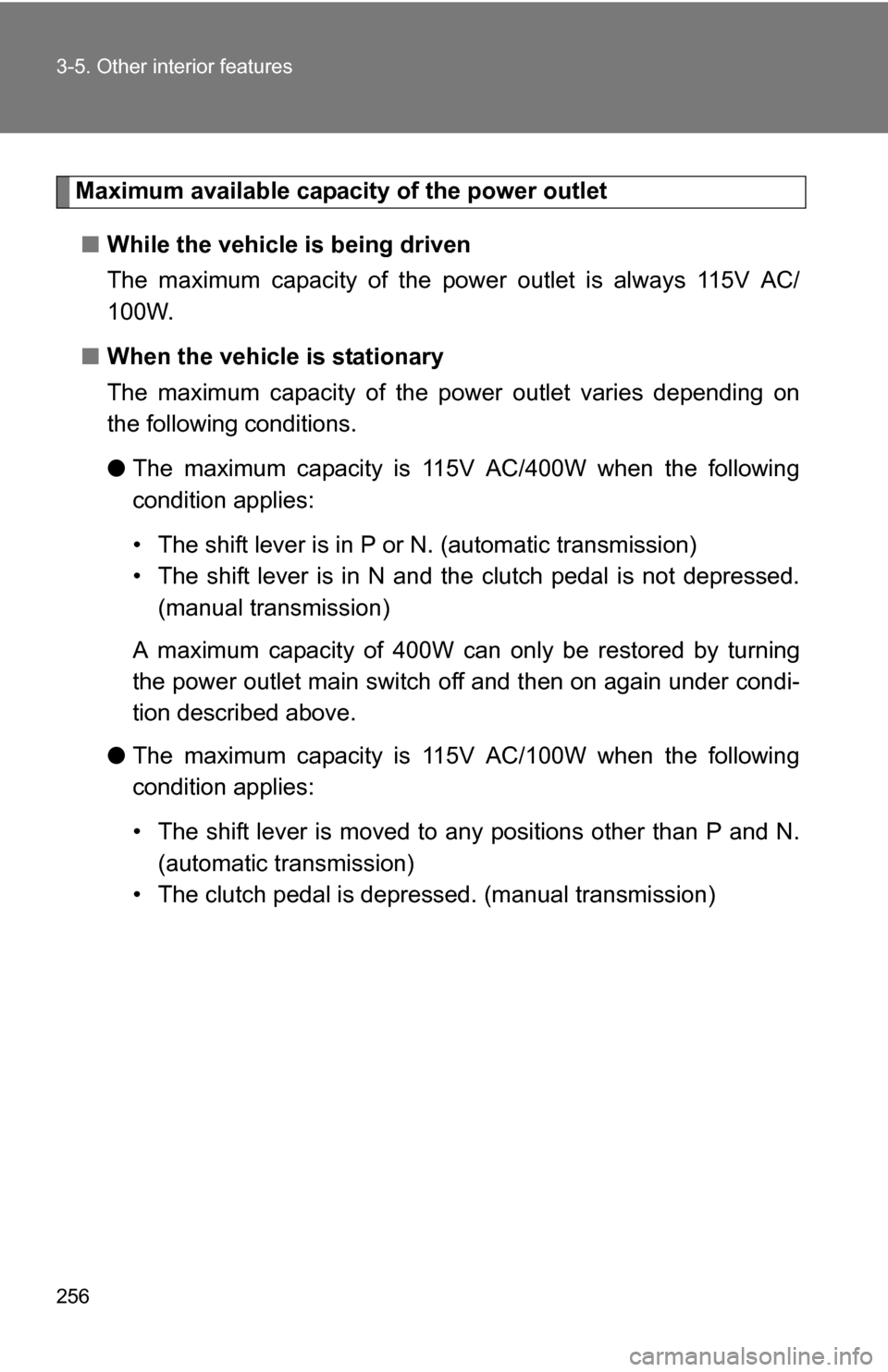

Maximum available capacity of the power outlet■ While the vehicle is being driven
The maximum capacity of the pow er outlet is always 115V AC/
100W.
■ When the vehicle is stationary
The maximum capacity of the power outlet varies depending on
the following conditions.
●The maximum capacity is 115V AC/400W when the following
condition applies:
• The shift lever is in P or N. (automatic transmission)
• The shift lever is in N and the clutch pedal is not depressed.
(manual transmission)
A maximum capacity of 400W can only be restored by turning
the power outlet main switch off and then on again under condi-
tion described above.
● The maximum capacity is 115V AC/100W when the following
condition applies:
• The shift lever is moved to any positions other than P and N.
(automatic transmission)
• The clutch pedal is depressed. (manual transmission)
