2009 SUBARU TRIBECA display

ET-11
Control Panel
ENTERTAINMENT
C: INSPECTION
NOTE:
•For self diagnosis of the audio system, there is a communications check (communication condition be-
tween the audio and the control panel) and a switch check. Perform a communications check first and make
sure it is operating normally before proceeding to the inspection of switches.
•Complete operations from when the self diagnosis mode of step 1 operates and the buzzer sounds, to
pressing the preset 1 switch in 3., within 15 seconds. If more than 15 seconds pass, a communications error
will be displayed.
•During the diagnosis, do not press the POWER(8), FM(12), AM(14), CD(11), RSE AUX(13) switches.
Pressing these switches will disengage the self diagnosis mode.
(1) SEEK UP switch (7) SCAN switch (13) RSE AUX switch
(2) SEEK DOWN switch (8) PUSH/POWER switch (14) AM switch
(3) TUNE TRACK UP switch (9) VOLUME (15) TONE/BAL switch
(4) TUNE TRACK DOWN switch (10) Presets 1 — 6 (16) LOAD switch
(5) RPT switch (11) CD switch (17) EJECT switch
(6) RDM switch (12) FM switch (18) TEMP display section
FMTUNETUNETRATRACKCKSEEKFLDRRPT
SCAN
TONE
BAL RDM
SEEKFLDR
TUNETUNETRATRACKCK
AM
CDCD
RSEAUX
LOAD
MP3
FRONTREARREAR
1
2345
6
6CD CHANGER P-1366CD CHANGER P-136
PMETPMET
LOV
PUSH PO POWERWER
(12)
(11)(3)
(9)
(2)(10)(10)
(16)
(18)(18)
(17)
(1)
(15)
(6)
(7)
(5)
(8)(4)
(14)
(13)
ET-00198

ET-12
Control Panel
ENTERTAINMENT
1. SELF DIAGNOSIS OF THE CONTROL PANEL AND AUDIO
Step Check Yes No
1SETTING THE SELF-DIAGNOSIS MODE BY
OPERATING THE CONTROL PANEL.
1) Turn the audio system OFF with the ignition
switch on ACC or ON.
2) With the TUNE UP switch and the SEEK
DOWN switch held down, hold the RDM switch
down for 2 seconds or more.
3) A buzzer will sound, and the unit will enter
the diagnosis mode.
Does the self diagnosis mode
of the control panel operate?
Go to step 3.Go to step 2.
2CHECK BUZZERDid the buzzer sound when
going into the diagnosis mode?
Go to step 6.Check the connec-
tion of the har-
ness connector,
and if there are no
problems found,
repair or replace
the audio unit and
control panel.
REMOVAL,
Audio.> AC-31, REMOVAL,
Control Panel.>
3COMMUNICATION STATUS CHECK
Press the preset 1 switch, and confirm the
TEMP display section of the control panel.
When the switch is pressed, is
<<88.8>> displayed at the
TEMP display section?
Go to step 4.Go to step 5.
4COMMUNICATION STATUS CHECKWas the display in step 3 on
the left side TEMP display sec-
tion?
REMOVAL,
Audio.>
REMOVAL, Con-
trol Panel.>
5CHECK SWITCH.
Operate the switches in the following list, and
check the display content in the left and right
TEMP displays.
Does the switch check list and
the operated switches match?
CHECK LIST, INSPECTION,
Control Panel.>
REMOVAL,
Audio.>
REMOVAL, Con-
trol Panel.>
6INSPECTION OF MALFUCTION DISPLAY
1) Reconnect the connector between the con-
trol panel and the audio.
2) Operate the control panel and switch to the
self diagnosis mode.
Did the control panel switch to
the malfunction diagnosis
mode?
Go to step 3.Go to step 7.
7INSPECTION OF MALFUCTION DISPLAYDid the buzzer sound when
going into the self diagnosis
mode?
REMOVAL,
Audio.>
REMOVAL,
Audio.> AC-31, REMOVAL,
Control Panel.>

ET-13
Control Panel
ENTERTAINMENT
2. SWITCH CHECK LIST
SwitchTEMP display
LH
TEMP display
RHSwitchTEMP display
LH
TEMP display
RH
TUNE/TRACK TR UP TONE/BAL TO -
TUNE/TRACK TR DW 1 (Preset) P1 -
SEEK/FLDR SK UP 2 (Preset) P2 -
SEEK/FLDR SK DW 3 (Preset) P3 -
SCAN SC - 4 (Preset) P4 -
RPT RP - 5 (Preset) P5 -
RDM RD - 6 (Preset) P6 -
EJECT EJ - VOL UP VO UP
LOAD LO - VOL DOWN VO DW

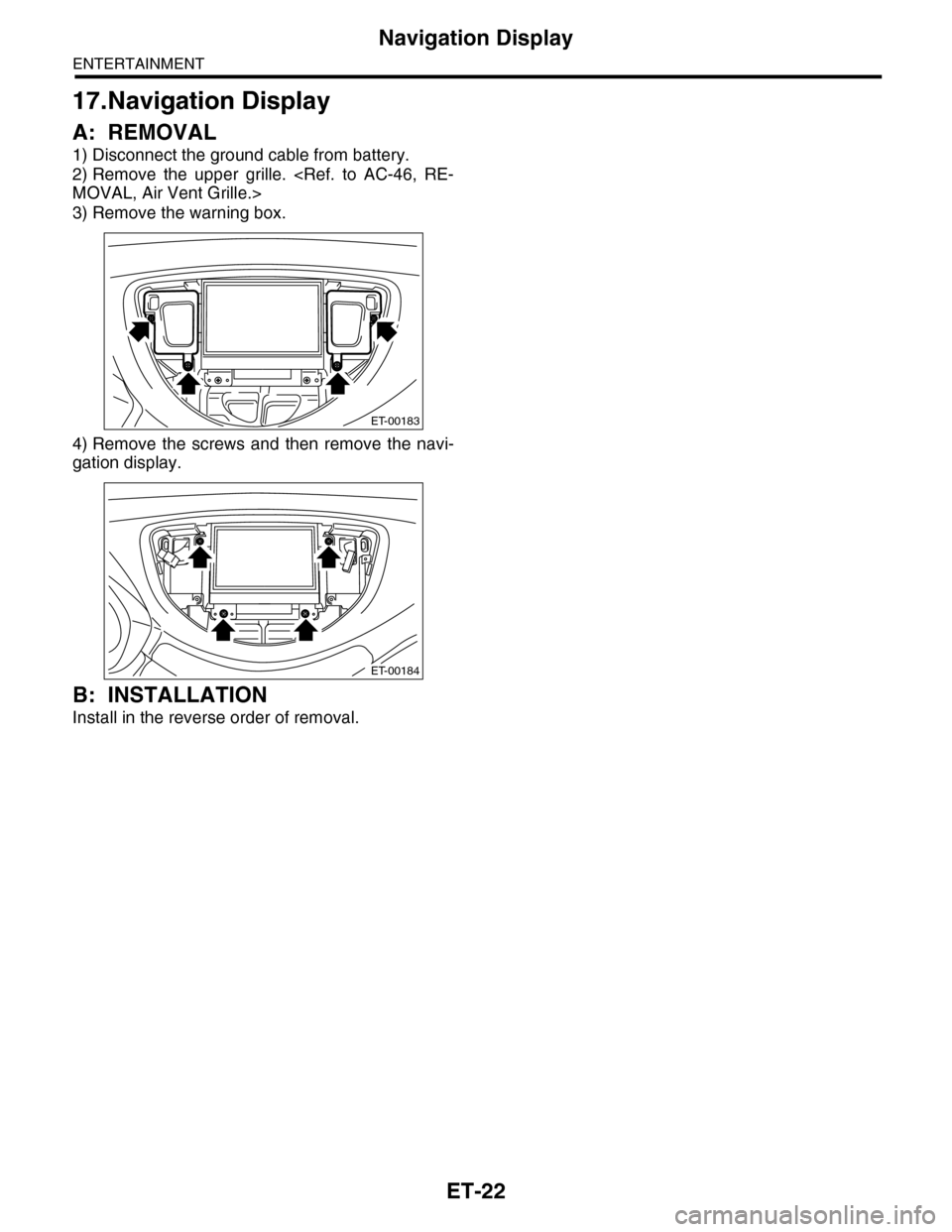

ET-22
Navigation Display
ENTERTAINMENT
17.Navigation Display
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the upper grille. MOVAL, Air Vent Grille.>
3) Remove the warning box.
4) Remove the screws and then remove the navi-
gation display.
B: INSTALLATION
Install in the reverse order of removal.
ET-00183
ET-00184

ET-25
GPS Antenna
ENTERTAINMENT
20.GPS Antenna
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the combination meter. REMOVAL, Combination Meter.>
3) Remove the audio. Audio.>
4) Remove the navigation display. REMOVAL, Navigation Display.>
5) Remove the screw to remove the GPS bracket.
6) Remove the GPS antenna cord connector from
the steering support beam stay (on the driver’s
side).
B: INSTALLATION
Install in the reverse order of removal.
ET-00187

ET-26
Multi Function Display (MFD)
ENTERTAINMENT
21.Multi Function Display (MFD)
A: REMOVAL

B: INSTALLATION
Install in the reverse order of removal.

EI-40
Instrument Panel Assembly
EXTERIOR/INTERIOR TRIM
17.Instrument Panel Assembly
A: REMOVAL
CAUTION:
Take care of the following when removing the
instrument panel from the vehicle body.
•Refer to “CAUTION” of “General Description”
before starting the work. TION, General Description.>
•Be sure to disconnect each harness connec-
tor. Applying excessive pulling force may dam-
age the harness.
•Be careful to the harness of airbag system.
Damage of the harness may cause the air bag
system malfunction.
•Take care not to damage the interior trims
when removing the instrument panel from the
vehicle body.
NOTE:
•Putting alignment marks to each connector as
necessary facilitates the reassembly work.
•When storing the removed instrument panel, be
sure to prepare a table or the like to put the instru-
ment panel on in order to prevent damage.
1. INSTRUMENT PANEL UPPER
1) Disconnect the ground cable from battery and
wait for at least 20 seconds before starting work.
2) Remove the console box. MOVAL, Console Box.>
3) Remove the instrument panel lower cover. to EI-36, REMOVAL, Instrument Panel Lower Cov-
er.>
4) Remove the glove box. AL, Glove Box.>
5) Remove the center console. MOVAL, Center Console.>
6) Remove the audio unit. MOVAL, Audio.>
7) Remove the combination meter assembly. to IDI-11, REMOVAL, Combination Meter.>
8) Remove the upper grille. PER GRILL, REMOVAL, Air Vent Grille.>
9) Remove the multi function display or navigation
monitor, and warning box. MOVAL, Navigation Display.>
10) Remove the front pillar upper trim. 43, REMOVAL, Side Trim.>
11) Remove the mounting bolts of the passenger’s
side air bag module.
12) Remove the following screws.
•In combination meter house
•At the sides (left and right) of instrument panel
•Instrument panel center
EI-01327
EI-01328
EI-01330
EI-01329

GW-25
Rear Window Defogger
GLASS/WINDOWS/MIRRORS
17.Rear Window Defogger
A: INSPECTION
1. CHECK WITH SUBARU SELECT MONITOR
CAUTION:
Check that the rear window defogger timer is in initial setting or customize setting before performing
inspection.
2. HEAT WIRE INSPECTION
CAUTION:
Use a dry and soft cloth when wiping dirt off the
glass. Move the cloth along the heat wire to
avoid damaging it.
1) Turn the ignition switch to ON.
2) Turn the defogger switch to ON.
3) Wrap the tips of tester probe with aluminum foil
to avoid damage to heat wire.
4) Measure the voltage at heat wire center with DC
voltmeter.
Standard voltage:
Approx. 6 V
NOTE:
•If the measured value is 12 volts, heat wire is
open between heat wire center and positive (+) ter-
minal of tester probe.
•If it is 0 V, the circuit is open between heat wire
center and ground.
Step Check Yes No
1CHECK INPUT SIGNAL TO THE BODY INTE-
GRATED UNIT.
Check the input signal when the rear window
defogger switch is operated using Subaru
Select Monitor.
1) Connect the Subaru Select Monitor to data
link connector.
2) Turn the ignition switch to ON.
3) Select {Integ. unit} from the «main menu».
4) Select the {Current Data Display & Save}.
5) Check the input signal when the rear win-
dow defogger switch is set to ON.
After rear defogger switch is
set to ON, does it turn to OFF
in 15 minutes? Or does it
repeat 15 minutes operation
and 2 minutes stop?
END. Replace the body
integrated unit.
REMOVAL, Body
Integrated Unit.>
(1) Tester probe
(2) Aluminum foil
(3) Heat wire
(4) Press
GW-00076
(2)
(3)
(4)
(1)
(1) Center of heat wire
Vo l t a g e C r i t e r i a
Approx. 6 V Normal
Approx. 12 V or 0 V Open
GW-00077
(1)
