2009 SKODA OCTAVIA TOUR technical data

Seats and Storage
81
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note
Do not insert particularly large spectacles.Front seat armrest with storage compartment*The armrest is adjustable in height. Opening storage compartment – Press button
⇒
fig. 95
.
– Open the lid of the armrest in the direction of arrow. Closing storage compartment – Fold down the cover of the armrest. Setting height – Press the button in direction of arrow. – Fold the armrest downwards or upwards and release the button.
Note
The moving space of the arms can be restricted if the armrest is folded down. In city traffic the armrest should not be folded down.Rear seat armrest with storage compartment*– The armrest can be folded forwards
in direction of arrow with the aid
of the belt
⇒
fig. 96
.
Fig. 95 Armrest: Storage compartment
AB
AA
Fig. 96 Rear seats: ArmrestFig. 97 Rear seats: Fold the armrest forwards
s2g8.b.book Page 81 Tuesday, April 7, 2009 8:53 AM

Heating and air conditioning system
83
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Heating and air conditioning systemAir outlet ventsFig. 99 Air outlet ventsOpen air outlet vents – Turn the vertical thumbwheel (not when in the end position). Close air outlet vents – Turn the vertical wheel into the end position. Redirecting air flow – Swivel upward or downward the grille
of the vents in order to change
the direction of the air flow using
the vertically arranged thumbwheel.
– Turn the horizontal thumbwheel on the
v e n t t o t h e r i g h t o r l e f t i n o rd e r
to change the air flow to the appropriate side.
You can set the air supply to the individu
al air outlet vents using the control
⇒ fig. 100
. Air outlet vents
3 and
4 ⇒fig. 99
can also be opened or closed individ-
ually.
Unwarmed or cooled air will flow out of the opened air outlet vents according to the setting of the control dial
⇒fig. 100
and according to outer atmospheric
conditions.HeatingUsing the system The heating system delivers air into the interior of the vehicle and warms it as required.Setting temperature – Turn the control dial
⇒
fig. 100
to the right in order to increase the
temperature.
– Turn the control dial to the left in order to increase the tempera-
ture.
Controlling blower – Turn the blower switch into one of the positions, 1 to 4, in order to
switch the blower on.
AC
AA
Fig. 100 Heating: Control elements
AAAAAB
s2g8.b.book Page 83 Tuesday, April 7, 2009 8:53 AM

Heating and air conditioning system
85
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Recirculated air mode In recirculated air mode air is sucked
out of the interior of the vehicle
and then fed back into the interior.Recirculated air mode prevents polluted air outside the vehicle from getting into the vehicle, for example when driving through a tunnel or when standing in a traffic jam. Switching recirculated air mode on – Press the button - the warning light lights up in the button
⇒
page 83, fig. 100
.
Switching recirculated air mode off – Press again the button - the warn
ing light in the button goes out.
The button cannot be pressed if the control dial is in the position
 or close
to this position.
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an acci- dent increases. Switch recirculated air mode off as soon as the windows begin misting up.Air conditioning system*Description The air conditioning system is
a combined cooling and heating
system. It makes it possible to op
timally control the air temperature
at any season of the year.Description of the air conditioning system It is important for your safety and for your
driving comfort that the air conditioning
system is operating properly.
Set-up
Setting of the control dial
Button
Air outlet vents 3
Air outlet vents 4
Defrosting the windscreen and side windows
To the right up to
the stop
3

Switched off
Closing
Open and align with the side
window
Free windscreen and side win- dows from mist
In heating area
2 or 3

Switched off
Closing
Open and align with the side
window
The fastest heating
To the right up to
the stop
3

Switched off
Opening
Opening
Comfortable heating
Desired tempera-
ture
2 or 3
 or 
Switched off
Closing
Opening
Fresh air mode - ventilation
To the left up to the
stop
Desired position

Switched off
Opening
Opening
AA
AB
AC
AD



AC
s2g8.b.book Page 85 Tuesday, April 7, 2009 8:53 AM

Heating and air conditioning system
87
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Controlling blower – Turn the blower switch into one of the positions, 1 to 4, in order to
switch the blower on.
– Turn the blower switch into position 0 in order to switch the blower
off.
– IF you wish to close the inlet for fresh air, use the switch - Recir-
culated air mode
⇒
page 88.
Control for air distribution – You can adjust the direction of the
air flow using the air distribution
control
⇒
page 83.
switching cooling on and off – Press the button
⇒
page 86, fig. 101
. The warning light lights
up in the button.
– When you again press the switch , the cooling system is switched
off. The warning light in the button goes out. Note
•
The whole heat output will be needed
to unfrost the windscreen and side
windows. No warm air will be fed to the footwell. This can lead to restriction of the heating comfort.•
The used air streams out through the air removal openings in the luggage
compartment.•
If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of
deposits. Switch the cooling system on
at least once a month for approximately 5 mi
nutes at the highest blower stage - also
during the cold season of the year - in
order to remove such odours. Also open a
window for a short time.•
Please refer to the information regarding recirculated air mode
⇒page 88.
Setting air conditioning systemRecommended settings of the control elements of the air conditioning system for the respective operating modes:
ABAB

AE
AC
AC
AD
AC
Set-up
Setting of the control dial
Button
Air outlet vents 3
Air outlet vents 4
Defrosting the windscreen and side windows
To the right up to the stop
3

Switched off
Do not switch on
Closing
Open and align with the
side window
Free windscreen and side windows from mist
Desired temper-
ature
2 or 3

switched on
Do not switch on
Closing
Open and align with the
side window
The fastest heating
To the right up to the stop
3

Switched off
briefly switched on
Opening
Opening
Comfortable heating
Desired temper-
ature
2 or 3
 or 
Switched off
Do not switch on
Closing
Opening
AA
AB
AC
AD
AE
s2g8.b.book Page 87 Tuesday, April 7, 2009 8:53 AM

Heating and air conditioning system
89
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Climatronic* (automatic air conditioning)Description The Climatronic system is a combin
ation of an automatic heating,
fresh air and cooling system which provides optimal comfort for the occupants of the car.The Climatronic maintains a constant temp
erature fully automatically, once it has
been set. This is achiev
ed by automatically varying the temperature of the
outflowing air, the blower stages and the ai
r distribution. The system also takes into
account bright sunlight which eliminates
the need to alter the settings manually.
The
automatic mode
⇒page 90 ensures maximum wellbeing of the occupants at
all times of the year. Description of Climatronic system The cooling operates only if the following conditions are met:•
engine running,
•
outside temperature above +5 °C,
•
the button is
not
pressed.
If the cooling system is switched on, the temperature and air humidity drops in the vehicle. The wellbeing of the occupants of
the car is enhanced as a result of this
particularly at high outs
ide temperatures and a high air humidity. The system
prevents the windows misting up during the cold season of the year. The heating effect is dependent upon th
e coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature. It is possible to briefly activate recirc
ulated air mode in order to enhance the
cooling effect
⇒
.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order to ensure that the heating and cooling systems operate properly. The AC compressor is switched off at a hi
gh coolant temperature in order to provide
cooling at a high load of the engine.
After switching on the cooling
Condensation
from the evaporator of the air condi-
tioning may drip down and form a puddle be
low the vehicle. This is quite normal
and not an indication of a leak! If you make a change before switching off
the ignition, which differs from the auto-
matic mode, the changed functions remain
stored. Only the function “circulating
air” is erased 20 minutes after switching off the ignition. Recommended setting for all periods of the year:•
Set the temperature to 22 °C (72 °F).
•
Press the button
⇒page 90, fig. 102
.
•
Move the air outlet vents
3 and
4, s o t h a t th e a i r f l o w i s d i re c t e d s l i g h tl y u pw a rd s
⇒ page 83, fig. 99
.
Switching over between degrees
Celsius and degrees Fahrenheit
Press and hold the buttons
17 and
9
⇒page 90, fig. 102
. The infor-
mation in the desired temperature measuring unit appears in the display.
WARNING
•
For your own safety and that of other road users, ensure that all the
windows are free of ice, snow and mistin
g. Please familiarize yourself about
how to correctly operate th
e heating and ventilation systems, how to demist
and defrost the windows, as well as with the cooling mode.•
You should not leave recirculated air mode on over a longer period of
time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.
Note
•
If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of
deposits. Switch the cooling system on
at least once a month for approximately 5 mi
nutes at the highest blower stage - also
during the cold season of the year - in
order to remove such odours. Also open a
window for a short time.
ECON
AUTO
ECON
AUTO
s2g8.b.book Page 89 Tuesday, April 7, 2009 8:53 AM

Heating and air conditioning system
91
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Press the button - the warning light lights up in the button.The automatic mode is switched off by pr
essing the button for the air distribution
or increasing or decreasing the blower speed. The temperature is nevertheless regulated.ECON mode The cooling system is switched off in the ECON mode - heating and ventilation are regulated automatically.Switching ECON mode on – Press the button - the warning light lights up in the button. – Set a temperature between +18°C (64 °F) and +29°C (84 °F). Recirculated air mode in ECON mode – First of all press the button - the warning light lights up in the
button.
– Then press the button - the warning light lights up in the
button.
ECON mode operates only within the control temperature range from +18°C (64 °F) up to +29°C (84 °F). The ECON mode is switched off when pressing button or .Please note that, in the ECON mode, the interior temperature cannot be lower than the outside temperature. The interior is not cooled and the air is not dehumidified. If you select the temperature below +18°C (64 °F),
LO appears in the display. If you
select a temperature higher than + 29°C (84 °F),
HI appears in the display. In the
LO
position, the supplied air is neit
her warmed up nor cooled. In the
HI position, the
system operates cont
inuously with maximum heating capacity.
Please refer to the information regarding recirculated air mode
⇒page 91.
Defrosting windscreenDefrosting windscreen - switching on –Press the button
⇒
page 90, fig. 102
.
Defrosting windscreen - switching off – Once again press the button or the button .The temperature control is controlled auto
matically. More air flows out of the air
outlet vents
1 and
2.
Recirculated air mode In recirculated air mode air is sucked
out of the interior of the vehicle
and then fed back into the interior.Recirculated air mode prevents polluted air outside the vehicle from getting into the vehicle, for example when driving through a tunnel or when standing in a traffic jam. Switching recirculated air mode on – Press the button - the warning light lights up in the button. Switching recirculated air mode off – Press again the button or the button - the warning light in
the button goes out.
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an acci- dent increases. Switch recirculated air mode off as soon as the windows begin misting up.
AUTOECON

ECON




AUTO


AUTO
s2g8.b.book Page 91 Tuesday, April 7, 2009 8:53 AM

Starting-off and Driving
93
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Starting-off and DrivingSetting steering wheel positionYou can set the height and the forw
ard/back position of the steering
wheel to the desired position. – Adjust the driver seat
⇒
page 60.
– Pull the lever below the steering column
⇒
fig. 103
down
⇒
.
– Set the steering wheel to the desired position
concerning height and
forward/back position
.
– Then push the lever up against the steering column until it locks into
place.
WARNING
•
You must not adjust the steering wh
eel when the vehicle is moving!
•
The driver must maintain a distance of at least 25 cm to the steering
wheel
⇒fig. 104
. Not maintaining this minimum distance will mean that the
airbag system will not be able to properly protect you - hazard!•
For s a fe t y re a s ons the le v e r m ust a lwa y s b e fi rm l y pus he d up t o a vo id the
steering wheel altering its position unintentionally when driving - risk of accident!•
If you adjust the steering wheel furthe
r towards the head, you will reduce
the protection offered by the driver airb
ag in the event of an accident. Check
that the steering wheel is aligned to the chest.•
When driving, hold the steering wheel
with both hands firmly on the
outer edge in the 9 o'clock and 3 o'clock position. Never hold the steering wheel firmly in the 12 o'clock position or in another way (e.g. in the middle of the steering wheel or
at the inner steering wheel edge). In such cases,
injuries to the arms, the hands and
the head can occur when the driver
airbag is deployed.
Fig. 103 Adjustable steering wheel: Lever below steering columnFig. 104 Safe distance to steering wheel
s2g8.b.book Page 93 Tuesday, April 7, 2009 8:53 AM

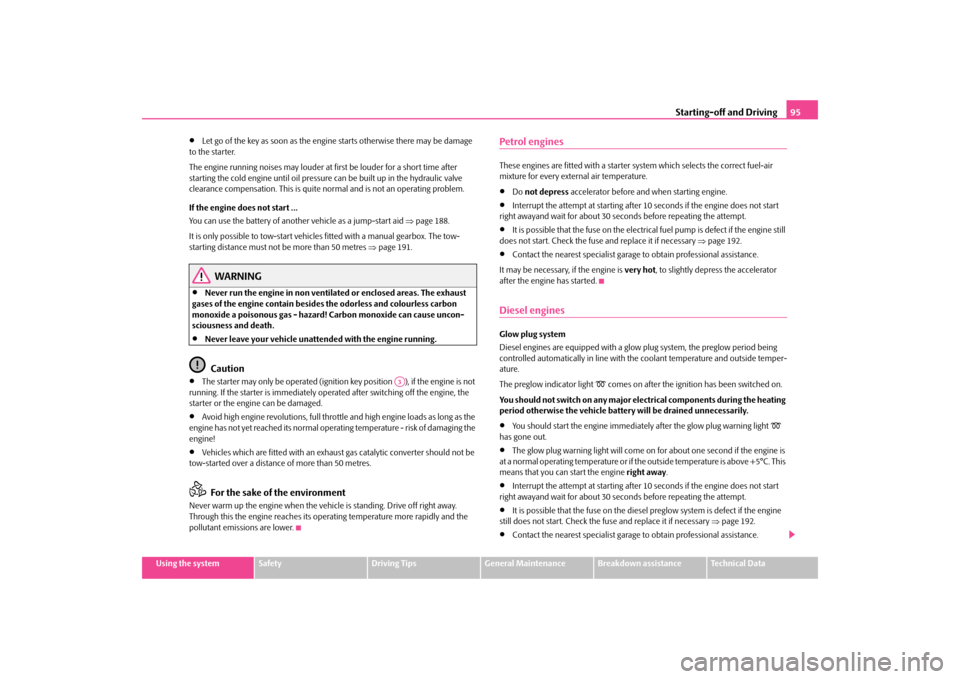

Starting-off and Driving
95
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
•
Let go of the key as soon as the engine starts otherwise there may be damage
to the starter. The engine running noises may louder at
first be louder for
a short time after
starting the cold engine until oil pressure
can be built up in the hydraulic valve
clearance compensation. This is quite normal and is not an operating problem. If the engine does not start ... You can use the battery of anothe
r vehicle as a jump-start aid
⇒page 188.
It is only possible to tow-start vehicl
es fitted with a manual gearbox. The tow-
starting distance must not be more than 50 metres
⇒page 191.
WARNING
•
Never run the engine in non ventilat
ed or enclosed areas. The exhaust
gases of the engine contain besides
the odorless and colourless carbon
monoxide a poisonous gas - hazard! Carbon monoxide can cause uncon- sciousness and death.•
Never leave your vehicle unattended with the engine running.Caution
•
The starter may only be operated (ignition key position ), if the engine is not
running. If the starter is immediately oper
ated after switching off the engine, the
starter or the engine can be damaged.•
Avoid high engine revolutions, full throttle and high engine loads as long as the
engine has not yet reached its normal oper
ating temperature - risk of damaging the
engine!•
Vehicles which are fitted wi
th an exhaust gas catalyti
c converter should not be
tow-started over a distance of more than 50 metres.
For the sake of the environment
Never warm up the engine when the vehi
cle is standing. Drive off right away.
Through this the engine reaches its operating temperature more rapidly and the pollutant emissions are lower.
Petrol enginesThese engines are fitted with a starter system which selects the correct fuel-air mixture for every external air temperature.•
Do
not depress
accelerator before and when starting engine.
•
Interrupt the attempt at starting after
10 seconds if the engine does not start
right awayand wait for about 30 se
conds before repeating the attempt.
•
It is possible that the fuse on the electric
al fuel pump is defect if the engine still
does not start. Check the fuse and replace it if necessary
⇒page 192.
•
Contact the nearest specialist garage to obtain professional assistance.
It may be necessary, if the engine is
very hot
, to slightly depress the accelerator
after the engine has started.Diesel enginesGlow plug system Diesel engines are equipped with a glow
plug system, the preglow period being
controlled automatically in
line with the coolant temperature and outside temper-
ature. The preglow indicator light
 comes on after the ignition has been switched on.
You should not switch on any major electrical components during the heating period otherwise the vehicle battery will be drained unnecessarily.•
You should start the engine immediately after the glow plug warning light

has gone out.•
The glow plug warning light will come on for about one second if the engine is
at a normal operating temperature or if the outside temperature is above +5°C. This means that you can start the engine
right away
.
•
Interrupt the attempt at starting after
10 seconds if the engine does not start
right awayand wait for about 30 se
conds before repeating the attempt.
•
It is possible that the fuse on the diesel preglow system is defect if the engine
still does not start. Check the fuse and replace it if necessary
⇒page 192.
•
Contact the nearest specialist garage to obtain professional assistance.
A3
s2g8.b.book Page 95 Tuesday, April 7, 2009 8:53 AM
