2009 Seat Altea Freetrack Owner's Manual

CD player heating lane assist check engine fuel tank capacity oil dipstick

Load previous 8 pages

Page 89 of 291

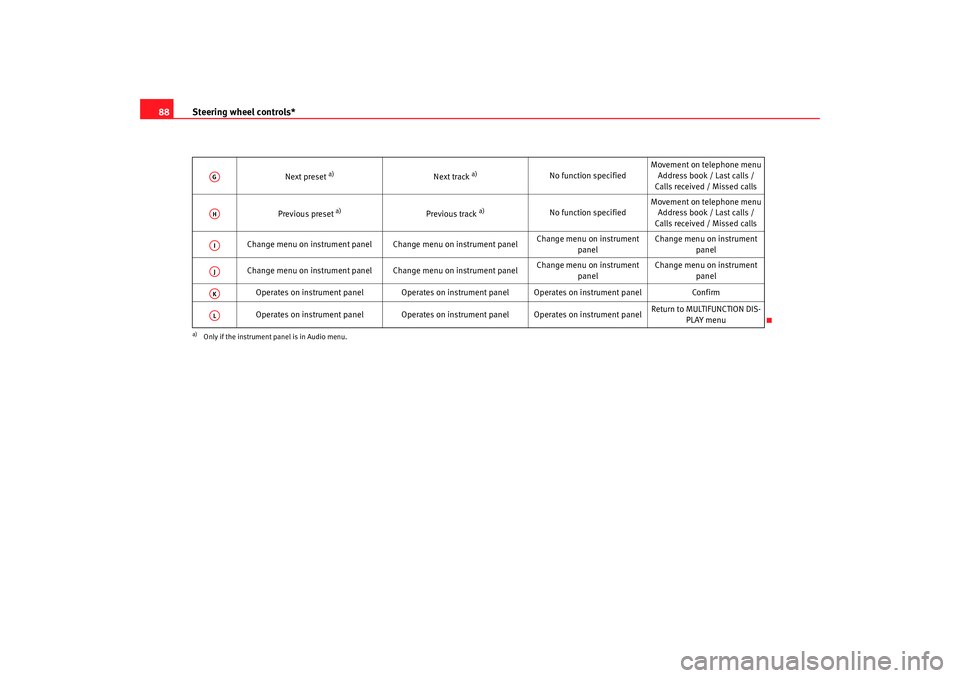

Seat Altea Freetrack 2009 Owners Manual Steering wheel controls*
88
Next preset
a)
Next track
a)
No function specified Movement on telephone menu
Address book / Last calls /
Calls received / Missed calls
Previous preset
a)
Previous trac

Page 90 of 291

Seat Altea Freetrack 2009 Owners Manual Steering wheel controls*89
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Radio navigation systemSteering wheel audio version controls
Fig. 54 Controls on the
steering

Page 91 of 291

Seat Altea Freetrack 2009 Owners Manual Steering wheel controls*
90Steering wheel Audio + Telephone controls
Next preset
a)
Next track
a)
No function specified Operates on instrument panel
Previous preset
a)
Previous track
a)
No functio

Page 92 of 291

Seat Altea Freetrack 2009 Owners Manual Steering wheel controls*91
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Button
Radio CD/MP3/USB*/iPod* AUXNAVIGATOR TELEPHONE
Volume up Volume upVolume upVolume up Volu

Page 93 of 291

Seat Altea Freetrack 2009 Owners Manual Steering wheel controls*
92
Change menu on instrument
panel Change menu on instrument
panel Change menu on instru-
ment panel No function specified Change menu on instru-
ment panel
Operates on inst

Page 94 of 291

Seat Altea Freetrack 2009 Owners Manual Unlocking and locking93
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Unlocking and lockingCentral lockingBasic functions
The central locking system enables you to lock

Unlocking and locking93
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Unlocking and lockingCentral lockingBasic functions
The central locking system enables you to lock and unlock all
doors with just pushing on the keybutton.Description
Central locking can be activated by using any of the following options:•
the key, by inserting it into the driver's door cylinder and rotating it manu-
ally,
•
the central locking button in the passenger compartment as an electronic
control ⇒page 96,
•
the radio frequency remote control , using the buttons on the key
⇒ page 100.
Various functions are available to improve the vehicle safety:
– Locking system “Safe”
– Selective unlocking system*
– Automatic speed-dependent locking and unlocking system*
– Self-locking system to prevent involuntary unlocking
– Emergency unlocking system
Unlocking the vehicle*
– Press button ⇒ page 100, fig. 63 on remote control to unlock all the
doors and tailgate. Locking the vehicle*
– Press button
⇒page 100, fig. 63 on the remote control to lock all
doors and the tailgate or turn the key in the door to lock all doors and the
tailgate.
WARNING
•
Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.
•
Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year, thus causing serious injuries/illness. It could even have
fatal consequences. Close and lock both the tailgate and all the other doors
when you are not using the vehicle.
•
Always take you car keys with you when you leave the vehicle. Misuse
of the keys, for example, by children, may result in serious damage and
accident.
−The engine may accidentally be started and be out of control.
− If the ignition is switched on, the electric equipment could be acti-
vated with risk of injury, for example, in the electric windows.
− The doors can be locked using the remote control key. This could
make assistance difficult in an emergency situation.
− Always take the key with you when you leave the vehicle.
•
Never remove the key from the ignition if the vehicle is in motion. The
steering lock could suddenly engage, and you would not be able to steer
the vehicle.


altea_freetrack_ingles.book Seite 93 Montag, 16. Februar 2009 10:48 10

Page 95 of 291

Seat Altea Freetrack 2009 Owners Manual Unlocking and locking
94
Note•
While the drivers door is open, the vehicle can not be locked with the
remote control. This avoids the user from forgetting his key inside the vehicle.
•
If the dr

Unlocking and locking
94
Note•
While the driver's door is open, the vehicle can not be locked with the
remote control. This avoids the user from forgetting his key inside the vehicle.
•
If the driver's door is unlocked with the key shaft, only the driver's door is
unlocked, the rest of the doors remain locked. When the ignition is switched
on, the door "safe" deadlock is deactivated (although the doors remain
locked) and the central locking button is activated. See ⇒page 96.
•
If the central locking or anti-theft alarm are faulty, the driver's door
warning lamp remains lit for approx. 30 seconds after locking the vehicle.
•
Fo r a n ti- th e ft se c u ri ty, o nl y th e d r iv e r' s d o or is fi tte d wi th a l o ck c y l in d e r.
Safety system “Safe*”
The "safe" deadlock makes it more difficult to break into the
vehicle because the door release lever and the central locking
button are not active (depending upon country).Activating deadlock
– Press once the locking button on the remote control. or
–Turn the key once in the driver's door lock to lock. A warning lamp
in the driver door flashes to indicate the "safe" deadlock is
working. The warning lamp flashes for approx. two seconds at
short intervals and then more slowly. Deactivating deadlock when the vehicle is locked
– Press
twice the locking button on the remote control within
two seconds. The vehicle is locked without activating the dead-
lock. The driver's door warning lamp flashes for approx. two
seconds and then goes out. After approx. 30 seconds it starts
flashing again.
The doors can be unlocked and opened from the inside if the "safe" deadlock
has not been activated. You will have to pull the door release lever once.
When the "safe" deadlock is off, the antitheft alarm* remains active. The
vehicle interior monitoring system* and the anti-tow system are deacti-
vated*.
WARNING
Nobody should remain in the vehicle if the anti-tow system deadlock mech-
anism has been activated. It is not possible to open the doors from the
inside. Locked doors could make it more difficult to assist vehicle occu-
pants in the event of an accident. People could become trapped inside in an
emergency.Selective unlocking system*
T h i s s y st e m a l l o w s t o u nl o c k ei t h e r j u st t h e d ri v e r' s d o o r o r al l
the vehicle.Using the remote control, press the unlock button on the remote once. The
“Safe” system for all the vehicle is deactivated, only the driver's door is
unlocked and both the alarm and the light indicator are also turned off.



altea_freetrack_ingles.book Seite 94 Montag, 16. Februar 2009 10:48 10

Page 96 of 291

Seat Altea Freetrack 2009 Owners Manual Unlocking and locking95
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Unlocking all doors and the boot
The unlock button on the remote must be pressed twice so that al

Unlocking and locking95
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Unlocking all doors and the boot
The unlock button on the remote must be pressed twice so that all doors
and the boot can be opened.
Press twice within 2 seconds to deactivate the “Safe” system for all vehicle,
to unlock all doors and to use the boot. The indicator and the alarm (only vehi-
cles fitted with one) are turned off.
Automatic speed dependent locking and unlocking system*
This is a safety system which prevent the access to the vehicle
from the outside when it is running (for example, when
stopped at a traffic light).Locking
The doors and the boot are automatically locked when vehicle speed exceeds
15 km/h.
If the vehicle is stopped and one of the doors is opened, when the vehicle
moves off again and exceeds a speed of 15 km/h, the unlocked door(s) will
be locked once more.
Unlocking
The driver's door automatically unlocks when the key is removed from the
ignition.
Each door can be unlocked and opened independently from the inside (for
example, when a passenger gets out of it). To do it, simply operate the lever
inside the door.
WARNING
The door handles must not be operated when the vehicle is running: the
door would open.
Automatic locking system for involuntary unlocking*
It is an anti-theft system
and prevents the unintentional
unlocking of the vehicle.If the vehicle is unlocked and any of the doors (including the tailgate) are
opened within 30 seconds, it gets re-locked automatically. This function
prevents the vehicle from remaining unlocked if the unlock button is pressed
by mistake.Emergency unlocking systemIf the airbags are triggered during an accident, the vehicle gets unlocked,
except for the boot. It is possible to lock the vehicle from inside with the
central locking, after turning the ignition off and back on again.
If the doors must be locked from the outside, see “Emergency locking of the
doors”

altea_freetrack_ingles.book Seite 95 Montag, 16. Februar 2009 10:48 10
