Unlocking and locking

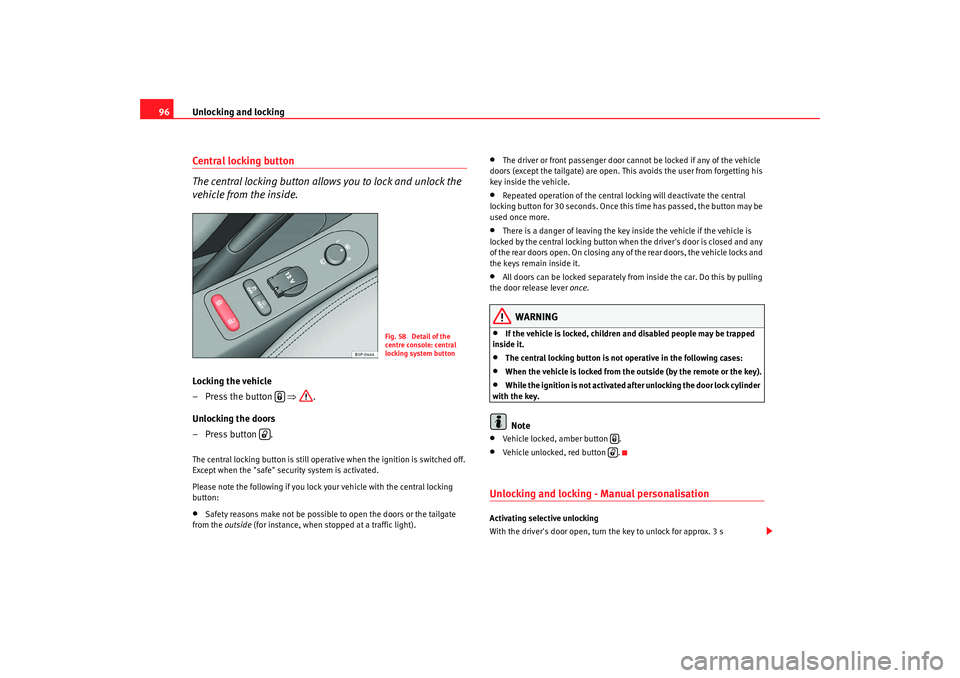

96Central locking button
The central locking button allows you to lock and unlock the
vehicle from the inside.Locking the vehicle
– Press the button ⇒ .
Unlocking the doors
– Press button .The central locking button is still operative when the ignition is switched off.
Except when the "safe" security system is activated.
Please note the following if you lock your vehicle with the central locking
button:•
Safety reasons make not be possible to open the doors or the tailgate
from the outside (for instance, when stopped at a traffic light).
•
The driver or front passenger door cannot be locked if any of the vehicle
doors (except the tailgate) are open. This avoids the user from forgetting his
key inside the vehicle.
•
Repeated operation of the central locking will deactivate the central
locking button for 30 seconds. Once this time has passed, the button may be
used once more.
•
There is a danger of leaving the key inside the vehicle if the vehicle is
locked by the central locking button when the driver's door is closed and any
of the rear doors open. On closing any of the rear doors, the vehicle locks and
the keys remain inside it.
•
All doors can be locked separately from inside the car. Do this by pulling
the door release lever once.
WARNING
•
If the vehicle is locked, children and disabled people may be trapped
inside it.
•
The central locking button is not operative in the following cases:
•
When the vehicle is locked from the outside (by the remote or the key).
•
While the ignition is not activated after unlocking the door lock cylinder
with the key.Note
•
Vehicle locked, amber button .
•
Vehicle unlocked, red button .
Unlocking and locking - Manual personalisation Activating selective unlocking
With the driver's door open, turn the key to unlock for approx. 3 s
Fig. 58 Detail of the
centre console: central
locking system button



altea_freetrack_ingles.book Seite 96 Montag, 16. Februar 2009 10:48 10

Unlocking and locking97
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Deactivating selective unlocking
With the driver's door open, turn the key to lock for approx. 3 s
The indicator lamps flash to confirm activation or deactivation.
Activation of automatic locking
Press the lock button on the central locking button for 3 seconds.
Deactivation of automatic locking
Press the unlock button on the central locking button for 3 seconds.
The lock button lamp flashes to confirm activation or deactivation.
Emergency manual locking
This permits mechanical locking of the doors in case of
central locking system failure.
Locking the driver's door manually
Insert the key in the door lock cylinder and rotate in a clockwise direction for
the left hand side door and anti-clockwise for the right hand side door.
Once the door has been closed it can no longer be opened from the outside.
Manual (emergency) locking of the remaining doors
Open the door and remove the cap
⇒fig. 59 printed with a lock image.
This will expose a circular element with a groove in the centre. Insert the key
into the groove and rotate the element clockwise for the right hand side doors
and anticlockwise for the left hand side doors.
Replace the cap and close the door. Once the door has been closed it can no
longer be opened from the outside.
Unlocking the manually (emergency) locked driver's door
Insert the key in the door lock cylinder and rotate anti-clockwise for the left
hand side doors and clockwise for the right hand side doors.
The door lock is released and the door may be opened using the exterior door
handle.
Unlocking the remaining manually (emergency) locked doors
First the driver's door must be unlocked to gain entry to the vehicle. Operate
the internal door handle for the required door. If the child safety lock is acti-
vated on the rear doors, when the interior door release lever is operated the
door is unlocked but does not open. The exterior door handle may now be
used to open the door.
Note
Once the vehicle is open, if you wish to lock it manually (emergency locking),
repeat the previous instructions.

Fig. 59 Locking the doors
manually
AA
altea_freetrack_ingles.book Seite 97 Montag, 16. Februar 2009 10:48 10

Unlocking and locking

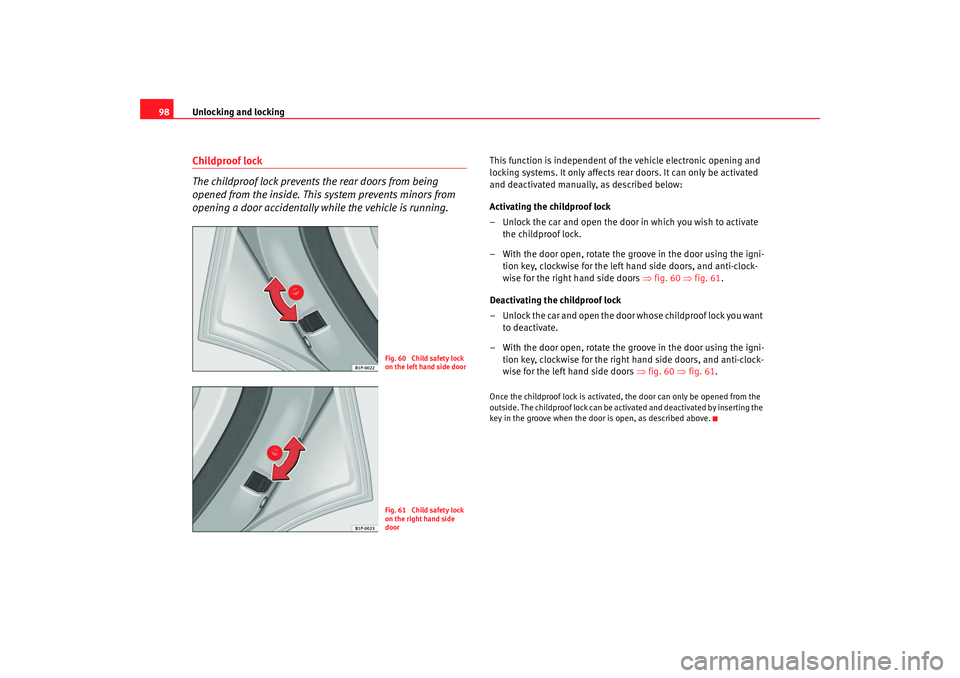

98Childproof lock
The childproof lock prevents the rear doors from being
opened from the inside. This system prevents minors from
opening a door accidentally while the vehicle is running.
This function is independent of the vehicle electronic opening and
locking systems. It only affects rear doors. It can only be activated
and deactivated manually, as described below:
Activating the childproof lock
– Unlock the car and open the door in which you wish to activate
the childproof lock.
– With the door open, rotate the groove in the door using the igni- tion key, clockwise for the left hand side doors, and anti-clock-
wise for the right hand side doors ⇒fig. 60 ⇒ fig. 61 .
Deactivating the childproof lock
– Unlock the car and open the door whose childproof lock you want to deactivate.
– With the door open, rotate the groove in the door using the igni- tion key, clockwise for the right hand side doors, and anti-clock-
wise for the left hand side doors ⇒fig. 60 ⇒ fig. 61 .Once the childproof lock is activated, the door can only be opened from the
outside. The childproof lock can be activated and deactivated by inserting the
key in the groove when the door is open, as described above.
Fig. 60 Child safety lock
on the left hand side doorFig. 61 Child safety lock
on the right hand side
door
altea_freetrack_ingles.book Seite 98 Montag, 16. Februar 2009 10:48 10

Unlocking and locking99
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
KeysSet of keys
The set of keys includes a remote control, a key without a
remote control and a plastic key tab with the number of the
key.The set of keys belonging to your vehicle consists of the following items:•
one remote control key ⇒fig. 62 with folding key bit,
•
one key without remote control ,
•
one plastic key tab with the key number.
Plastic key tab
Duplicate keys are only issued with the key number on the key tab ⇒fig. 62
. Therefore:
•
Always keep the key tab in a safe place.
•
Never leave the key tab in the vehicle.
If you sell the vehicle, please give the plastic key tab to the new owner.
Duplicate keys
If you need a replacement key, take your key tab to an Authorised Service
Centre.
WARNING
•
An incorrect use of the keys can cause serious injuries.
•
Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.
•
An uncontrolled use of the key could start the engine or activate any
electric equipment(e.g. electric windows), causing risk of accident. The
doors can be locked using the remote control key. This could make the aid
difficult in an emergency situation.
•
Never forget the keys inside the vehicle. An unauthorised use of your
vehicle could result in injury, damage or theft. Always take the key with you
when you leave the vehicle.
•
Never remove the key from the ignition if the vehicle is in motion.
Otherwise, the steering could suddenly block and it would be impossible
to steer the vehicle.Caution
There are electronic components in the remote control key. Avoid wetting and
hitting the keys
Fig. 62 Set of keys
AAAB
AC
AB
altea_freetrack_ingles.book Seite 99 Montag, 16. Februar 2009 10:48 10

Unlocking and locking
100Radio frequency remote controlLocking and unlocking the vehicle
The remote control key is used to lock and unlock the vehicle
from a distance.
Using the button ⇒ fig. 63 (arrow) on the control, the key shaft is released.
Unlocking the vehicle ⇒ fig. 63 .
Locking the vehicle ⇒fig. 63 .
Unlocking the tailgate. Press the button ⇒fig. 63 until all indicators
on the vehicle briefly flash. When the unlocking button is pressed,
you have 2 minutes to open the door. Once this time has passed, it will lock
once more.
Also, the battery indicator on the key ⇒fig. 63 , will flash.
The remote control transmitter and the batteries are integrated in the key. The
receiver is inside the vehicle. The maximum scope of the remote control
depends on various conditions. This scope is reduced when the batteries
start to lose power.
Selective unlocking*
When the button ⇒fig. 63 , is pressed once, the driver's door is
unlocked, all others remain locked.
Press the button ⇒fig. 63 twice to unlock all doors.
Fig. 63 Assignment of
buttons on the remote
control key
Fig. 64 Range of the
remote control:

A1

A2

A3
A3

A1

A1
altea_freetrack_ingles.book Seite 100 Montag, 16. Februar 2009 10:48 10

Unlocking and locking101
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
WARNING
•
An improper use of the key can cause serious injuries.
•
Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.
•
Never forget the keys inside the vehicle. Otherwise, this could result in
serious injuries, accidents or even the theft of your vehicle. Always take the
key with you when you leave the vehicle.
•
An uncontrolled use of the key could start the engine or activate any
electric equipment(e.g. electric windows), causing risk of accident. The
vehicle can be locked when using the remote control key. This could
complicate the aid in cas of emergency.Note
•
The radio-frequency remote control can be programmed by means of
pressing the unlocking button once; as a result, only the driver door will
unlock. When the button is pressed once more, all doors and the tailgate will
be unlocked.
•
The remote control functions only when you are in range ⇒page 100,
fig. 64 (red area).
•
If the vehicle is unlocked using the button, it will lock again auto-
matically if any of the doors or the tailgate are not opened within 30 seconds
after unlocking it. This function prevents the vehicle from remaining unlocked
if the unlock button is pressed by mistake.
•
If the vehicle cannot be opened and closed using the remote control, the
remote control key will have to be re-synchronised ⇒page 101.
Changing the batteryIf the battery indicator does not flash when the buttons are pushed, the
battery must be replaced.
Caution
The use of inappropriate batteries may damage the radio frequency remote
control. For this reason, always replace the dead battery with another of the
same size and power.
For the sake of the environment
The flat batteries must be thrown away in accordance with regulations
governing the protection of the environment.Synchronising the remote control key
If it is not possible to unlock or lock the door with the remote
control, it should be re-synchronised.– Press the ⇒page 100, fig. 63 button on the remote control.
– Then close the vehicle using the key bit within one minute.It is possible that the vehicle could no longer be opened and closed with the
remote control if the button is repeatedly pressed outside the radio
frequency remote control effective scope. The remote control key will have to
be resynchronised.
Spare remote control keys are available in your Authorised Service Centres,
where they must be matched to the locking system.
Up to eight remote control keys can be used.
A1


altea_freetrack_ingles.book Seite 101 Montag, 16. Februar 2009 10:48 10

Unlocking and locking
102Anti-theft alarm system*Description of anti-theft alarm system*
The anti-theft alarm triggers if unauthorised movements are
detected around the vehicle.The anti-theft alarm makes it more difficult to break into the vehicle or steal
it. Audible and visible alarms are triggered if the car is opened using the key,
or if unauthorised access to the vehicle is forced.
The anti-theft alarm system is automatically connected on locking the
vehicle. The system is then primed.
When does the system trigger an alarm?
The system triggers an alarm if the following unauthorised actions are carried
out when the car is locked:•
Mechanical opening of the vehicle with the vehicle key
•
Opening a door
•
Opening the bonnet
•
Opening the tailgate
•
Switching on the ignition
•
Movements in the vehicle
•
Undue manipulation of the alarm
•
Battery handling
The acoustic signals sound and the indicators flash for approx. 30 seconds.
This may be repeated up to 10 times depending on the country.
Opening the doors mechanically (emergency opening)
If the remote control function fails, you will have to use the key to unlock the
car. This is done as follows:
•
Unfold the key by pressing the button shown by the (arrow).
•
Use the lock on the driver door to unlock the vehicle. The anti-theft alarm
system remains active, but an alarm is not triggered immediately.
•
Switch on the ignition within 15 seconds. When the ignition is switched
on, the electronic immobiliser recognises a valid vehicle key and deactivates
the anti-theft alarm system. If you do not switch on the ignition within 15
seconds, the alarm is triggered.
How to switch the alarm off
When the vehicle is unlocked via the unlocking button of the remote control
or when the key is inserted in the ignition lock.Note
•
If, after the alarm goes off, access is gained to a second secured zone
(e.g. the tailgate is opened after a door has been opened), the warning signal
is triggered again.
•
Vehicle monitoring remains active even if the battery is disconnected or
not working for any reason.
•
The alarm is triggered immediately if one of the battery cables is discon-
nected while the alarm system is active.
Volumetric sensor*
Monitoring or control function incorporated in the anti-theft
alarm* which detects unauthoriz ed vehicle entry by means of
ultrasound.The system consists of 3 sensors, 2 emitters and a receptor.
altea_freetrack_ingles.book Seite 102 Montag, 16. Februar 2009 10:48 10

Unlocking and locking103
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Activation
– It is automatically turned on with the anti-theft alarm, when the
vehicle is locked mechanically with the key and when the button
on the remote control is used.
Deactivation
– Press the button on the remote control twice. Only the volu- metric sensor is deactivated. The alarm system remains acti-
vated.
WARNING
•
The “safe” security system remains deactivated if the volumetric
sensor is deactivated.
•
For those vehicles in which a separate sunblind is fitted in the
passenger compartment, the alarm will not function correctly due to inter-
ference with the sensor.Note
•
If the alarm has been triggered by the volumetric sensor, this will be indi-
cated by a flashing of the indicator on the driver's door. This flashing will be
different to that for an activated alarm.

altea_freetrack_ingles.book Seite 103 Montag, 16. Februar 2009 10:48 10
