2009 SATURN VUE service

Fuel Gage
When the ignition is on, the fuel
gage indicates how much fuel is
left in the tank.
When the indicator nears empty,
the low fuel light comes on. There is
still a little fuel left, but the fuel tank
should be relled soon. SeeLow
Fuel Warning Light on page 3-41
for more information.
An arrow on the fuel gage indicates
the side of the vehicle the fuel
door is on.Here are four things that some
owners ask about. None of these
means the fuel gage is not working
properly:
At the service station, the fuel
pump shuts off before the
gage reads full.
It takes a little more or less fuel
to ll up than the gage indicated.
For example, the gage may have
indicated the tank was half full,
but it actually took a little more or
less than half the tank’s capacity
to ll the tank.
The gage moves a little while
turning a corner or speeding up.
The gage takes a few seconds to
stabilize after the ignition is turned
on, but it goes back to empty
when the ignition is turned off.
For fuel tank capacity, see
Capacities and Specifications
on page 5-86.
Low Fuel Warning Light
The low fuel warning light, below
the fuel gage, comes on briey when
the engine is started.
This light also comes on when the
fuel tank is low on fuel. When fuel is
added, the light should go off. If it
does not, have the vehicle serviced. United StatesCanada
Instrument Panel 3-41
ProCarManuals.com

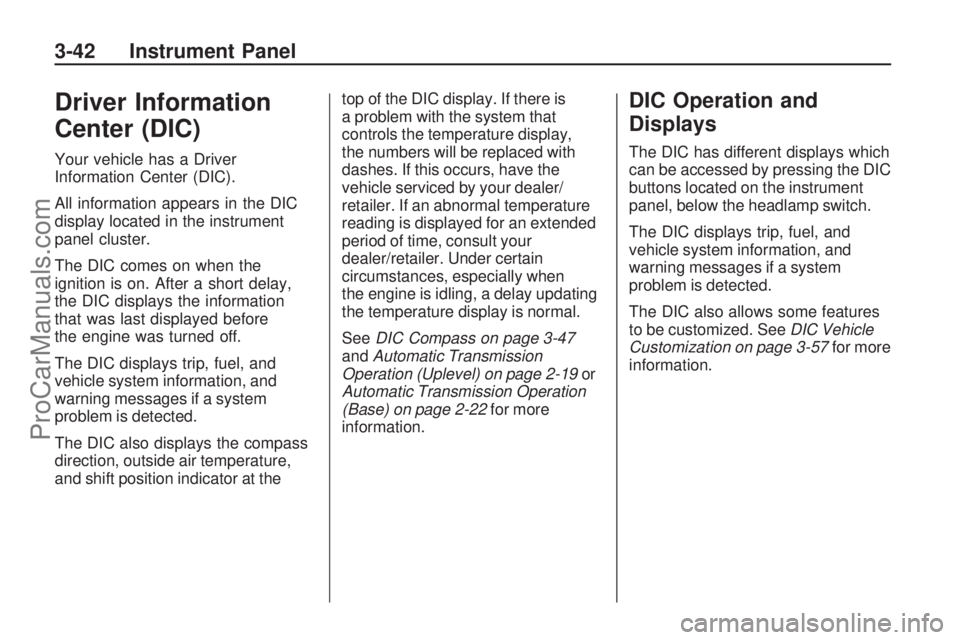

Driver Information
Center (DIC)
Your vehicle has a Driver
Information Center (DIC).
All information appears in the DIC
display located in the instrument
panel cluster.
The DIC comes on when the
ignition is on. After a short delay,
the DIC displays the information
that was last displayed before
the engine was turned off.
The DIC displays trip, fuel, and
vehicle system information, and
warning messages if a system
problem is detected.
The DIC also displays the compass
direction, outside air temperature,
and shift position indicator at thetop of the DIC display. If there is
a problem with the system that
controls the temperature display,
the numbers will be replaced with
dashes. If this occurs, have the
vehicle serviced by your dealer/
retailer. If an abnormal temperature
reading is displayed for an extended
period of time, consult your
dealer/retailer. Under certain
circumstances, especially when
the engine is idling, a delay updating
the temperature display is normal.
SeeDIC Compass on page 3-47
andAutomatic Transmission
Operation (Uplevel) on page 2-19or
Automatic Transmission Operation
(Base) on page 2-22for more
information.
DIC Operation and
Displays
The DIC has different displays which
can be accessed by pressing the DIC
buttons located on the instrument
panel, below the headlamp switch.
The DIC displays trip, fuel, and
vehicle system information, and
warning messages if a system
problem is detected.
The DIC also allows some features
to be customized. SeeDIC Vehicle
Customization on page 3-57for more
information.
3-42 Instrument Panel
ProCarManuals.com

When the remaining oil life is low,
the CHANGE ENGINE OIL SOON
message will appear on the display.
See “CHANGE ENGINE OIL SOON”
underDIC Warnings and Messages
on page 3-49. You should change
the oil as soon as you can. See
Engine Oil on page 5-14. In addition
to the engine oil life system
monitoring the oil life, additional
maintenance is recommended in
the Maintenance Schedule in
this manual. SeeScheduled
Maintenance on page 6-3for
more information.
Units
Press the vehicle information button
until UNITS displays. This display
allows you to select between English
or Metric units of measurement.
Once in this display, press the
set/reset button to select between
ENGLISH or METRIC units. All of
the vehicle information will then be
displayed in the unit of measurement
selected.Tire Pressure
If your vehicle has the Tire Pressure
Monitor System (TPMS), the
pressure for each tire can be viewed
in the DIC. The tire pressure will be
shown in either pounds per square
inch (psi) or kilopascals (kPa).
Press the vehicle information button
until the DIC displays FRONT TIRES
PSI (kPa) LEFT ## RIGHT ##. Press
the vehicle information button again
until the DIC displays REAR TIRES
PSI (kPa) LEFT ## RIGHT ##.
If a low or high tire pressure
condition is detected by the system
while driving, a message advising
you to check the pressure in a
specic tire will appear in the display.
SeeInflation - Tire Pressure on
page 5-49andDIC Warnings and
Messages on page 3-49for more
information.
If the tire pressure display shows
dashes instead of a value, there
may be a problem with your vehicle.
If this consistently occurs, see
your dealer/retailer for service.Relearn Remote Key
This display allows you to match
Remote Keyless Entry (RKE)
transmitters to your vehicle.
This procedure will erase all
previously learned transmitters.
Therefore, they must be relearned
as additional transmitters.
To match an RKE transmitter to
your vehicle:
1. Press the vehicle information
button until PRESS
VTO
RELEARN REMOTE KEY
displays.
2. Press the set/reset button until
REMOTE KEY LEARNING
ACTIVE is displayed.
3. Press and hold the lock and
unlock buttons on the rst
transmitter at the same time
for about 15 seconds.
A chime will sound indicating
that the transmitter is matched
and REMOTE KEY LEARNING
COMPLETE will be shown
on the display.
3-46 Instrument Panel
ProCarManuals.com

4. To match additional transmitters
at this time, repeat Step 3.
Each vehicle can have a
maximum of eight transmitters
matched to it.
5. To exit the programming mode,
you must cycle the key to
LOCK/OFF.
Compass Zone Setting
This display allows for setting the
compass zone. SeeDIC Compass
on page 3-47for more information.
Compass Recalibration
This display allows for calibrating
the compass. SeeDIC Compass on
page 3-47for more information.Coolant Temperature
Press the vehicle info button
until the coolant temperature is
displayed. The temperature will
be shown in °F or °C depending
on the units selected.
If the coolant temperature display
shows dashes instead of a value,
there may be a problem with the
vehicle. If this happens often, see
your dealer/retailer for service.
Battery Voltage
Press the vehicle info button until
the battery voltage is displayed.
If the battery voltage display shows
dashes instead of a value, there
may be a problem with the vehicle.
If this happens often, see your
dealer/retailer for service.
Blank Display
This display shows no information.DIC Compass
Your vehicle may have a
compass in the Driver Information
Center (DIC).
Compass Zone
The zone is set to zone eight
upon leaving the factory. Your
dealer/retailer will set the correct
zone for your location.
Under certain circumstances,
such as during a long distance
cross-country trip or moving to a new
state or province, it will be necessary
to compensate for compass variance
by resetting the zone through the
DIC if the zone is not set correctly.
Compass variance is the difference
between the earth’s magnetic north
and true geographic north. If the
compass is not set to the zone where
you live, the compass may give false
readings. The compass must be set
to the variance zone in which the
vehicle is traveling.
Instrument Panel 3-47
ProCarManuals.com

The following are the possible
messages that can be displayed
and some information about them.
BATTERY SAVER ACTIVE
This message displays when the
charging system detects that the
battery is being drained. You may
notice that the vehicle attempts to
reduce the drain for you by turning
off accessories, such as interior fans,
rear defogger, and heated seats.
Turn off all accessories. If the vehicle
is not running, start and run the
engine for at least 10 minutes to
allow the battery to recharge. If the
engine is running and the condition
persists, see your dealer/retailer
immediately.
CALIBRATING COMPASS:
TURN IN CIRCLES
This message displays when
calibrating the compass. Drive
the vehicle in circles at less than
5 mph (8 km/h) to complete the
calibration. SeeDIC Compass on
page 3-47.
CHANGE ENGINE OIL SOON
This message displays when service
is required for the vehicle. See your
dealer/retailer. SeeEngine Oil
on page 5-14andScheduled
Maintenance on page 6-3for
more information.
Acknowledging this message will
not reset the OIL LIFE REMAINING
display. That must be done at the
OIL LIFE screen. See “OIL LIFE”
underDIC Operation and Displays
on page 3-42andEngine Oil Life
System on page 5-16for more
information.
CHANGE TRANSMISSION
FLUID
Notice:Use of the incorrect
automatic transmission uid
may damage the vehicle, and the
damages may not be covered
by the vehicle’s warranty. Always
use the automatic transmission
uid listed inRecommended
Fluids and Lubricants on
page 6-13.
This message displays when the life
of the transmission uid has expired
and it should be changed. See
Scheduled Maintenance on page 6-3
andRecommended Fluids and
Lubricants on page 6-13for the
proper uid and change intervals.
3-50 Instrument Panel
ProCarManuals.com

ENGINE OVERHEATED
STOP ENGINE
Notice:If you drive your vehicle
while the engine is overheating,
severe engine damage may occur.
If an overheat warning appears
on the instrument panel cluster
and/or DIC, stop the vehicle
as soon as possible. SeeEngine
Overheating on page 5-25for
more information.
This message displays along with a
continuous chime when the engine
has overheated. Stop and turn the
engine off immediately to avoid
severe engine damage. SeeEngine
Overheating on page 5-25.
ENGINE POWER IS REDUCED
This message displays when the
vehicle’s engine power is reduced.
Reduced engine power can affect
the vehicle’s ability to accelerate.
If this message is on, but there is no
reduction in performance, proceed to
your destination. The performance
may be reduced the next time the
vehicle is driven. The vehicle may
be driven at a reduced speed while
this message is on, but acceleration
and speed may be reduced. Anytime
this message stays on, the vehicle
should be taken to your dealer/
retailer for service as soon as
possible.
FUEL LEVEL LOW
This message displays when your
vehicle is low on fuel. Rell the
fuel tank as soon as possible.
SeeFuel Gage on page 3-41and
Filling the Tank on page 5-8for
more information.
HOOD OPEN
If your vehicle has the remote start
feature, this message displays along
with a chime when the hood is not
closed properly. Make sure that
the hood is closed completely.
SeeHood Release on page 5-11.
This message displays while the
ignition is in ON/RUN. Press any
of the DIC buttons to acknowledge
this message and to clear it from
the screen.
This message continues to display
for two seconds if it has not been
acknowledged when the engine is
turned off. The message comes back
on for two seconds if it has been
acknowledged, but the condition
still exists when the engine is turned
off. If the condition still exists, the
message reappears when the engine
is turned on.
3-52 Instrument Panel
ProCarManuals.com

ICE POSSIBLE DRIVE
WITH CARE
This message displays when the
outside air temperature is cold
enough to create icy road
conditions. Adjust your driving
accordingly.
LIFTGATE OPEN
This message displays when the
liftgate is not closed completely.
Close the liftgate completely.
SeeLiftgate on page 2-9.
OIL PRESSURE LOW STOP
ENGINE
Notice:If you drive your vehicle
while the engine oil pressure
is low, severe engine damage
may occur. If a low oil pressure
warning appears on the Driver
Information Center (DIC), stop
the vehicle as soon as possible.Do not drive the vehicle until the
cause of the low oil pressure
is corrected. SeeEngine Oil on
page 5-14for more information.
This message displays when the
vehicle’s engine oil pressure is low.
The oil pressure light also appears
on the instrument panel cluster.
SeeOil Pressure Light on page 3-37.
Stop the vehicle immediately,
as engine damage can result
from driving a vehicle with low oil
pressure. Have the vehicle serviced
by your dealer/retailer as soon as
possible when this message is
displayed.PASSENGER DOOR OPEN
This message displays when one
or more of the passenger doors
are not closed properly. Close the
doors completely.
REMOTE KEY LEARNING
ACTIVE
This message displays while
matching a Remote Keyless
Entry (RKE) transmitter to your
vehicle. See “MATCHING
TRANSMITTERS TO YOUR
VEHICLE” underRemote Keyless
Entry (RKE) System Operation on
page 2-4andDIC Operation and
Displays on page 3-42for more
information.
REMOTE KEY LEARNING
COMPLETE
This message displays while
matching a Remote Keyless Entry
(RKE) transmitter to your vehicle.
See “MATCHING TRANSMITTERS
TO YOUR VEHICLE” underRemote
Keyless Entry (RKE) System
Operation on page 2-4andDIC
Operation and Displays on
page 3-42for more information.
Instrument Panel 3-53
ProCarManuals.com

REPLACE REMOTE KEY FOB
BATTERY
This message displays if a Remote
Keyless Entry (RKE) transmitter
battery is low. The battery needs
to be replaced in the transmitter.
See “Battery Replacement” under
Remote Keyless Entry (RKE)
System Operation on page 2-4.
SERVICE A/C
(Air Conditioning) SYSTEM
This message displays when there
is a problem detected in the air
conditioning system. Have the
vehicle serviced by your dealer/
retailer.
SERVICE AIR BAG
This message displays when
there is a problem with the airbag
system. Have your vehicle serviced
by your dealer/retailer immediately.
SeeAirbag Readiness Light on
page 3-29for more information.
SERVICE BRAKE SYSTEM
This message displays along with
the brake system warning light if
there is a problem with the brake
system or when the brake uid level
is low. SeeBrake System Warning
Light on page 3-31. Have the brake
system serviced by your dealer/
retailer as soon as possible.
SERVICE POWER STEERING
If the vehicle has electric power
steering, this message displays if
a problem has been detected with
the power steering. SeeSteering
on page 4-9for more information.
SERVICE STABILITRAK
This message displays if there
has been a problem detected with
StabiliTrak
®. A warning light also
appears on the instrument panel
cluster. SeeStabiliTrak
®Indicator
Light on page 3-33. SeeStabiliTrak®
System on page 4-7for more
information.If this message turns on while you
are driving, pull off the road as soon
as possible and stop carefully. Try
resetting the system by turning the
ignition off and then back on. If this
message still stays on or turns back
on again while you are driving, your
vehicle needs service. Have the
system inspected by your dealer/
retailer as soon as possible.
SERVICE TIRE MONITORING
SYSTEM
On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays if a part on the
TPMS is not working properly.
The tire pressure light also ashes
and then remains on during the
same ignition cycle. SeeTire
Pressure Light on page 3-34.
Several conditions may cause
this message to appear. SeeTire
Pressure Monitor Operation on
page 5-53for more information.
If the warning comes on and stays
on, there may be a problem with the
TPMS. See your dealer/retailer.
3-54 Instrument Panel
ProCarManuals.com
