2009 SATURN VUE ECO mode

What Makes an Airbag
Inate?
In a deployment event, the sensing
system sends an electrical signal
triggering a release of gas from the
inator. Gas from the inator lls
the airbag causing the bag to
break out of the cover and deploy.
The inator, the airbag, and
related hardware are all part
of the airbag module.
Frontal airbag modules are located
inside the steering wheel and
instrument panel. For vehicles with
seat-mounted side impact airbags,
there are airbag modules in the side
of the front seatbacks closest to
the door. For vehicles with roof-rail
airbags, there are airbag modules
in the ceiling of the vehicle, near the
side windows that have occupant
seating positions.
How Does an Airbag
Restrain?
In moderate to severe frontal or
near frontal collisions, even belted
occupants can contact the steering
wheel or the instrument panel.
In moderate to severe side
collisions, even belted occupants
can contact the inside of the vehicle.
Airbags supplement the protection
provided by safety belts. Frontal
airbags distribute the force of
the impact more evenly over the
occupant’s upper body, stopping
the occupant more gradually.
Seat-mounted side impact and
roof-rail airbags distribute the force
of the impact more evenly over
the occupant’s upper body.Rollover capable roof-rail airbags
are designed to help contain the
head and chest of occupants in the
outboard seating positions in the
rst and second rows. The rollover
capable roof-rail airbags are
designed to help reduce the risk of
full or partial ejection in rollover
events, although no system can
prevent all such ejections.
But airbags would not help in
many types of collisions, primarily
because the occupant’s motion
is not toward those airbags.
SeeWhen Should an Airbag Inflate?
on page 1-47for more information.
Airbags should never be regarded
as anything more than a supplement
to safety belts.
Seats and Restraint System 1-49
ProCarManuals.com

2. If the engine does not start
after 5-10 seconds, especially in
very cold weather (below 0°F or
−18°C), it could be ooded with
too much gasoline. Try pushing
the accelerator pedal all the way
to the oor and holding it there as
you hold the key in START for up
to a maximum of 15 seconds.
Wait at least 15 seconds between
each try, to allow the cranking
motor to cool down. When the
engine starts, let go of the key
and accelerator. If the vehicle
starts briey but then stops again,
repeat these steps. This clears
the extra gasoline from the
engine. Do not race the engine
immediately after starting it.
Operate the engine and
transmission gently until the
oil warms up and lubricates
all moving parts.Notice:The engine is designed
to work with the electronics in
the vehicle. If you add electrical
parts or accessories, you could
change the way the engine
operates. Before adding electrical
equipment, check with your
dealer/retailer. If you do not,
the engine might not perform
properly. Any resulting damage
would not be covered by the
vehicle warranty.
Engine Coolant Heater
The engine coolant heater can
provide easier starting and better fuel
economy during engine warm-up in
cold weather conditions at or below
0°F (−18°C). Vehicles with an engine
coolant heater should be plugged in
at least four hours before starting.
Some models may have an internal
thermostat in the cord which will
prevent engine coolant heater
operation at temperatures above
0°F (−18°C).
To Use the Engine Coolant
Heater
1. Turn off the engine.
2. Open the hood and unwrap
the electrical cord. The engine
coolant heater cord is located
near the air cleaner box on the
passenger side of the engine
compartment. SeeEngine
Compartment Overview on
page 5-12for more information
on location.
3. Plug the cord into a normal,
grounded 110-volt AC outlet.
2-18 Features and Controls
ProCarManuals.com

Manual Shift Mode (MSM)
(Automatic Transmission)
To use this feature, do the following:
1. Move the shift lever from
D (Drive) to the left into the
manual gate.
While driving in manual
shift mode, the transmission
will remain in the driver gear
selected. When coming to a
stop in the manual position,
the vehicle will automatically
shift to 1 (First) gear.
2. Push the shift lever forward
toward the plus (+) to upshift or
rearward toward the minus (−)to
downshift. The instrument panel
will display the actual gear
selected.
In manual shift mode all six forward
gears can be selected.While using the MSM feature the
vehicle will have operation similar to
a manual transmission. You can use
this for sport driving or when driving
hilly roads to stay in gear longer or to
downshift for more power or engine
braking.
The transmission will only allow you
to shift into gears appropriate for
the vehicle speed:
The transmission will not
automatically shift to the next
higher gear without moving
the shift lever.
The transmission will not allow
shifting to the next lower gear
if the vehicle speed is too high.
If the vehicle does not respond to a
gear change, or detects a problem
with the transmission, the range of
gears may be reduced and the
Malfunction Indicator Lamp will come
on. SeeMalfunction Indicator Lamp
on page 3-35.
2 (Second) and 3 (Third) Gear
Start Feature
When accelerating the vehicle from
a stop in snowy and icy conditions,
you may want to select 2 (Second)
and 3 (Third) gear. A higher gear,
and light application of the gas pedal,
may allow you to gain more traction
on slippery surfaces.
With the Manual Shift Mode, the
vehicle can accelerate from a stop
in 2 (Second) or 3 (Third).
1. Move the shift lever from
D (Drive) into the manual gate.
2. With the vehicle stopped,
move the shift lever forward to
select 2 (Second) or 3 (Third).
The vehicle will start from a
stop position in 2 (Second)
or 3 (Third).
3. Once the vehicle is moving
select the desired drive gear
or move the shift lever to
the D (Drive) position.
Features and Controls 2-21
ProCarManuals.com

N (Neutral):In this position, the
engine does not connect with
the wheels. To restart the engine
when the vehicle is already moving,
use N (Neutral) only. Also, use
N (Neutral) when the vehicle
is being towed.
{CAUTION
Shifting into a drive gear while the
engine is running at high speed is
dangerous. Unless your foot is
rmly on the brake pedal, the
vehicle could move very rapidly.
You could lose control and hit
people or objects. Do not shift into
a drive gear while the engine is
running at high speed.Notice:Shifting out of P (Park)
or N (Neutral) with the engine
running at high speed may
damage the transmission. The
repairs would not be covered by
the vehicle warranty. Be sure the
engine is not running at high
speed when shifting the vehicle.
D (Drive):This position is for
normal driving with the automatic
transmission. It provides the best
fuel economy. If you need more
power for passing, and you are:
Going less than about 35 mph
(55 km/h), push the accelerator
pedal about halfway down.
Going about 35 mph (55 km/h),
push the accelerator all the
way down.Downshifting the transmission in
slippery road conditions could result
in skidding, see “Skidding” under
Loss of Control on page 4-12.
M (Manual):This position allows
you to change gears similar to a
manual transmission. If the vehicle
has this feature, see Manual
Shift Mode.
Notice:Spinning the tires
or holding the vehicle in one
place on a hill using only the
accelerator pedal may damage
the transmission. The repair will
not be covered by the vehicle
warranty. If you are stuck, do not
spin the tires. When stopping on
a hill, use the brakes to hold the
vehicle in place.
Features and Controls 2-23
ProCarManuals.com

Do not use the Universal Home
Remote with any garage door
opener that does not have the stop
and reverse feature. This includes
any garage door opener model
manufactured before April 1, 1982.
Read the instructions completely
before attempting to program the
Universal Home Remote. Because of
the steps involved, it may be helpful
to have another person available to
assist you in the programming the
Universal Home Remote.
Keep the original hand-held
transmitter for use in other vehicles
as well as for future Universal Home
Remote programming. It is also
recommended that upon the sale
of the vehicle, the programmed
Universal Home Remote buttons
should be erased for security
purposes. See “Erasing Universal
Home Remote Buttons” later in this
section.When programming a garage
door, park outside of the garage.
Park directly in line with and facing
the garage door opener motor-head
or gate motor-head. Be sure that
people and objects are clear of the
garage door or gate that is being
programmed.
It is recommended that a new
battery be installed in your hand-held
transmitter for quicker and more
accurate transmission of the
radio-frequency signal.
Programming the Universal
Home Remote System
For questions or help programming
the Universal Home Remote System,
call 1-800-355-3515 or go to
homelink.com.
Programming a garage door opener
involves time-sensitive actions, so
read the entire procedure before
starting. Otherwise, the device will
time out and the procedure will have
to be repeated.To program up to three devices:
1. From inside the vehicle, press
and hold down the two outside
buttons at the same time,
releasing only when the Universal
Home Remote indicator light
begins to ash, after 20 seconds.
This step will erase the factory
settings or all previously
programmed buttons.
Do not hold down the buttons for
longer than 30 seconds and do
not repeat this step to program
the remaining two Universal
Home Remote buttons.
2-38 Features and Controls
ProCarManuals.com

If they become damaged, install
new blades or blade inserts.
SeeWindshield Wiper Blade
Replacement on page 5-42.
Heavy snow or ice can overload the
wiper motor. A circuit breaker will
stop the motor until it cools down.
Rainsense™ II Wipers
For vehicles with Rainsense™ II
windshield wipers, the moisture
sensor is located next to the inside
rearview mirror and is mounted
on the windshield. When active,
these sensors are able to detect
moisture on the windshield and
automatically turn on the wipers.
To turn on the Rainsense feature,
the wipers must be set to one
of the ve delay settings on the
multifunction lever. Each of the
ve settings adjusts the sensitivity
of the sensor.Since different drivers have
different setting preferences, it is
recommended that the mid-range
setting (position 3) be used initially.
For more wipes, select the higher
settings; for fewer wipes, select the
lower settings located closer to the
off position on the multifunction lever.
The sensor will automatically control
the frequency of the wipes from the
off setting to the high speed setting
according to the weather conditions.
The wipers can be left in a rainsense
mode even when it is not raining.
When Rainsense is active, the
headlamps will turn on automatically
if the exterior lamp control is in the
AUTO position and the wipers are
active.
Notice:Going through an
automatic car wash with the
wipers on can damage them.
Turn the wipers off when going
through an automatic car wash.
Windshield Washer
{CAUTION
In freezing weather, do not use
your washer until the windshield is
warmed. Otherwise the washer
uid can form ice on the
windshield, blocking your vision.
Pull the windshield wiper lever
toward you to spray washer uid
on the windshield. The wipers will
run for a few cycles to clear the
windshield. For more wash cycles,
pull the lever forward and hold.
Heated Windshield Washer
Nozzles
This feature prevents the windshield
washer uid from freezing on the
nozzle during cold conditions.
The heated nozzles are turned on
when the rear window defogger is
activated. SeeAutomatic Climate
Control System on page 3-20.
3-8 Instrument Panel
ProCarManuals.com

Fog Lamps
For vehicles with fog lamps, the
button is located on the instrument
panel next to the exterior lamps
switch.
#:Press to turn the fog lamps on
or off.
The fog lamp indicator in the
instrument panel comes on when
the fog lamps are in use.
The parking lamps or low-beam
headlamps must be on, before the
fog lamps can be turned on.
If the exterior lamp control is set
to AUTO mode, the parking lamps
and low-beam headlamps come on
simultaneously when the fog lamps
are turned on.
When the high-beam headlamps
are turned on, the fog lamps turn off
automatically. When the high-beam
headlamps are turned off, the fog
lamps come on again.
Some localities have laws that
require the headlamps to be
on along with the fog lamps.
Instrument Panel
Brightness
This feature controls the brightness
of the instrument panel lights.
The thumbwheel for this feature
is located on the left side of
the steering wheel next to the
exterior lamps control.
Turn the thumbwheel to the right or
left to brighten or dim the lights.
Dome Lamp
*
(Dome Lamp Override):Press
this button to keep the dome lamps
and other interior lamps turned off
while any door is open. Press this
button again to return it to the out
position and the lamps automatically
come on when any door is opened.
+(On/Off):Press this button
to turn the dome lamps on and off
while the doors are closed.
Entry Lighting
If the dome lamp override button is
in the out position, the lamps inside
the vehicle automatically come on
when any door is opened or when
the Remote Keyless Entry (RKE)
unlock button is pressed. After the
door is opened the lights remain on
and stay on for 20 seconds after the
doors are closed, or until the key is
put into the ignition and turned to
the ACC/ACCESSORY position.
The lights will then gradually dim
until they are no longer lit.
3-14 Instrument Panel
ProCarManuals.com

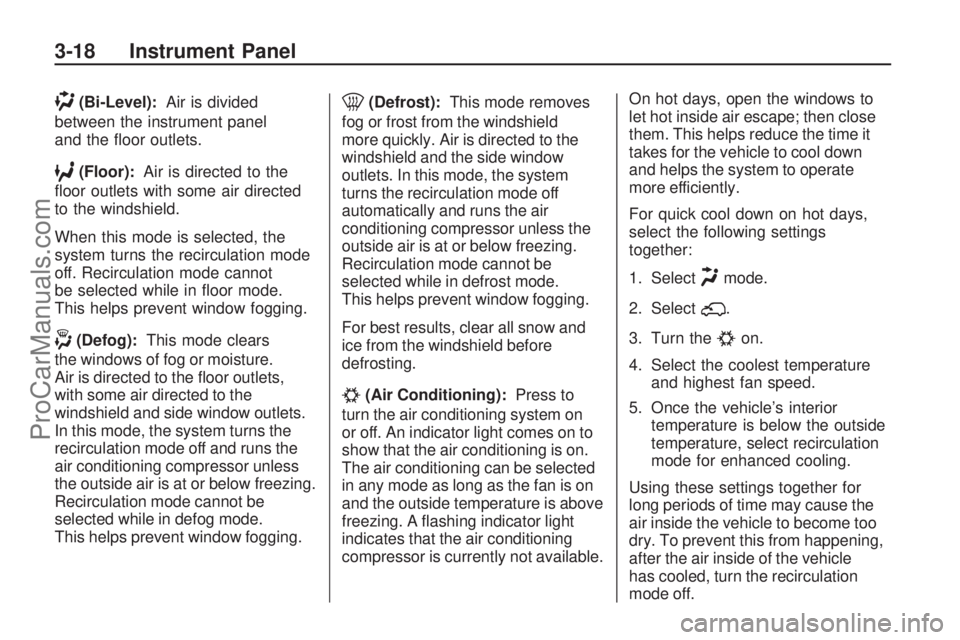

)(Bi-Level):Air is divided
between the instrument panel
and the oor outlets.
6(Floor):Air is directed to the
oor outlets with some air directed
to the windshield.
When this mode is selected, the
system turns the recirculation mode
off. Recirculation mode cannot
be selected while in oor mode.
This helps prevent window fogging.
-(Defog):This mode clears
the windows of fog or moisture.
Air is directed to the oor outlets,
with some air directed to the
windshield and side window outlets.
In this mode, the system turns the
recirculation mode off and runs the
air conditioning compressor unless
the outside air is at or below freezing.
Recirculation mode cannot be
selected while in defog mode.
This helps prevent window fogging.
0(Defrost):This mode removes
fog or frost from the windshield
more quickly. Air is directed to the
windshield and the side window
outlets. In this mode, the system
turns the recirculation mode off
automatically and runs the air
conditioning compressor unless the
outside air is at or below freezing.
Recirculation mode cannot be
selected while in defrost mode.
This helps prevent window fogging.
For best results, clear all snow and
ice from the windshield before
defrosting.
#(Air Conditioning):Press to
turn the air conditioning system on
or off. An indicator light comes on to
show that the air conditioning is on.
The air conditioning can be selected
in any mode as long as the fan is on
and the outside temperature is above
freezing. A ashing indicator light
indicates that the air conditioning
compressor is currently not available.On hot days, open the windows to
let hot inside air escape; then close
them. This helps reduce the time it
takes for the vehicle to cool down
and helps the system to operate
more efficiently.
For quick cool down on hot days,
select the following settings
together:
1. Select
Hmode.
2. Select
;.
3. Turn the
#on.
4. Select the coolest temperature
and highest fan speed.
5. Once the vehicle’s interior
temperature is below the outside
temperature, select recirculation
mode for enhanced cooling.
Using these settings together for
long periods of time may cause the
air inside the vehicle to become too
dry. To prevent this from happening,
after the air inside of the vehicle
has cooled, turn the recirculation
mode off.
3-18 Instrument Panel
ProCarManuals.com
