2009 SATURN VUE radiator

The coolant level should be between
the MIN and MAX lines. If it is not,
you may have a leak at the radiator
hoses, heater hoses, radiator, water
pump, or somewhere else in the
cooling system.
{CAUTION
Heater and radiator hoses, and
other engine parts, can be very
hot. Do not touch them. If you do,
you can be burned.
Do not run the engine if there is a
leak. If you run the engine, it
could lose all coolant. That could
cause an engine re, and you
could be burned. Get any leak
xed before you drive the vehicle.If there seems to be no leak, with
the engine on, check to see if
the electric engine cooling fan is
running. If the engine is overheating,
the fan should be running. If it is
not, your vehicle needs service.
Turn off the engine.
Notice:Engine damage from
running the engine without
coolant is not covered by the
warranty.
Notice:Using coolant other than
DEX-COOL
®can cause premature
engine, heater core, or radiator
corrosion. In addition, the engine
coolant could require changing
sooner, at 30,000 miles
(50 000 km) or 24 months,
whichever occurs rst. Any
repairs would not be covered by
the vehicle warranty. Always use
DEX-COOL
®(silicate-free) coolant
in the vehicle.
How to Add Coolant to the
Coolant Surge Tank
Notice:This vehicle has a
specic coolant ll procedure.
Failure to follow this procedure
could cause the engine to
overheat and be severely
damaged.
If you have not found a problem
yet, check to see if coolant is
visible in the surge tank. If coolant is
visible but the coolant level is not at
between the MIN and MAX lines, add
a 50/50 mixture of clean, drinkable
water and DEX-COOL
®coolant at
the coolant surge tank, but be sure
the cooling system, including the
coolant surge tank pressure cap, is
cool before you do it. SeeEngine
Coolant on page 5-22for more
information.
5-20 Service and Appearance Care
ProCarManuals.com

{CAUTION
Steam and scalding liquids from a
hot cooling system can blow out
and burn you badly. They are
under pressure, and if you turn
the coolant surge tank pressure
cap — even a little — they can
come out at high speed. Never
turn the cap when the cooling
system, including the coolant
surge tank pressure cap, is hot.
Wait for the cooling system and
coolant surge tank pressure cap
to cool if you ever have to turn
the pressure cap.
{CAUTION
Adding only plain water to the
cooling system can be dangerous.
Plain water, or some other liquid
such as alcohol, can boil before
the proper coolant mixture will.
The vehicle’s coolant warning
system is set for the proper
coolant mixture. With plain water
or the wrong mixture, the engine
could get too hot but you would
not get the overheat warning. The
engine could catch re and you or
others could be burned. Use a
50/50 mixture of clean, drinkable
water and DEX-COOL
®coolant.
Notice:In cold weather, water
can freeze and crack the engine,
radiator, heater core and other
parts. Use the recommended
coolant and the proper coolant
mixture.
{CAUTION
You can be burned if you spill
coolant on hot engine parts.
Coolant contains ethylene glycol
and it will burn if the engine parts
are hot enough. Do not spill
coolant on a hot engine.
1. You can remove the coolant
surge tank pressure cap when
the cooling system, including the
coolant surge tank pressure cap
and upper radiator hose, is no
longer hot.
Turn the pressure cap slowly
counterclockwise about
one-quarter of a turn. If you hear
a hiss, wait for that to stop.
Service and Appearance Care 5-21
ProCarManuals.com

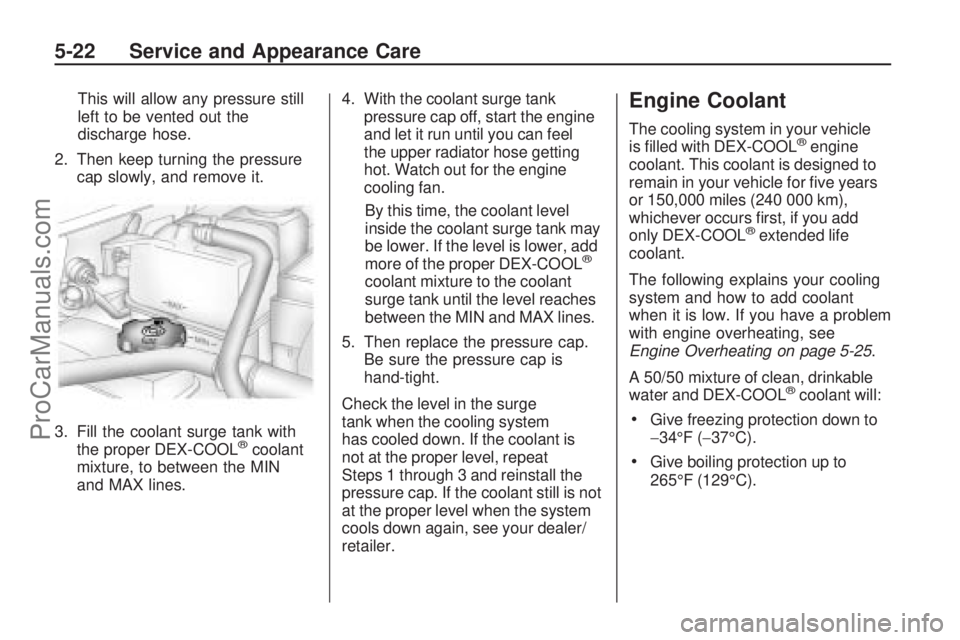

This will allow any pressure still
left to be vented out the
discharge hose.
2. Then keep turning the pressure
cap slowly, and remove it.
3. Fill the coolant surge tank with
the proper DEX-COOL
®coolant
mixture, to between the MIN
and MAX lines.4. With the coolant surge tank
pressure cap off, start the engine
and let it run until you can feel
the upper radiator hose getting
hot. Watch out for the engine
cooling fan.
By this time, the coolant level
inside the coolant surge tank may
be lower. If the level is lower, add
more of the proper DEX-COOL
®
coolant mixture to the coolant
surge tank until the level reaches
between the MIN and MAX lines.
5. Then replace the pressure cap.
Be sure the pressure cap is
hand-tight.
Check the level in the surge
tank when the cooling system
has cooled down. If the coolant is
not at the proper level, repeat
Steps 1 through 3 and reinstall the
pressure cap. If the coolant still is not
at the proper level when the system
cools down again, see your dealer/
retailer.
Engine Coolant
The cooling system in your vehicle
is lled with DEX-COOL®engine
coolant. This coolant is designed to
remain in your vehicle for ve years
or 150,000 miles (240 000 km),
whichever occurs rst, if you add
only DEX-COOL
®extended life
coolant.
The following explains your cooling
system and how to add coolant
when it is low. If you have a problem
with engine overheating, see
Engine Overheating on page 5-25.
A 50/50 mixture of clean, drinkable
water and DEX-COOL
®coolant will:
Give freezing protection down to
−34°F (−37°C).
Give boiling protection up to
265°F (129°C).
5-22 Service and Appearance Care
ProCarManuals.com

Protect against rust and
corrosion.
Help keep the proper engine
temperature.
Let the warning lights and gages
work as they should.
Notice:Using coolant other than
DEX-COOL
®can cause premature
engine, heater core, or radiator
corrosion. In addition, the engine
coolant may require changing
sooner, at the rst maintenance
service after each 30,000 miles
(50 000 km) or 24 months,
whichever occurs rst. Any
repairs would not be covered by
the vehicle warranty. Always
use DEX-COOL
®(silicate-free)
coolant in the vehicle.
What to Use
Use a mixture of one-half clean,
drinkable water and one-half
DEX-COOL
®coolant which will not
damage aluminum parts. If you
use this coolant mixture, you do not
need to add anything else.
{CAUTION
Adding only plain water to the
cooling system can be dangerous.
Plain water, or some other liquid
such as alcohol, can boil before
the proper coolant mixture will.
The vehicle’s coolant warning
system is set for the proper
coolant mixture. With plain water
or the wrong mixture, the engine
could get too hot but you would
not get the overheat warning. The
engine could catch re and you or
others could be burned. Use a
50/50 mixture of clean, drinkable
water and DEX-COOL
®coolant.Notice:If an improper coolant
mixture is used, the engine could
overheat and be badly damaged.
The repair cost would not be
covered by the vehicle warranty.
Too much water in the mixture
can freeze and crack the engine,
radiator, heater core, and other
parts.
If you have to add coolant more
than four times a year, have
your dealer/retailer check your
cooling system.
Notice:If extra inhibitors
and/or additives are used in
the vehicle’s cooling system,
the vehicle could be damaged.
Use only the proper mixture of
the engine coolant listed in
this manual for the cooling
system. SeeRecommended
Fluids and Lubricants on
page 6-13for more information.
Service and Appearance Care 5-23
ProCarManuals.com

Checking Coolant
The surge tank is located on
the driver side of the engine
compartment. SeeEngine
Compartment Overview on
page 5-12for more information
on location.
{CAUTION
Turning the surge tank pressure
cap when the engine and radiator
are hot can allow steam and
scalding liquids to blow out and
burn you badly. Never turn the
surge tank pressure cap — even
a little — when the engine and
radiator are hot.
The vehicle must be on a level
surface. When your engine is cold,
the coolant level should be
between the MIN and MAX lines.Adding Coolant
If you need more coolant, add the
proper DEX-COOL®coolant mixture
at the surge tank, but only when
the engine is cool. SeeCooling
System on page 5-19for instructions
on “How to Add Coolant to the
Coolant Surge Tank”.
{CAUTION
You can be burned if you spill
coolant on hot engine parts.
Coolant contains ethylene glycol,
and it will burn if the engine parts
are hot enough. Do not spill
coolant on a hot engine.
When replacing the pressure cap,
make sure it is hand-tight and
fully seated.
5-24 Service and Appearance Care
ProCarManuals.com

Maintenance Footnotes
†The U.S. Environmental Protection
Agency or the California Air
Resources Board has determined
that the failure to perform this
maintenance item will not nullify the
emission warranty or limit recall
liability prior to the completion of the
vehicle’s useful life. We, however,
urge that all recommended
maintenance services be performed
at the indicated intervals and the
maintenance be recorded.
(a)Visually inspect brake lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc.
Inspect disc brake pads for wear
and rotors for surface condition.
Inspect other brake parts, including
calipers, parking brake, etc.
(b)Visually inspect front and rear
suspension and steering system for
damaged, loose, or missing parts
or signs of wear.(c)Visually inspect hoses and have
them replaced if they are cracked,
swollen, or deteriorated. Inspect
all pipes, fittings, and clamps;
replace with genuine parts as
needed. To help ensure proper
operation, a pressure test of
the cooling system and pressure
cap and cleaning the outside of the
radiator and air conditioning
condenser is recommended at least
once a year.
(d)Inspect wiper blades for wear,
cracking, or contamination.
Clean the windshield and wiper
blades, if contaminated. Replace
wiper blades that are worn or
damaged. See Windshield Wiper
Blade Replacement on page 5-42
and Windshield and Wiper
Blades on page 5-76 for more
information.(e)Make sure the safety belt
reminder light and safety belt
assemblies are working properly.
Look for any other loose or
damaged safety belt system parts. If
you see anything that might keep
a safety belt system from doing
its job, have it repaired. Have any
torn or frayed safety belts replaced.
Also see Checking the Restraint
Systems on page 1-58.
(f)Lubricate all key lock cylinders,
door hinges and latches, hood
hinges and latches, glove box
hinges, sunroof (if equipped), and
any folding seat hardware. More
frequent lubrication may be required
when exposed to a corrosive
environment. Applying silicone
grease on weatherstrips with a clean
cloth will make them last longer,
seal better, and not stick or squeak.
6-8 Maintenance Schedule
ProCarManuals.com

(g)Check system for interference or
binding and for damaged or missing
parts. Replace parts as needed.
Replace any components that have
high effort or excessive wear.
(h)Severe service is when the
vehicle is mainly driven under one
or more of these conditions:
In heavy city traffic where the
outside temperature regularly
reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer
towing.
Uses such as found in taxi,
police, or delivery service.(i)Drain, flush, and refill cooling
system. This service can be
complex; you should have your
dealer/retailer perform this service.
See Engine Coolant on page 5-22 for
what to use. Inspect hoses. Clean
radiator, condenser, pressure cap,
and filler neck. Pressure test the
cooling system and pressure cap.
(j)A fluid loss in any vehicle system
could indicate a problem. Have
the system inspected and repaired
and the fluid level checked. Add
fluid if needed.
(k)Or every 12 months, whichever
occurs first. If you drive regularly
under dusty conditions, the filter may
require replacement more often.(l)If driving regularly under dusty
conditions, inspect the filter at each
engine oil change.
(m)Change the fluid the first
time the vehicle is serviced after
100,000 miles (166 000 km) and
when the vehicle is serviced after
each subsequent 50,000 miles
(83 000 km).
(n)Visually inspect belt for fraying,
excessive cracks, or obvious
damage. Replace belt if necessary.
Maintenance Schedule 6-9
ProCarManuals.com
