2009 SATURN ASTRA Owners Manual

Securing Child Restraints
(Right Front Seat)
This vehicle has airbags. A rear
seat is a safer place to secure
a forward-facing child restraint.
SeeWhere to Put the Restraint on
page 1-44.
In addition, the vehicle has a
passenger sensing system which is
designed to turn off the right
front passenger frontal and
seat-mounted side impact airbag
under certain conditions. See
Passenger Sensing System on
page 1-30andPassenger Airbag
Status Indicator on page 4-15
for more information, including
important safety information.A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously
injured or killed if the right front
passenger airbag inates.
This is because the back of the
rear-facing child restraint would
be very close to the inating
airbag. A child in a forward-facing
child restraint can be seriously
injured or killed if the right front
passenger airbag inates and the
passenger seat is in a forward
position.
(Continued)
CAUTION (Continued)
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag, no
system is fail-safe. No one can
guarantee that an airbag will not
deploy under some unusual
circumstance, even though it is
turned off.
Secure rear-facing child
restraints in a rear seat, even if
the airbag is off. If you secure a
forward-facing child restraint in the
right front seat, always move the
front passenger seat as far back as
it will go. It is better to secure the
child restraint in a rear seat.
SeePassenger Sensing System
on page 1-30for additional
information.
Seats and Restraints 1-53
ProCarManuals.com

If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-46for how and where to
install the child restraint using
LATCH. If a child restraint is secured
in the seating position using a
safety belt and it uses a top tether,
seeLower Anchors and Tethers
for Children (LATCH) on page 1-46
for top tether anchor locations.
Do not secure a child seat in
a position without a top tether
anchor if a national or local
law requires that the top tether be
anchored, or if the instructions
that come with the child restraint
say that the top strap must be
anchored.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.You will be using the lap-shoulder
belt to secure the child restraint
in this position. Follow the
instructions that came with the
child restraint.
1. Move the seat as far back as it
will go before securing the
forward-facing child restraint.
When the passenger sensing
system has turned off the
right front passenger frontal and
seat-mounted side impact
airbag, the off indicator on the
passenger airbag status indicator
should light and stay lit when
you start the vehicle. See
Passenger Airbag Status
Indicator on page 4-15.
2. Put the child restraint on
the seat.
3. Pick up the latch plate, and run
the lap and shoulder portions of
the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.4. Push the latch plate into the
buckle until it clicks.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
1-54 Seats and Restraints
ProCarManuals.com

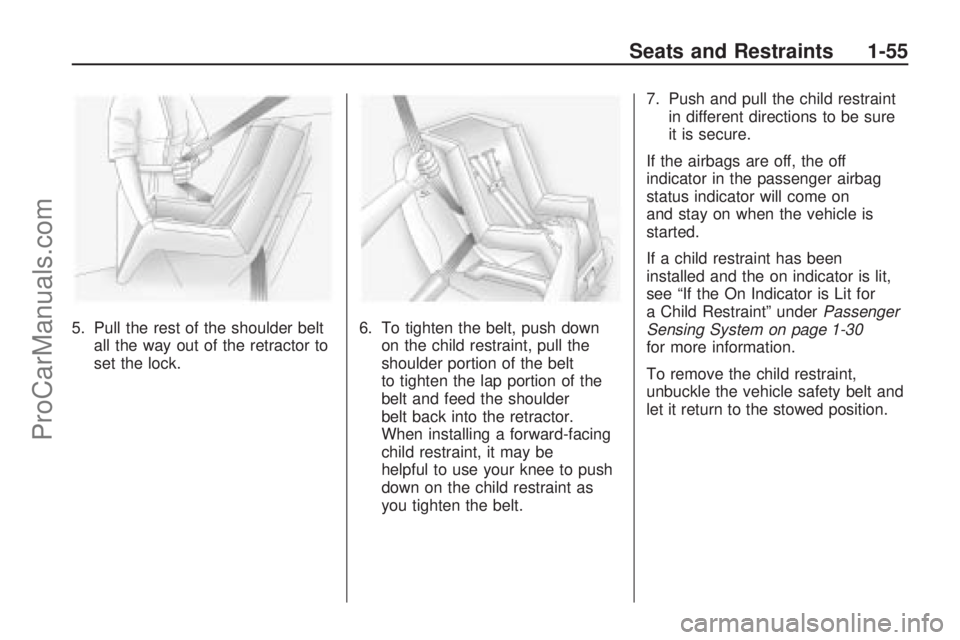

5. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.6. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt
to tighten the lap portion of the
belt and feed the shoulder
belt back into the retractor.
When installing a forward-facing
child restraint, it may be
helpful to use your knee to push
down on the child restraint as
you tighten the belt.7. Push and pull the child restraint
in different directions to be sure
it is secure.
If the airbags are off, the off
indicator in the passenger airbag
status indicator will come on
and stay on when the vehicle is
started.
If a child restraint has been
installed and the on indicator is lit,
see “If the On Indicator is Lit for
a Child Restraint” underPassenger
Sensing System on page 1-30
for more information.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.
Seats and Restraints 1-55
ProCarManuals.com

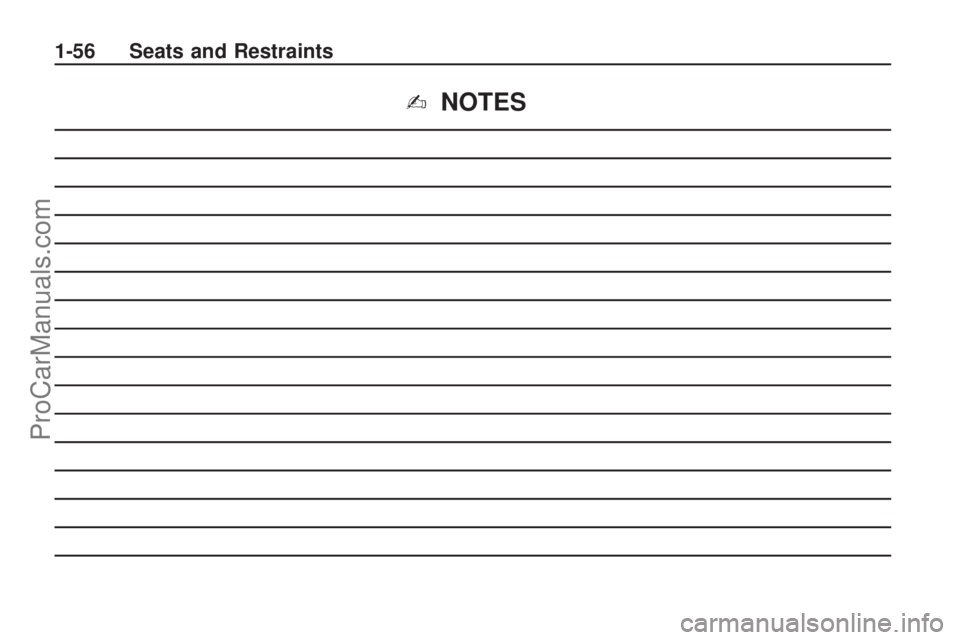

✍NOTES
1-56 Seats and Restraints
ProCarManuals.com

Keys, Doors and
Windows
Keys
Keys...................................2-2
Remote Keyless Entry
(RKE) System...................2-3
Remote Keyless Entry
(RKE) System Operation. . .2-4
Doors and Locks
Door Locks.........................2-5
Power Door Locks..............2-6
Rear Door Security
Locks................................2-6
Liftgate...............................2-6
Theft-Deterrent Systems
Theft-Deterrent Systems.....2-8
Immobilizer.........................2-8
Immobilizer Operation.........2-8
Content Theft-Deterrent......2-9
Windows
Windows...........................2-10
Power Windows................2-10
Sun Visors........................2-11
Mirrors
Manual Rearview Mirror. . . .2-11
Outside Mirror(s)...............2-11
Outside Power Mirror(s). . . .2-12
Sunroof
Sunroof.............................2-12
Keys, Doors and Windows 2-1
ProCarManuals.com

Keys
{CAUTION
Leaving children in a vehicle with
the ignition key is dangerous for
many reasons, children or others
could be badly injured or even
killed. They could operate the
power windows or other controls
or even make the vehicle move.
The windows will function with the
keys in the ignition and children
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave the keys in
a vehicle with children.The key, located in the Remote
Keyless Entry (RKE) transmitter, is
used for the ignition and all locks.Press the button on the RKE
transmitter to extend the key.
Press the button and the key blade
to retract the key.
When a new vehicle is delivered,
a key number is included in
the vehicle documents.
Each key number tells your
dealer/retailer or a qualied
locksmith how to make extra keys.
Keep this number in a safe
place. If you lose your keys, you will
be able to have one made easily
using this number. If you need
a new key, go to your dealer/retailer
for the correct key code.
2-2 Keys, Doors and Windows
ProCarManuals.com

Notice:If you ever lock your
keys in the vehicle, you may have
to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of your vehicle,
contact Roadside Assistance or
OnStar. SeeRoadside Assistance
Program on page 12-6orOnStar
®
System on page 4-38.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
system operates on a radio
frequency subject to Federal
Communications Commission (FCC)
Rules and with Industry Canada.This device complies with
Part 15 of the FCC Rules.
Operation is subject to the
following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
This device complies with
RSS-210 of Industry Canada.
Operation is subject to the
following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.
If there is a decrease in the RKE
operating range, try this:
Check the distance. The
transmitter may be too far from
the vehicle. Stand closer
during rainy or snowy weather.
Check the location. Other
vehicles or objects may be
blocking the signal. Take a few
steps to the left or right, hold
the transmitter higher, and
try again.
Check the transmitter’s battery.
See “Battery Replacement”
later in this section.
If the transmitter is still not
working correctly, see your
dealer/retailer or a qualied
technician for service.
Keys, Doors and Windows 2-3
ProCarManuals.com

Remote Keyless Entry
(RKE) System Operation
c(Lock):Press to lock the doors,
liftgate and fuel tank door.
If the driver door is open, the doors
will not lock.
d(Unlock):Press to unlock the
doors, liftgate and fuel tank door.
Press and hold
dto lower all
the windows.
Programming Transmitters to
the Vehicle
Only RKE transmitters programmed
to this vehicle will work. If a
transmitter is lost or stolen, a
replacement can be purchased and
programmed through your dealer/
retailer. When the replacement
transmitter is programmed to this
vehicle, all remaining transmitters
must also be reprogrammed.
Any lost or stolen transmitters will no
longer work once the new transmitter
is programmed. Each vehicle can
have up to ve transmitters
programmed to it.
Battery Replacement
Replace the battery if the Remote
Control Battery check message
appears in the DIC. See “Remote
Control Battery Check” under
DIC Warnings and Messages
(Base and Uplevel Systems) on
page 4-36.
Notice:When replacing the
battery, do not touch any of the
circuitry on the transmitter.
Static from your body could
damage the transmitter.
To replace the battery:
1. Extend the key. SeeKeys
on page 2-2for additional
information.
2-4 Keys, Doors and Windows
ProCarManuals.com
