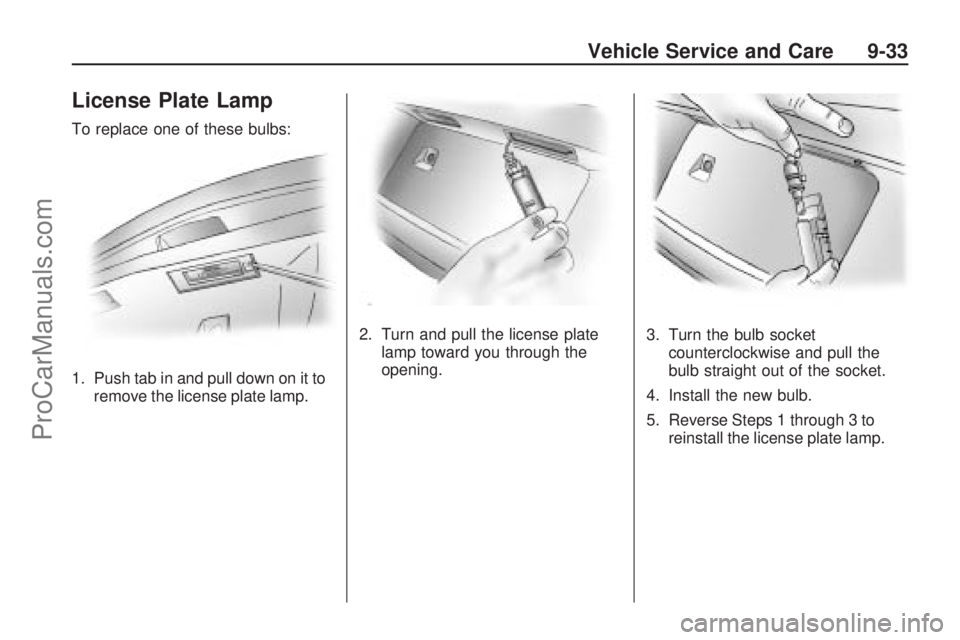

License Plate Lamp
To replace one of these bulbs:
1. Push tab in and pull down on it to
remove the license plate lamp.2. Turn and pull the license plate
lamp toward you through the
opening.3. Turn the bulb socket
counterclockwise and pull the
bulb straight out of the socket.
4. Install the new bulb.
5. Reverse Steps 1 through 3 to
reinstall the license plate lamp.
Vehicle Service and Care 9-33
ProCarManuals.com
Page 218 of 314

Replacement Bulbs
Exterior LampBulb
Number
Front Turn
Signal Lamp3157 NAK
License
Plate LampW5W
Parking Lamp 4157K
Taillamp W21
For replacement bulbs not listed
here, contact your dealer/retailer.
Electrical System
Add-On Electrical
Equipment
Notice:Do not add anything
electrical to the vehicle unless you
check with your dealer/retailer
rst. Some electrical equipment
can damage the vehicle and the
damage would not be covered by
the vehicle’s warranty. Some
add-on electrical equipment can
keep other components from
working as they should.
Add-on equipment can drain the
vehicle battery, even if the vehicle is
not operating.The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing Your Airbag-Equipped
Vehicle on page 1-35.Headlamp Wiring
The headlamp wiring is protected
by fuses in the fuse block.
An electrical overload will cause the
lamps to turn off. If this happens,
have the headlamp wiring checked
right away.
9-34 Vehicle Service and Care
ProCarManuals.com
Page 219 of 314

Fuses
The wiring circuits in the vehicle
are protected from short circuits by
fuses. This greatly reduces the
chance of damage caused by
electrical problems.
Look at the silver-colored band
inside the fuse. If the band is
broken or melted, replace the fuse.
Be sure to replace a bad fuse
with a new one of the identical size
and rating.
There are two fuse blocks in the
vehicle: one in the engine
compartment and one in the trunk.
There is a fuse puller located on
the rear compartment fuse block.
SeeRear Compartment Fuse Block
on page 9-37. It can be used to
easily remove fuses from the
fuse block.
Engine Compartment
Fuse Block
The engine compartment fuse block
is located in the front left side
of the engine compartment.
SeeEngine Compartment
Overview on page 9-6.
To open the fuse block cover,
insert a tool into the latch and turn.
Pull up on the cover to remove.
Notice:Spilling liquid on
any electrical components on
the vehicle may damage it.
Always keep the covers on
any electrical component.
Vehicle Service and Care 9-35
ProCarManuals.com

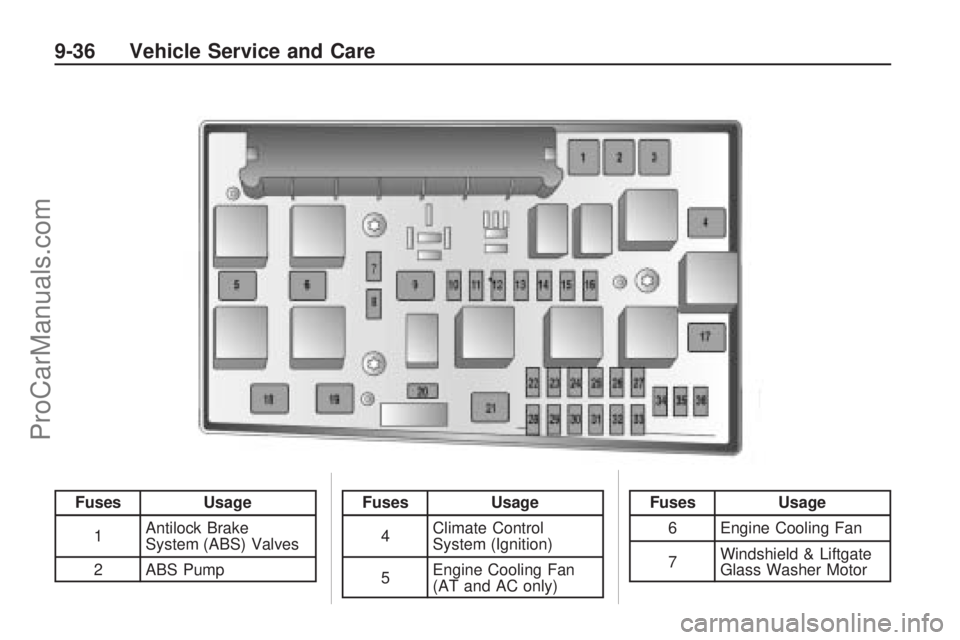

Page 220 of 314
FusesUsage
1 Antilock Brake
System (ABS) Valves
2 ABS PumpFuses Usage
4 Climate Control
System (Ignition)
5 Engine Cooling Fan
(AT and AC only)Fuses
Usage
6 Engine Cooling Fan
7 Windshield & Liftgate
Glass Washer Motor
9-36 Vehicle Service and Care
ProCarManuals.com
Page 221 of 314
Fuses Usage
8 Horn
10 Door Locks
13 Foglamps
14Windshield Wipers
(high speed)
15Windshield Wipers
(low speed)
16Antilock Brake System,
Brake Lamp Switch
17 Vacuum Pump
18 Starter
20 Air Conditioning Clutch
21Engine Control
Module (ECM)
(Main Relay)
22 ECM (Battery)
24 Fuel Pump/Injectors
26ECM (Sensor and
Actuators)Fuses Usage
27 Power Steering
28Automatic
Transmission (Battery)
29Automatic
Transmission (Ignition)
30 ECM (Ignition)
32 Brake Switch
34Steering Column
Module
35 Radio
36OnStar™ Module/
OnStar™ Interface
Module/DisplayRear Compartment
Fuse Block
To open the liftgate, SeeLiftgate on
page 2-6.
The rear compartment fuse block
is located on the left side of
the cargo area behind a cover.
Use the fuse puller, to remove and
replace fuses.
Vehicle Service and Care 9-37
ProCarManuals.com
Page 222 of 314
FusesUsage
1 Front Power Window
3 ClusterFuses Usage
4 Climate Control
System (Battery)
11 Rear DefoggerFuses Usage
12 Rear Windshield Wiper
14 Climate Control
System (Ignition)
9-38 Vehicle Service and Care
ProCarManuals.com
Page 223 of 314
Fuses Usage
16Front Passenger Seat
Detection Sensor
17Tire Pressure
Monitoring
System (TPMS)/Rain
Sensor/Inside
Rearview Mirror
18 Interior Lights
21 Outside Mirror Heating
22 Sunroof
23 Rear Power Window
24Diagnostic Link
Connector
29Accessory Power
Outlet (APO)
34 Sunroof
38 Door Locks
39 Seat Heating Driver
40Seat Heating Front
Passenger
Vehicle Service and Care 9-39
ProCarManuals.com
Page 224 of 314

Tires
Your new vehicle comes with
high-quality tires made by
a leading tire manufacturer.
If you ever have questions about
the tire warranty and where to
obtain service, see the “Limited
Warranty, Maintenance and
Owner Assistance Information”
manual for details. For additional
information refer to the tire
manufacturer.{CAUTION
Poorly maintained and
improperly used tires are
dangerous.
Overloading your tires can
cause overheating as a
result of too much exing.
You could have an air-out
and a serious accident.
SeeLoading the Vehicle
on page 8-30.
Underin ated tires pose
the same danger as
overloaded tires.
The resulting accident
could cause serious injury.
Check all tires frequently to
maintain the recommended
pressure. Tire pressure
should be checked when
your tires are cold. See
Inflation - Tire Pressure on
page 9-47.
(Continued)
CAUTION (Continued)
Overin ated tires are more
likely to be cut, punctured,
or broken by a sudden
impact — such as when
you hit a pothole. Keep
tires at the recommended
pressure.
Worn, old tires can cause
accidents. If your tread is
badly worn, or if your tires
have been damaged,
replace them.
SeeHigh-Speed Operation
on page 9-48for in ation
pressure adjustment for high
speed driving.
