2009 PONTIAC VIBE Owners Manual

Recirculation
?(Recirculation):Press to
turn the recirculation mode on or off.
An indicator light shows that it is on.
This mode recirculates the air inside
the vehicle and helps to heat or cool
the air more quickly. It can be used to
prevent outside air and odors from
entering the vehicle.
Press the button again to turn
the recirculation mode off and the
outside air mode on. Recirculation
is automatically turned off when the
climate control system mode knob
is turned to defog, defrost, or is
positioned between modes.
Rear Window Defogger
The rear window defogger uses a
warming grid to clear fog from
the rear window. It will only work
when the ignition is in the ON/RUN
position.
=(Rear Defogger):Press to turn
the rear window defogger on or off.
An indicator light shows that it is on.
The rear window defogger stays on
until it is manually turned off. Clear
any snow from the rear window.
If the ignition is turned off, while
the rear window defogger is on, the
defogger turns back on automatically
when the ignition is in the ON/RUN
position again.
Notice:Do not use a razor blade
or sharp object to clear the inside
rear window. Do not adhere
anything to the defogger grid lines
in the rear glass. These actions
may damage the rear defogger.
Repairs would not be covered
by your warranty.
Outlet Adjustment
Use the air outlets located in
the center and outboard sides of
the instrument panel, to change the
direction of the air owing through
the vents.
Operation Tips

Clear away any ice, snow or
leaves from the outside air
inlets at the base of the
windshield.
Use of non-GM approved hood
deectors can adversely affect
the performance of the system.
Keep the area under the
front seats clear of objects for
more effective air circulation.
If the airow seems low when
the fan is at the highest setting,
the passenger compartment air
lter might need to be replaced.
For more information, see
Passenger Compartment Air
Filter later in this section.
Climate Controls 7-3
2009 - Pontiac Vibe Owner Manual

Passenger Compartment
Air Filter
Both outside and recirculated
air are routed through a passenger
compartment air lter. Pollen, dust
particles and other contaminants
are removed by the lter. Airow
reductions indicate that the lter
needs to be replaced. For a
replacement lter see your dealer/
retailer. SeeScheduled Maintenance
on page 11-4for replacement
intervals.The access panel for the air lter is
behind the glove box. To replace
the lter:
1. Open the glove box door. Push
each side of the glovebox in
and pull out to remove.2. Push the side fastener to release
and remove the lter cover.
7-4 Climate Controls
2009 - Pontiac Vibe Owner Manual

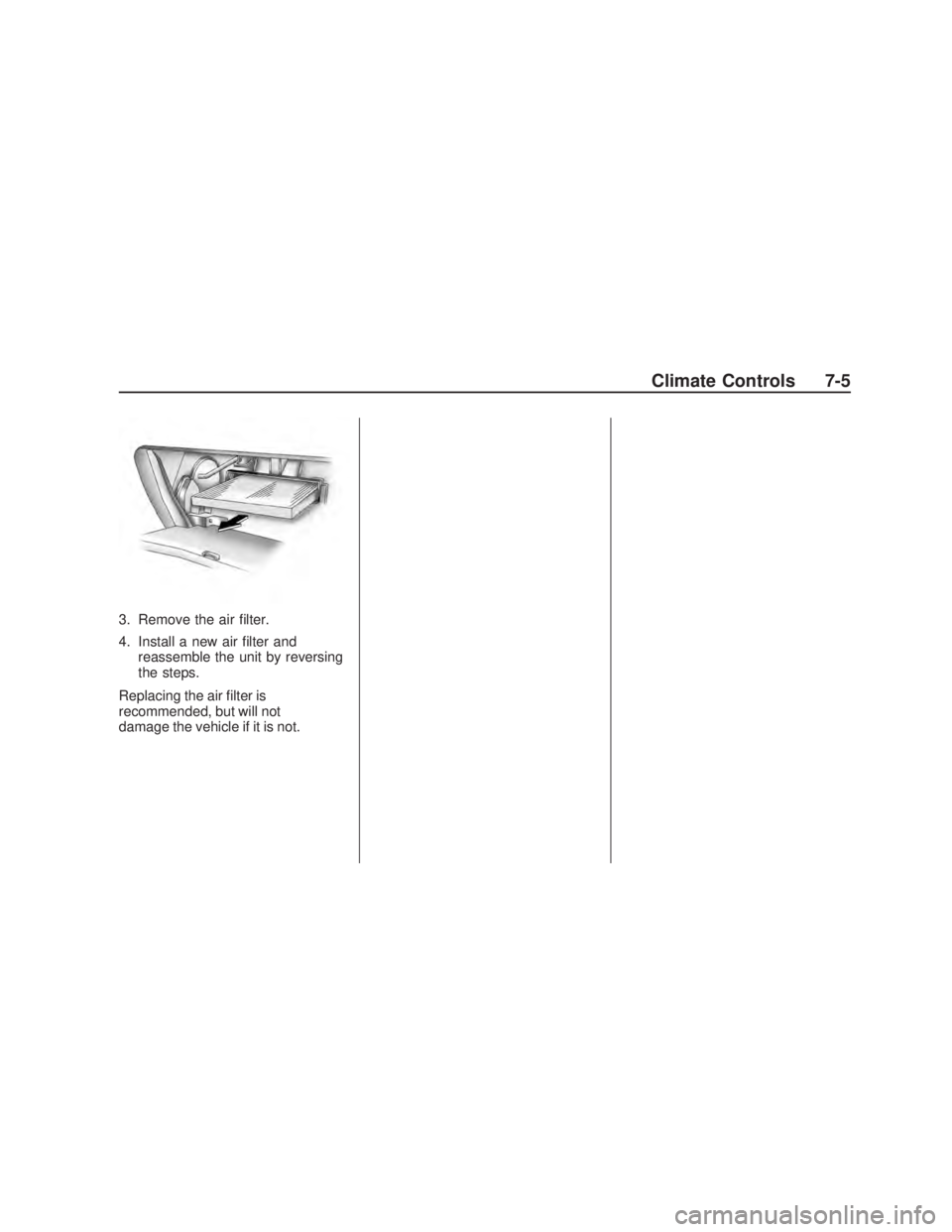

3. Remove the air lter.
4. Install a new air lter and
reassemble the unit by reversing
the steps.
Replacing the air lter is
recommended, but will not
damage the vehicle if it is not.
Climate Controls 7-5
2009 - Pontiac Vibe Owner Manual

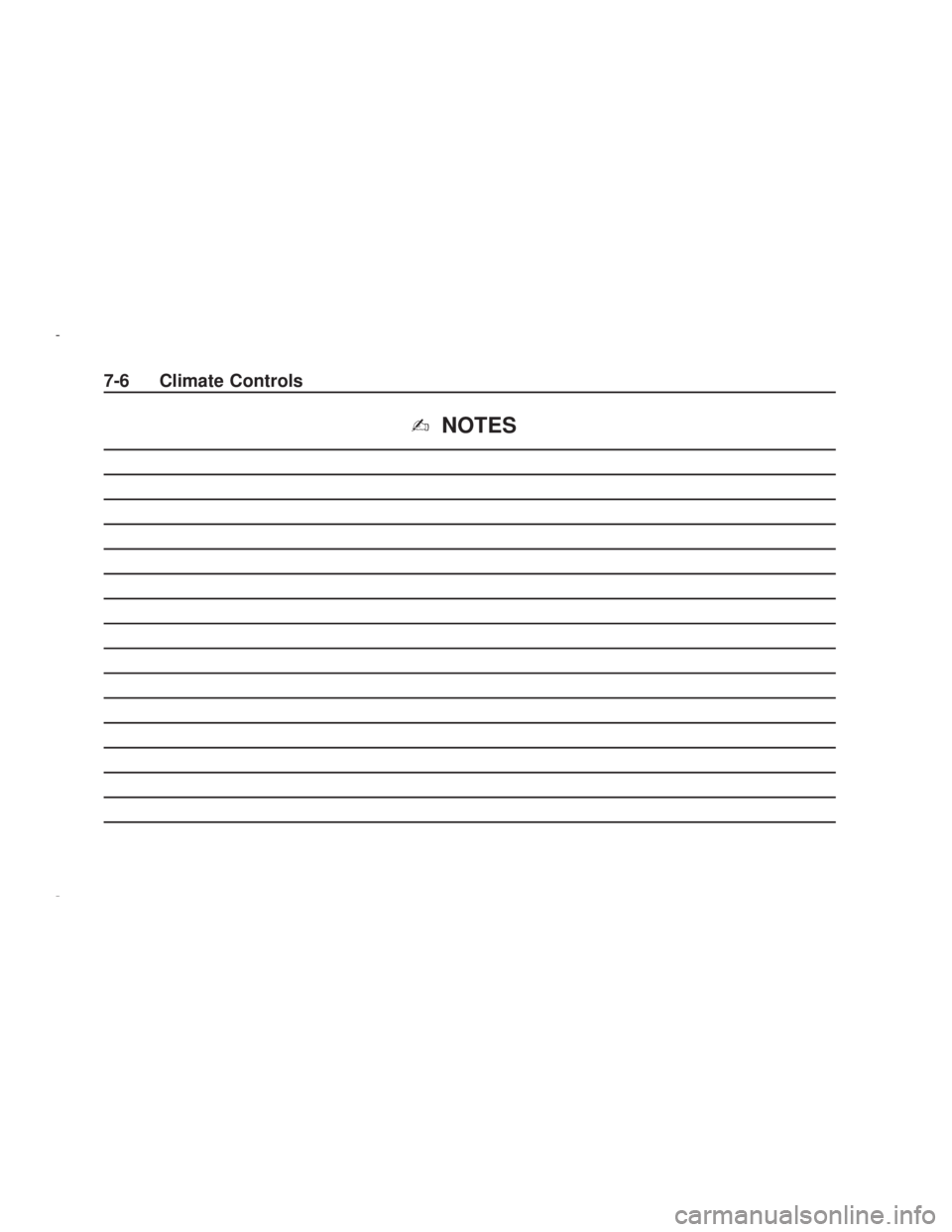

✍NOTES
7-6 Climate Controls
2009 - Pontiac Vibe Owner Manual

Driving and
Operating
Starting and Operating
Your Vehicle
New Vehicle Break-In.........8-2
Ignition Positions................8-2
Retained Accessory
Power (RAP).....................8-4
Starting the Engine.............8-4
Engine Coolant Heater.......8-5
Automatic Transmission
Operation (Four Speed). . . .8-6
Automatic Transmission
Operation (Five Speed).....8-8
Manual Transmission
Operation........................8-11
Parking Brake...................8-12
Shifting Into Park..............8-13
Shifting Out of Park..........8-14
Parking the Vehicle
(Manual Transmission). . . .8-15
Parking Over Things
That Burn........................8-16
Engine Exhaust.................8-16
Running the Vehicle
While Parked..................8-17
Driving Your Vehicle
Defensive Driving..............8-17
Drunk Driving....................8-18
Control of a Vehicle..........8-18
Braking.............................8-19
Antilock Brake
System (ABS).................8-20
Traction Control
System (TCS).................8-21
All-Wheel Drive (AWD)
System............................8-22
StabiliTrak®System..........8-22
Steering............................8-23
Off-Road Recovery............8-24
Passing.............................8-25
Loss of Control.................8-25
Driving at Night.................8-26
Driving in Rain and on
Wet Roads......................8-27
Before Leaving on a
Long Trip........................8-28
Highway Hypnosis.............8-28
Hill and Mountain Roads. . .8-28
Winter Driving...................8-29
If Your Vehicle is Stuck in
Sand, Mud, Ice, or Snow. . .8-31
Rocking Your Vehicle to
Get It Out.......................8-31
Loading the Vehicle..........8-32
Fuel
Fuel..................................8-36
Gasoline Octane...............8-36
Gasoline Specications.....8-36
California Fuel..................8-36
Additives...........................8-37
Fuels in Foreign
Countries........................8-37
Filling the Tank.................8-38
Filling a Portable Fuel
Container........................8-40
Driving and Operating 8-1
2009 - Pontiac Vibe Owner Manual

Starting and
Operating Your
Vehicle
New Vehicle Break-In
Notice:The vehicle does
not need an elaborate break-in.
But it will perform better in
the long run if you follow
these guidelines:
Do not drive at any one
constant speed, fast or slow,
for the rst 500 miles (805 km).
Do not make full-throttle
starts. Avoid downshifting
to brake or slow the vehicle.
Avoid making hard stops for
the rst 200 miles (322 km) or
so. During this time the new
brake linings are not yet broken
in. Hard stops with new linings
can mean premature wear and
earlier replacement. Follow this
breaking-in guideline every
time you get new brake linings.
Do not tow a trailer during
break-in. SeeTowing a Trailer
on page 9-77for the trailer
towing capabilities of your
vehicle and more information.
Following break-in, engine speed
and load can be gradually
increased.
Ignition Positions
The ignition switch has four different
positions.
To shift out of P (Park), turn the
ignition to ON/RUN and apply
the brake pedal.
Notice:Using a tool to force the
key to turn in the ignition could
cause damage to the switch or
break the key. Use the correct key,
make sure it is all the way in, and
turn it only with your hand. If the
key cannot be turned by hand,
see your dealer/retailer.
8-2 Driving and Operating
2009 - Pontiac Vibe Owner Manual

LOCK/OFF:This is the only position
from which you can remove the key.
This locks the steering wheel,
ignition and automatic transmission.
Push in the ignition switch as you
turn the key toward you.
On vehicles with an automatic
transmission, the shift lever must be
in P (Park) to turn the ignition switch
to the LOCK/OFF position.
A warning tone will sound if the driver
door is opened with the key in the
ignition.
The ignition switch can bind in the
LOCK/OFF position with your wheels
turned off center. If this happens,
move the steering wheel from right
to left while turning the key to
ACC/ACCESSORY. If this doesn’t
work, then the vehicle needs service.{CAUTION
On manual transmission vehicles,
turning the key to LOCK/OFF and
removing it will lock the steering
column and result in a loss of
ability to steer the vehicle.
This could cause a collision.
If you need to turn the engine
off while the vehicle is moving,
turn the key only to ACC/
ACCESSORY. Do not push the
key in while the vehicle is moving.
ACC/ACCESSORY:This position
provides power to some of the
electrical accessories. It unlocks the
steering wheel and ignition. To move
the key from ACC/ACCESSORY to
LOCK/OFF, push in the key and then
turn it to LOCK/OFF.
A warning tone will sound when
the driver door is opened when the
ignition is still in ACC/ACCESSORY
or LOCK/OFF and the key is in the
ignition.ON/RUN:The ignition switch stays
in this position when the engine is
running. This position can be used to
operate the electrical accessories,
including the ventilation fan and
115 volt power outlet, as well as to
display some warning and indicator
lights. The transmission is also
unlocked in this position on
automatic transmission vehicles.
The battery could be drained
if you leave the key in the ACC/
ACCESSORY or ON/RUN position
with the engine off. You may not be
able to start the vehicle if the battery
is allowed to drain for an extended
period of time.
START:This position starts the
engine. When the engine starts,
release the key. The ignition switch
will return to ON/RUN for normal
driving.
Driving and Operating 8-3
2009 - Pontiac Vibe Owner Manual

Retained Accessory
Power (RAP)
These vehicle accessories may be
used for less than a minute after
the engine is turned off.
Power Windows, if equipped
Sunroof, if equipped
The power windows and sunroof
will continue to work for less than a
minute or until either front door is
opened. The radio will work when
the key is in ON/RUN or ACC/
ACCESSORY.
Starting the Engine
Automatic Transmission
Move the shift lever to P (Park) or
N (Neutral). The engine will not start
in any other position. To restart
when you are already moving,
use N (Neutral) only.
Notice:Shifting into P (Park)
with the vehicle moving could
damage the transmission.
Shift into P (Park) only when
your vehicle is stopped.
Manual Transmission
The shift lever should be in
NEUTRAL and the parking brake
engaged. Hold the clutch pedal
to the oor and start the engine.
The vehicle will not start if the clutch
pedal is not all the way down.
Starting Procedure
1. With your foot off the accelerator
pedal, turn the ignition to START.
When the engine starts, let go of
the key. The idle speed will go
down as the engine gets warm.
Vehicles equipped with
the 1.8L engine have a
Computer-Controlled Cranking
System. This feature assists in
starting the engine and protects
components. If the ignition key is
turned to the START position,
and then released when the
engine begins cranking, the
engine will continue cranking for
a about 30 seconds or until the
vehicle starts. If the engine doesnot start and the key is held in
START for many seconds,
cranking will be stopped after
25 seconds to prevent cranking
motor damage. To prevent gear
damage, this system also
prevents cranking if the engine is
already running. Engine cranking
can be stopped by turning
the ignition switch to ACC/
ACCESSORY or LOCK/OFF.
Vehicles equipped with the
2.4L engine should not be
cranked for more than
30 seconds at a time.
This may overheat the
starter and wiring systems.
Notice:Holding the key in
START for longer than 15 seconds
at a time will cause the battery to
be drained much sooner. And
the excessive heat can damage
the starter motor. Wait about
15 seconds between each try to
help avoid draining the battery
or damaging the starter.
8-4 Driving and Operating
2009 - Pontiac Vibe Owner Manual
