2009 PONTIAC G8 Owners Manual

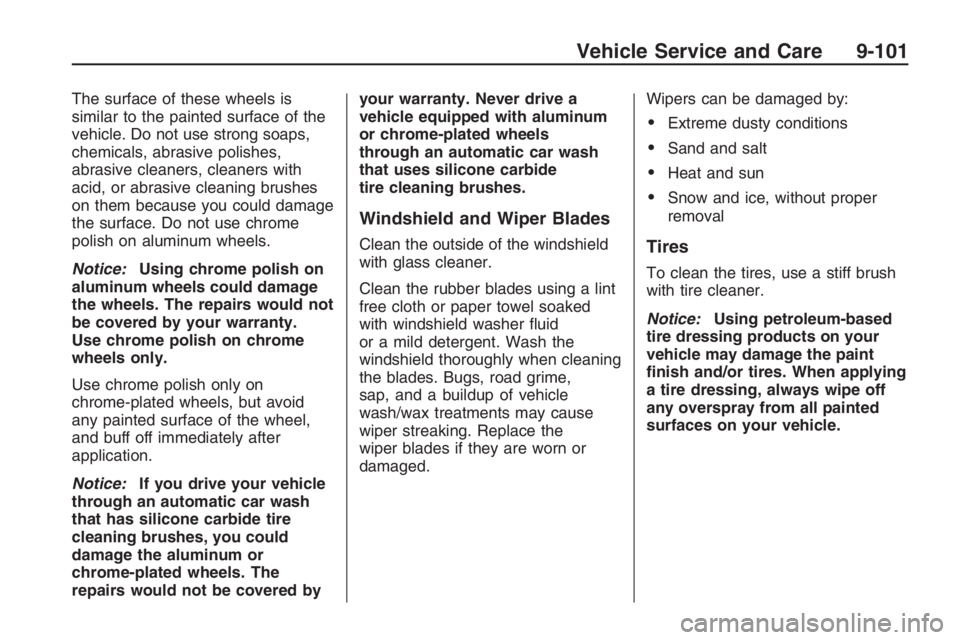

The surface of these wheels is
similar to the painted surface of the
vehicle. Do not use strong soaps,
chemicals, abrasive polishes,
abrasive cleaners, cleaners with
acid, or abrasive cleaning brushes
on them because you could damage
the surface. Do not use chrome
polish on aluminum wheels.
Notice:Using chrome polish on
aluminum wheels could damage
the wheels. The repairs would not
be covered by your warranty.
Use chrome polish on chrome
wheels only.
Use chrome polish only on
chrome-plated wheels, but avoid
any painted surface of the wheel,
and buff off immediately after
application.
Notice:If you drive your vehicle
through an automatic car wash
that has silicone carbide tire
cleaning brushes, you could
damage the aluminum or
chrome-plated wheels. The
repairs would not be covered byyour warranty. Never drive a
vehicle equipped with aluminum
or chrome-plated wheels
through an automatic car wash
that uses silicone carbide
tire cleaning brushes.
Windshield and Wiper Blades
Clean the outside of the windshield
with glass cleaner.
Clean the rubber blades using a lint
free cloth or paper towel soaked
with windshield washer uid
or a mild detergent. Wash the
windshield thoroughly when cleaning
the blades. Bugs, road grime,
sap, and a buildup of vehicle
wash/wax treatments may cause
wiper streaking. Replace the
wiper blades if they are worn or
damaged.Wipers can be damaged by:
Extreme dusty conditions
Sand and salt
Heat and sun
Snow and ice, without proper
removal
Tires
To clean the tires, use a stiff brush
with tire cleaner.
Notice:Using petroleum-based
tire dressing products on your
vehicle may damage the paint
nish and/or tires. When applying
a tire dressing, always wipe off
any overspray from all painted
surfaces on your vehicle.
Vehicle Service and Care 9-101

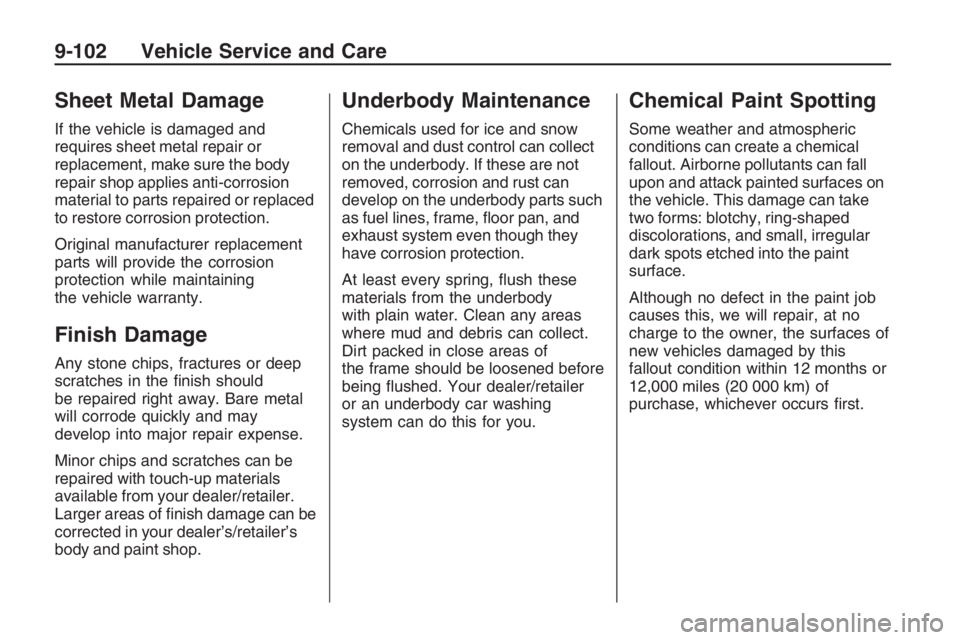

Sheet Metal Damage
If the vehicle is damaged and
requires sheet metal repair or
replacement, make sure the body
repair shop applies anti-corrosion
material to parts repaired or replaced
to restore corrosion protection.
Original manufacturer replacement
parts will provide the corrosion
protection while maintaining
the vehicle warranty.
Finish Damage
Any stone chips, fractures or deep
scratches in the nish should
be repaired right away. Bare metal
will corrode quickly and may
develop into major repair expense.
Minor chips and scratches can be
repaired with touch-up materials
available from your dealer/retailer.
Larger areas of nish damage can be
corrected in your dealer’s/retailer’s
body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow
removal and dust control can collect
on the underbody. If these are not
removed, corrosion and rust can
develop on the underbody parts such
as fuel lines, frame, oor pan, and
exhaust system even though they
have corrosion protection.
At least every spring, ush these
materials from the underbody
with plain water. Clean any areas
where mud and debris can collect.
Dirt packed in close areas of
the frame should be loosened before
being ushed. Your dealer/retailer
or an underbody car washing
system can do this for you.
Chemical Paint Spotting
Some weather and atmospheric
conditions can create a chemical
fallout. Airborne pollutants can fall
upon and attack painted surfaces on
the vehicle. This damage can take
two forms: blotchy, ring-shaped
discolorations, and small, irregular
dark spots etched into the paint
surface.
Although no defect in the paint job
causes this, we will repair, at no
charge to the owner, the surfaces of
new vehicles damaged by this
fallout condition within 12 months or
12,000 miles (20 000 km) of
purchase, whichever occurs rst.
9-102 Vehicle Service and Care

Technical Data
Vehicle Identication
Vehicle Identication
Number (VIN)..................10-1
Service Parts
Identication Label...........10-1
Capacities and
Specications
Capacities and
Specications..................10-2
Vehicle Identication
Vehicle Identication
Number (VIN)
This is the legal identier for your
vehicle. It appears on a plate in the
front corner of the instrument panel,
on the driver side. It can be seen
through the windshield from outside
the vehicle. The VIN also appears on
the Vehicle Certication and Service
Parts labels and the certicates of
title and registration.
Engine Identication
The eighth character in the VIN is
the engine code. This code
helps identify the vehicle’s engine,
specications, and replacement
parts. See “Engine Specications”
underCapacities and Specifications
on page 10-2for your vehicle’s
engine code.
Service Parts
Identication Label
This label is on the inside of the
glove box. It is very helpful if
you ever need to order parts.
The label has the following
information:
Vehicle Identication
Number (VIN)
Model designation
Paint information
Production options and special
equipment
Do not remove this label from the
vehicle.
Technical Data 10-1

Capacities and Specications
Thefollowing approximate capacities are given in English and metric conversions. SeeRecommended Fluids and
Lubricants on page 11-12 for more information.
Application Capacities
English Metric
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more information.
Cooling System 3.6L V6 Engine 10.6 qt 10.0 L
6.0L V8 Engine 11.6 qt 11.0 L
Engine Oil with Filter 3.6L V6 Engine 7.1 qt 6.7 L
6.0L V8 Engine 8.8 qt 8.3 L
Fuel Tank 19.3 gal 73.0 L
10-2 Technical Data

ApplicationCapacities
English Metric
Transmission Fluid Automatic, 5 Speed, 3.6L V6 Engine 9.4 qt 8.9 L
Automatic, 6 Speed 6.0L V8 Engine 12.4 qt 11.7 L
Manual, 6 Speed 6.0L V8 Engine 3.7 qt 3.5 L
Wheel Nut Torque 125 lb ft 170 Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
3.6L V6 Engine 7 Automatic 0.043 in (1.10 mm)
6.0L V8 Engine Y Automatic 0.040 in (1.02 mm)
6.0L V8 Engine Y Manual 0.040 in (1.02 mm)
Technical Data 10-3

✍NOTES
10-4 Technical Data

Service and
Maintenance
Service and Maintenance
Introduction.......................11-1
Maintenance
Requirements..................11-2
Your Vehicle and the
Environment....................11-2
Using the Maintenance
Schedule.........................11-2
Scheduled Maintenance. . . .11-4
Additional Required
Services..........................11-6
Maintenance Footnotes.....11-7
Owner Checks and
Services..........................11-9
At Each Fuel Fill...............11-9
At Least Once a Month. . . .11-9
At Least Once a Year.....11-10
Recommended Fluids
and Lubricants...............11-12
Maintenance
Replacement Parts........11-13
Engine Drive Belt
Routing..........................11-14
Maintenance Record........11-15
Service and
Maintenance
Introduction
Important: Keep engine oil at the
proper level and change as
recommended.
Have you purchased the GM
Protection Plan? The Plan
supplements the vehicle warranties.
See the Warranty and Owner
Assistance booklet or your
dealer/retailer for details.
Service and Maintenance 11-1

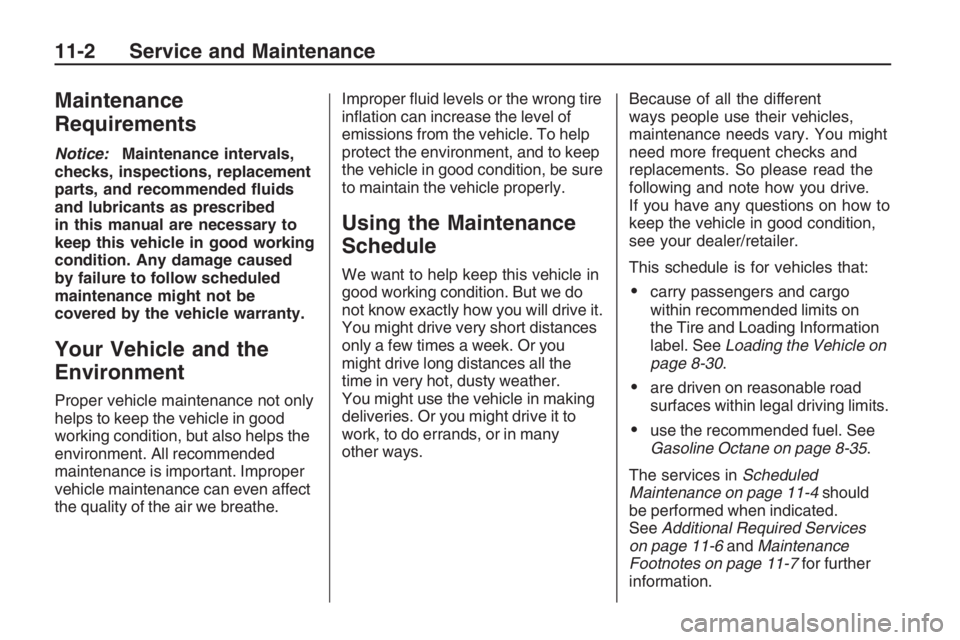

Maintenance
Requirements
Notice:Maintenance intervals,
checks, inspections, replacement
parts, and recommended uids
and lubricants as prescribed
in this manual are necessary to
keep this vehicle in good working
condition. Any damage caused
by failure to follow scheduled
maintenance might not be
covered by the vehicle warranty.
Your Vehicle and the
Environment
Proper vehicle maintenance not only
helps to keep the vehicle in good
working condition, but also helps the
environment. All recommended
maintenance is important. Improper
vehicle maintenance can even affect
the quality of the air we breathe.Improper uid levels or the wrong tire
ination can increase the level of
emissions from the vehicle. To help
protect the environment, and to keep
the vehicle in good condition, be sure
to maintain the vehicle properly.
Using the Maintenance
Schedule
We want to help keep this vehicle in
good working condition. But we do
not know exactly how you will drive it.
You might drive very short distances
only a few times a week. Or you
might drive long distances all the
time in very hot, dusty weather.
You might use the vehicle in making
deliveries. Or you might drive it to
work, to do errands, or in many
other ways.Because of all the different
ways people use their vehicles,
maintenance needs vary. You might
need more frequent checks and
replacements. So please read the
following and note how you drive.
If you have any questions on how to
keep the vehicle in good condition,
see your dealer/retailer.
This schedule is for vehicles that:carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. SeeLoading the Vehicle on
page 8-30.
are driven on reasonable road
surfaces within legal driving limits.
use the recommended fuel. See
Gasoline Octane on page 8-35.
The services inScheduled
Maintenance on page 11-4should
be performed when indicated.
SeeAdditional Required Services
on page 11-6andMaintenance
Footnotes on page 11-7for further
information.
11-2 Service and Maintenance
