2009 PONTIAC G8 Owners Manual

Gasoline Octane
If the vehicle has a V8 engine, use
regular unleaded gasoline with a
posted octane rating of 87 or higher.
If the octane rating is less than 87,
you might notice an audible knocking
noise when you drive, commonly
referred to as spark knock. If this
occurs, use a gasoline rated at 87
octane or higher as soon as possible.
If you are using gasoline rated at 87
octane or higher and you hear heavy
knocking, the engine needs service.
If the vehicle has the 3.6L V6 engine
(VIN Code 7), use regular unleaded
gasoline with a posted octane rating
of 87 or higher. For best performance
or trailer towing, you could choose
to use middle grade 89 octane
unleaded gasoline. If the octane
rating is less than 87, you might
notice an audible knocking noise
when you drive, commonly referredto as spark knock. If this occurs,
use a gasoline rated at 87 octane
or higher as soon as possible. If you
are using gasoline rated at
87 octane or higher and you hear
heavy knocking, the engine needs
service.
Gasoline Specications
At a minimum, gasoline should
meet ASTM specication D 4814
in the United States or
CAN/CGSB-3.5 or 3.511 in Canada.
Some gasolines contain an
octane-enhancing additive called
methylcyclopentadienyl manganese
tricarbonyl (MMT). We recommend
against the use of gasolines
containing MMT. SeeAdditives on
page 8-36for additional information.
California Fuel
If the vehicle is certied to meet
California Emissions Standards, it is
designed to operate on fuels that
meet California specications. See
the underhood emission control
label. If this fuel is not available in
states adopting California emissions
standards, the vehicle will operate
satisfactorily on fuels meeting federal
specications, but emission control
system performance might be
affected. The malfunction indicator
lamp could turn on and the vehicle
might fail a smog-check test. See
Malfunction Indicator Lamp on
page 4-18. If this occurs, return to
your authorized dealer/retailer for
diagnosis. If it is determined that the
condition is caused by the type of
fuel used, repairs might not be
covered by the vehicle warranty.
Driving and Operating 8-35

Additives
To provide cleaner air, all gasolines
in the United States are now required
to contain additives that help prevent
engine and fuel system deposits
from forming, allowing the emission
control system to work properly. In
most cases, you should not have to
add anything to the fuel. However,
some gasolines contain only the
minimum amount of additive required
to meet U.S. Environmental
Protection Agency regulations. To
help keep fuel injectors and intake
valves clean, or if the vehicle
experiences problems due to dirty
injectors or valves, look for gasoline
that is advertised as TOP TIER
Detergent Gasoline. Also, your
dealer/retailer has additives that will
help correct and prevent most
deposit-related problems.
Gasolines containing oxygenates,
such as ethers and ethanol, and
reformulated gasolines might
be available in your area.We recommend that you use these
gasolines, if they comply with the
specications described earlier.
However, E85 (85% ethanol) and
other fuels containing more than
10% ethanol must not be used in
vehicles that were not designed for
those fuels.
Notice:This vehicle was not
designed for fuel that contains
methanol. Do not use fuel
containing methanol. It can
corrode metal parts in the fuel
system and also damage plastic
and rubber parts. That damage
would not be covered under
the vehicle warranty.
Some gasolines that are
not reformulated for low
emissions can contain an
octane-enhancing additive called
methylcyclopentadienyl manganese
tricarbonyl (MMT); ask the
attendant where you buy gasoline
whether the fuel contains MMT.We recommend against the use of
such gasolines. Fuels containing
MMT can reduce the life of
spark plugs and the performance of
the emission control system
could be affected. The malfunction
indicator lamp might turn on. If
this occurs, return to your
dealer/retailer for service.
Fuels in Foreign
Countries
If you plan on driving in another
country outside the United States or
Canada, the proper fuel might be
hard to nd. Never use leaded
gasoline or any other fuel not
recommended in the previous text
on fuel. Costly repairs caused
by use of improper fuel would not
be covered by the vehicle warranty.
To check the fuel availability, ask an
auto club, or contact a major oil
company that does business in the
country where you will be driving.
8-36 Driving and Operating

Filling the Tank
{CAUTION
Fuel vapor burns violently and a
fuel re can cause bad injuries.
To help avoid injuries to you and
others, read and follow all the
instructions on the pump island.
Turn off the engine when you are
refueling. Do not smoke if you are
near fuel or refueling the vehicle.
Do not use cellular phones. Keep
sparks, ames, and smoking
materials away from fuel. Do not
leave the fuel pump unattended
when refueling the vehicle. This is
against the law in some places.
Do not re-enter the vehicle while
pumping fuel. Keep children away
from the fuel pump; never let
children pump fuel.The fuel cap is located behind a
hinged fuel door on the passenger
side of the vehicle.
To open the fuel door, the vehicle
must be unlocked. Push on the rear
edge of the door to open.
When reinstalling the cap, turn it
clockwise until it clicks, otherwise
the Malfunction Indicator Lamp may
turn on. SeeMalfunction Indicator
Lamp on page 4-18.
{CAUTION
Fuel can spray out on you if you
open the fuel cap too quickly. If
you spill fuel and then something
ignites it, you could be badly
burned. This spray can happen if
the tank is nearly full, and is more
likely in hot weather. Open the
fuel cap slowly and wait for any
hiss noise to stop. Then unscrew
the cap all the way.
Be careful not to spill fuel. Do not
top off or overll the tank and wait a
few seconds after you have nished
pumping before removing the nozzle.
Clean fuel from painted surfaces as
soon as possible. SeeExterior
Cleaning on page 9-98.
When replacing the fuel cap, turn it
clockwise until it clicks. Make
sure the cap is fully installed.
Driving and Operating 8-37

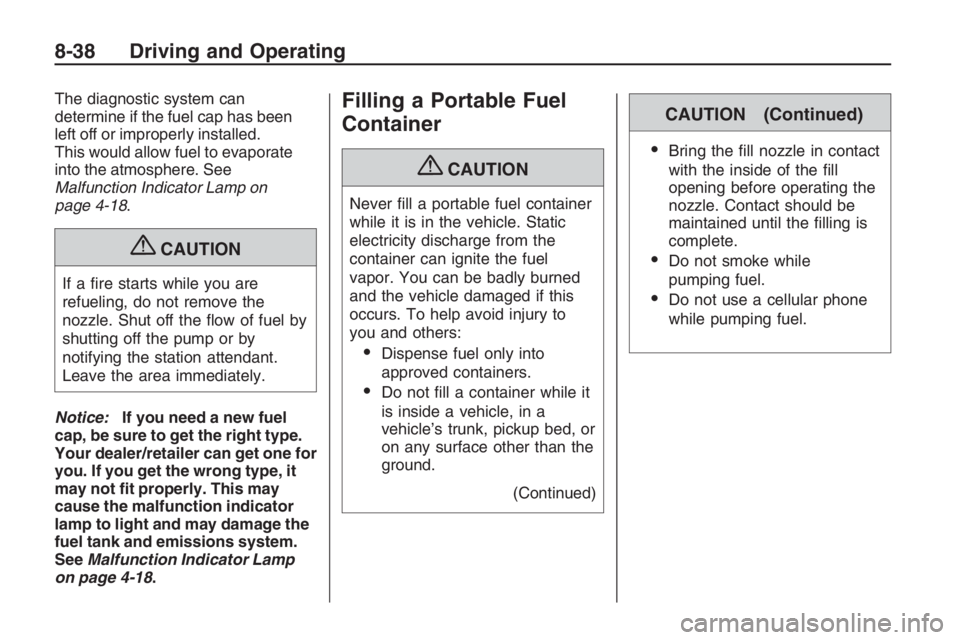

The diagnostic system can
determine if the fuel cap has been
left off or improperly installed.
This would allow fuel to evaporate
into the atmosphere. See
Malfunction Indicator Lamp on
page 4-18.
{CAUTION
If a re starts while you are
refueling, do not remove the
nozzle. Shut off the ow of fuel by
shutting off the pump or by
notifying the station attendant.
Leave the area immediately.
Notice:If you need a new fuel
cap, be sure to get the right type.
Your dealer/retailer can get one for
you. If you get the wrong type, it
may not t properly. This may
cause the malfunction indicator
lamp to light and may damage the
fuel tank and emissions system.
SeeMalfunction Indicator Lamp
on page 4-18.
Filling a Portable Fuel
Container
{CAUTION
Never ll a portable fuel container
while it is in the vehicle. Static
electricity discharge from the
container can ignite the fuel
vapor. You can be badly burned
and the vehicle damaged if this
occurs. To help avoid injury to
you and others:
Dispense fuel only into
approved containers.
Do not ll a container while it
is inside a vehicle, in a
vehicle’s trunk, pickup bed, or
on any surface other than the
ground.
(Continued)
CAUTION (Continued)
Bring the ll nozzle in contact
with the inside of the ll
opening before operating the
nozzle. Contact should be
maintained until the lling is
complete.
Do not smoke while
pumping fuel.
Do not use a cellular phone
while pumping fuel.
8-38 Driving and Operating

Vehicle Service
and Care
Service
Service...............................9-2
Accessories and
Modications.....................9-3
California Proposition 65
Warning............................9-3
California Perchlorate
Materials Requirements.....9-3
Doing Your Own
Service Work....................9-4
Adding Equipment to the
Outside of the Vehicle......9-4
Owner Checks
Owner Checks....................9-5
Hood Release.....................9-5
Engine Compartment
Overview...........................9-6
Engine Oil..........................9-8
Engine Oil Life System.....9-10
Engine Air Cleaner/Filter. . . .9-11
Cooling System.................9-13
Engine Coolant.................9-15
Pressure Cap....................9-19
Engine Overheating...........9-20
Power Steering Fluid.........9-21
Windshield Washer Fluid. . . .9-23
Windshield Wiper Blade
Replacement...................9-24
Brakes..............................9-25
Battery..............................9-28
Headlamp Aiming
Headlamp Aiming..............9-28
Bulb Replacement
Bulb Replacement.............9-31
Halogen Bulbs..................9-31
Headlamps and Parking
Lamps.............................9-31
Front Turn Signal Lamps. . .9-33
Taillamps..........................9-34
License Plate Lamp..........9-35
Replacement Bulbs...........9-35
Electrical System
Add-On Electrical
Equipment.......................9-36
Headlamp Wiring..............9-36
Windshield Wiper Fuses. . . .9-36
Power Windows and
Other Power Options.......9-36
Instrument Panel
Fuse Block......................9-36
Engine Compartment
Fuse Block......................9-38
Rear Compartment
Fuse Block......................9-41
Tires
Tires.................................9-42
Tire Sidewall Labeling.......9-42
Tire Terminology and
Denitions.......................9-46
Ination - Tire Pressure. . . .9-49
High-Speed Operation.......9-51
Tire Pressure Monitor
System............................9-52
Tire Pressure Monitor
Operation........................9-54
Tire Inspection and
Rotation..........................9-57
When It Is Time for
New Tires.......................9-59
Buying New Tires.............9-59
Different Size Tires
and Wheels.....................9-61
Vehicle Service and Care 9-1

Uniform Tire Quality
Grading...........................9-62
Wheel Alignment and
Tire Balance....................9-64
Wheel Replacement..........9-64
Tire Chains.......................9-65
Tire Changing
If a Tire Goes Flat............9-66
Tire Sealant and
Compressor Kit
(V8 Engine)
.....................9-67
Changing a Flat Tire.........9-75
Removing the Spare
Tire and Tools.................9-76
Removing the Flat Tire
and Installing the
Spare Tire
.......................9-77
Storing a Flat or Spare
Tire and Tools.................9-82
Compact Spare Tire..........9-83
Jump Starting
Jump Starting...................9-84
Towing
Towing Your Vehicle.........9-88
Shift Lock Manual
Release...........................9-88
Recreational Vehicle
Towing............................9-89
Towing a Trailer................9-89
Appearance Care
Interior Cleaning................9-95
Exterior Cleaning..............9-98
Sheet Metal Damage.......9-102
Finish Damage................9-102
Underbody Maintenance. . .9-102
Chemical Paint
Spotting.........................9-102
Service
For service and parts needs, visit
your dealer/retailer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one
of these marks:
9-2 Vehicle Service and Care

Accessories and
Modications
When non-dealer/non-retailer
accessories are added to the vehicle,
they can affect vehicle performance
and safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. Some of these accessories
could even cause malfunction or
damage not covered by the vehicle
warranty.
GM Accessories are designed to
complement and function with
other systems on the vehicle.
Your GM dealer/retailer can
accessorize the vehicle using
genuine GM Accessories.When you go to your GM dealer/
retailer and ask for GM Accessories,
you will know that GM-trained and
supported service technicians will
perform the work using genuine
GM Accessories.
Also, seeAdding Equipment to
Your Airbag-Equipped Vehicle
on page 1-32.
California Proposition 65
Warning
Most motor vehicles, including this
one, contain and/or emit chemicals
known to the State of California
to cause cancer and birth defects or
other reproductive harm. Engine
exhaust, many parts and systems
(including some inside the vehicle),
many uids, and some component
wear by-products contain and/or
emit these chemicals.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt pretensioners,
and lithium batteries contained
in remote keyless transmitters,
may contain perchlorate materials.
Special handling may be
necessary. For additional
information, see www.dtsc.ca.gov/
hazardouswaste/perchlorate.
Vehicle Service and Care 9-3

Doing Your Own
Service Work
{CAUTION
You can be injured and the vehicle
could be damaged if you try to do
service work on a vehicle without
knowing enough about it.
Be sure you have sufficient
knowledge, experience, the
proper replacement parts, and
tools before attempting any
vehicle maintenance task.
Be sure to use the proper
nuts, bolts, and other
fasteners. English and metric
fasteners can be easily
confused. If the wrong
fasteners are used, parts
can later break or fall off.
You could be hurt.If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see
Service Publications Ordering
Information on page 12-15.
This vehicle has an airbag system.
Before attempting to do your
own service work, seeAirbag
System Check on page 1-33.
Keep a record with all parts receipts
and list the mileage and the date
of any service work performed.
SeeMaintenance Record on
page 11-15.
Adding Equipment to the
Outside of the Vehicle
Things added to the outside of the
vehicle can affect the airow
around it. This can cause wind
noise and can affect fuel economy
and windshield washer performance.
Check with your dealer/retailer
before adding equipment to
the outside of the vehicle.
9-4 Vehicle Service and Care
