2009 PONTIAC G8 Owners Manual

{CAUTION
You can be seriously injured by
not wearing the lap-shoulder belt
properly. In a crash, you would not
be restrained by the shoulder belt.
Your body could move too far
forward increasing the chance of
head and neck injury. You might
also slide under the lap belt. The
belt force would then be applied
right on the abdomen. That could
cause serious or fatal injuries.
The shoulder belt should go over
the shoulder and across the chest.
Q:What is wrong with this?
A:The belt is twisted across
the body.
{CAUTION
You can be seriously injured by a
twisted belt. In a crash, you would
not have the full width of the belt
to spread impact forces. If a belt
is twisted, make it straight so it
can work properly, or ask your
dealer/retailer to x it.
Seats and Restraints 1-13

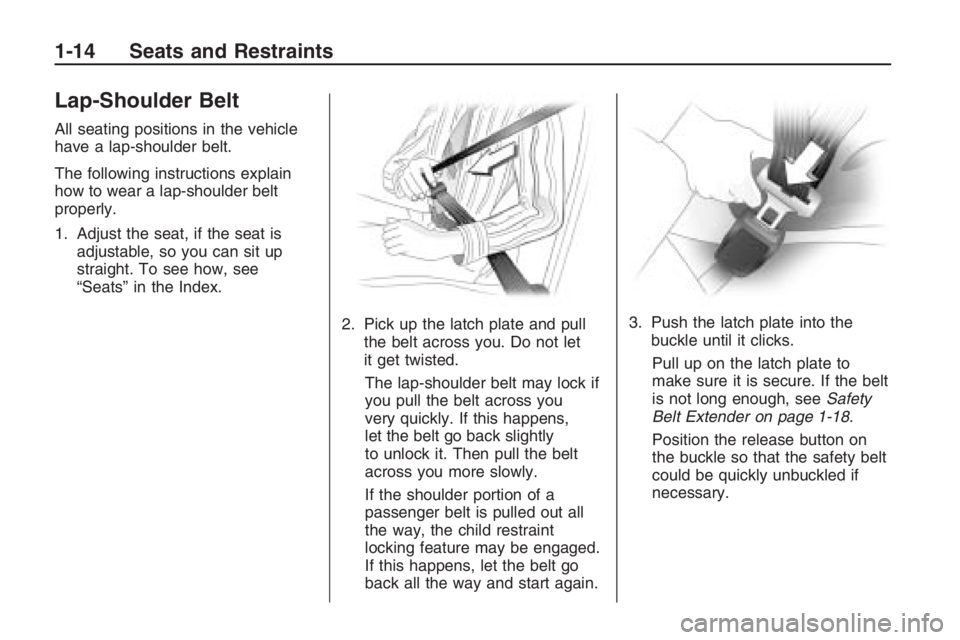

Lap-Shoulder Belt
All seating positions in the vehicle
have a lap-shoulder belt.
The following instructions explain
how to wear a lap-shoulder belt
properly.
1. Adjust the seat, if the seat is
adjustable, so you can sit up
straight. To see how, see
“Seats” in the Index.
2. Pick up the latch plate and pull
the belt across you. Do not let
it get twisted.
The lap-shoulder belt may lock if
you pull the belt across you
very quickly. If this happens,
let the belt go back slightly
to unlock it. Then pull the belt
across you more slowly.
If the shoulder portion of a
passenger belt is pulled out all
the way, the child restraint
locking feature may be engaged.
If this happens, let the belt go
back all the way and start again.3. Push the latch plate into the
buckle until it clicks.
Pull up on the latch plate to
make sure it is secure. If the belt
is not long enough, seeSafety
Belt Extender on page 1-18.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
1-14 Seats and Restraints

4. To make the lap part tight,
pull up on the shoulder belt.
It may be necessary to pull
stitching on the safety belt
through the latch plate to fully
tighten the lap belt on smaller
occupants.
To unlatch the belt, push the button
on the buckle. The belt should
return to its stowed position.Slide the latch plate up the safety
belt webbing, when the safety belt
is not in use. The latch plate
should rest on the stitching on the
safety belt, near the guide loop
on the side wall.
Before a door is closed, be sure the
safety belt is out of the way. If a
door is slammed against a safety
belt, damage can occur to both the
safety belt and the vehicle.
Safety Belt Pretensioners
This vehicle has safety belt
pretensioners for the front outboard
occupants. Although the safety
belt pretensioners cannot be seen,
they are part of the safety belt
assembly. They can help tighten
the safety belts during the early
stages of a moderate to severe
frontal or near frontal crash if
the threshold conditions for
pretensioner activation are met.And, if the vehicle has side impact
airbags, safety belt pretensioners
can help tighten the safety belts in
a side crash.
Pretensioners work only once.
If the pretensioners activate in a
crash, they will need to be
replaced and probably other new
parts for the safety belt system.
SeeReplacing Safety Belt System
Parts After a Crash on page 1-19.
Seats and Restraints 1-15

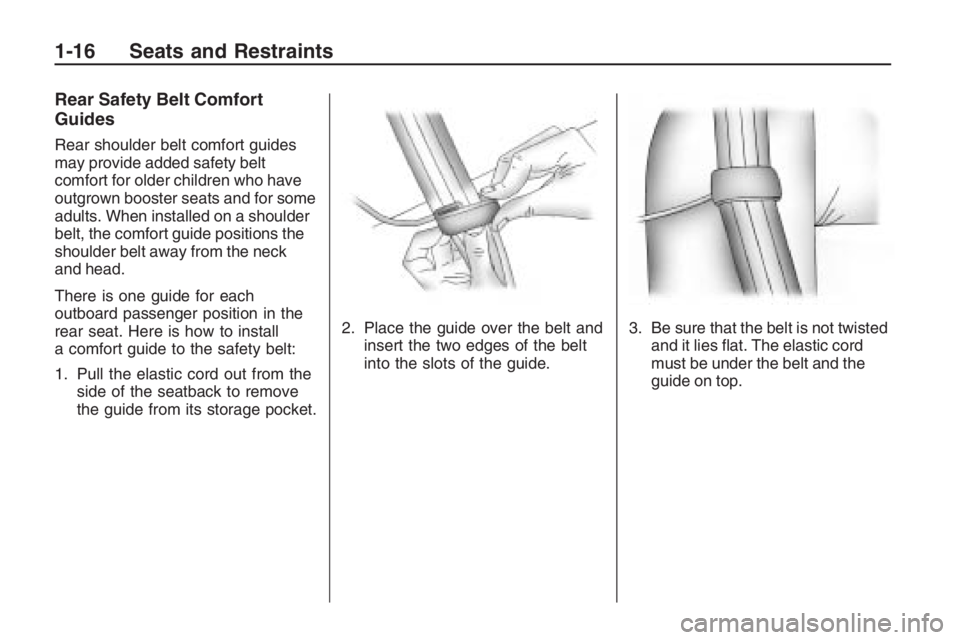

Rear Safety Belt Comfort
Guides
Rear shoulder belt comfort guides
may provide added safety belt
comfort for older children who have
outgrown booster seats and for some
adults. When installed on a shoulder
belt, the comfort guide positions the
shoulder belt away from the neck
and head.
There is one guide for each
outboard passenger position in the
rear seat. Here is how to install
a comfort guide to the safety belt:
1. Pull the elastic cord out from the
side of the seatback to remove
the guide from its storage pocket.2. Place the guide over the belt and
insert the two edges of the belt
into the slots of the guide.3. Be sure that the belt is not twisted
and it lies at. The elastic cord
must be under the belt and the
guide on top.
1-16 Seats and Restraints

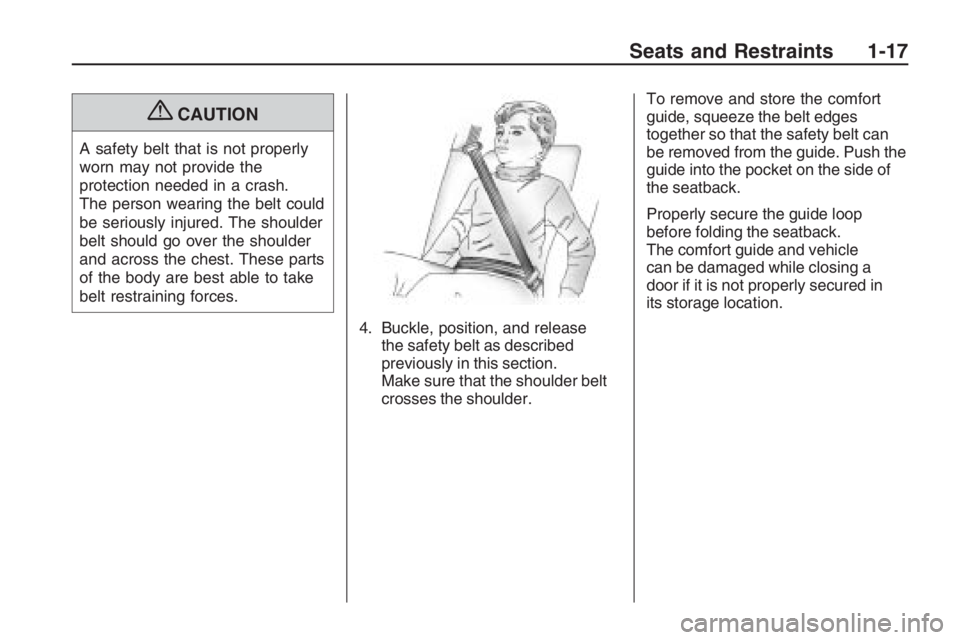

{CAUTION
A safety belt that is not properly
worn may not provide the
protection needed in a crash.
The person wearing the belt could
be seriously injured. The shoulder
belt should go over the shoulder
and across the chest. These parts
of the body are best able to take
belt restraining forces.
4. Buckle, position, and release
the safety belt as described
previously in this section.
Make sure that the shoulder belt
crosses the shoulder.To remove and store the comfort
guide, squeeze the belt edges
together so that the safety belt can
be removed from the guide. Push the
guide into the pocket on the side of
the seatback.
Properly secure the guide loop
before folding the seatback.
The comfort guide and vehicle
can be damaged while closing a
door if it is not properly secured in
its storage location.
Seats and Restraints 1-17

Safety Belt Use During
Pregnancy
Safety belts work for everyone,
including pregnant women. Like all
occupants, they are more likely
to be seriously injured if they do not
wear safety belts.
A pregnant woman should wear a
lap-shoulder belt, and the lap portion
should be worn as low as possible,
below the rounding, throughout
the pregnancy.The best way to protect the fetus is
to protect the mother. When a safety
belt is worn properly, it is more likely
that the fetus will not be hurt in a
crash. For pregnant women, as for
anyone, the key to making safety
belts effective is wearing them
properly.
Safety Belt Extender
If the safety belt will fasten around
you, you should use it.
But if a safety belt is not long
enough, your dealer/retailer will order
you an extender. When you go in to
order it, take the heaviest coat you
will wear, so the extender will be long
enough for you. To help avoid
personal injury, do not let someone
else use it, and use it only for the
seat it is made to t. The extender
has been designed for adults.
Never use it for securing child seats.
To wear it, attach it to the regular
safety belt. For more information,
see the instruction sheet that comes
with the extender.
Safety Belt Check
Now and then, check the safety belt
reminder light, safety belts, buckles,
latch plates, retractors and
anchorages are working properly.
Look for any other loose or damaged
safety belt system parts that might
keep a safety belt system from doing
its job. See your dealer/retailer to
have it repaired. Torn or frayed
safety belts may not protect you in a
crash. They can rip apart under
impact forces. If a belt is torn or
frayed, get a new one right away.
Make sure the safety belt reminder
light is working. SeeSafety Belt
Reminders on page 4-12for more
information.
Keep safety belts clean and dry.
SeeCare of Safety Belts on
page 1-19.
1-18 Seats and Restraints

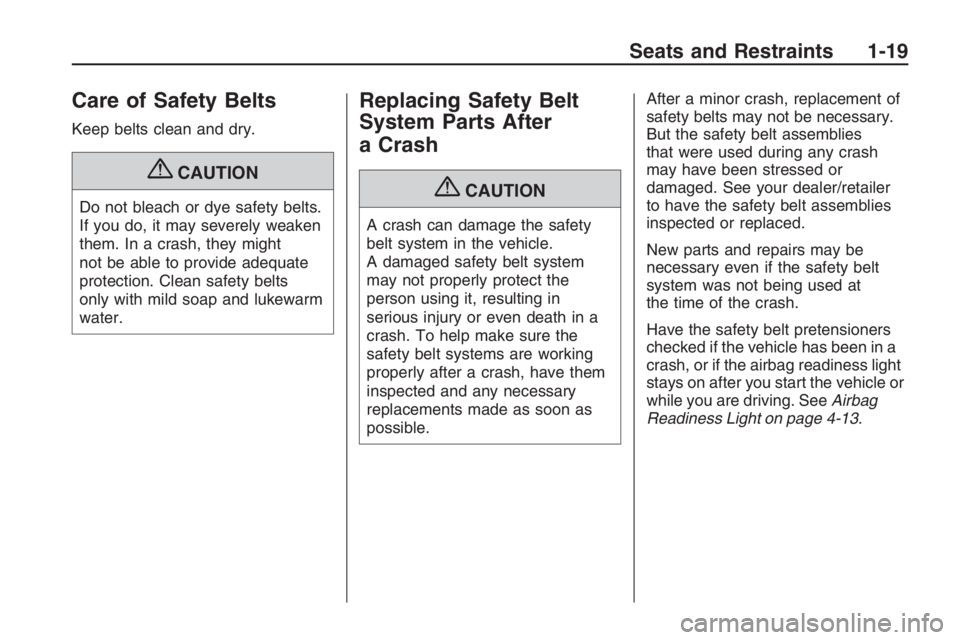

Care of Safety Belts
Keep belts clean and dry.
{CAUTION
Do not bleach or dye safety belts.
If you do, it may severely weaken
them. In a crash, they might
not be able to provide adequate
protection. Clean safety belts
only with mild soap and lukewarm
water.
Replacing Safety Belt
System Parts After
a Crash
{CAUTION
A crash can damage the safety
belt system in the vehicle.
A damaged safety belt system
may not properly protect the
person using it, resulting in
serious injury or even death in a
crash. To help make sure the
safety belt systems are working
properly after a crash, have them
inspected and any necessary
replacements made as soon as
possible.After a minor crash, replacement of
safety belts may not be necessary.
But the safety belt assemblies
that were used during any crash
may have been stressed or
damaged. See your dealer/retailer
to have the safety belt assemblies
inspected or replaced.
New parts and repairs may be
necessary even if the safety belt
system was not being used at
the time of the crash.
Have the safety belt pretensioners
checked if the vehicle has been in a
crash, or if the airbag readiness light
stays on after you start the vehicle or
while you are driving. SeeAirbag
Readiness Light on page 4-13.
Seats and Restraints 1-19

Airbag System
The vehicle has the following
airbags:
A frontal airbag for the driver.
A frontal airbag for the right front
passenger.
A seat-mounted side impact
airbag for the driver.
A seat-mounted side impact
airbag for the right front
passenger.
A roof-rail airbag for the driver and
the passenger seated directly
behind the driver.
A roof-rail airbag for the right front
passenger and the passenger
seated directly behind the right
front passenger.
All of the airbags in the vehicle will
have the word AIRBAG embossed
in the trim or on an attached label
near the deployment opening.For frontal airbags, the word
AIRBAG will appear on the middle
part of the steering wheel for
the driver and on the instrument
panel for the right front passenger.
With seat-mounted side impact
airbags, the word AIRBAG
will appear on the side of the
seatback closest to the door.
With roof-rail airbags, the word
AIRBAG will appear along the
headliner or trim.
Airbags are designed to supplement
the protection provided by safety
belts. Even though today’s airbags
are also designed to help reduce
the risk of injury from the force of an
inating bag, all airbags must
inate very quickly to do their job.Here are the most important things
to know about the airbag system:
{CAUTION
You can be severely injured or
killed in a crash if you are not
wearing your safety belt — even
if you have airbags. Airbags are
designed to work with safety
belts, but do not replace them.
Also, airbags are not designed to
deploy in every crash. In some
crashes safety belts are your only
restraint. SeeWhen Should an
Airbag Inflate? on page 1-23.
Wearing your safety belt during a
crash helps reduce your chance
of hitting things inside the vehicle
or being ejected from it. Airbags
are “supplemental restraints” to
the safety belts. Everyone in your
vehicle should wear a safety belt
properly — whether or not there is
an airbag for that person.
1-20 Seats and Restraints
