2009 PONTIAC G8 Owners Manual

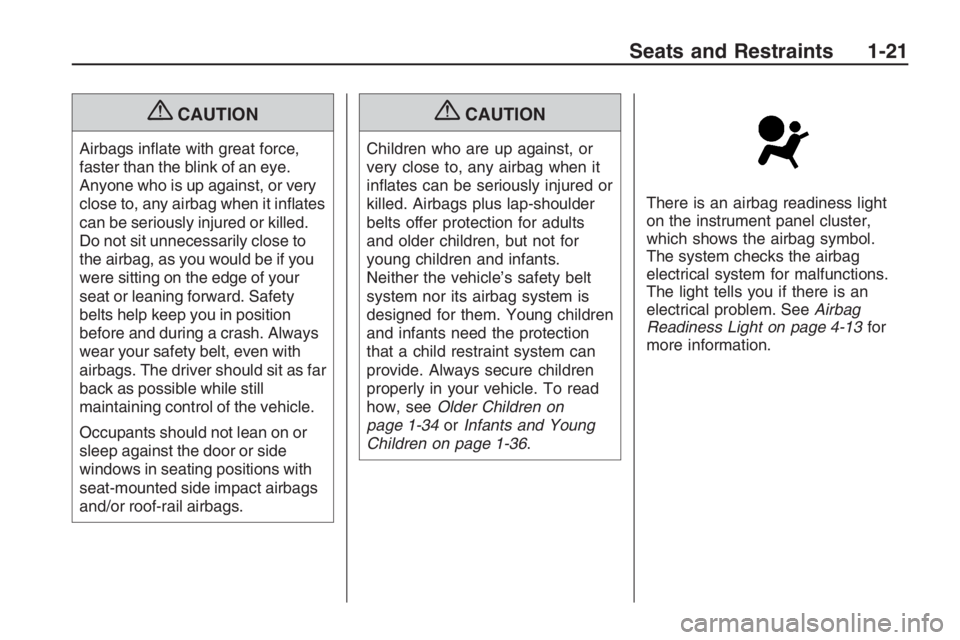

{CAUTION
Airbags inate with great force,
faster than the blink of an eye.
Anyone who is up against, or very
close to, any airbag when it inates
can be seriously injured or killed.
Do not sit unnecessarily close to
the airbag, as you would be if you
were sitting on the edge of your
seat or leaning forward. Safety
belts help keep you in position
before and during a crash. Always
wear your safety belt, even with
airbags. The driver should sit as far
back as possible while still
maintaining control of the vehicle.
Occupants should not lean on or
sleep against the door or side
windows in seating positions with
seat-mounted side impact airbags
and/or roof-rail airbags.
{CAUTION
Children who are up against, or
very close to, any airbag when it
inates can be seriously injured or
killed. Airbags plus lap-shoulder
belts offer protection for adults
and older children, but not for
young children and infants.
Neither the vehicle’s safety belt
system nor its airbag system is
designed for them. Young children
and infants need the protection
that a child restraint system can
provide. Always secure children
properly in your vehicle. To read
how, seeOlder Children on
page 1-34orInfants and Young
Children on page 1-36.There is an airbag readiness light
on the instrument panel cluster,
which shows the airbag symbol.
The system checks the airbag
electrical system for malfunctions.
The light tells you if there is an
electrical problem. SeeAirbag
Readiness Light on page 4-13for
more information.
Seats and Restraints 1-21

Where Are the Airbags?
The driver frontal airbag is in the
middle of the steering wheel.The right front passenger frontal
airbag is in the instrument panel on
the passenger’s side.
The seat-mounted side impact
airbags for the driver and right front
passenger are in the side of the
seatbacks closest to the door.
The roof-rail airbags for the driver,
right front passenger, and second
row outboard passengers are in the
ceiling above the side windows.
{CAUTION
If something is between an
occupant and an airbag, the airbag
might not inate properly or it might
force the object into that person
causing severe injury or even
death. The path of an inating
airbag must be kept clear. Do not
put anything between an occupant
and an airbag, and do not attach or
put anything on the steering wheel
hub or on or near any other airbag
covering.
Do not use seat accessories that
block the ination path of a
seat-mounted side impact airbag.
Never secure anything to the roof
of a vehicle with roof-rail airbags
by routing a rope or tie down
through any door or window
opening. If you do, the path of an
inating roof-rail airbag will be
blocked.
Driver Side shown, Passenger
Side similar
1-22 Seats and Restraints

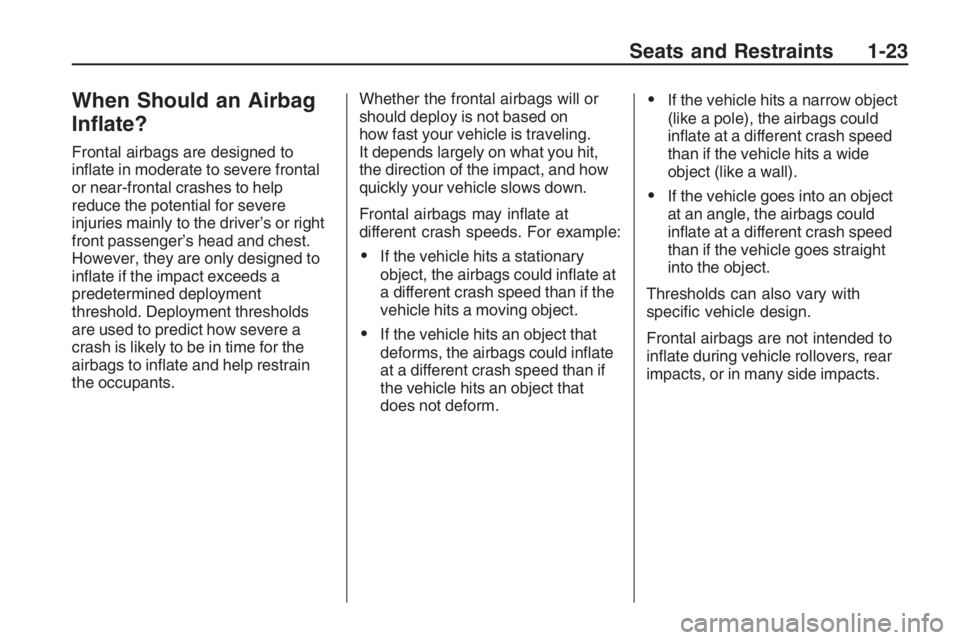

When Should an Airbag
Inate?
Frontal airbags are designed to
inate in moderate to severe frontal
or near-frontal crashes to help
reduce the potential for severe
injuries mainly to the driver’s or right
front passenger’s head and chest.
However, they are only designed to
inate if the impact exceeds a
predetermined deployment
threshold. Deployment thresholds
are used to predict how severe a
crash is likely to be in time for the
airbags to inate and help restrain
the occupants.Whether the frontal airbags will or
should deploy is not based on
how fast your vehicle is traveling.
It depends largely on what you hit,
the direction of the impact, and how
quickly your vehicle slows down.
Frontal airbags may inate at
different crash speeds. For example:
If the vehicle hits a stationary
object, the airbags could inate at
a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that
deforms, the airbags could inate
at a different crash speed than if
the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object
(like a pole), the airbags could
inate at a different crash speed
than if the vehicle hits a wide
object (like a wall).
If the vehicle goes into an object
at an angle, the airbags could
inate at a different crash speed
than if the vehicle goes straight
into the object.
Thresholds can also vary with
specic vehicle design.
Frontal airbags are not intended to
inate during vehicle rollovers, rear
impacts, or in many side impacts.
Seats and Restraints 1-23

In addition, the vehicle has
dual-stage frontal airbags.
Dual-stage airbags adjust the
restraint according to crash severity.
The vehicle has electronic frontal
sensors, which help the sensing
system distinguish between a
moderate frontal impact and a more
severe frontal impact. For moderate
frontal impacts, dual-stage airbags
inate at a level less than full
deployment. For more severe frontal
impacts, full deployment occurs.
The vehicle has seat-mounted side
impact and roof-rail airbags. See
Airbag System on page 1-20.Seat-mounted side impact and
roof-rail airbags are intended
to inate in moderate to severe side
crashes. Seat-mounted side
impact and roof-rail airbags will
inate if the crash severity is above
the system’s designed threshold
level. The threshold level can vary
with specic vehicle design.
Seat-mounted side impact and
roof-rail airbags are not intended to
inate in frontal impacts, near-frontal
impacts, rollovers, or rear impacts.
A seat-mounted side impact
airbag is intended to deploy on the
side of the vehicle that is struck.A roof-rail airbag is intended to
deploy on the side of the vehicle
that is struck.
In any particular crash, no one can
say whether an airbag should
have inated simply because of the
damage to a vehicle or because
of what the repair costs were.
For frontal airbags, ination is
determined by what the vehicle hits,
the angle of the impact, and how
quickly the vehicle slows down.
For seat-mounted side impact and
roof-rail airbags, deployment is
determined by the location
and severity of the side impact.
1-24 Seats and Restraints

What Makes an Airbag
Inate?
In a deployment event, the sensing
system sends an electrical signal
triggering a release of gas from the
inator. Gas from the inator lls
the airbag causing the bag to
break out of the cover and deploy.
The inator, the airbag, and
related hardware are all part of the
airbag module.
Frontal airbag modules are located
inside the steering wheel and
instrument panel. For vehicles with
seat-mounted side impact airbags,
there are airbag modules in the side
of the front seatbacks closest to
the door. For vehicles with roof-rail
airbags, there are airbag modules
in the ceiling of the vehicle, near the
side windows that have occupant
seating positions.
How Does an Airbag
Restrain?
In moderate to severe frontal or
near frontal collisions, even belted
occupants can contact the steering
wheel or the instrument panel.
In moderate to severe side
collisions, even belted occupants
can contact the inside of the vehicle.
Airbags supplement the protection
provided by safety belts. Frontal
airbags distribute the force of
the impact more evenly over the
occupant’s upper body, stopping
the occupant more gradually.
Seat-mounted side impact and
roof-rail airbags distribute the force
of the impact more evenly over
the occupant’s upper body.But airbags would not help in many
types of collisions, primarily because
the occupant’s motion is not toward
those airbags. SeeWhen Should an
Airbag Inflate? on page 1-23for
more information.
Airbags should never be regarded
as anything more than a supplement
to safety belts.
What Will You See After
an Airbag Inates?
After the frontal airbags and
seat-mounted side impact airbags
inate, they quickly deate, so
quickly that some people may not
even realize an airbag inated.
Roof-rail airbags may still be at least
partially inated for some time after
they deploy. Some components of
the airbag module may be hot for
several minutes. For location of the
airbag modules, seeWhat Makes an
Airbag Inflate? on page 1-25.
Seats and Restraints 1-25

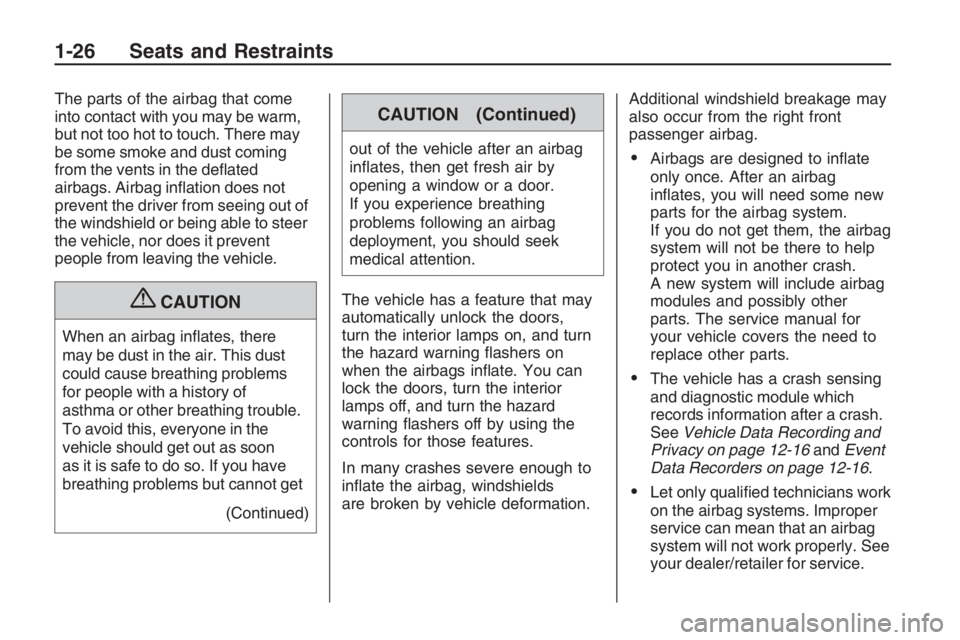

The parts of the airbag that come
into contact with you may be warm,
but not too hot to touch. There may
be some smoke and dust coming
from the vents in the deated
airbags. Airbag ination does not
prevent the driver from seeing out of
the windshield or being able to steer
the vehicle, nor does it prevent
people from leaving the vehicle.
{CAUTION
When an airbag inates, there
may be dust in the air. This dust
could cause breathing problems
for people with a history of
asthma or other breathing trouble.
To avoid this, everyone in the
vehicle should get out as soon
as it is safe to do so. If you have
breathing problems but cannot get
(Continued)
CAUTION (Continued)
out of the vehicle after an airbag
inates, then get fresh air by
opening a window or a door.
If you experience breathing
problems following an airbag
deployment, you should seek
medical attention.
The vehicle has a feature that may
automatically unlock the doors,
turn the interior lamps on, and turn
the hazard warning ashers on
when the airbags inate. You can
lock the doors, turn the interior
lamps off, and turn the hazard
warning ashers off by using the
controls for those features.
In many crashes severe enough to
inate the airbag, windshields
are broken by vehicle deformation.Additional windshield breakage may
also occur from the right front
passenger airbag.Airbags are designed to inate
only once. After an airbag
inates, you will need some new
parts for the airbag system.
If you do not get them, the airbag
system will not be there to help
protect you in another crash.
A new system will include airbag
modules and possibly other
parts. The service manual for
your vehicle covers the need to
replace other parts.
The vehicle has a crash sensing
and diagnostic module which
records information after a crash.
SeeVehicle Data Recording and
Privacy on page 12-16andEvent
Data Recorders on page 12-16.
Let only qualied technicians work
on the airbag systems. Improper
service can mean that an airbag
system will not work properly. See
your dealer/retailer for service.
1-26 Seats and Restraints

Passenger Sensing
System
The vehicle has a passenger
sensing system for the right front
passenger position. The passenger
airbag status indicator will be
visible in the rearview mirror when
the vehicle is started.The words ON and OFF, or the
symbol for on and off, will be visible
during the system check. If you
are using remote start to start the
vehicle from a distance, if equipped,
you may not see the system
check. When the system check is
complete, either the word ON
or OFF, or the symbol for on or off,
will be visible. SeePassenger
Airbag Status Indicator on
page 4-14.
The passenger sensing system will
turn off the right front passenger
frontal airbag under certain
conditions. The driver airbags are
not affected by the passenger
sensing system.The passenger sensing system
works with sensors that are part of
the right front passenger seat. The
sensors are designed to detect the
presence of a properly-seated
occupant and determine if the right
front passenger frontal airbag should
be enabled (may inate) or not.
Accident statistics show that children
are safer if they are restrained in
the rear rather than the front seat.
We recommend that children
be secured in a rear seat, including:
an infant or a child riding in a
rear-facing child restraint; a child
riding in a forward-facing child seat;
an older child riding in a booster
seat; and children, who are
large enough, using safety belts. United States
Canada
Seats and Restraints 1-27

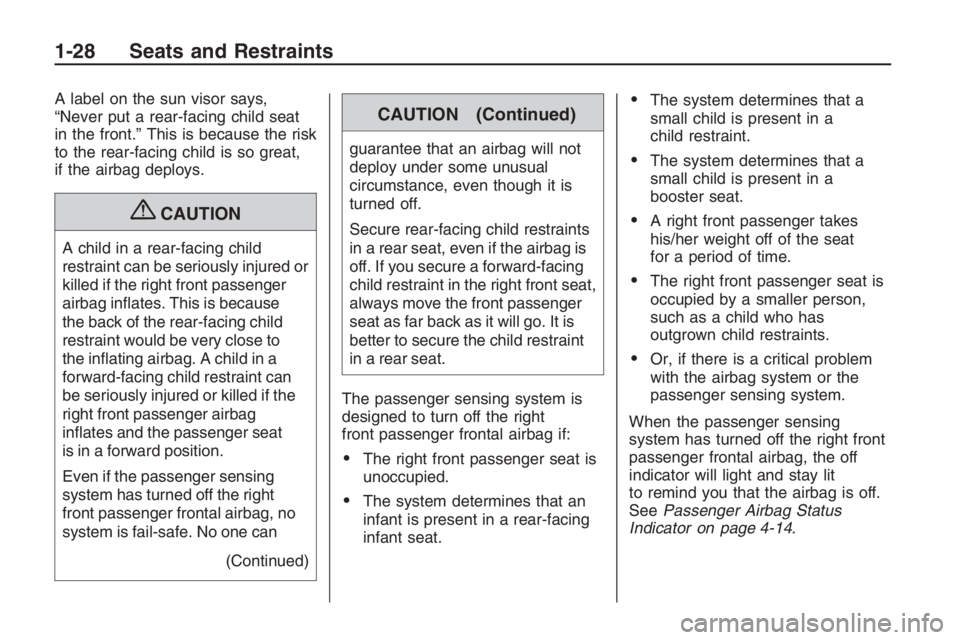

A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously injured or
killed if the right front passenger
airbag inates. This is because
the back of the rear-facing child
restraint would be very close to
the inating airbag. A child in a
forward-facing child restraint can
be seriously injured or killed if the
right front passenger airbag
inates and the passenger seat
is in a forward position.
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag, no
system is fail-safe. No one can
(Continued)
CAUTION (Continued)
guarantee that an airbag will not
deploy under some unusual
circumstance, even though it is
turned off.
Secure rear-facing child restraints
in a rear seat, even if the airbag is
off. If you secure a forward-facing
child restraint in the right front seat,
always move the front passenger
seat as far back as it will go. It is
better to secure the child restraint
in a rear seat.
The passenger sensing system is
designed to turn off the right
front passenger frontal airbag if:
The right front passenger seat is
unoccupied.
The system determines that an
infant is present in a rear-facing
infant seat.
The system determines that a
small child is present in a
child restraint.
The system determines that a
small child is present in a
booster seat.
A right front passenger takes
his/her weight off of the seat
for a period of time.
The right front passenger seat is
occupied by a smaller person,
such as a child who has
outgrown child restraints.
Or, if there is a critical problem
with the airbag system or the
passenger sensing system.
When the passenger sensing
system has turned off the right front
passenger frontal airbag, the off
indicator will light and stay lit
to remind you that the airbag is off.
SeePassenger Airbag Status
Indicator on page 4-14.
1-28 Seats and Restraints
