VISIBILITY

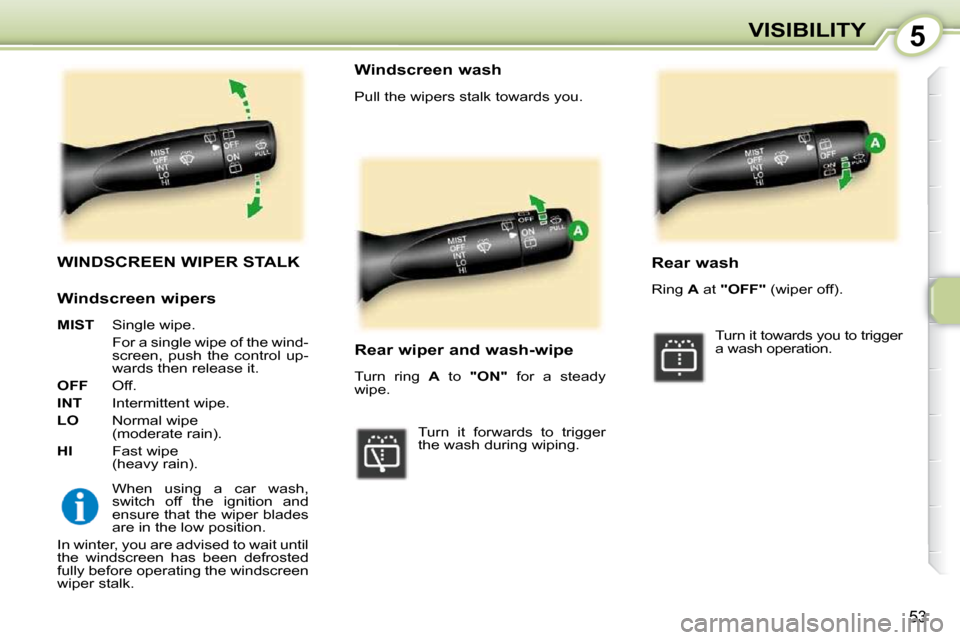

WINDSCREEN WIPER STALK
When using a car wash,
switch off the ignition and
ensure that the wiper blades
are in the low position.
In winter, you are advised to wait until
the windscreen has been defrosted
fully before operating the windscreen
wiper stalk. Windscreen wash
Pull the wipers stalk towards you.
Rear wiper and wash-wipe
Turn ring
A to "ON" for a steady
wipe.
Turn it forwards to trigger
the wash during wiping. Rear wash
Ring
A at "OFF" (wiper off).
Turn it towards you to trigger
a wash operation.
Windscreen wipers

MIST Single wipe.
For a single wipe of the wind- screen, push the control up-
wards then release it.

OFF Off.

INT Intermittent wipe.

LO Normal wipe
(moderate rain).

HI Fast wipe
(heavy rain).

5
54
VISIBILITY
HEADLAMPADJUSTMENT
To avoid causing a nuisance to other
road users, the height of the head-
lamps should be adjusted in relation
to the load in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 4 people.

2. 4 people + maximum authorised
load.

3. Driver + maximum authorised load.
The initial setting is position "0" . In this position, it comes
on on opening the driver's
door.
The courtesy lamp is deacti-
vated and is permanently off.
COURTESY LAMP
Permanently on.

6
55
SAFETY

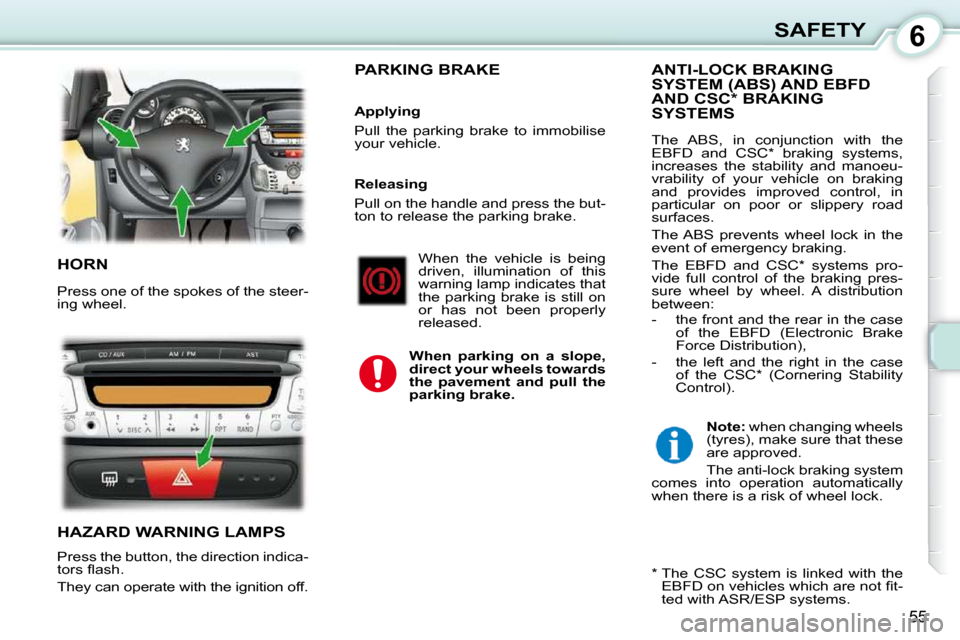

HORN
Press one of the spokes of the steer-
ing wheel.
HAZARD WARNING LAMPS
Press the button, the direction indica-
tors fl ash.
They can operate with the ignition off.
ANTI-LOCK BRAKING SYSTEM (ABS) AND EBFD AND CSC * BRAKING SYSTEMS
The ABS, in conjunction with the
EBFD and CSC * braking systems,
increases the stability and manoeu-
vrability of your vehicle on braking
and provides improved control, in
particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The EBFD and CSC * systems pro-
vide full control of the braking pres-
sure wheel by wheel. A distribution
between:
- the front and the rear in the case of the EBFD (Electronic Brake
Force Distribution),
- the left and the right in the case of the CSC * (Cornering Stability
Control).
When the vehicle is being
driven, illumination of this
warning lamp indicates that
the parking brake is still on
or has not been properly
released.

When parking on a slope,
direct your wheels towards
the pavement and pull the

parking brake
.
PARKING BRAKE
Applying
Pull the parking brake to immobilise
your vehicle.

Note: when changing wheels
(tyres), make sure that these
are approved.
The anti-lock braking system
comes into operation automatically
when there is a risk of wheel lock.
* The CSC system is linked with the EBFD on vehicles which are not fi t-
ted with ASR/ESP systems.
Releasing
Pull on the handle and press the but-
ton to release the parking brake.

6
55
SAFETY
HORN
Press one of the spokes of the steer-
ing wheel.
HAZARD WARNING LAMPS
Press the button, the direction indica-
tors fl ash.
They can operate with the ignition off.
ANTI-LOCK BRAKING SYSTEM (ABS) AND EBFD AND CSC * BRAKING SYSTEMS
The ABS, in conjunction with the
EBFD and CSC * braking systems,
increases the stability and manoeu-
vrability of your vehicle on braking
and provides improved control, in
particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The EBFD and CSC * systems pro-
vide full control of the braking pres-
sure wheel by wheel. A distribution
between:
- the front and the rear in the case of the EBFD (Electronic Brake
Force Distribution),
- the left and the right in the case of the CSC * (Cornering Stability
Control).
When the vehicle is being
driven, illumination of this
warning lamp indicates that
the parking brake is still on
or has not been properly
released.

When parking on a slope,
direct your wheels towards
the pavement and pull the

parking brake
.
PARKING BRAKE
Applying
Pull the parking brake to immobilise
your vehicle.

Note: when changing wheels
(tyres), make sure that these
are approved.
The anti-lock braking system
comes into operation automatically
when there is a risk of wheel lock.
* The CSC system is linked with the EBFD on vehicles which are not fi t-
ted with ASR/ESP systems.
Releasing
Pull on the handle and press the but-
ton to release the parking brake.

6
56

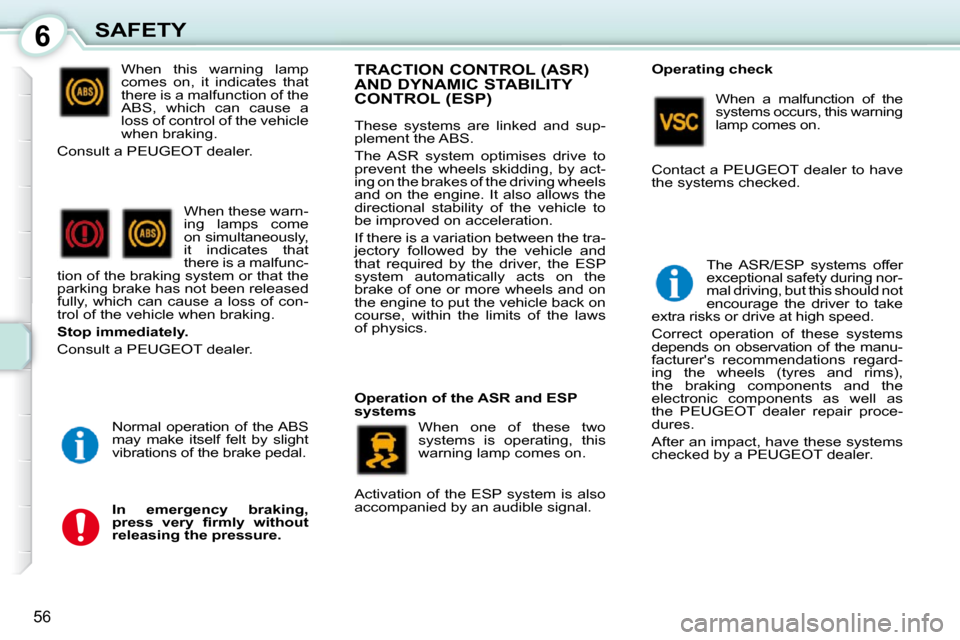

SAFETY When this warning lamp
comes on, it indicates that
there is a malfunction of the
ABS, which can cause a
loss of control of the vehicle
when braking.
Consult a PEUGEOT dealer.
When these warn-
ing lamps come
on simultaneously,
it indicates that
there is a malfunc-
tion of the braking system or that the
parking brake has not been released
fully, which can cause a loss of con-
trol of the vehicle when braking.

Stop immediately.
Consult a PEUGEOT dealer.
Normal operation of the ABS
may make itself felt by slight
vibrations of the brake pedal.

In emergency braking,
press very fi rmly without
releasing the pressure. TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and sup-
plement the ABS.
The ASR system optimises drive to
prevent the wheels skidding, by act-
ing on the brakes of the driving wheels
and on the engine. It also allows the
directional stability of the vehicle to
be improved on acceleration.
If there is a variation between the tra-
jectory followed by the vehicle and
that required by the driver, the ESP
system automatically acts on the
brake of one or more wheels and on
the engine to put the vehicle back on
course, within the limits of the laws
of physics.
Operating check
Operation of the ASR and ESP
systems When one of these two
systems is operating, this
warning lamp comes on. When a malfunction of the
systems occurs, this warning
lamp comes on.
The ASR/ESP systems offer
exceptional safety during nor-
mal driving, but this should not
encourage the driver to take
extra risks or drive at high speed.
Correct operation of these systems
depends on observation of the manu-
facturer's recommendations regard-
ing the wheels (tyres and rims),
the braking components and the
electronic components as well as
the PEUGEOT dealer repair proce-
dures.
After an impact, have these systems
checked by a PEUGEOT dealer.
Activation of the ESP system is also
accompanied by an audible signal. Contact a PEUGEOT dealer to have
the systems checked.

6
56
SAFETY When this warning lamp
comes on, it indicates that
there is a malfunction of the
ABS, which can cause a
loss of control of the vehicle
when braking.
Consult a PEUGEOT dealer.
When these warn-
ing lamps come
on simultaneously,
it indicates that
there is a malfunc-
tion of the braking system or that the
parking brake has not been released
fully, which can cause a loss of con-
trol of the vehicle when braking.

Stop immediately.
Consult a PEUGEOT dealer.
Normal operation of the ABS
may make itself felt by slight
vibrations of the brake pedal.

In emergency braking,
press very fi rmly without
releasing the pressure. TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and sup-
plement the ABS.
The ASR system optimises drive to
prevent the wheels skidding, by act-
ing on the brakes of the driving wheels
and on the engine. It also allows the
directional stability of the vehicle to
be improved on acceleration.
If there is a variation between the tra-
jectory followed by the vehicle and
that required by the driver, the ESP
system automatically acts on the
brake of one or more wheels and on
the engine to put the vehicle back on
course, within the limits of the laws
of physics.
Operating check
Operation of the ASR and ESP
systems When one of these two
systems is operating, this
warning lamp comes on. When a malfunction of the
systems occurs, this warning
lamp comes on.
The ASR/ESP systems offer
exceptional safety during nor-
mal driving, but this should not
encourage the driver to take
extra risks or drive at high speed.
Correct operation of these systems
depends on observation of the manu-
facturer's recommendations regard-
ing the wheels (tyres and rims),
the braking components and the
electronic components as well as
the PEUGEOT dealer repair proce-
dures.
After an impact, have these systems
checked by a PEUGEOT dealer.
Activation of the ESP system is also
accompanied by an audible signal. Contact a PEUGEOT dealer to have
the systems checked.

6
57
SAFETY

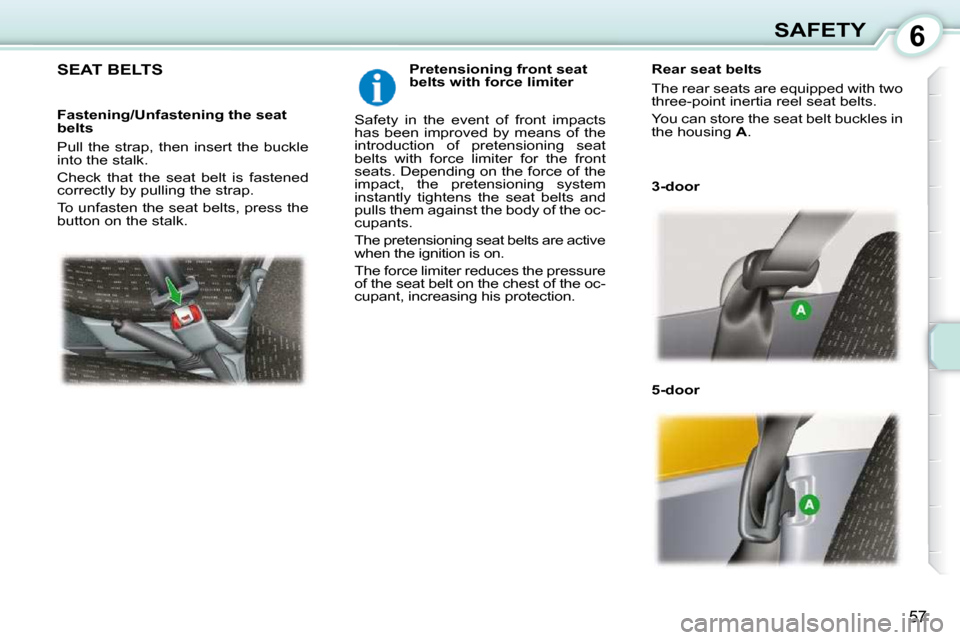

SEAT BELTS Pretensioning front seat
belts with force limiter
Safety in the event of front impacts
has been improved by means of the
introduction of pretensioning seat
belts with force limiter for the front
seats. Depending on the force of the
impact, the pretensioning system
instantly tightens the seat belts and
pulls them against the body of the oc-
cupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the oc-
cupant, increasing his protection. 3-door
5-door
Rear seat belts
The rear seats are equipped with two
three-point inertia reel seat belts.
You can store the seat belt buckles in
the housing
A .
Fastening/Unfastening the seat
belts
Pull the strap, then insert the buckle
into the stalk.
Check that the seat belt is fastened
correctly by pulling the strap.
To unfasten the seat belts, press the
button on the stalk.

6
58
SAFETY The driver must ensure that
the passengers use the seat
belts correctly and that they
are all properly restrained
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
they will not fulfi l their role fully.
If the seats have armrests * , the lap
part of the seat belt must always
pass under the armrest.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle rolls over. You can release
the device by pulling rapidly on the
strap and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or modifi ed to avoid altering its
performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years
old or shorter than one metre
fi fty,
- do not use the strap-guide * when a child seat is installed.
- never use the same seat belt to secure more than one person,
- never allow a child to travel on your lap.

Depending on the nature and se-
riousness of the impacts
,
the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight emission
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the air bag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
* According to model.
