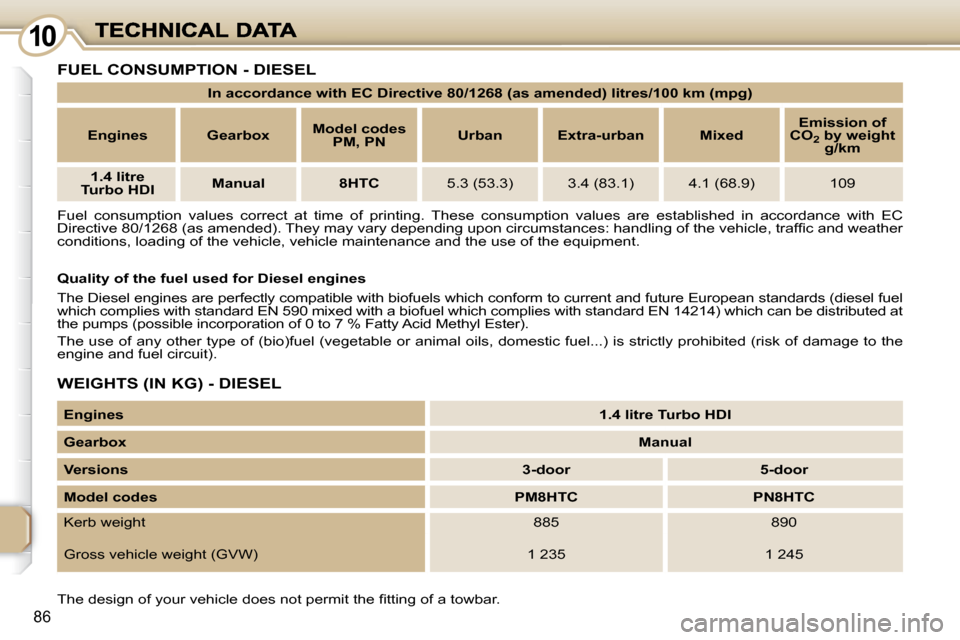

FUEL CONSUMPTION - DIESEL
Fuel consumption values correct at time of printing. These consumption values are established in accordance with EC
D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d ) . T h e y m a y v a r y d e p e n d i n g u p o n c i r c u m s t a n c e s : h a n d l i n g o f t h e v e h i c l e , t r a f fi c a n d w e a t h e r
conditions, loading of the vehicle, vehicle maintenance and the use of the equipment.
I n a c c o r d a n c e w i t h E C D i r e c t i v e 8 0 / 1 2 6 8 ( a s a m e n d e d )
l i t r e s / 1 0 0 k m
(
m p g
)
Engines Gearbox
Model codes
PM, PN
Urban Extra
-urban Mixed
E m i s s i o n o f
CO 2 by weight
g / k m
1.4 litre
Turbo HDI
Manual 8 H T C 5.3 (53.3) 3.4 (83.1) 4.1 (68.9) 109
Q u a l i t y o f t h e f u e l u s e d f o r D i e s e l e n g i n e s
The Diesel engines are perfectly compatible with b iofuels which conform to current and future Europea n standards (diesel fuel
which complies with standard EN 590 mixed with a bi ofuel which complies with standard EN 14214) which can be distributed at
the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to t he
engine and fuel circuit).
WEIGHTS (IN KG) - DIESEL
T h e d e s i g n o f y o u r v e h i c l e d o e s n o t p e r m i t t h e fi t t i n g o f a t o w b a r .
Engines
1.4 litre Turbo HDI
Gearbox
Manual
Versions
3-door 5-door
Model codes
P M 8 H T C P N 8 H T C
Kerb weight 885 890
Gross vehicle weight (GVW) 1 235 1 245
Page 98 of 99
1010
87
TECHNICAL DATA
DIMENSIONS (IN MM)
Page 99 of 99
1010
88

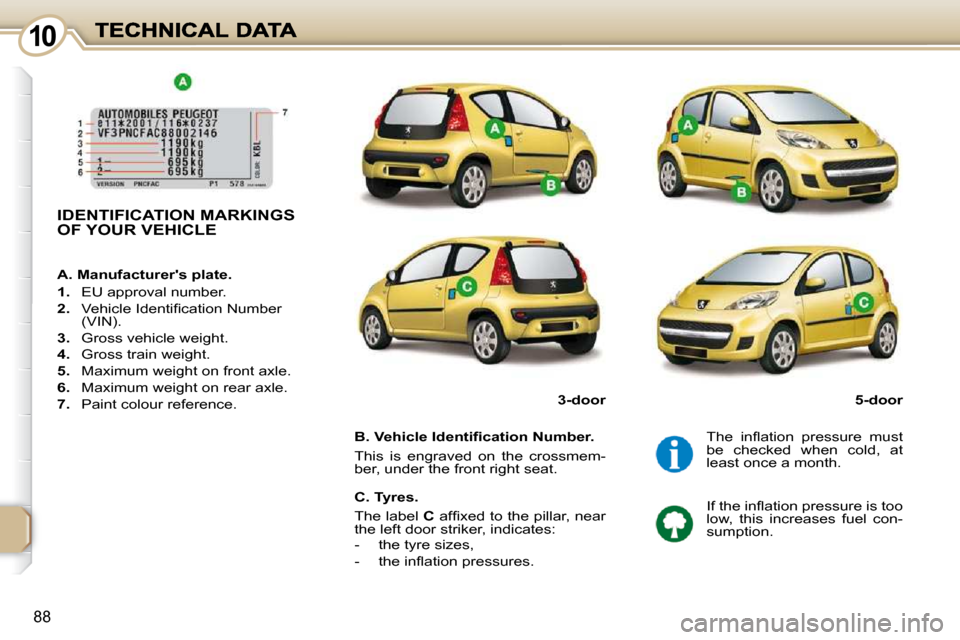

IDENTIFICATION MARKINGS OF YOUR VEHICLE
B . V e h i c l e I d e n t i fi c a t i o n N u m b e r .
This is engraved on the crossmem-
ber, under the front right seat. T h e i n fl a t i o n p r e s s u r e m u s t
be checked when cold, at
least once a month.
A . M a n u f a c t u r e r ' s p l a t e .
1. EU approval number.
2 . V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN).
3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front axle.
6 . Maximum weight on rear axle.
7. Paint colour reference. 5-door
3-door
I f t h e i n fl a t i o n p r e s s u r e i s t o o
low, this increases fuel con-
sumption.
C. Tyres.
The label
C a f fi x e d t o t h e p i l l a r , n e a r
the left door striker, indicates:
- the tyre sizes,
- t h e i n fl a t i o n p r e s s u r e s .
