PRACTICAL INFORMATION

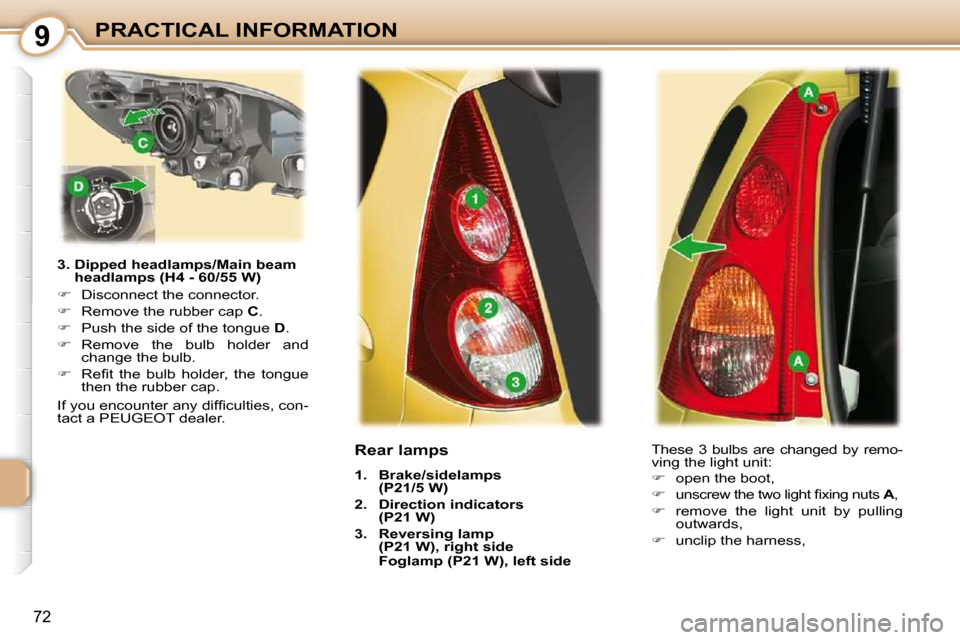

3. Dipped headlamps/Main beam headlamps (H4 - 60/55 W)
Disconnect the connector.
Remove the rubber cap C .
Push the side of the tongue D .
Remove the bulb holder and
change the bulb.
R e fi t t h e b u l b h o l d e r , t h e t o n g u e
then the rubber cap.
I f y o u e n c o u n t e r a n y d i f fi c u l t i e s , c o n -
tact a PEUGEOT dealer.
Rear lamps
1. Brake/
sidelamps
(P21/5 W)
2. Direction indicators
(P21 W)
3. Reversing
lamp
(P21 W), right side These 3 bulbs are changed by remo-
ving the light unit:
open the boot,
u n s c r e w t h e t w o l i g h t fi x i n g n u t s A ,
remove the light unit by pulling
outwards,
unclip the harness,
Foglamp (P21 W), left side
Page 82 of 99
9
73
PRACTICAL INFORMATION Third brake lamp
(Four W 5 W bulbs)
U n s c r e w t h e 2 fi x i n g b o l t s A .
Release the lamp unit by pushing
the two tabs B inwards.
Disconnect the connector and the
rear wash-wipe pipe.
Remove the bulb holder.
Remove the bulb and change it.
W h e n r e fi t t i n g , p r o c e e d i n t h e r e v e r s e
order and ensure that the lamp unit
seal and the rear wash-wipe pipe have
been put back in place correctly.
Number plate lamps
(W 5 W)
Pass your hand under the bumper.
Remove the bulb holder turning it
one quarter of a turn.
Remove the bulb and change it.
Do not tighten the bolts more
than is necessary at the risk
of breaking the light.
remove the bulb holder by spread-
ing the four tongues B ,
remove the bulb and change it.
Note: w h e n r e fi t t i n g , p r o c e e d i n t h e
reverse order and take care to posi-
tion the bulb holder, the tongues and
the light unit correctly.
Page 83 of 99
9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pull-
ing towards you.
Disconnect the bulb holder and
change it.

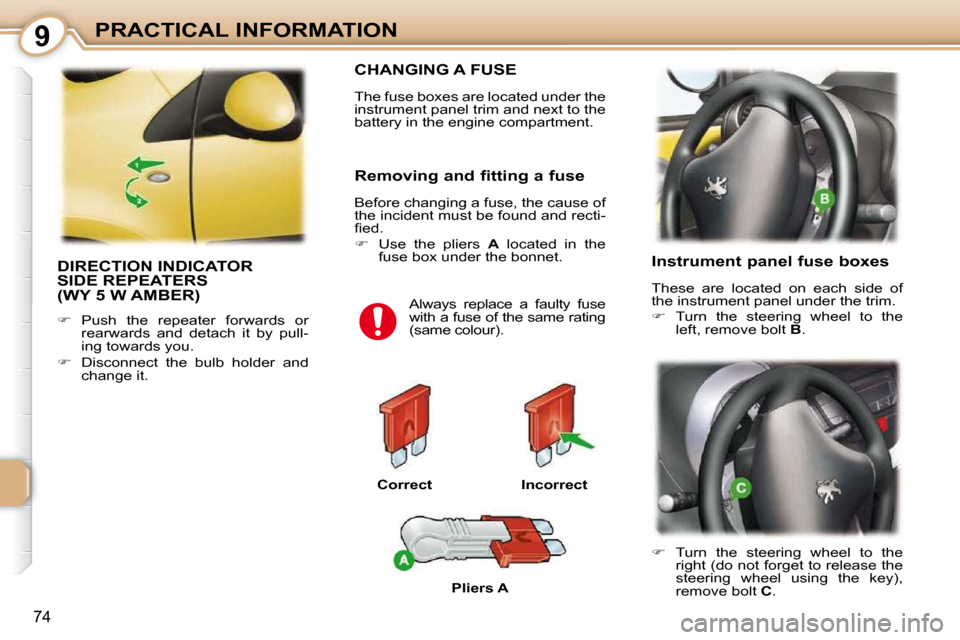

CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Correct
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and recti-
fi e d .
Use the pliers A located in the
fuse box under the bonnet.
Incorrect
Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 84 of 99
9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pull-
ing towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Correct
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and recti-
fi e d .
Use the pliers A located in the
fuse box under the bonnet.
Incorrect
Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 85 of 99
9
74
PRACTICAL INFORMATION
DIRECTION INDICATOR SIDE REPEATERS (WY 5 W AMBER)
Push the repeater forwards or
rearwards and detach it by pull-
ing towards you.
Disconnect the bulb holder and
change it.
CHANGING A FUSE
The fuse boxes are located under the
instrument panel trim and next to the
battery in the engine compartment.
Correct
Removing and fitting a fuse
Before changing a fuse, the cause of
the incident must be found and recti-
fi e d .
Use the pliers A located in the
fuse box under the bonnet.
Incorrect
Pliers A Instrument panel fuse boxes
These are located on each side of
the instrument panel under the trim.
Turn the steering wheel to the
left, remove bolt B .
Turn the steering wheel to the
right (do not forget to release the
steering wheel using the key),
remove bolt C .
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Page 86 of 99
9
75
PRACTICAL INFORMATION

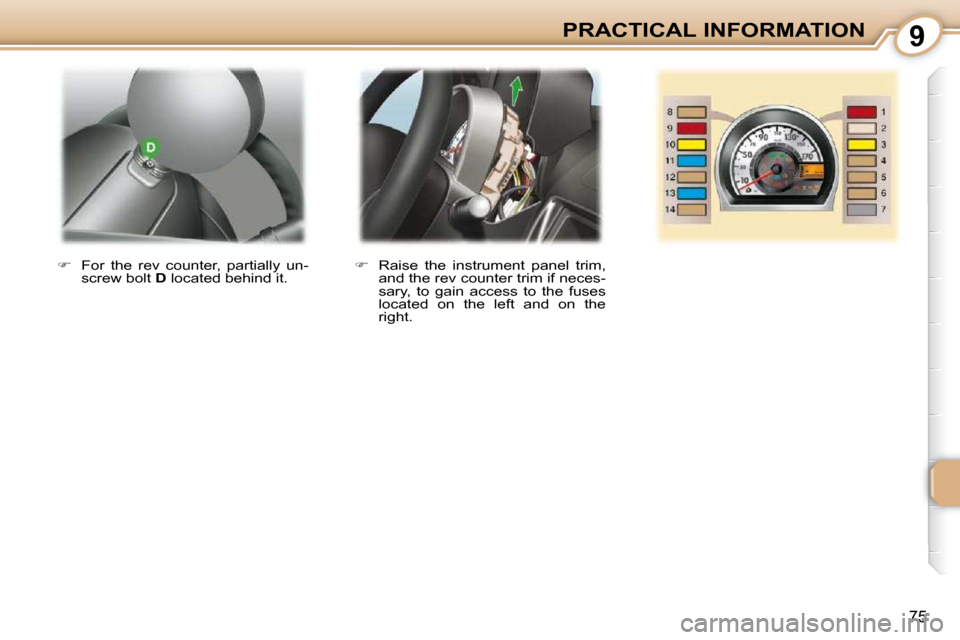

Raise the instrument panel trim,
and the rev counter trim if neces-
sary, to gain access to the fuses
located on the left and on the
right.
For the rev counter, partially un-
screw bolt D located behind it.
Page 87 of 99
9
76
PRACTICAL INFORMATION
* Fuses located behind the instrument panel. To change them, contact a PEUGEOT dealer.

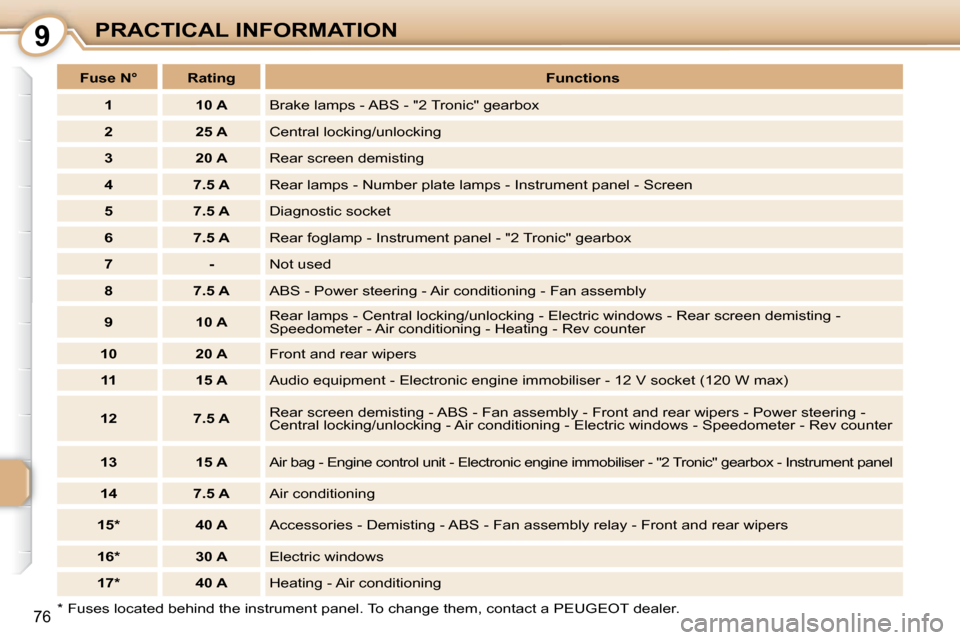

Fuse N° Rating
Functions
1 10 A Brake lamps - ABS - "2 Tronic" gearbox
2 25 A Central locking/unlocking
3 20 A Rear screen demisting
4 7.5 A Rear lamps - Number plate lamps - Instrument panel - Screen
5 7.5 A Diagnostic socket
6 7.5 A Rear foglamp - Instrument panel - "2 Tronic" gearbox
7 - Not used
8 7.5 A ABS - Power steering - Air conditioning - Fan assembly
9 10 A Rear lamps - Central locking/unlocking - Electric windows - Rear scree
n demisting -
Speedometer - Air conditioning - Heating - Rev counter
10 20 A Front and rear wipers
11 15 A Audio equipment - Electronic engine immobiliser - 12 V socket (120 W max)
12 7.5 A Rear screen demisting - ABS - Fan assembly - Front and rear wipers - Powe
r steering -
Central locking/unlocking - Air conditioning - Electric windows - Speedometer - Rev counter
13 15 A
Air bag - Engine control unit - Electronic engine immobiliser - "2 Tronic" gearbox - Instrument panel
14 7.5 A Air conditioning
15 * 40 A Accessories - Demisting - ABS - Fan assembly relay - Front and rear wipe rs
16 * 30 A Electric windows
17 * 40 A Heating - Air conditioning
Page 88 of 99
9
77
PRACTICAL INFORMATION

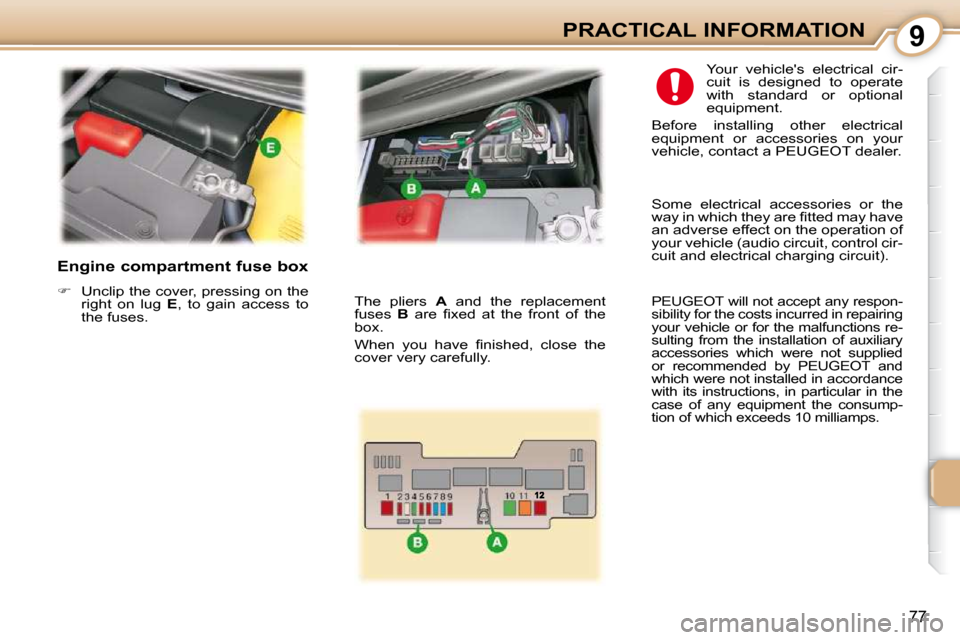

Engine compartment fuse box
Unclip the cover, pressing on the
right on lug E , to gain access to
the fuses. Your vehicle's electrical cir-
cuit is designed to operate
with standard or optional
equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
The pliers A and the replacement
fuses B a r e fi x e d a t t h e f r o n t o f t h e
box.
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover very carefully. Some electrical accessories or the
w a y i n w h i c h t h e y a r e fi t t e d m a y h a v e
an adverse effect on the operation of
your vehicle (audio circuit, control cir-
cuit and electrical charging circuit).
PEUGEOT will not accept any respon-
sibility for the costs incurred in repairing
your vehicle or for the malfunctions re-
sulting from the installation of auxiliary
accessories which were not supplied
or recommended by PEUGEOT and
which were not installed in accordance
with its instructions, in particular in the
case of any equipment the consump-
tion of which exceeds 10 milliamps.
