Page 17 of 99
1
20
INSTRUMENTS and CONTROLS
DISPLAY SCREEN
To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 . "2 Tronic" gearbox indicator
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It is switched off on switching to manual
mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
It is switched off on switching to
EASY mode.
"Neutral"
"Reverse"
Total/trip distance recorder
When the ignition is switched on,
the distance recorder selected when
the engine was switched off is dis-
played.
Press button
1 to alternate the dis-
tance display:
- total with "ODO" displayed,
- trip with "TRIP" displayed.
Page 18 of 99
1
20
INSTRUMENTS and CONTROLS
DISPLAY SCREEN
To reset the trip recorder to zero,
when it is displayed, press and hold
button 1 . "2 Tronic" gearbox indicator
Lever in EASY mode
(automatic mode)
"E" is displayed when this
operating mode is selected.
It is switched off on switching to manual
mode.
Lever in manual mode
"M" is displayed when this
operating mode is selected.
It is switched off on switching to
EASY mode.
"Neutral"
"Reverse"
Total/trip distance recorder
When the ignition is switched on,
the distance recorder selected when
the engine was switched off is dis-
played.
Press button
1 to alternate the dis-
tance display:
- total with "ODO" displayed,
- trip with "TRIP" displayed.
Page 19 of 99
1
21
INSTRUMENTS and CONTROLS
Operating mode:
1st gear
2nd gear
3rd gear
4th gear
5th gear
If this warning lamp comes
on, with the engine running,
this indicates a malfunction
of the "
2 Tronic
" gearbox. Fuel gauge
This indicates the quantity of fuel
available:
-
1/1 and six segments, the fuel
tank is full.
- R a n d o n e s e g m e n t fl a s h i n g , t h e
fuel tank is on the reserve.
Low fuel level
When the minimum level in the fuel tank is
r e a c h e d , t h e l a s t s e g m e n t fl a s h e s a c c o m p a -
nied by an audible signal.
In certain driving conditions and depending
on the engine, the distance which can be trav-
elled with the fuel remaining may be less than
30 miles (50 km).
You have approximately 5 litres remaining.
W h e n t h e f r e q u e n c y o f t h e fl a s h i n g i n c r e a s e s ,
you have approximately 3 litres remaining .
At least 5 litres must be added after
running out of fuel.
Running out of diesel fuel
After running out of fuel, you
can travel a short distance
after 10 pump repriming op-
erations (see corresponding
section).
A f t e r fi l l i n g t h e f u e l t a n k ( m i n i m u m
5 litres), operate the repriming pump
at least 10 times (see corresponding
section).
"!" warning
lamp
Consult a PEUGEOT dealer.
Page 20 of 99
2
22

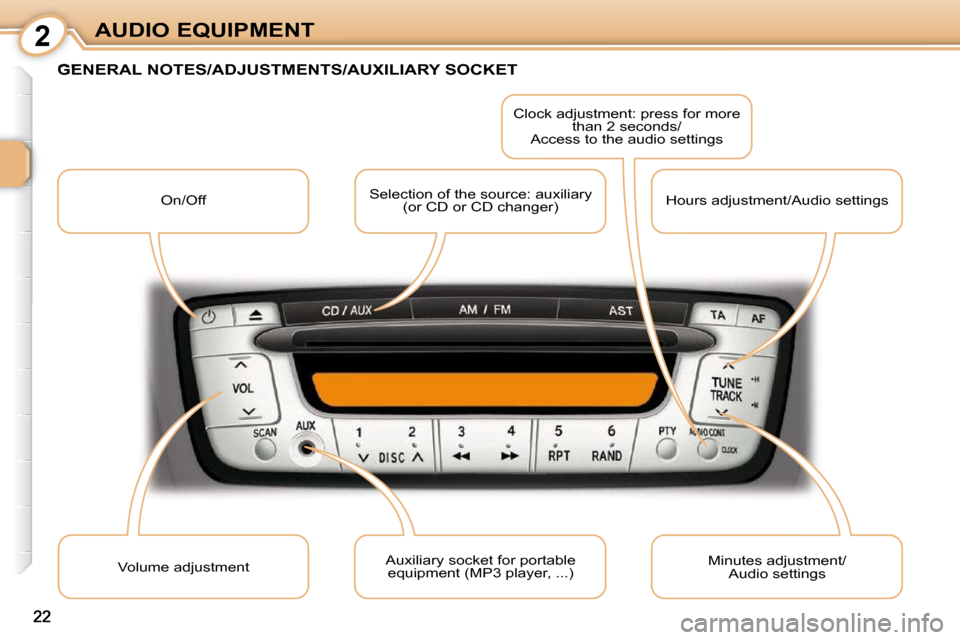

AUDIO EQUIPMENT
GENERAL NOTES/ADJUSTMENTS/AUXILIARY SOCKET
On/Off Selection of the source: auxiliary
(or CD or CD changer) Clock adjustment: press for more
than 2 seconds/
Access to the audio settings
Volume adjustment Auxiliary socket for portable
equipment (MP3 player, ...) Hours adjustment/Audio settings
Minutes adjustment/Audio settings
Page 21 of 99
2
23
AUDIO EQUIPMENT
GENERAL FUNCTIONS
On/off
With the ignition key
in the accessories po-
sition or with the ignition on, press
this button to switch the audio equip-
ment on or off.
After the engine has been switched
off, the audio equipment can
only operate for approximately
30 minutes, to prevent discharg-
ing of the battery. Press the upper part
of this button several
times in succession to
increase the volume
of the audio equip-
ment or the lower part
of this button to de-
crease it.
VOLUME ADJUSTMENT
CLOCK ADJUSTMENT
Press this button sev-
eral times in succes-
sion to gain access
to the bass
(BASS) ,
treble (TREB) , front/rear balance
(FAD) and left/right balance (BAL)
settings.
AUDIO SETTINGS
Press this button for
more than 2 seconds,
the clock display
fl a s h e s :
AUXILIARY SOCKET
An auxiliary socket
"AUX" is provided for
the connection of port-
able equipment (MP3
player, etc.).
When the parameter
is displayed, change
the setting using these
two buttons.
You exit from this mode automati-
cally after a few seconds without any
action. In order to listen to it,
connect your equip-
ment then press this
button.
The audio equipment controls enable
you to adjust the volume and the audio
settings.
To exit from the AUX source, press
AM/FM .
When using an MP3 player: in-
c r e a s e t h e v o l u m e o f t h e r a d i o s i g n i fi -
cantly (between 30 and 60) to obtain
a satisfactory playing volume.
- to adjust the hours, press this button,
- to adjust the minutes, press this button.
You exit from this mode automati-
cally after a few seconds without any
action.
Page 22 of 99
2
24

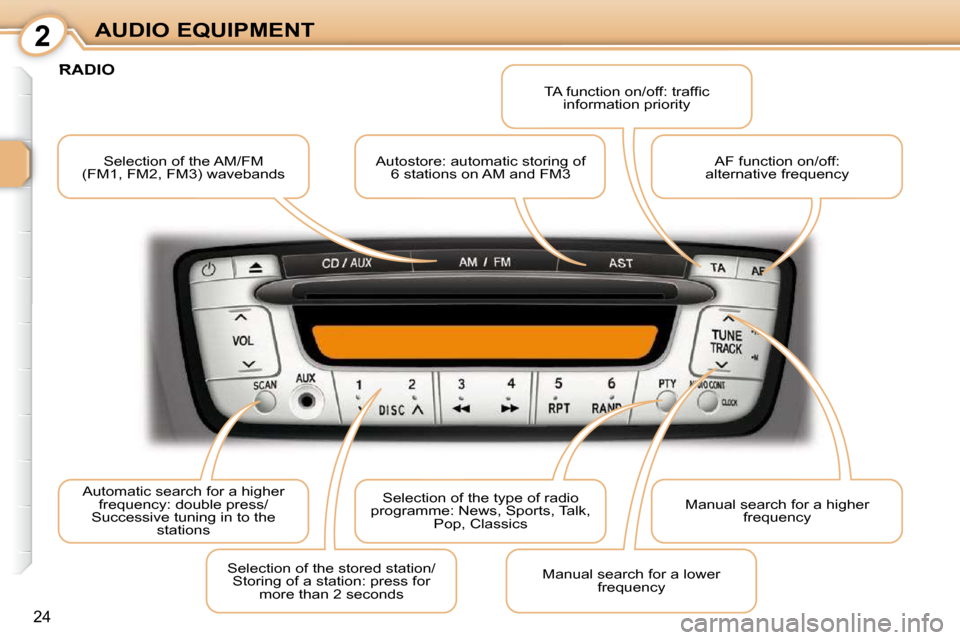

AUDIO EQUIPMENT Selection of the AM/FM
(FM1, FM2, FM3) wavebands Autostore: automatic storing of
6 stations on AM and FM3 T A f u n c t i o n o n / o f f : t r a f fi c
information priority
Automatic search for a higher frequency: double press/
Successive tuning in to the stations Selection of the type of radio
programme: News, Sports, Talk, Pop, Classics AF function on/off:
alternative frequency
Manual search for a higher frequency
Selection of the stored station/ Storing of a station: press for more than 2 seconds Manual search for a lower
frequency
RADIO
Page 23 of 99
2
25
AUDIO EQUIPMENT
Stereo reception
When the audio equipment receives
a station broadcasting in stereo it au-
tomatically transmits stereo sound
and the screen displays "ST" . If the
reception conditions deteriorate, the
audio equipment returns to mono
transmission and "ST" is no longer
displayed. Press one of these
t w o b u t t o n s b r i e fl y t o
increase or decrease
the frequency dis-
played respectively.
If you maintain the
pressure on the button
in the chosen direc-
tion, the frequency will
be scanned continu-
ously.
The scan stops when you release the
button.
Manual station search
Automatic station search
Manual station storing
Selection of the radio source
Selection of a waveband
Press this button. Press this button twice
to select the next sta-
tion.
P r e s s t h i s b u t t o n b r i e fl y t o l i s t e n t o
each station available on the FM
waveband for three seconds. To stop
the station scan, press this button
again.
I f t h e t r a f fi c i n f o r m a t i o n p r o g r a m m e
TA is selected, only stations which
broadcast this type of programme
are selected.
Press the button suc-
cessively to select
the wavebands FM1,
FM2, FM3 and AM. Select the required station.
Press one of the buttons "1" to "6"
for more than 2 seconds
A n a u d i b l e s i g n a l c o n fi r m s t h a t t h e
station has been stored.
Page 24 of 99
2
26

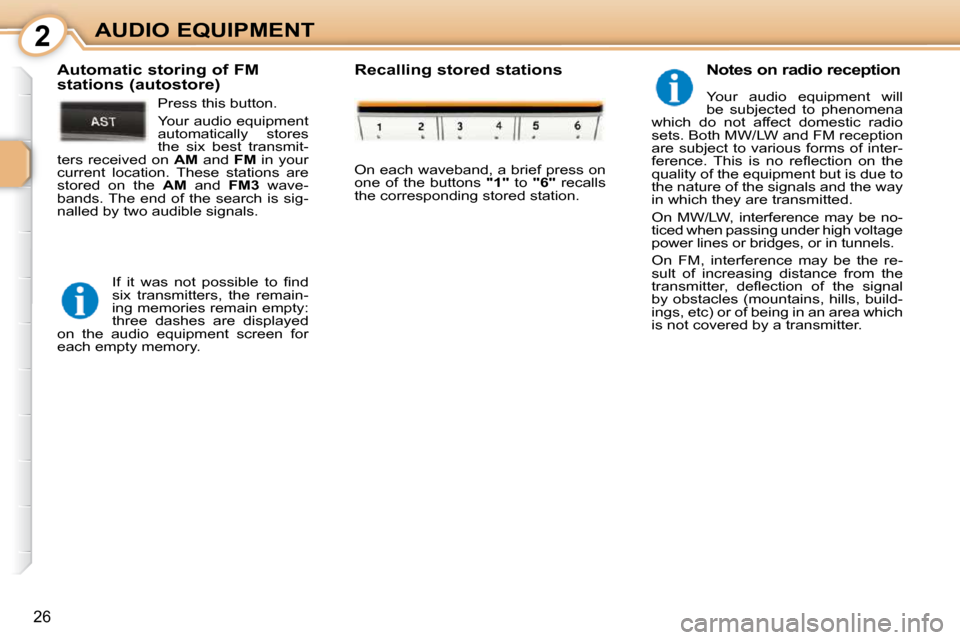

AUDIO EQUIPMENT Notes on radio reception
Your audio equipment will
be subjected to phenomena
which do not affect domestic radio
sets. Both MW/LW and FM reception
are subject to various forms of inter-
f e r e n c e . T h i s i s n o r e fl e c t i o n o n t h e
quality of the equipment but is due to
the nature of the signals and the way
in which they are transmitted.
On MW/LW, interference may be no-
ticed when passing under high voltage
power lines or bridges, or in tunnels.
On FM, interference may be the re-
sult of increasing distance from the
t r a n s m i t t e r , d e fl e c t i o n o f t h e s i g n a l
by obstacles (mountains, hills, build-
ings, etc) or of being in an area which
is not covered by a transmitter.
Automatic storing of FM
stations (autostore)
Press this button.
Your audio equipment
automatically stores
the six best transmit-
ters received on AM and FM in your
current location. These stations are
stored on the AM and FM3 wave-
bands. The end of the search is sig-
nalled by two audible signals. Recalling stored stations
On each waveband, a brief press on
one of the buttons
"1" to "6" recalls
the corresponding stored station.
I f i t w a s n o t p o s s i b l e t o fi n d
six transmitters, the remain-
ing memories remain empty:
three dashes are displayed
on the audio equipment screen for
each empty memory.
