2009 MAZDA MODEL TRIBUTE Owners Manual (in English)

Introduction4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 16
Entertainment Systems19
AM/FM stereo with CD/MP3 19
Auxiliary input jack (Line in) 27
USB port 29

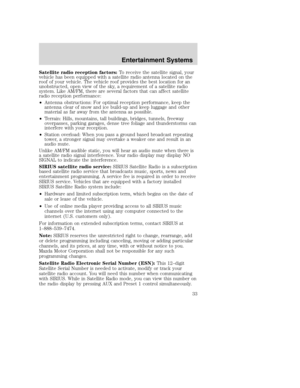

Satellite radio information 32
Climate Controls36
Manual heating and air conditioning 36
Rear window defroster 38
Lights39
Headlamps 39
Turn signal control 42
Bulb replacement 44
Driver Controls49
Windshield wiper/washer control 49
Steering wheel adjustment 50
Power windows 54
Mirrors 55
Cruise control 57
Moon roof 59
Locks and Security67

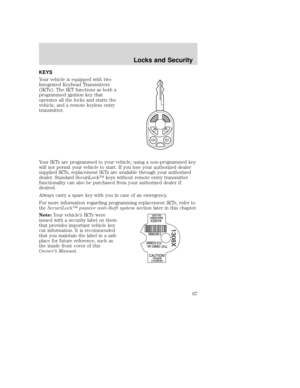

Keys 67
Locks 69
Anti-theft system 77
Table of Contents
1
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)

Seating and Safety Restraints82
Seating 82
Safety restraints 93
Airbags 108

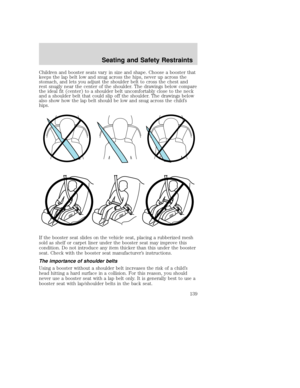

Child restraints 124
Tires, Wheels and Loading141
Tire information 143
Tire inflation 145
Tire Pressure Monitoring System (TPMS) 159
Vehicle loading 164
Trailer towing 171
Recreational towing 176
Driving178
Starting 178
Brakes 184
Electronic stability control 187

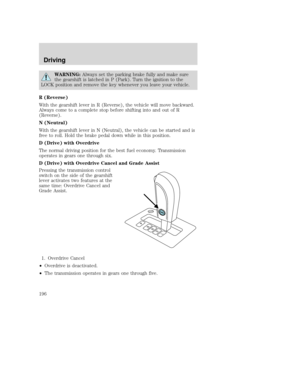

Transmission operation 193
Roadside Emergencies207
Hazard flasher switch 207

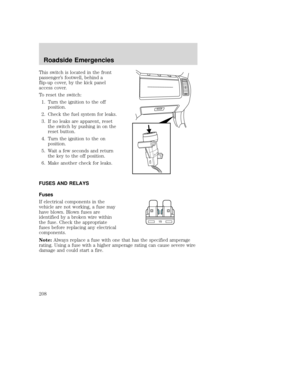

Fuel pump shut-off switch 207
Fuses and relays 208
Changing tires 215
Wheel lug nut torque 226

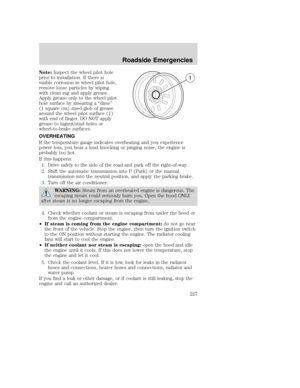

Overheating 227
Jump starting 228
Wrecker towing 234
Customer Assistance236

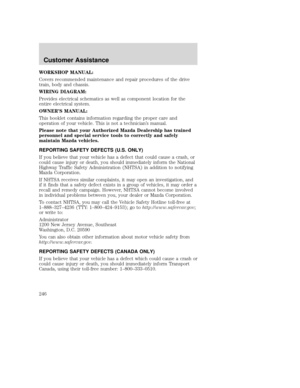

Reporting safety defects (U.S. only) 246
Reporting safety defects (Canada only) 246
Cleaning247
Table of Contents
2
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)

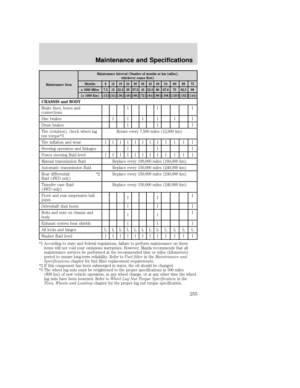

Maintenance and Specifications253
Engine compartment 261
Engine oil 265
Battery 269
Engine coolant 271
Fuel information 277
Air filter(s) 291
Maintenance product specifications and capacities 293
Engine data 295
Accessories298
Index 299
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from MNAO. MNAO may change the contents without notice and
without incurring obligation.
Copyright © 2008 MNAO
Table of Contents
3
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)

CONGRATULATIONS
Congratulations on acquiring your new Mazda product. Please take the
time to get well acquainted with your vehicle by reading this handbook.
The more you know and understand about your vehicle, the greater the
safety and pleasure you will derive from driving it.
For more information on Mazda and its products visit the following
website:
•In the United States: www.mazdausa.com
• In Canada: www.mazda.ca
Additional owner information is given in separate publications or refer to
the Mazda importers/distributors section in theCustomer Assistance
chapter.
This Owner’s Manual describes every option and model variant available
and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.
Remember to pass on the Owner’s Manual when reselling the vehicle. It
is an integral part of the vehicle.
WARNING: In the event of an accident the Fuel pump shut-off
switch will automatically cut off the fuel supply to the engine.
The switch can also be activated through sudden vibration (e.g.
collision when parking). To reset the switch, refer to the Fuel pump
shut-off switch in theRoadside Emergencies chapter.
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of
personal injury to yourself or
others? In this guide, answers to
such questions are contained in
comments highlighted by a bold
WARNING statement. These comments should be read and observed.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Introduction
4

Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
Always dispose of used automotive fluids in a responsible manner. Follow
your community’s regulations and standards for recycling and disposing
of automotive fluids.
CALIFORNIA Proposition 65 Warning
WARNING:Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Certain components of this vehicle such as airbag modules, seat belt
pretensioners, and button cell batteries may contain Perchlorate Material
– Special handling may apply for service or vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Drive your new vehicle at least 1,000 miles (1,600 km) before towing a
trailer. For more detailed information about towing a trailer, refer to
Trailer towing in theTires, Wheels and Loading chapter.
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Introduction
5

Do not add friction modifier compounds or special break-in oils since
these additives may prevent piston ring seating. SeeEngine oilin the
Maintenance and Specifications chapter for more information on oil
usage.
SPECIAL NOTICES
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Mazda
North American Operations, Mazda Canada, and service and repair
facilities may access vehicle diagnostic information through a direct
connection to your vehicle when diagnosing or servicing your vehicle.
Event Data Recording
Other modules in your vehicle — event data recorders — are capable of
collecting and storing data during a crash or near crash event. The
recorded information may assist in the investigation of such an event.
The modules may record information about both the vehicle and the
occupants, potentially including information such as:
• how various systems in your vehicle were operating;
• whether or not the driver and passenger seatbelts were buckled;
• how far (if at all) the driver was depressing the accelerator and/or the
brake pedal;
• how fast the vehicle was traveling; and
• where the driver was positioning the steering wheel.
To access this information, special equipment must be directly connected
to the recording modules. Mazda North American Operations and Mazda
Canada do not access event data recorder information without obtaining
consent, unless pursuant to court order or where required by law
enforcement, other government authorities or other third parties acting
with lawful authority. Other parties may seek to access the information
independently of Mazda North American Operations and Mazda Canada.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Introduction
6

Emission warranty
The New Vehicle Limited Warranty includes Bumper to Bumper
Coverage, Safety Restraint Coverage and Corrosion Coverage. In addition,
your vehicle is eligible for Emissions Defect and Emissions Performance
Warranties. For a detailed description of what is covered and what is not
covered, refer to theWarranty Guidethat is provided to you along with
your Owner’s Manual.
Using your vehicle with a snowplow
WARNING: Do not use this vehicle for snowplowing.
Your vehicle is not equipped with a snowplowing package.
Using your vehicle as an ambulance
WARNING: Do not use this vehicle as an ambulance.
Your vehicle is not equipped with an ambulance preparation package.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Introduction
7

These are some of the symbols you may see on your vehicle.Vehicle Symbol Glossary
Safety Alert
See Owner’s Manual
Protecting the
EnvironmentFasten Seat Belt
Airbag - FrontAirbag - Side
Passenger Airbag OffChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemMaster Lighting Switch
Hazard Warning FlasherFog Lamps-Front
Fuse CompartmentFuel Pump Reset
Windshield Wash/WipeWindshield
Defrost/Demist
Rear Window
Defrost/DemistPower Windows
