If any of these things happen, even intermittently, have the Personal
Safety Systemserviced at an authorized dealer immediately. Unless
serviced, the system may not function properly in the event of a
collision.
Safety restraints precautions
WARNING: Always drive and ride with your seatback upright
and the lap belt snug and low across the hips and the shoulder
belt snug across the chest.
WARNING: To reduce the risk of injury, make sure children sit
where they can be properly restrained.
WARNING: Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
WARNING: All occupants of the vehicle, including the driver,
should always properly wear their seat belts, even when an air
bag supplemental restraint system (SRS) is provided.
WARNING: It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts. Be sure everyone in your vehicle is in a seat
and using a seat belt properly.
WARNING: In a rollover crash, an unbelted person is
significantly more likely to die or be seriously injured than a
person wearing a seat belt.
WARNING: Each seating position in your vehicle has a specific
seat belt assembly which is made up of one buckle and one
tongue that are designed to be used as a pair. 1) Use the shoulder belt
on the outside shoulder only. Never wear the shoulder belt under the
arm. 2) Never swing the seat belt around your neck over the inside
shoulder. 3) Never use a single belt for more than one person.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
97

WARNING:Placing a child, 12 years or younger, in the front
seat is dangerous. The child could be hit by a deploying airbag
and be seriously injured or even killed. A sleeping child is more likely
to lean against the door and be hit by the side airbag (if equipped) in a
moderate collision. Whenever possible, always secure a child, 12 years
or younger, in the rear seat, with an appropriate child restraint system
for the child’s age and size. Never use a rear-facing child restraint
system in the front seat with an airbag that could deploy.
WARNING: Front and rear seat occupants, including pregnant
women, should wear seat belts for optimum protection in an
accident.
Combination lap and shoulder belts 1. Insert the belt tongue into the proper buckle (the buckle
closest to the direction the
tongue is coming from) until
you hear a snap and feel it
latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, push the release button and remove the tongue
from the buckle.
Load Limiter Feature
• This vehicle has a seat belt system with a load limiter feature at the
front and rear outboard seating positions to help further reduce the
risk of injury in the event of a head-on collision.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
98

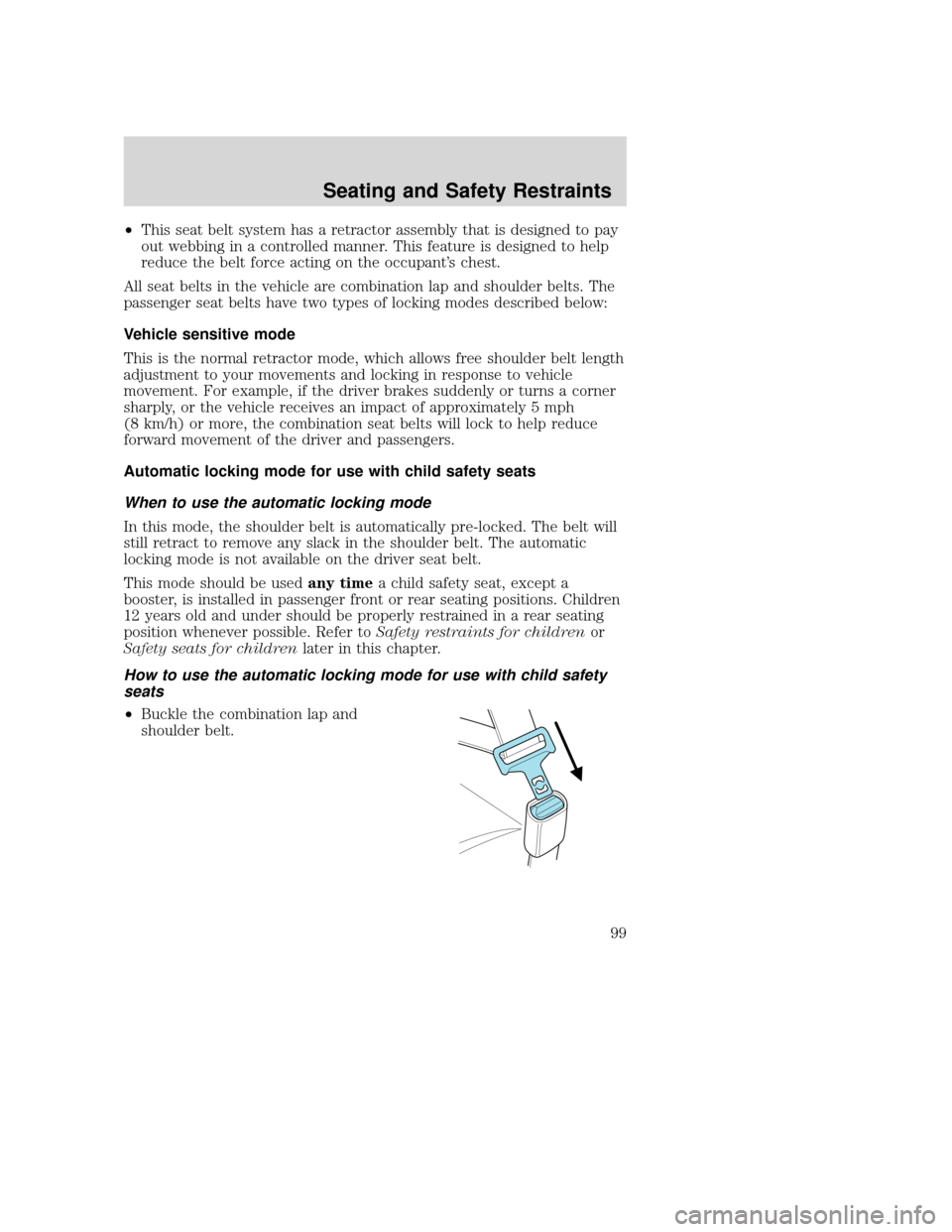

•This seat belt system has a retractor assembly that is designed to pay
out webbing in a controlled manner. This feature is designed to help
reduce the belt force acting on the occupant’s chest.
All seat belts in the vehicle are combination lap and shoulder belts. The
passenger seat belts have two types of locking modes described below:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder belt length
adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph
(8 km/h) or more, the combination seat belts will lock to help reduce
forward movement of the driver and passengers.
Automatic locking mode for use with child safety seats
When to use the automatic locking mode
In this mode, the shoulder belt is automatically pre-locked. The belt will
still retract to remove any slack in the shoulder belt. The automatic
locking mode is not available on the driver seat belt.
This mode should be used any timea child safety seat, except a
booster, is installed in passenger front or rear seating positions. Children
12 years old and under should be properly restrained in a rear seating
position whenever possible. Refer to Safety restraints for childrenor
Safety seats for children later in this chapter.
How to use the automatic locking mode for use with child safety
seats
• Buckle the combination lap and
shoulder belt.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
99

•Grasp the shoulder portion and
pull downward until the entire
belt is pulled out.
• Allow the belt to retract. As the belt retracts, you will hear a clicking
sound. This indicates the seat belt is now in the automatic locking
mode.
How to disengage the automatic locking mode
Disconnect the combination lap/shoulder belt and allow it to retract
completely to disengage the automatic locking mode and activate the
vehicle sensitive (emergency) locking mode.
If the seat belt is not coming out of the retractor when it looks to be
fully retracted, check to see if it might still be attached to the side of the
vehicle by the snaps designed to keep it out of the way when you last
put the rear seat into cargo configuration. Refer to Returning the rear
seats to upright position in this chapter.
WARNING:After any vehicle collision, the seat belt systems at
all seating positions (except the driver position, which doesn’t
have this feature) must be checked by an authorized dealer to verify
that the automatic locking retractor feature for child seats is still
functioning properly. In addition, all seat belts should be checked for
proper function.
WARNING: BELT AND RETRACTOR ASSEMBLY MUST BE
REPLACED if the seat belt assembly “automatic locking
retractor” feature or any other seat belt function is not operating
properly when checked according to the procedures in Workshop
Manual. Failure to replace the Belt and Retractor assembly could
increase the risk of injury in collisions.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
100

Seat belt height adjustment
Your vehicle has seat belt height
adjustments at the front outboard
seating positions. Adjust the height
of the shoulder belt so the belt rests
across the middle of your shoulder.
To adjust the shoulder belt height,
squeeze and hold the buttons on the
side and slide the height adjuster up
or down. Release the buttons and
pull down on the height adjuster to
make sure it is locked in place.
WARNING:Position the seat belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust
the seat belt properly could reduce the effectiveness of the seat belt
and increase the risk of injury in a collision.
Seat belt pretensioner
Your vehicle is equipped with seat belt pretensioners at the driver and
right front passenger seating positions.
The seat belt pretensioner removes some slack from the seat belt system
at the start of a crash. The seat belt pretensioner uses the same crash
sensor system as the front airbags and side-curtain airbags (if equipped).
When the seat belt pretensioner deploys, the lap and shoulder belt are
tightened.
When the side-curtain airbags (if equipped) and/or the front airbags are
activated, the seat belt pretensioners for the driver and right front
passenger seating positions will be activated when the respective seatbelt
is properly buckled.
WARNING: The driver and the right front passenger seat belt
system (including retractors, buckles and height adjusters) must
be replaced if the vehicle is involved in a collision that results in
deployment of front airbags, seat-mounted side airbags, or side-curtain
airbags (if equipped) and seat belt pretensioners.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
101

WARNING:Failure to replace both front restraints under the
above conditions could result in severe personal injuries in the
event of a collision. The seat belt pretensioners will only function once.
After they are deployed, they will not work again and must be replaced
immediately, even if there was no front seat occupant seated at the
time.
WARNING: Modifying the components or wiring of the
pretensioner system, including the use of electronic testing
devices is dangerous. You could accidentally activate it or make it
inoperable which would prevent it from activating in an accident. Front
occupants could be seriously injured. Never modify the components or
wiring, or use electronic testing devices on the pretensioner system.
WARNING: Improper disposal of the pretensioner system or a
vehicle with non-deactivated pretensioners is dangerous. Unless
all safety procedures are followed, injury could result. Ask an
authorized Mazda dealer how to safely dispose of the pretensioner
system or how to scrap a front pretensioner-equipped vehicle.
Refer to the Seat belt maintenance section in this chapter.
Seat belt extension assembly
If the seat belt is too short when fully extended ,a9inch(23cm)or
12 inch (31 cm) seat belt extension assembly can be added (part
numbers 611C22–A and 611C22–B respectively). Seat belt extension
assemblies can be obtained from your authorized Mazda dealership.
Use only extensions manufactured by the same supplier as the seat belt.
Manufacturer identification is located at the end of the webbing on the
label. Also, use the seat belt extension only if the seat belt is too short
for you when fully extended.
When you are not using the extensions store them in another location so
that no one will accidentally use them.
NOTE: Do not use extensions to change the fit of the shoulder belt
across the torso.
Seat belt warning light and indicator chime
The seat belt warning light illuminates in the instrument cluster and a
chime sounds to remind the occupants to fasten their seat belts.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
102

Conditions of operation
If...Then...
The driver’s seat belt is not
buckled before the ignition
switch is turned to the on
position... The seat belt warning light illuminates
1-2 minutes and the warning chime
sounds 4-8 seconds.
The driver’s seat belt is
buckled while the indicator
light is illuminated and the
warning chime is sounding... The seat belt warning light and
warning chime turn off.
The driver’s seat belt is
buckled before the ignition
switch is turned to the on
position... The seat belt warning light and
indicator chime remain off.
Belt-Minder
The Belt-Minder feature is a supplemental warning to the seat belt
warning function. This feature provides additional reminders by
intermittently sounding a chime and illuminating the seat belt warning
lamp in the instrument cluster when the driver’s and front passenger’s
seat belt is unbuckled.
The Belt-Minder feature uses information from the front passenger
sensing system to determine if a front seat passenger is present and
therefore potentially in need of a warning. To avoid activating the
Belt-Minder feature for objects placed in the front passenger seat,
warnings will only be given to large front seat occupants as determined
by the front passenger sensing system.
Both the driver’s and passenger’s seat belt usages are monitored and
either may activate the Belt-Minder feature. The warnings are the same
for the driver and the front passenger. If the Belt-Minder warnings have
expired (warnings for approximately 5 minutes) for one occupant (driver
or front passenger), the other occupant can still activate the
Belt-Minder feature.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
103

If...Then...
The driver’s and front
passenger’s seat belts are
buckled before the ignition
switch is turned to the on
position or less than
1-2 minutes have elapsed since
the ignition switch has been
turned to on... The Belt-Minder
feature will not
activate.
The driver’s or front
passenger’s seat belt is not
buckled when the vehicle has
reached at least 3 mph
(5 km/h) and 1-2 minutes have
elapsed since the ignition
switch has been turned to on... The Belt-Minder
feature is activated
- the seat belt warning light
illuminates and the warning chime
sounds for 6 seconds every
30 seconds, repeating for
approximately 5 minutes or until the
seat belts are buckled.
The driver’s or front
passenger’s seat belt becomes
unbuckled for approximately
1 minute while the vehicle is
traveling at least 3 mph
(5 km/h) and more than
1-2 minutes have elapsed since
the ignition switch has been
turned to on... The Belt-Minder
feature is activated
- the seat belt warning light
illuminates and the warning chime
sounds for 6 seconds every
30 seconds, repeating for
approximately 5 minutes or until the
seat belts are buckled.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Seating and Safety Restraints
104
