2009 MAZDA MODEL TRIBUTE Owners Manual (in English)

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Note: Heavy ice and snow can jam the wiper blades and overheat the
wiper motor. If this happens, the motor will automatically stop the
operation of the blades for a short period of time. If this happens while
driving, turn off the wiper switch, park off the right-of-way, and remove
the snow and ice. After a short period of time, turn the switch on and
the blades should operate normally. If they don’t resume functioning,
consult an authorized Mazda Dealer as soon as possible. Wait until the
weather clears before trying to drive with the wipers inoperative.
Windshield washer: Push the end
of the stalk:
• briefly: causes a single swipe of
the wipers without washer fluid.
• a quick push and hold: the wipers
will swipe three times with
washer fluid.
• a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Courtesy wipe feature: One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.
Note: Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driver Controls
49

Rear window wiper/washer controls
For rear wiper operation, rotate the
rear window wiper and washer
control to the desired position.
Select:
INT 2 — Normal speed operation of
rear wiper.
INT 1 — Intermittent operation of
rear wiper.
OFF — Rear wiper and washer off.
For rear wash cycle, rotate (and hold as desired) the rear wiper/washer
control to either
position.
From either position, the control will automatically return to the INT 2
or OFF position.
MANUAL TILT STEERING COLUMN
To adjust the steering wheel: 1. Pull down the steering column tilt lever.
2. Move the steering wheel up or down until you find the desired
location.
3. Push the steering column tilt lever up. This will lock the
steering wheel in position.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driver Controls
50

WARNING:Adjusting the steering wheel while the vehicle is
moving is dangerous. Moving it can very easily cause the driver
to abruptly turn to the left or right. This can lead to loss of control or
an accident. Never adjust the steering wheel while the vehicle is
moving.
ILLUMINATED VISOR MIRROR (IF EQUIPPED)
Lift the mirror cover to turn on the
visor mirror lamps.
OVERHEAD CONSOLE (IF EQUIPPED)
The appearance of your vehicle’s overhead console will vary according to
your option package.
Storage compartment (if equipped)
Press the OPEN control to open the
storage compartment. The door will
open slightly and can be moved to
full open.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driver Controls
51

CENTER CONSOLE
Your vehicle is equipped with a variety of console features. These
include:1. Cupholders
2. Utility compartment console lid has a CD holder, a business card
holder and two pen holders.
The utility compartment has a
removable bin with coin holder
slots, a sliding tray, a cell phone
holder and CD holders
3. Rear power point
4. Rear cupholders
5. Small storage trays
WARNING: Use only soft cups in the cupholders. Hard objects
can injure you in a collision.
The tray and inside bin can be
removed to open up space to fit a
laptop computer, MP3 players, CDs
or handbags. To remove, open the
console lid and pull the bin straight
up and out from the console
housing.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driver Controls
52

The sliding tray and inside bin can
be hooked on the side or rear of the
console for extra storage.
AUXILIARY POWER POINT (12VDC)
WARNING:Power outlets are designed for accessory plugs only.
Do not insert any other object in the power outlet as this will
damage the outlet and blow the fuse. Do not hang any type of
accessory or accessory bracket from the plug. Improper use of the
power outlet can cause damage not covered by your warranty.
The auxiliary power point is located
in front of the gearshift and on the
rear side of the center console.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of
12 VDC/180W. If the power point or
cigar lighter socket is not working, a fuse may have blown. Refer to
Fuses and relays in theRoadside Emergencies chapter for information
on checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
• do not use the power point longer than necessary when the engine is
not running,
• do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driver Controls
53

Always keep the power point caps closed when not being used.
Cigarette/Cigar lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter
socket.
Do not hold the lighter in with your hand while it is heating, this will
damage the lighter element and socket. The lighter will be released from
its heating position when it is ready to be used.
Note:Improper use of the lighter can cause damage not covered by your
warranty, and can result in fire or serious injury.
POWER WINDOWS (IF EQUIPPED)
WARNING: Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING: When closing the power windows, you should verify
they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Press and pull the window switches
to open and close windows.
• Push down (to the first detent)
and hold the switch to open.
• Pull up and hold the switch to
close.
Rear Window Buffeting: When one or both of the rear windows are
open, the vehicle may demonstrate a wind throb or buffeting noise; this
noise can be alleviated by lowering a front window approximately two to
three inches.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driver Controls
54

One touch down (AUTO)
Allows the driver’s window to open
fully without holding the control
down. Push the switch completely
down to the second detent and
release quickly. The window will
open fully. Momentarily press the
switch to any position to stop the
window operation.
Window lock
The window lock feature allows only
the driver to operate the power
windows.
To lock out all the window controls
(except for the driver’s) press the
right side of the control. Press the
left side to restore the window
controls.
Accessory delay
With accessory delay, power windows and moonroof operate for up to
10 minutes after the ignition switch is turned from the accessory or on
to the off position, the key is not in the ignition or until either front door
is opened.
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows or moon roof.
They may seriously injure themselves.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.
WARNING: Do not adjust the mirror while the vehicle is in
motion.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Driver Controls
55

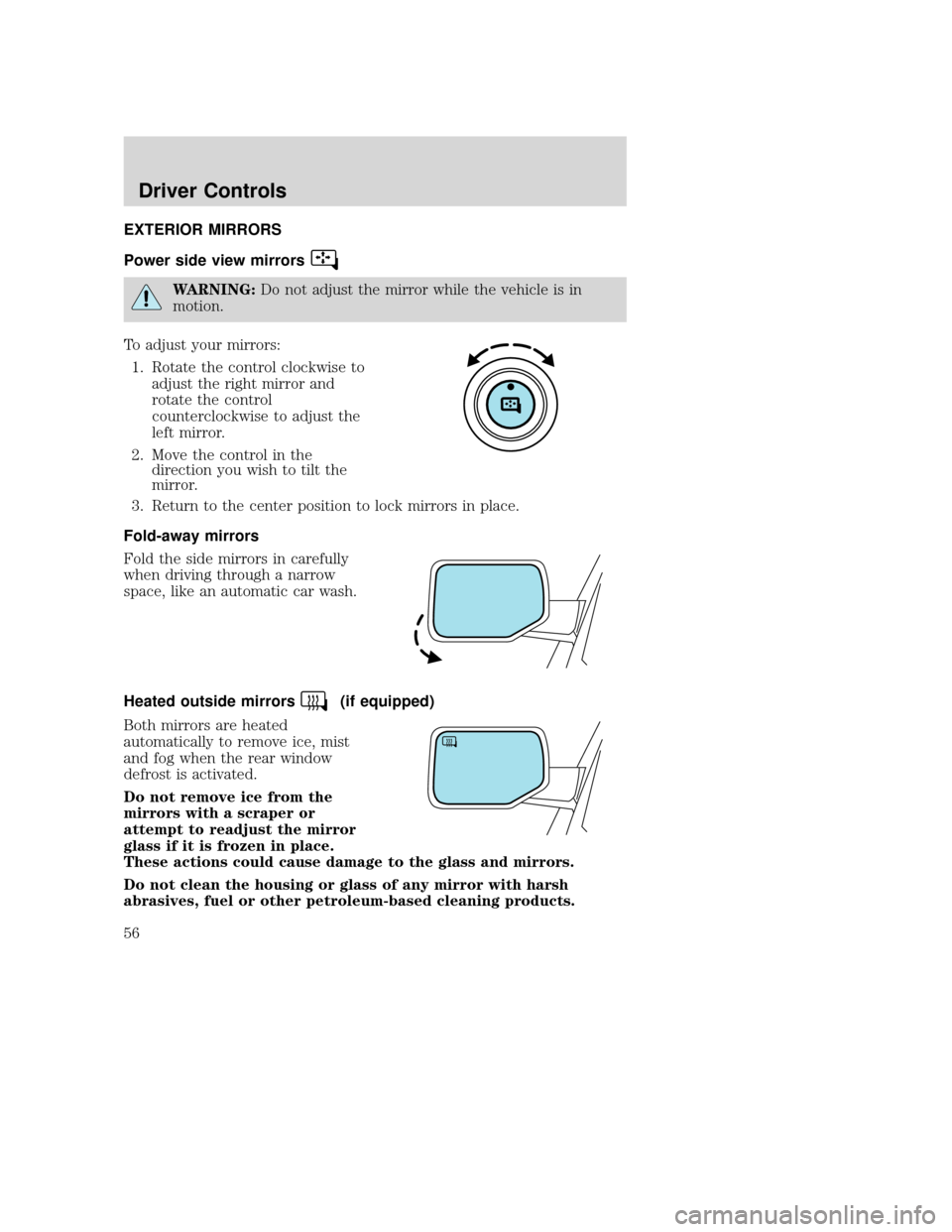

EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors: 1. Rotate the control clockwise to adjust the right mirror and
rotate the control
counterclockwise to adjust the
left mirror.
2. Move the control in the direction you wish to tilt the
mirror.
3. Return to the center position to lock mirrors in place.
Fold-away mirrors
Fold the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
