2009 JEEP GRAND CHEROKEE Owners Manual

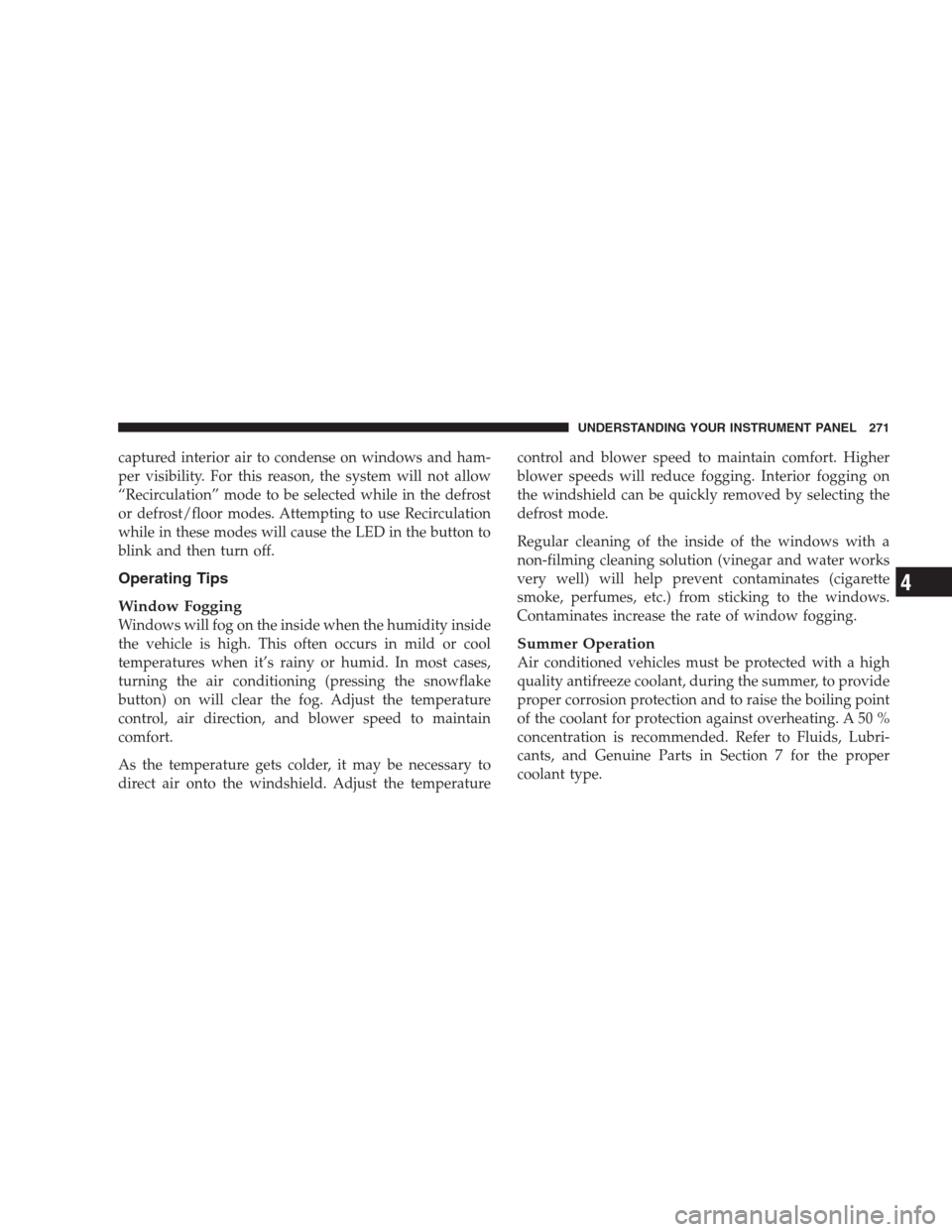

captured interior air to condense on windows and ham-
per visibility. For this reason, the system will not allow
“Recirculation” mode to be selected while in the defrost
or defrost/floor modes. Attempting to use Recirculation
while in these modes will cause the LED in the button to
blink and then turn off.
Operating Tips
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning the air conditioning (pressing the snowflake
button) on will clear the fog. Adjust the temperature
control, air direction, and blower speed to maintain
comfort.
As the temperature gets colder, it may be necessary to
direct air onto the windshield. Adjust the temperaturecontrol and blower speed to maintain comfort. Higher
blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
defrost mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
Summer Operation
Air conditioned vehicles must be protected with a high
quality antifreeze coolant, during the summer, to provide
proper corrosion protection and to raise the boiling point
of the coolant for protection against overheating. A 50 %
concentration is recommended. Refer to Fluids, Lubri-
cants, and Genuine Parts in Section 7 for the proper
coolant type.
UNDERSTANDING YOUR INSTRUMENT PANEL 271
4

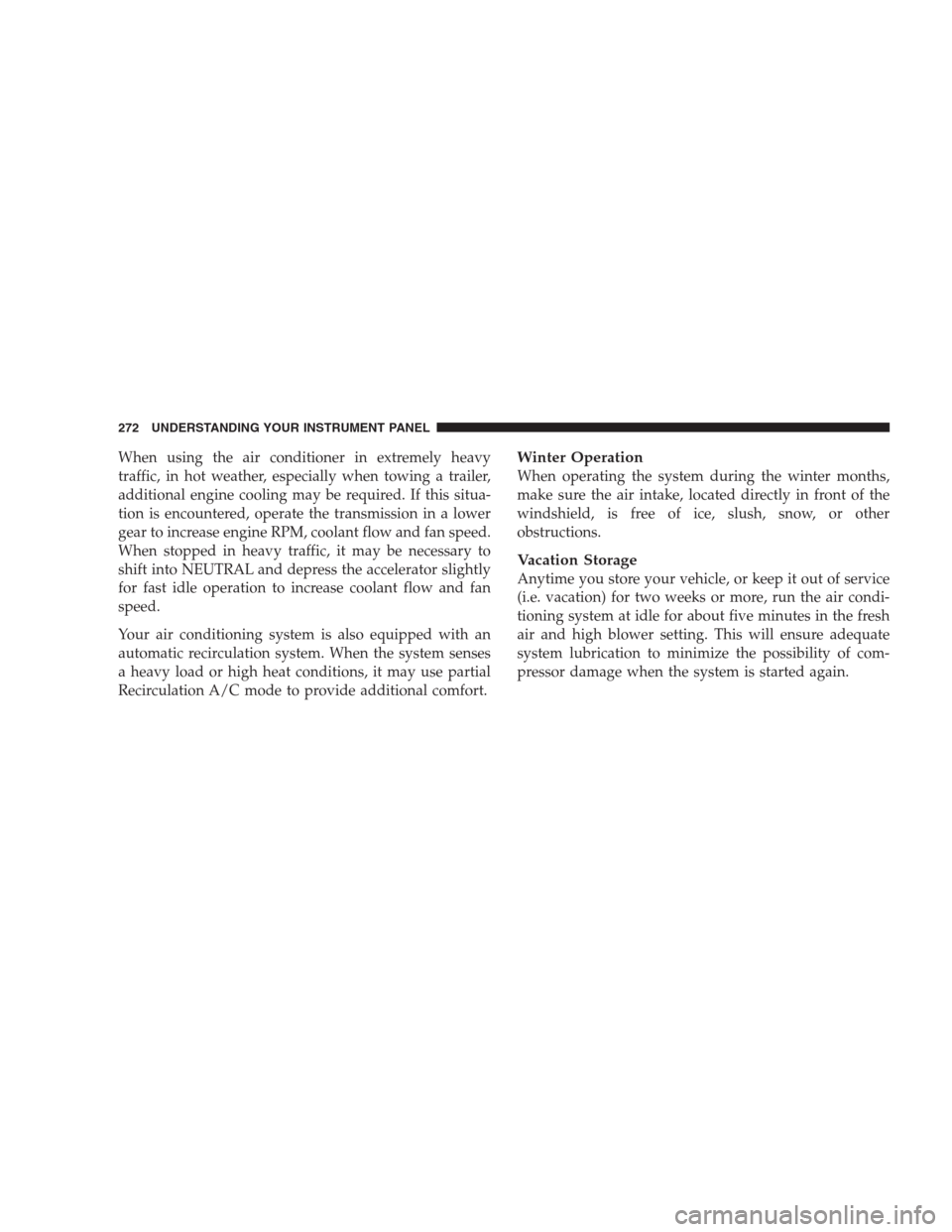

When using the air conditioner in extremely heavy
traffic, in hot weather, especially when towing a trailer,
additional engine cooling may be required. If this situa-
tion is encountered, operate the transmission in a lower
gear to increase engine RPM, coolant flow and fan speed.
When stopped in heavy traffic, it may be necessary to
shift into NEUTRAL and depress the accelerator slightly
for fast idle operation to increase coolant flow and fan
speed.
Your air conditioning system is also equipped with an
automatic recirculation system. When the system senses
a heavy load or high heat conditions, it may use partial
Recirculation A/C mode to provide additional comfort.Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other
obstructions.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e. vacation) for two weeks or more, run the air condi-
tioning system at idle for about five minutes in the fresh
air and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
272 UNDERSTANDING YOUR INSTRUMENT PANEL

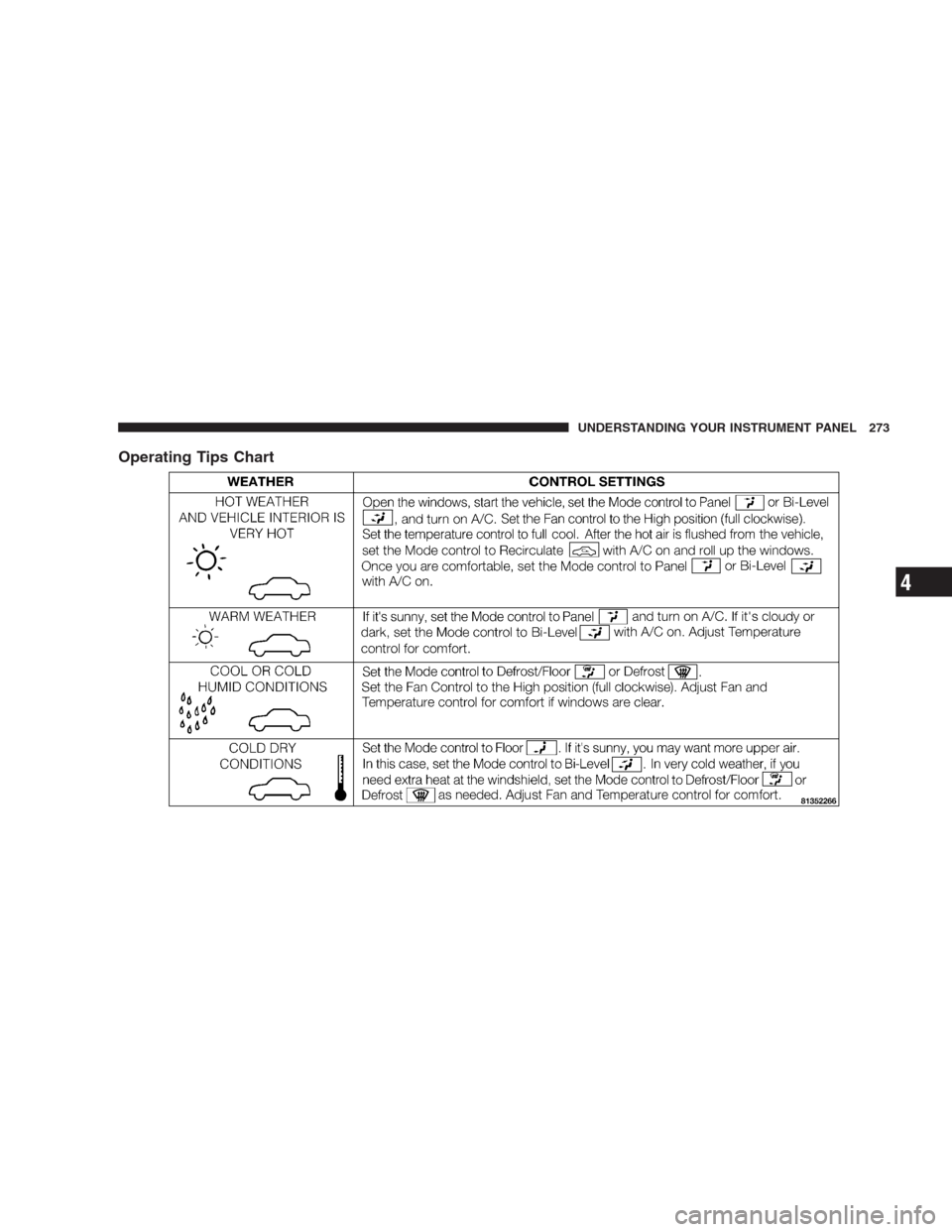

Operating Tips Chart
UNDERSTANDING YOUR INSTRUMENT PANEL 273
4

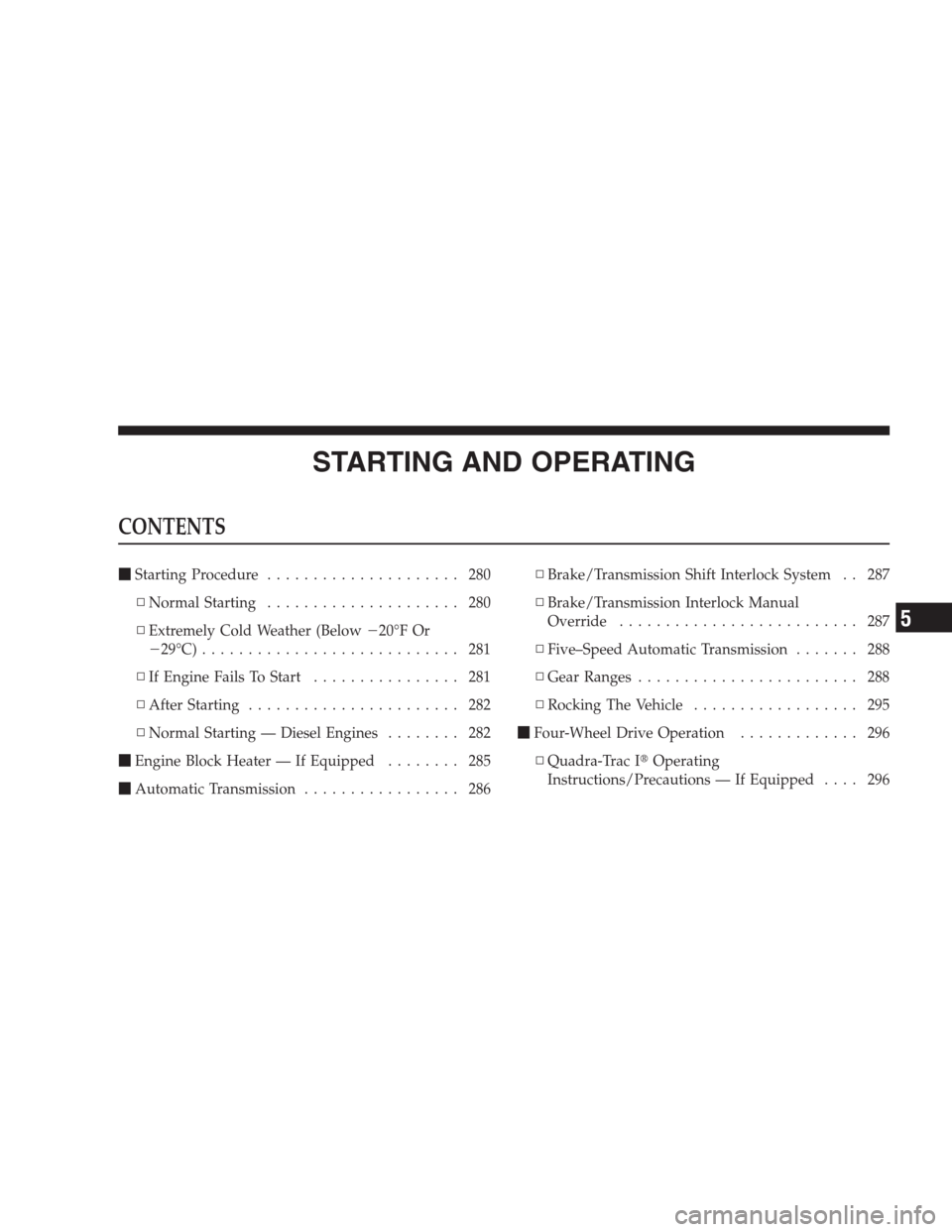

STARTING AND OPERATING
CONTENTS
Starting Procedure..................... 280
▫Normal Starting..................... 280
▫Extremely Cold Weather (Below20°F Or
29°C)............................ 281
▫If Engine Fails To Start................ 281
▫After Starting....................... 282
▫Normal Starting — Diesel Engines........ 282
Engine Block Heater — If Equipped........ 285
Automatic Transmission................. 286▫Brake/Transmission Shift Interlock System . . 287
▫Brake/Transmission Interlock Manual
Override.......................... 287
▫Five–Speed Automatic Transmission....... 288
▫Gear Ranges........................ 288
▫Rocking The Vehicle.................. 295
Four-Wheel Drive Operation............. 296
▫Quadra-Trac IOperating
Instructions/Precautions — If Equipped.... 296
5

▫Quadra-Trac IIOperating
Instructions/Precautions — If Equipped.... 297
▫Shift Positions...................... 298
▫Shifting Procedures................... 298
▫Quadra-Drive IISystem — If Equipped.... 301
On-Road Driving Tips.................. 301
Off-Road Driving Tips.................. 302
▫When To Use 4WD Low Range — If
Equipped.......................... 302
▫Driving Through Water................ 302
▫Driving In Snow, Mud And Sand......... 303
▫Hill Climbing....................... 304
▫Traction Downhill.................... 305
▫After Driving Off-Road................ 305Power Steering....................... 306
▫Power Steering Fluid Check............. 307
Parking Brake........................ 308
Anti-Lock Brake System................. 309
Electronic Brake Control System........... 312
▫ABS (Anti-Lock Brake System)........... 312
▫TCS (Traction Control System)........... 313
▫BAS (Brake Assist System).............. 313
▫ERM (Electronic Roll Mitigation)......... 314
▫ESP (Electronic Stability Program)........ 315
▫TSC (Trailer Sway Control)............. 320
▫HSA (Hill Start Assist) (4WD Models With
NV245 Two–Speed Transfer Case Only)..... 320
276 STARTING AND OPERATING

▫HDC (Hill Descent Control) (4WD Models
With NV245 Two–Speed Transfer
Case Only)......................... 323
▫ESP/BAS Warning Light And ESP/TCS
Indicator Light...................... 325
Tire Safety Information................. 326
▫Tire Markings....................... 326
▫Tire Identification Number (TIN)......... 330
▫Tire Loading And Tire Pressure.......... 331
Tires — General Information............. 335
▫Tire Pressure....................... 335
▫Tire Inflation Pressures................ 336
▫Tire Pressures For High Speed Operation . . . 337
▫Radial-Ply Tires..................... 338▫Compact Spare Tire — If Equipped....... 338
▫Limited-Use Spare — If Equipped........ 339
▫Tire Spinning....................... 340
▫Tread Wear Indicators................. 340
▫Life Of Tire........................ 341
▫Replacement Tires.................... 342
Tire Chains.......................... 343
Tire Rotation Recommendations........... 344
Tire Pressure Monitor System (TPMS)....... 345
▫Base System........................ 347
▫Premium System — If Equipped......... 350
▫General Information.................. 355
STARTING AND OPERATING 277
5

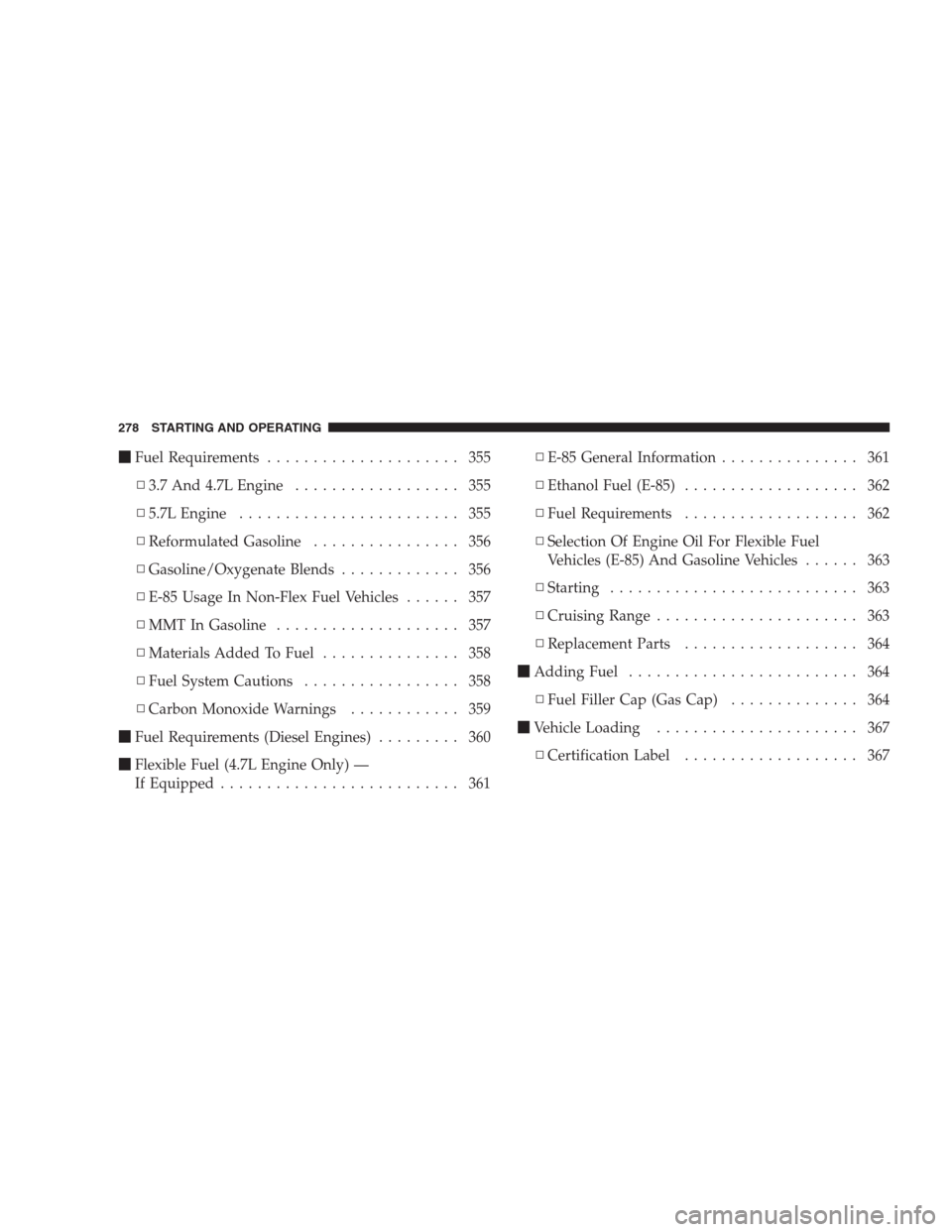

Fuel Requirements..................... 355
▫3.7 And 4.7L Engine.................. 355
▫5.7L Engine........................ 355
▫Reformulated Gasoline................ 356
▫Gasoline/Oxygenate Blends............. 356
▫E-85 Usage In Non-Flex Fuel Vehicles...... 357
▫MMT In Gasoline.................... 357
▫Materials Added To Fuel............... 358
▫Fuel System Cautions................. 358
▫Carbon Monoxide Warnings............ 359
Fuel Requirements (Diesel Engines)......... 360
Flexible Fuel (4.7L Engine Only) —
If Equipped.......................... 361▫E-85 General Information............... 361
▫Ethanol Fuel (E-85)................... 362
▫Fuel Requirements................... 362
▫Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles...... 363
▫Starting........................... 363
▫Cruising Range...................... 363
▫Replacement Parts................... 364
Adding Fuel......................... 364
▫Fuel Filler Cap (Gas Cap).............. 364
Vehicle Loading...................... 367
▫Certification Label................... 367
278 STARTING AND OPERATING
