2009 JEEP GRAND CHEROKEE Owners Manual

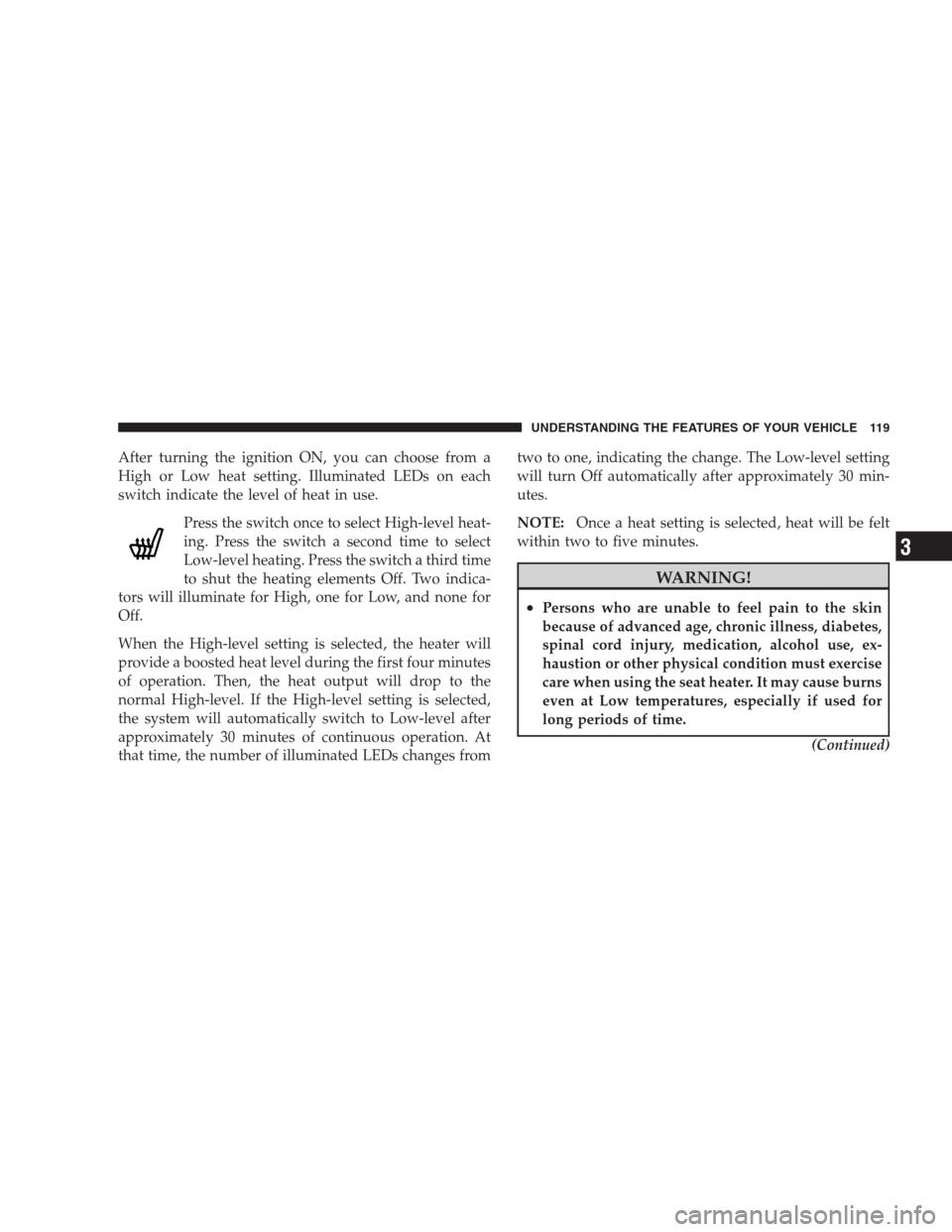

After turning the ignition ON, you can choose from a
High or Low heat setting. Illuminated LEDs on each
switch indicate the level of heat in use.
Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut the heating elements Off. Two indica-
tors will illuminate for High, one for Low, and none for
Off.
When the High-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the
normal High-level. If the High-level setting is selected,
the system will automatically switch to Low-level after
approximately 30 minutes of continuous operation. At
that time, the number of illuminated LEDs changes fromtwo to one, indicating the change. The Low-level setting
will turn Off automatically after approximately 30 min-
utes.
NOTE:Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at Low temperatures, especially if used for
long periods of time.
(Continued)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

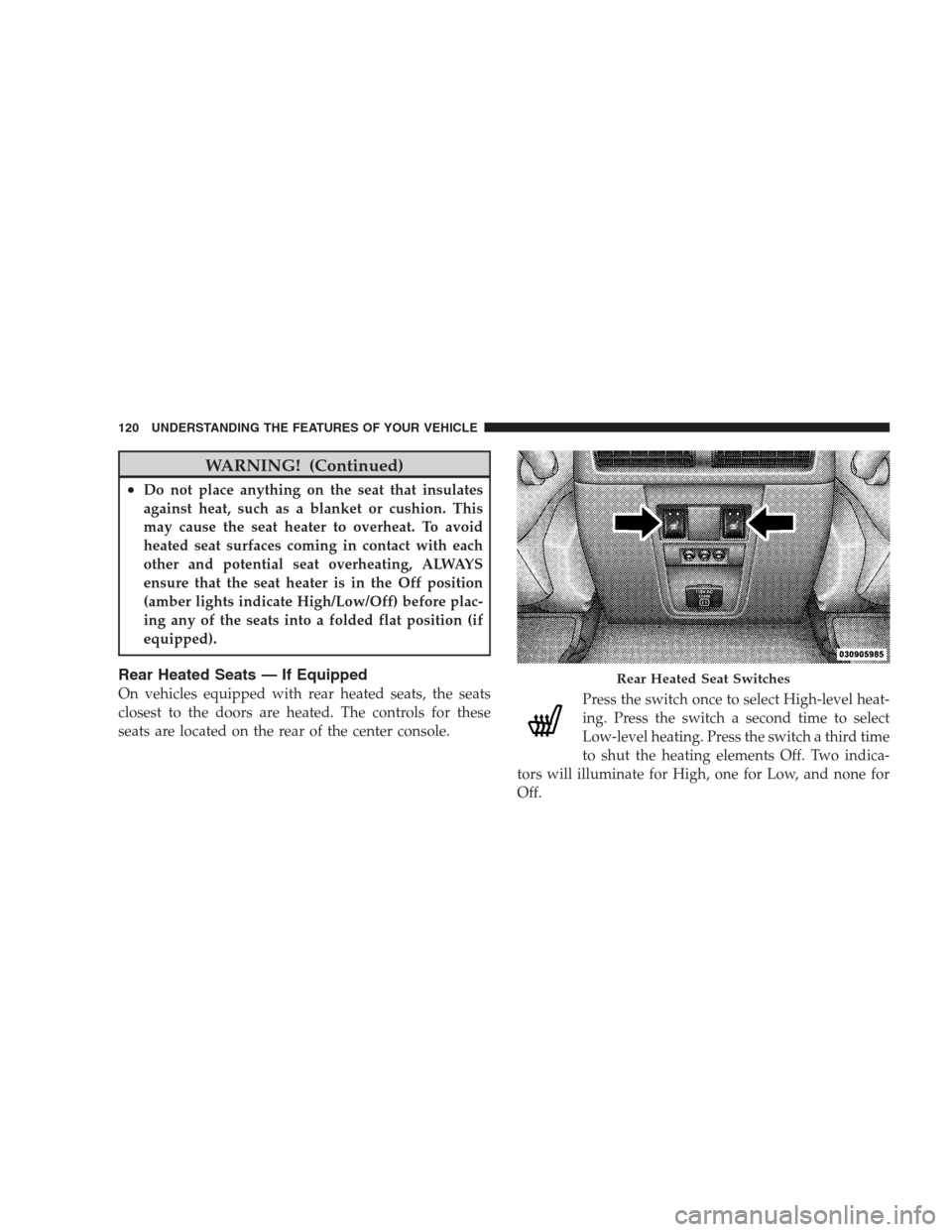

WARNING! (Continued)
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. To avoid
heated seat surfaces coming in contact with each
other and potential seat overheating, ALWAYS
ensure that the seat heater is in the Off position
(amber lights indicate High/Low/Off) before plac-
ing any of the seats into a folded flat position (if
equipped).
Rear Heated Seats — If Equipped
On vehicles equipped with rear heated seats, the seats
closest to the doors are heated. The controls for these
seats are located on the rear of the center console.Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut the heating elements Off. Two indica-
tors will illuminate for High, one for Low, and none for
Off.Rear Heated Seat Switches
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

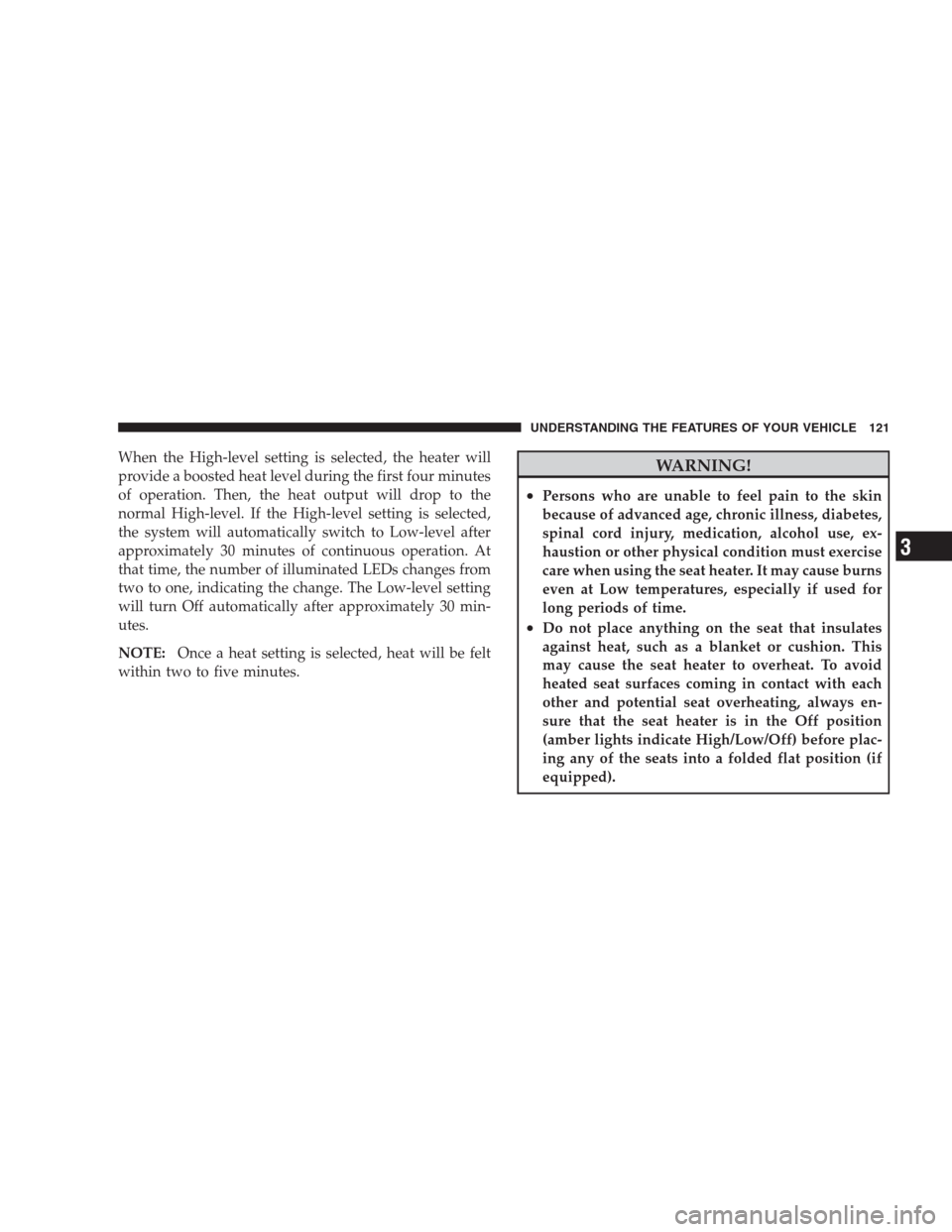

When the High-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the
normal High-level. If the High-level setting is selected,
the system will automatically switch to Low-level after
approximately 30 minutes of continuous operation. At
that time, the number of illuminated LEDs changes from
two to one, indicating the change. The Low-level setting
will turn Off automatically after approximately 30 min-
utes.
NOTE:Once a heat setting is selected, heat will be felt
within two to five minutes.WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at Low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. To avoid
heated seat surfaces coming in contact with each
other and potential seat overheating, always en-
sure that the seat heater is in the Off position
(amber lights indicate High/Low/Off) before plac-
ing any of the seats into a folded flat position (if
equipped).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

60/40 Split Rear Seat
To Lower Rear Seat
Either side of the rear seat can be lowered to allow for
extended cargo space and still maintain some rear seating
room.
NOTE:Be sure that the front seats are fully upright and
positioned forward. This will allow the rear seatback to
fold down easily.
1. Pull the release strap (toward the front of the vehicle)
to release.
NOTE: Do not fold the rear seat down with the center
seat belt buckled.
2. Fold the rear seat completely forward.
Rear Seat Release
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

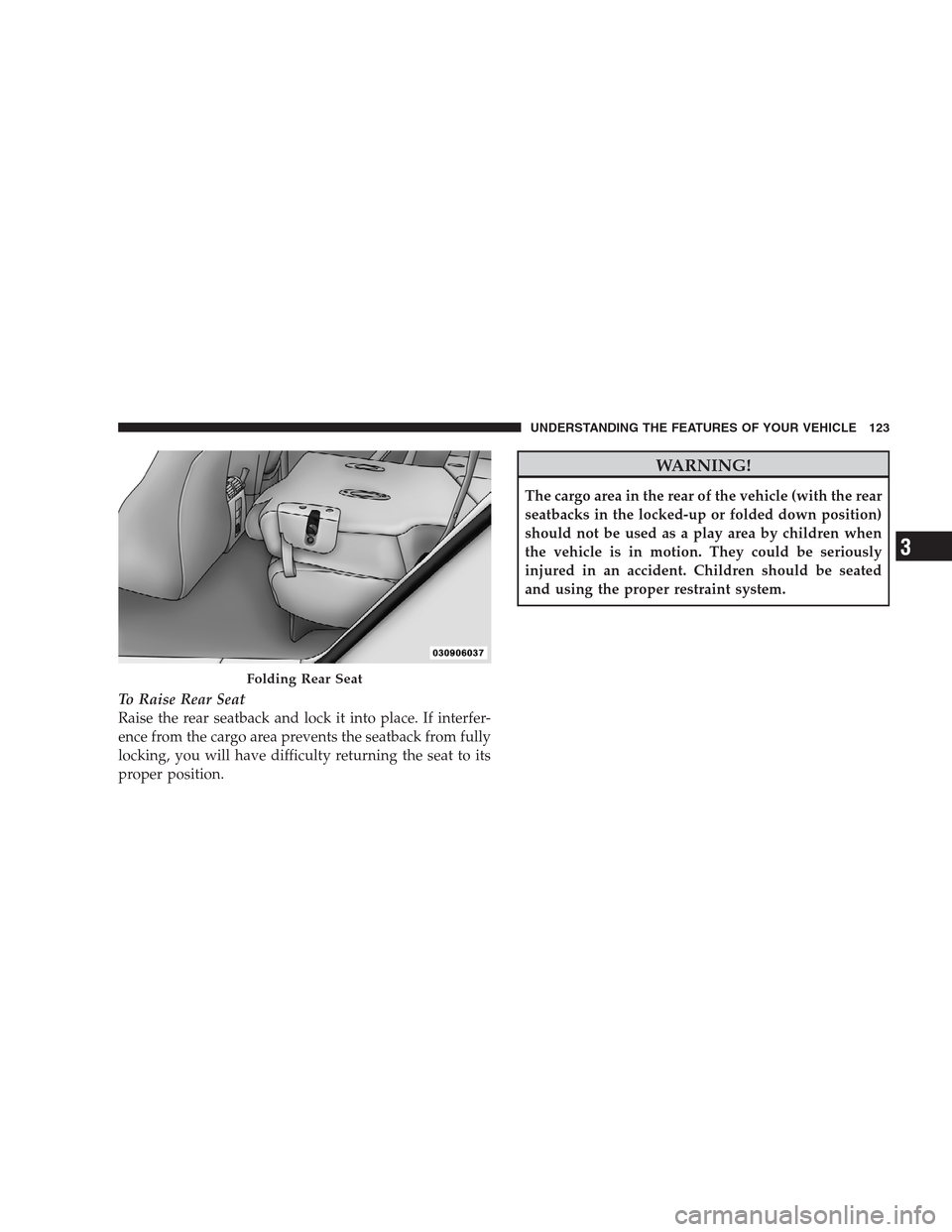

To Raise Rear Seat
Raise the rear seatback and lock it into place. If interfer-
ence from the cargo area prevents the seatback from fully
locking, you will have difficulty returning the seat to its
proper position.
WARNING!
The cargo area in the rear of the vehicle (with the rear
seatbacks in the locked-up or folded down position)
should not be used as a play area by children when
the vehicle is in motion. They could be seriously
injured in an accident. Children should be seated
and using the proper restraint system.
Folding Rear Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3

Storage (Rear Seat Armrest) — If Equipped
The rear seat may be equipped with a center storage
armrest.
Press the latch and lift the top of the armrest to access the
storage bin.
DRIVER MEMORY SEAT — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat,
driver’s outside mirror, adjustable brake and accelerator
pedals, and radio station preset settings. Your Remote
Rear Seat Armrest
Armrest Storage Latch
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

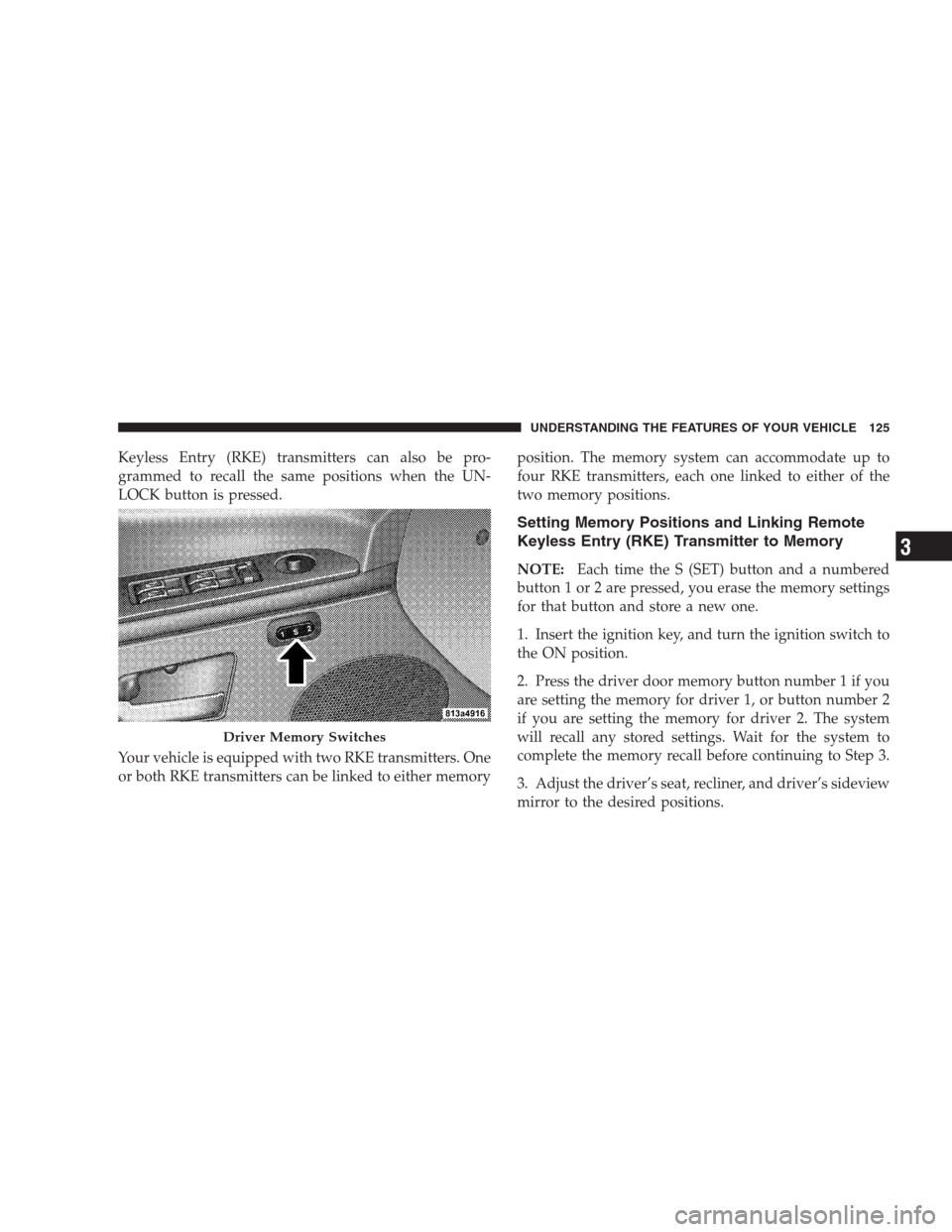

Keyless Entry (RKE) transmitters can also be pro-
grammed to recall the same positions when the UN-
LOCK button is pressed.
Your vehicle is equipped with two RKE transmitters. One
or both RKE transmitters can be linked to either memoryposition. The memory system can accommodate up to
four RKE transmitters, each one linked to either of the
two memory positions.
Setting Memory Positions and Linking Remote
Keyless Entry (RKE) Transmitter to Memory
NOTE:Each time the S (SET) button and a numbered
button 1 or 2 are pressed, you erase the memory settings
for that button and store a new one.
1. Insert the ignition key, and turn the ignition switch to
the ON position.
2. Press the driver door memory button number 1 if you
are setting the memory for driver 1, or button number 2
if you are setting the memory for driver 2. The system
will recall any stored settings. Wait for the system to
complete the memory recall before continuing to Step 3.
3. Adjust the driver’s seat, recliner, and driver’s sideview
mirror to the desired positions.
Driver Memory Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

4. Adjust the brake and accelerator pedals to the desired
positions.
5. Turn on the radio and set the radio station presets (up
to 12 AM and 12 FM stations can be set).
6. Turn the ignition switch to the LOCK position and
remove the key.
7. Press and release the S (SET) button located on the
driver’s door.
8. Within five seconds, press and release memory button
1 or 2 on the driver’s door. The next step must be
performed within five seconds if you desire to also use a
RKE transmitter to recall memory positions.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Insert the ignition key, and turn the ignition switch to
the ON position.11. SelectRemote Linked to Memoryin the Electronic
Vehicle Information Center (EVIC) and enterYe s. Refer
to “Electronic Vehicle Information Center (EVIC) —
Customer-Programmable Features” in Section 4 for more
information.
12. Repeat the above steps to set the next memory
position, using the other numbered memory button, or to
link another RKE transmitter to memory.
Memory Position Recall
NOTE:The vehicle must be in PARK to recall memory
positions. If a recall is attempted when the vehicle is not
in PARK, a message will be displayed in the Electronic
Vehicle Information Center (EVIC).
To recall the memory settings for driver one, press
memory button number 1 on the driver’s door, or the
UNLOCK button on the RKE transmitter linked to
memory position 1.
