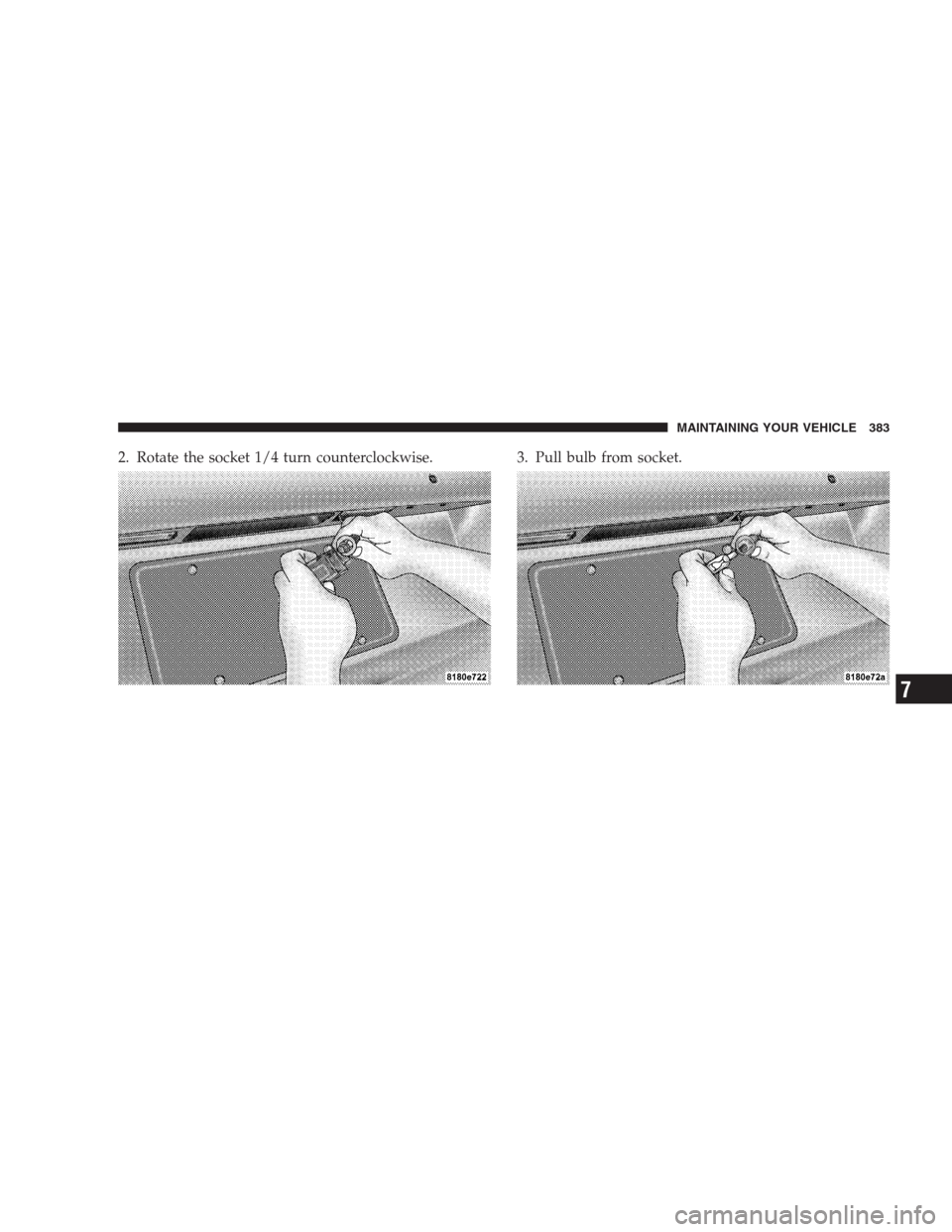

2. Rotate the socket 1/4 turn counterclockwise. 3. Pull bulb from socket.
MAINTAINING YOUR VEHICLE 383
7

Center High-Mounted Stoplight
Light is an LED assembly. See your authorized dealer for
replacement.

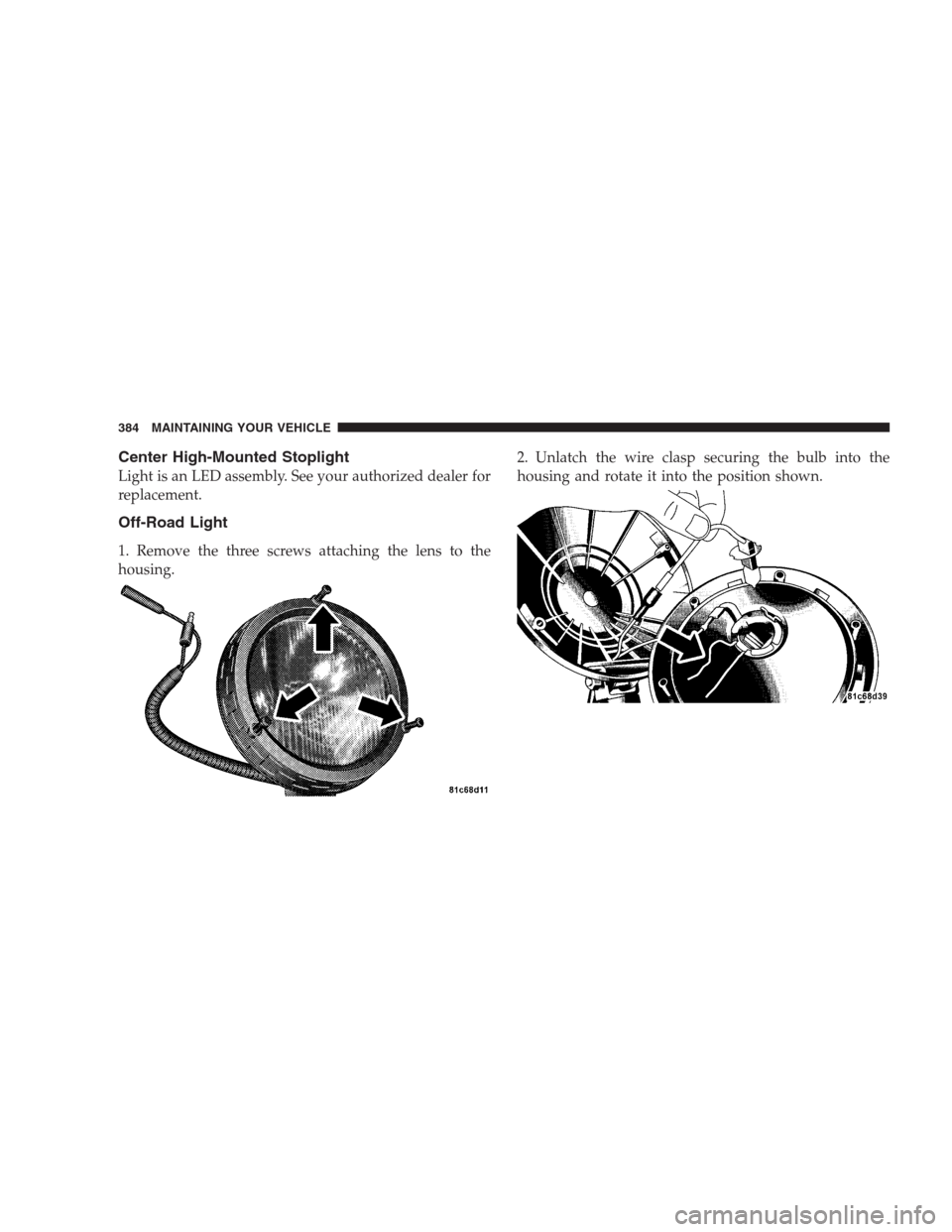

Off-Road Light
1. Remove the three screws attaching the lens to the
housing.2. Unlatch the wire clasp securing the bulb into the
housing and rotate it into the position shown.
384 MAINTAINING YOUR VEHICLE

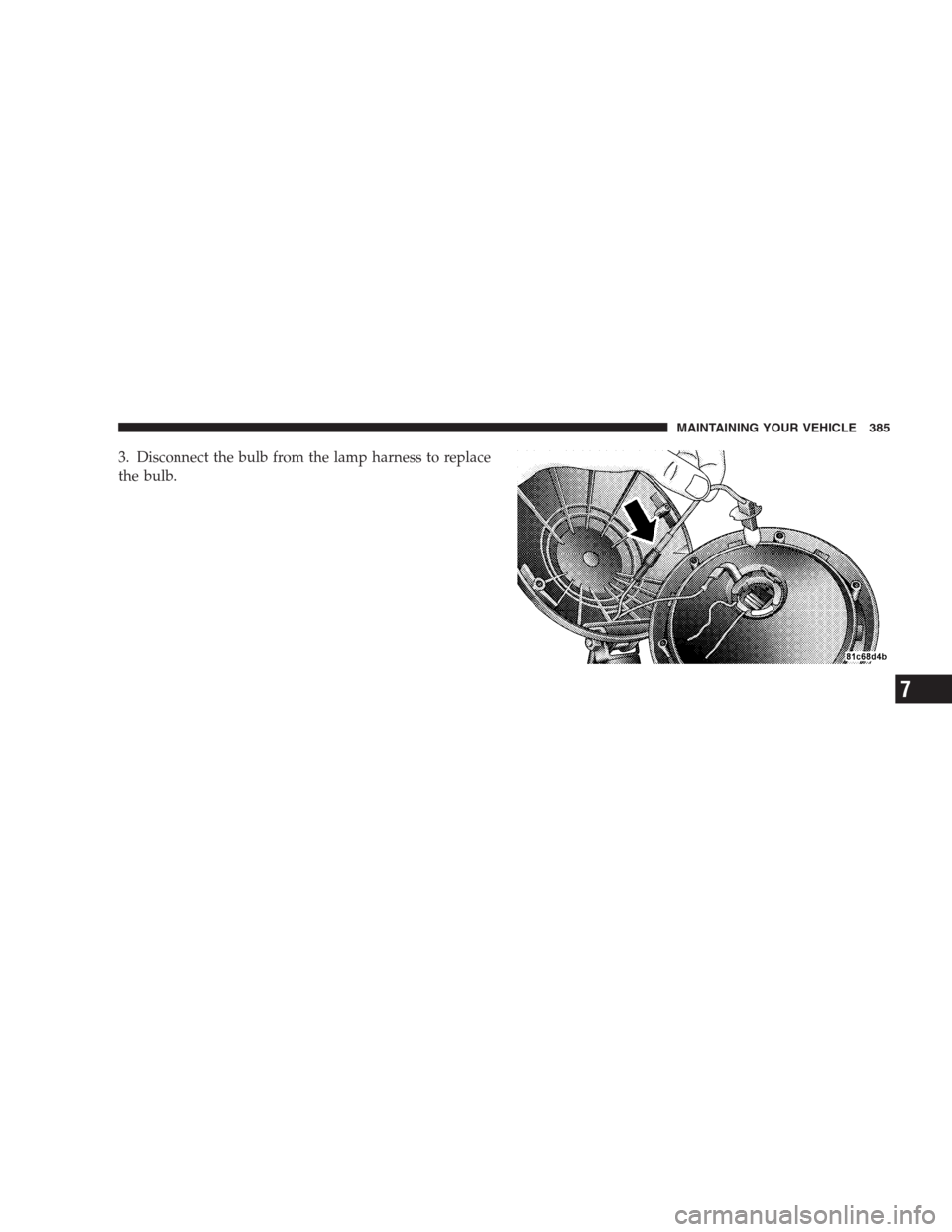

3. Disconnect the bulb from the lamp harness to replace
the bulb.
MAINTAINING YOUR VEHICLE 385
7

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)13.6 Gallons 51.5 Liters
Engine Oil with Filter
2.0L and 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.26 Liters
Cooling System *
2.0L and 2.4L Engine (MOPAREngine Coolant/Antifreeze 5
Year/100,000 Mile Formula)7.2 Quarts 6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
386 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology)
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAROil Filter (P/N 04884900AB) or equivalent
Spark Plugs ZFR5F-11 (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
MAINTAINING YOUR VEHICLE 387
7

Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transaxle (CVT) MOPARCVTF + 4 Automatic Transmission Fluid
Manual Transaxle MOPARATF+4 Automatic Transmission Fluid
Rear Drive Assembly (RDA) MOPARGear & Axle Lubricant SAE 80W-90 API GL 5 or equivalent non-
synthetic product.
Power Transfer Unit (PTU) MOPARGear & Axle Lubricant SAE 80W-90 API GL 5 or equivalent non-
synthetic product.
Brake Master Cylinder MOPARDOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids or equivalent.
Power Steering Reservoir MOPARPower Steering Fluid +4 or ATF+4 Automatic Transmission
Fluid.
388 MAINTAINING YOUR VEHICLE

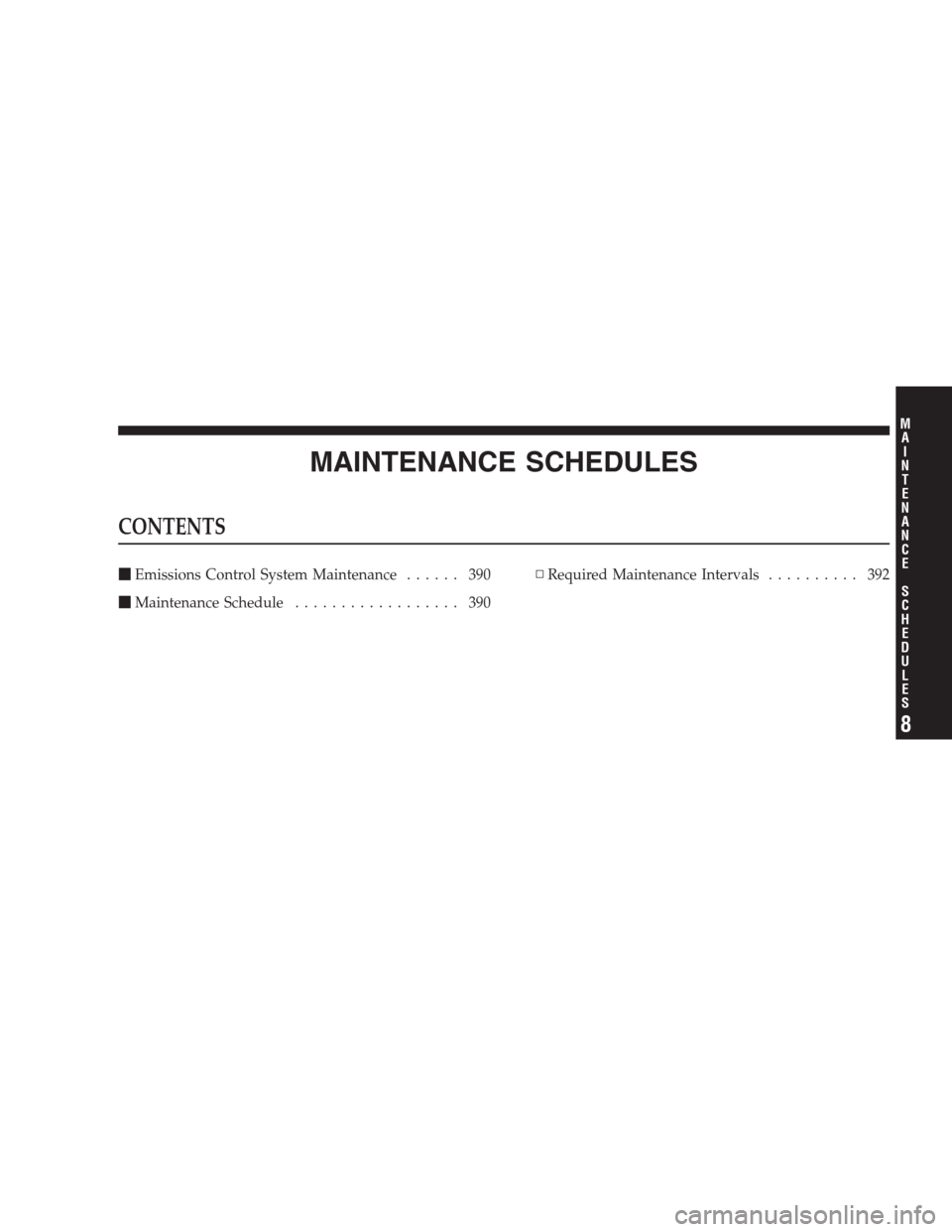

MAINTENANCE SCHEDULES
CONTENTS
Emissions Control System Maintenance...... 390
Maintenance Schedule.................. 390▫Required Maintenance Intervals.......... 392
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emissions control
system. These and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE:Maintenance, replacement or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation condition, the oil change
indicator message will illuminate; this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
