2009 JEEP COMPASS Owners Manual

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cell phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
CARGO AREA FEATURES
Cargo Light/Removable Self-Recharging
Flashlight — If Equipped
The dual-function light is mounted in the headliner
above the cargo area to illuminate the cargo area, and
part of it snaps out of the bezel to serve as a flashlight
when needed. The flashlight features two bright LED
light bulbs and is powered by rechargeable lithiumbatteries that recharge when snapped back into place for
convenience.
Press in on the flashlight to release it.
Press And Release
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
3

To operate the flashlight, press the switch once for high,
twice for low, and a third time to return to off.Cargo Cover — If Equipped
The cargo area trim panels include two notches for
mounting the available tonneau cover that accommo-
dates the reclining rear seat.
WARNING!
In an accident a cargo cover loose in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store in the vehicle.
Three-Press Switch
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

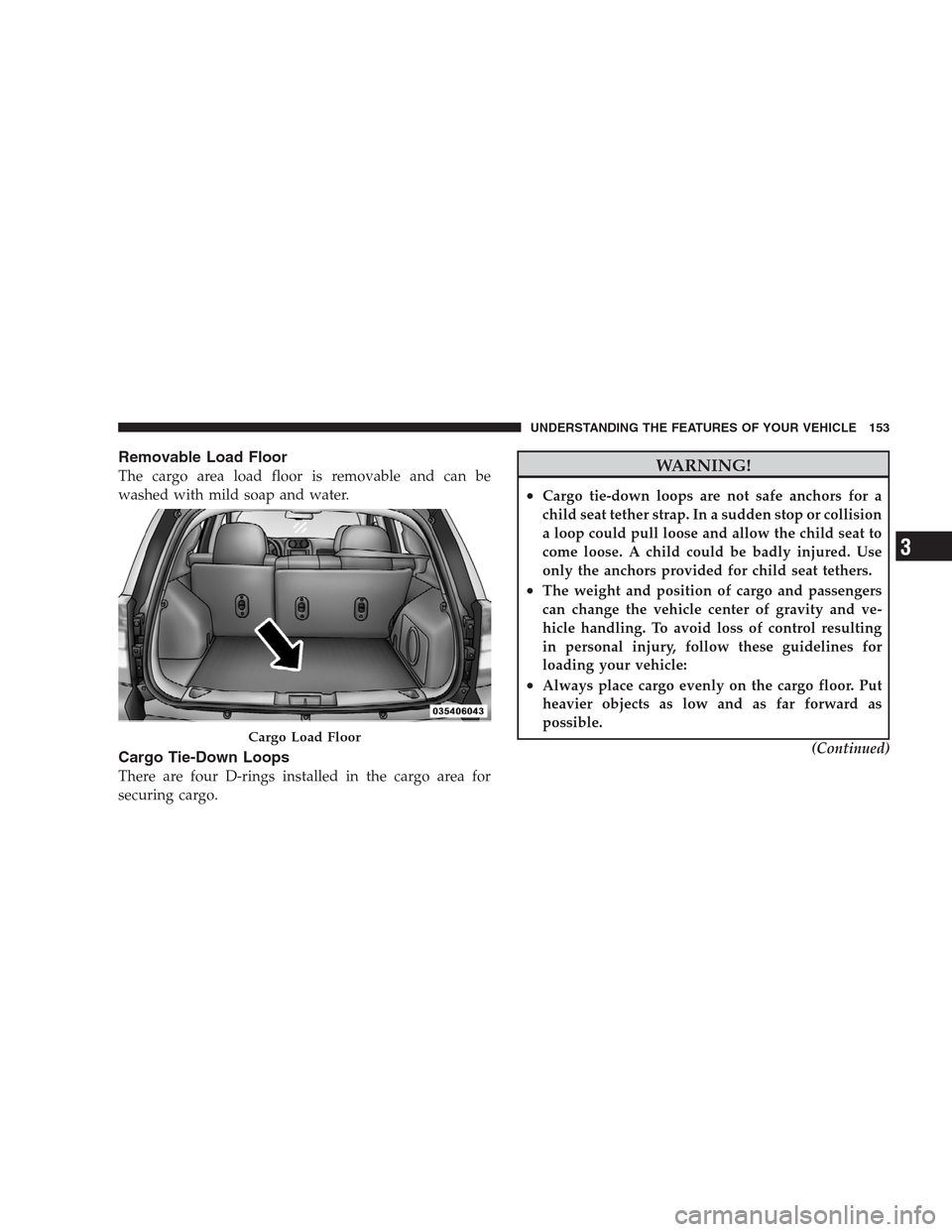

Removable Load Floor
The cargo area load floor is removable and can be
washed with mild soap and water.
Cargo Tie-Down Loops
There are four D-rings installed in the cargo area for
securing cargo.
WARNING!
•Cargo tie-down loops are not safe anchors for a
child seat tether strap. In a sudden stop or collision
a loop could pull loose and allow the child seat to
come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.
•The weight and position of cargo and passengers
can change the vehicle center of gravity and ve-
hicle handling. To avoid loss of control resulting
in personal injury, follow these guidelines for
loading your vehicle:
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as
possible.
(Continued)
Cargo Load Floor
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
3

WARNING! (Continued)
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed
weight over or behind the rear axle can cause the
rear of the vehicle to sway.
•Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
collision.
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
Fold Down Speakers — If Equipped
When the liftgate is open, the speakers can swing down
off the trim panel to face rearward, for tailgating and
other activities.
REAR WINDOW FEATURES
Rear Window Wiper/Washer
A switch on the right side of the steering column controls
operation of the rear wiper/washer function. Rotating
the center of the switch forward to the on position will
Fold-Down Speakers
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

activate the wiper. The rear wiper operates in an inter-
mittent mode only. Rotating the center of the switch all
the way forward will turn on the wash function. The
wash pump will continue to operate as long as the button
is pressed. Upon release, the wipers will cycle two times
before returning to the set position.If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “Park”
position if power accessory delay is active. Power acces-
sory delay can be cancelled by opening the door, if this
happens the rear wiper will stop at its current position
and will not go to “Park”.
Rear Window Defroster
The pushbutton is located on
the bottom right side of the
blower control knob. Press
this button to turn on the rear
window defroster. An amber
light shows that the defroster
is on.
Rear Wiper/Washer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155
3

The defroster will automatically turn off after approxi-
mately 10 minutes. For an additional five minutes of
operation, press the button a second time. To prevent
excessive battery drain, use the defroster only when the
engine is operating.CAUTION!
Use care when washing the inside of the rear window
to prevent damage to heating elements. Use a soft
cloth and a mild washing solution, wiping parallel to
the heating elements. Also, keep all objects a safe
distance from the window to prevent damaging the
heating elements.
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features................ 161
Instrument Cluster — Premium............ 162
Instrument Cluster Descriptions............ 163
Electronic Vehicle Information Center (EVIC) —
If Equipped........................... 175
▫Engine Oil Change Indicator System....... 176
▫EVIC Functions...................... 177
▫Compass/Temperature/Audio........... 178▫Average Fuel Economy................ 178
▫Distance To Empty (DTE)............... 179
▫Elapsed Time....................... 179
▫Tire Pressure Monitor (TPM)............. 179
▫Personal Settings (Customer-Programmable
Features)........................... 179
Electronic Digital Clock................. 185
▫Clock Setting Procedure................ 1854

Sales Code REQ — AM/FM Stereo Radio And
6–Disc CD/DVD Changer (MP3/WMA AUX
Jack)................................ 186
▫Operating Instructions - Radio Mode....... 186
▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 194
▫Notes On Playing MP3/WMA Files........ 196
▫List Button
(Disc Mode For MP3/WMA Play)......... 199
▫Info Button
(Disc Mode For MP3/WMA Play)......... 199
AM/FM/CD/DVD Multimedia System Radio
(RER/REN) – If Equipped................ 201
▫Operating Instructions — Voice Recognition
System (VR) — If Equipped............. 201▫Operating Instructions — Hands-Free
Communication (UConnect)—
If Equipped......................... 202
▫Clock Setting Procedure................ 202
Sales Code RES — AM/FM Stereo Radio With
CD Player (MP3 AUX Jack)................ 204
▫Operating Instructions — Radio Mode...... 204
▫Operation Instructions — CD Mode For CD
And MP3 Audio Play.................. 207
▫Notes On Playing MP3 Files............. 209
▫Operation Instructions - Auxiliary Mode.... 212
Sales Code RES/RSC — AM/FM Stereo Radio
With CD Player (MP3 AUX Jack) And Sirius
Radio............................... 212
▫Operating Instructions — Radio Mode...... 213
158 UNDERSTANDING YOUR INSTRUMENT PANEL
