Cavity Cartridge
FuseMini-
FuseDescription
13 20 Amp
YellowPwr Run/Acc Outlet
RR/Dome Lamp
14 10 Amp
RedIOD CCN
15 40 Amp
GreenRAD Fan Relay Bat-
tery Feed
16 15 Amp
Lt BlueIGN Run/Acc Dome
Lamp/Sunroof/Rear
Wiper Motor/ACC
Inverter
17 10 Amp
RedIOD Feed Mod-Wcm
18 40 Amp
GreenASD Relay Contact
PWR Feed
19 20 Amp
YellowPWR Amp 1 & Amp
2 FeedCavity Cartridge
FuseMini-
FuseDescription
20 15 Amp
Lt BlueIOD Feed Radio
21 10 Amp
RedIOD Feed Intrus
Mod/Siren (If
Equipped)
22 10 Amp
RedIGN RUN Heat/AC/
Compass Sensor
23 15 Amp
Lt BlueENG ASD Relay Feed
3
24 15 Amp
Lt BluePower Sunroof Feed
25 10 Amp
RedHeated Mirror (If
Equipped)
26 15 Amp
Lt BlueENG ASD Relay Feed
2
27 10 Amp
RedIGN RUN Only ORC
Feed
MAINTAINING YOUR VEHICLE 375
7

Cavity Cartridge
FuseMini-
FuseDescription
28 10 Amp
RedIGN RUN ORC/OCM
Feed
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
YellowHeated Seats
31 10 Amp
RedHeadlamp Washer
Relay Control (If
Equipped)
32 30 Amp
PinkENG ASD Control
Feed 1
33 10 Amp
RedABS MOD/J1962
Conn/PCM
34 30 Amp
PinkABS Valve Feed
35 40 Amp
GreenABS Pump FeedCavity Cartridge
FuseMini-
FuseDescription
36 30 Amp
PinkHeadlamp/Washer
Control/Smart Glass
(If Equipped)
37 25 Amp
NaturalDiesel Fuel Heater —
If Equipped
CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
(Continued)
376 MAINTAINING YOUR VEHICLE

CAUTION! (Continued)
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb Number
Front Header Lamp......................T578
Center Dome Lamp......................T578
Rear Cargo/Flashlight.................8–A35LF
LIGHTS BULBS — Exterior Bulb No.
Low Beam/High Beam Headlight............ H13
Front Park/Turn Signal/Side
Marker Light..................3157AK or 3157A
Front Fog Light.........................9145
Center High Mounted Stop Light
(CHMSL)...................... LEDAssembly
Rear Tail/Turn/Stop.....................3157
Backup Light.....................W16W (921)
License Light.......................... W5W
Off-Road Light........................... H3
MAINTAINING YOUR VEHICLE 377
7

BULB REPLACEMENT
Headlamps
1. Raise the hood and locate the connector behind the
headlight.2. Reach into the engine compartment and pull the red
lock out at the green connector.
378 MAINTAINING YOUR VEHICLE

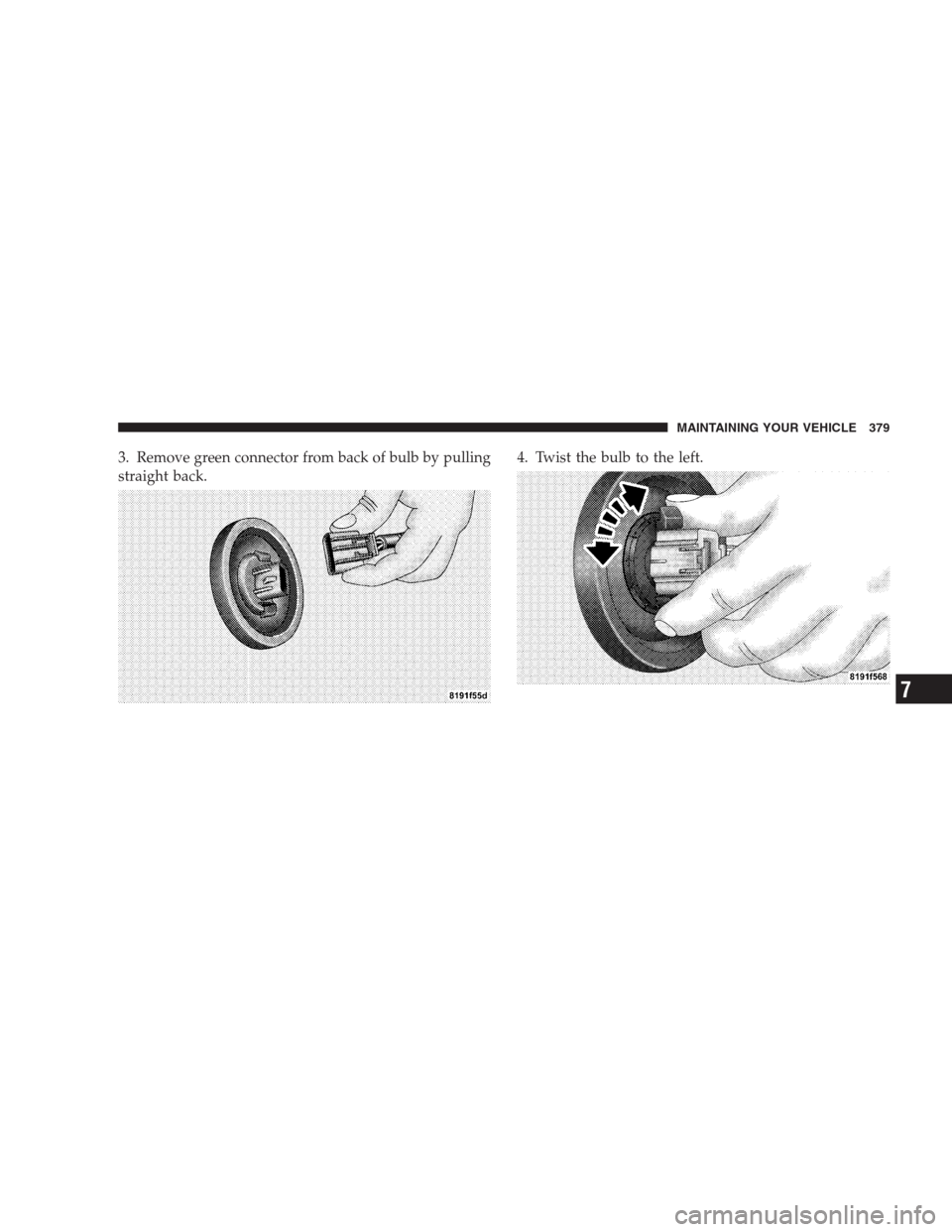

3. Remove green connector from back of bulb by pulling
straight back.4. Twist the bulb to the left.
MAINTAINING YOUR VEHICLE 379
7

5. Pull bulb outward from assembly.
NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat buildup which reduces bulb
life.Fog Lights
1. Access lamp through the lower fascia cutout.
2. Rotate bulb and connector 1/4 turn counterclockwise.
3. Pull bulb off of connector.
380 MAINTAINING YOUR VEHICLE

Tail Lights, Rear Turn Signals And Backup Lights
— Replacement

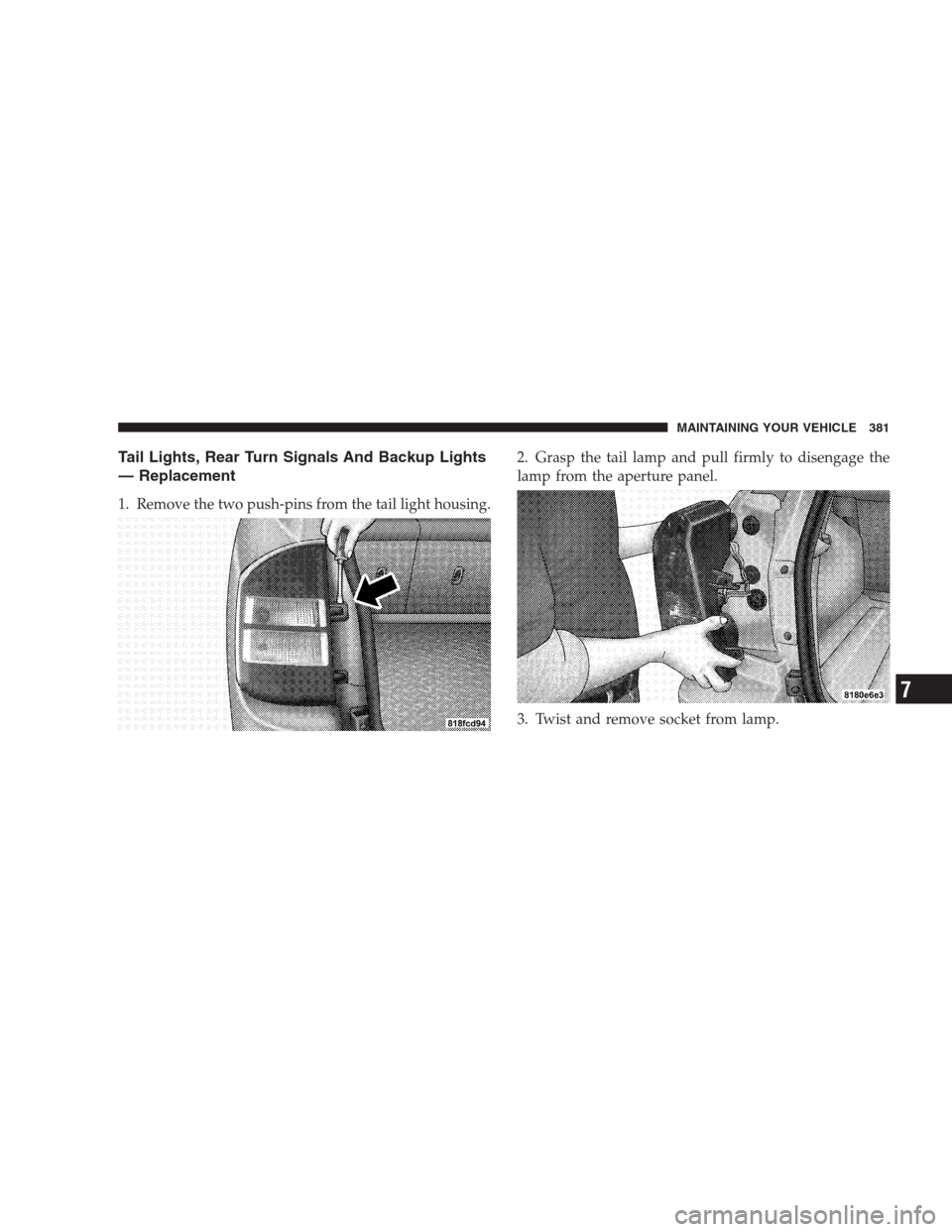

1. Remove the two push-pins from the tail light housing.2. Grasp the tail lamp and pull firmly to disengage the
lamp from the aperture panel.
3. Twist and remove socket from lamp.
MAINTAINING YOUR VEHICLE 381
7

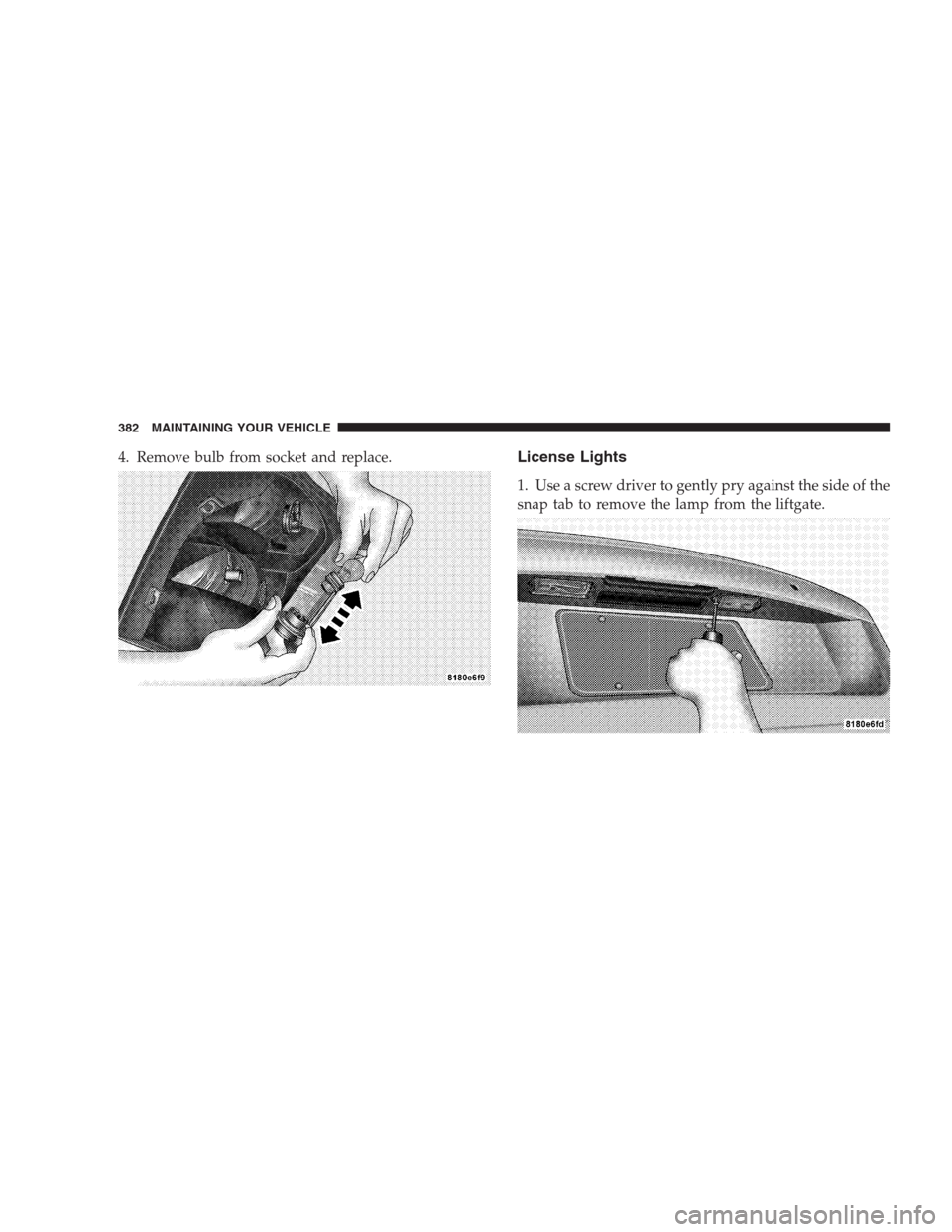

4. Remove bulb from socket and replace.License Lights
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.
