2009 JEEP COMPASS Owners Manual

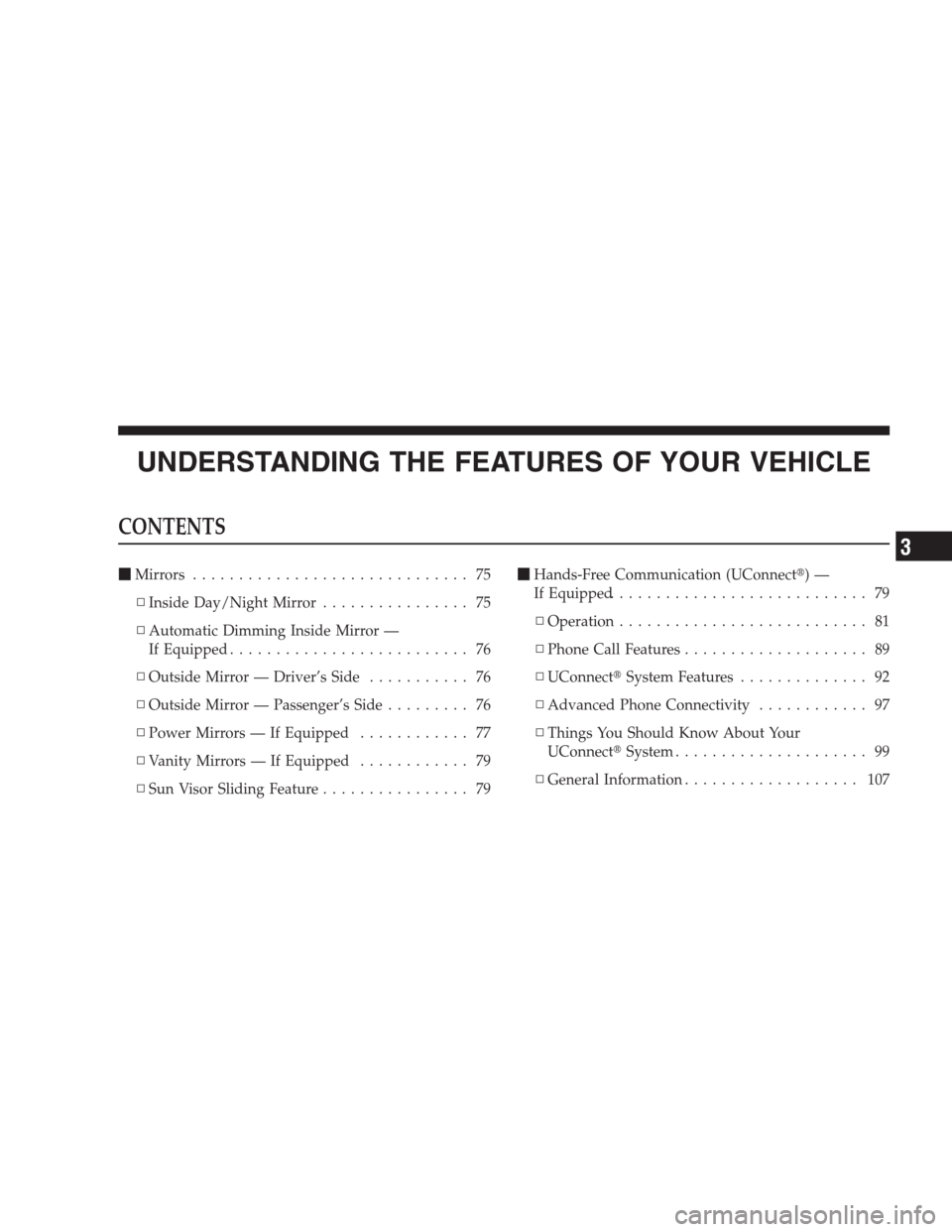

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors.............................. 75
▫Inside Day/Night Mirror................ 75
▫Automatic Dimming Inside Mirror —
If Equipped.......................... 76
▫Outside Mirror — Driver’s Side........... 76
▫Outside Mirror — Passenger’s Side......... 76
▫Power Mirrors — If Equipped............ 77
▫Vanity Mirrors — If Equipped............ 79
▫Sun Visor Sliding Feature................ 79Hands-Free Communication (UConnect)—
If Equipped............................ 79
▫Operation........................... 81
▫Phone Call Features.................... 89
▫UConnectSystem Features.............. 92
▫Advanced Phone Connectivity............ 97
▫Things You Should Know About Your
UConnectSystem..................... 99
▫General Information................... 107
3

Voice Recognition System (VR) —
If Equipped........................... 107
▫Voice Recognition System (VR) Operation . . . 107
▫Commands......................... 109
▫Voice Training....................... 112
Seats............................... 112
▫Front Seat Adjustment................. 112
▫Manual Seat Height Adjustment —
If Equipped......................... 113
▫Manual Lumbar — If Equipped.......... 114
▫Driver’s Seatback Recline............... 114
▫Adjustable Head Restraints.............. 115
▫Heated Seats — If Equipped............. 116
▫Fold-Flat Front Passenger Seat........... 117▫Folding Rear Seat.................... 118
To Open And Close The Hood............. 119
Lights.............................. 121
▫Multifunction Lever................... 121
▫Headlights, Parking Lights And Instrument
Panel Lights........................ 121
▫Lights-On Reminder.................. 122
▫Fog Lights — If Equipped.............. 122
▫Daytime Running Lights (DRL) —
If Equipped......................... 123
▫Turn Signals........................ 123
▫High Beam/Low Beam Select Switch....... 124
▫Flash-To-Pass....................... 124
▫Off-Road Lights — If Equipped.......... 125
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Map/Reading Lights.................. 126
Windshield Wipers And Washers.......... 127
▫Windshield Wiper Operation............ 127
▫Intermittent Wiper System.............. 128
▫Windshield Washers................... 128
▫Mist Feature........................ 129
Tilt Steering Column................... 130
Electronic Speed Control — If Equipped...... 131
▫To Activate......................... 131
▫To Set At A Desired Speed.............. 131
▫To Deactivate....................... 132
▫To Resume Speed.................... 132
▫To Vary The Speed Setting.............. 132▫Manual Transaxle.................... 133
▫To Accelerate For Passing............... 133
Garage Door Opener — If Equipped........ 134
▫Programming HomeLink.............. 135
▫Gate Operator/Canadian Programming..... 138
▫Using HomeLink.................... 138
▫Reprogramming A Single HomeLink
Button............................ 139
▫Security........................... 139
▫Troubleshooting Tips.................. 139
▫General Information................... 140
Power Sunroof — If Equipped............. 140
▫Opening The Sunroof.................. 141
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73
3

▫Closing The Sunroof.................. 142
▫Pinch Protect Feature.................. 142
▫Pinch Protect Override................. 142
▫Venting Sunroof — Express............. 143
▫Sunshade Operation................... 143
▫Wind Buffeting...................... 143
▫Sunroof Maintenance.................. 143
▫Ignition Off Operation................. 143
Electrical Power Outlets................. 144
Power Inverter — If Equipped............ 145
Storage............................. 147
▫Glove Compartment And Storage Bin...... 147
▫Door Storage — If Equipped............. 148Cupholders.......................... 149
Console Features...................... 150
Cargo Area Features.................... 151
▫Cargo Light/Removable Self-Recharging
Flashlight — If Equipped............... 151
▫Cargo Cover — If Equipped............. 152
▫Removable Load Floor................. 153
▫Cargo Tie-Down Loops................ 153
▫Fold Down Speakers — If Equipped....... 154
Rear Window Features.................. 154
▫Rear Window Wiper/Washer............ 154
▫Rear Window Defroster................ 155
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of vehicle). The mirror should be adjusted while set
in the day position (toward the windshield).
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

Automatic Dimming Inside Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirror — Driver’s Side
Adjust the flat (drivers side) outside mirror so you can
just see the side of your vehicle in the part of the mirror
closest to the vehicle with your head close to the door
glass.
Outside Mirror — Passenger’s Side
Adjust the convex (passenger side) outside mirror so you
can just see the side of your vehicle in the part of the
mirror closest to the vehicle with your head close to the
center of the vehicle.
Automatic Dimming Mirror
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.

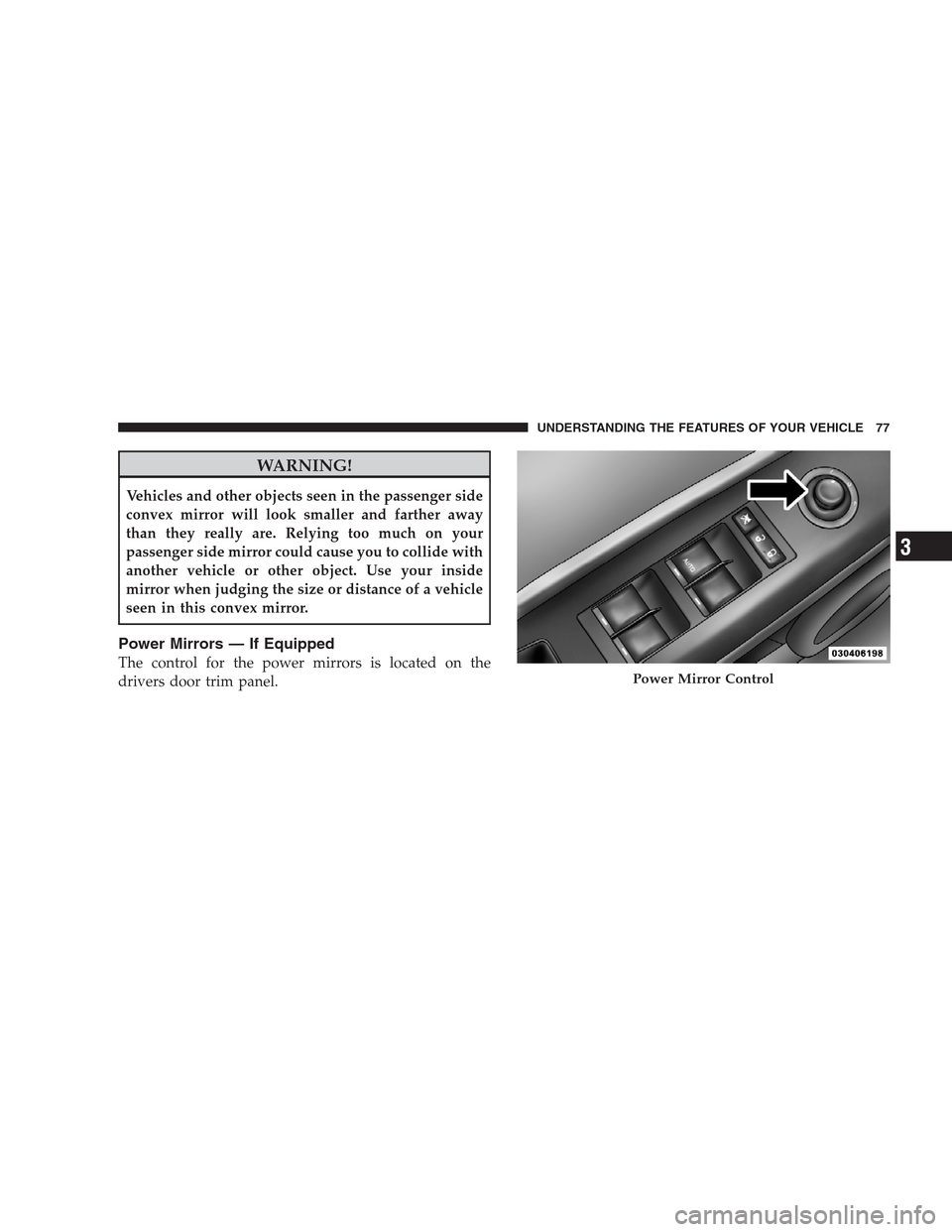

Power Mirrors — If Equipped
The control for the power mirrors is located on the
drivers door trim panel.
Power Mirror Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3

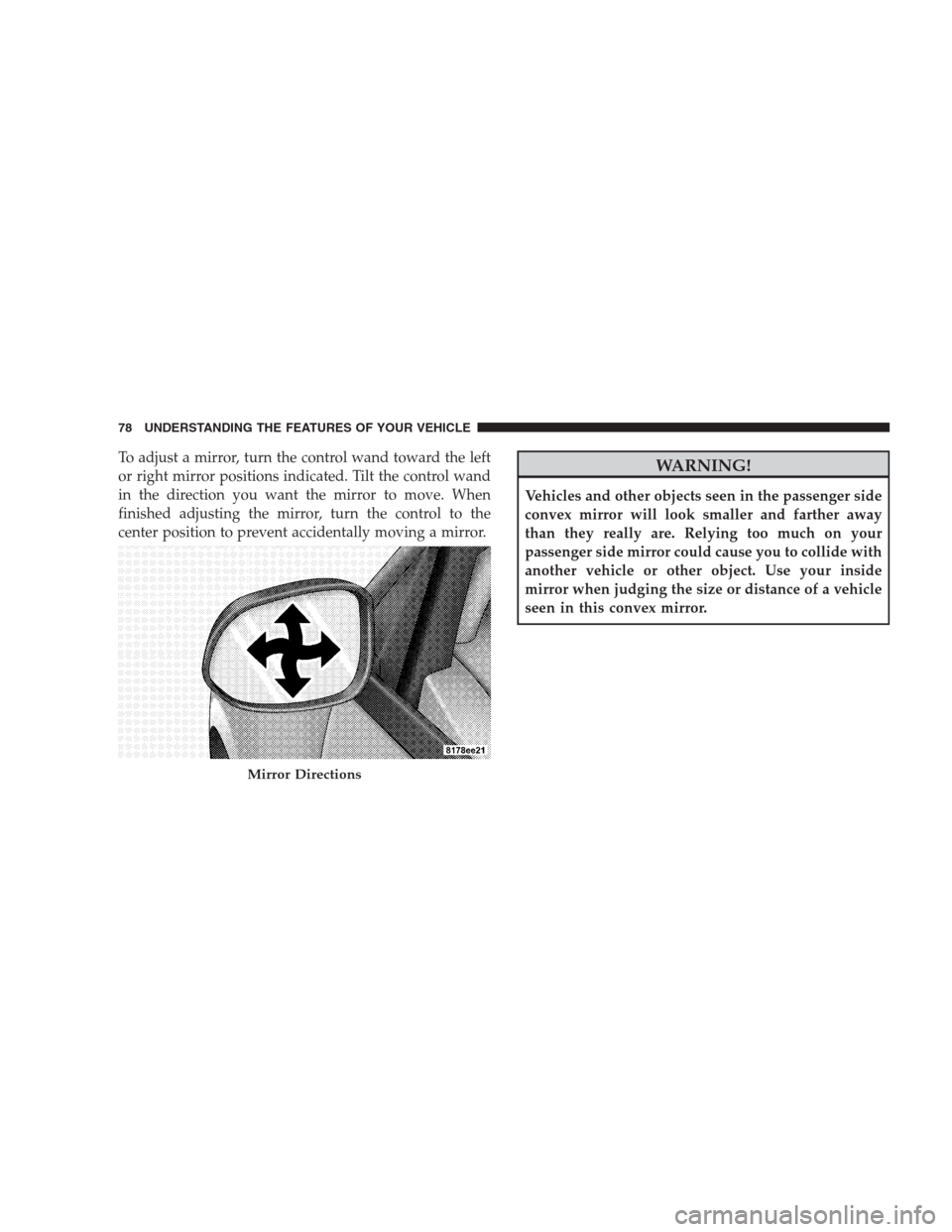

To adjust a mirror, turn the control wand toward the left
or right mirror positions indicated. Tilt the control wand
in the direction you want the mirror to move. When
finished adjusting the mirror, turn the control to the
center position to prevent accidentally moving a mirror.WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Mirror Directions
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
