1FEATURES OF YOUR HYUNDAI6
!
If the immobilizer warning indicator blinks
for five seconds when the ignition key is
turned to the "ON" position, this indicates
the immobilizer system requires service.
The engine cannot be started without us-
ing the procedure below.
The following procedure describes how to
start the engine using the limp home func-
tion (0, 1, 2, 3 as a sample password).NOTE:You can get a limp home password when
the vehicle is first delivered to you. If you
do not have a password, consult your
authorized Hyundai dealer.
CAUTION:
o If the password is entered incorrectly
three consecutive times, wait for about
one hour to perform the limp home
activation procedure again.
o If you cannot start your engine using
the limp home activation procedure,
have your vehicle towed by an autho-
rized Hyundai dealer.
B880D01CM-AAT"Limp Home" Mode and Related
Procedures
HNF2011

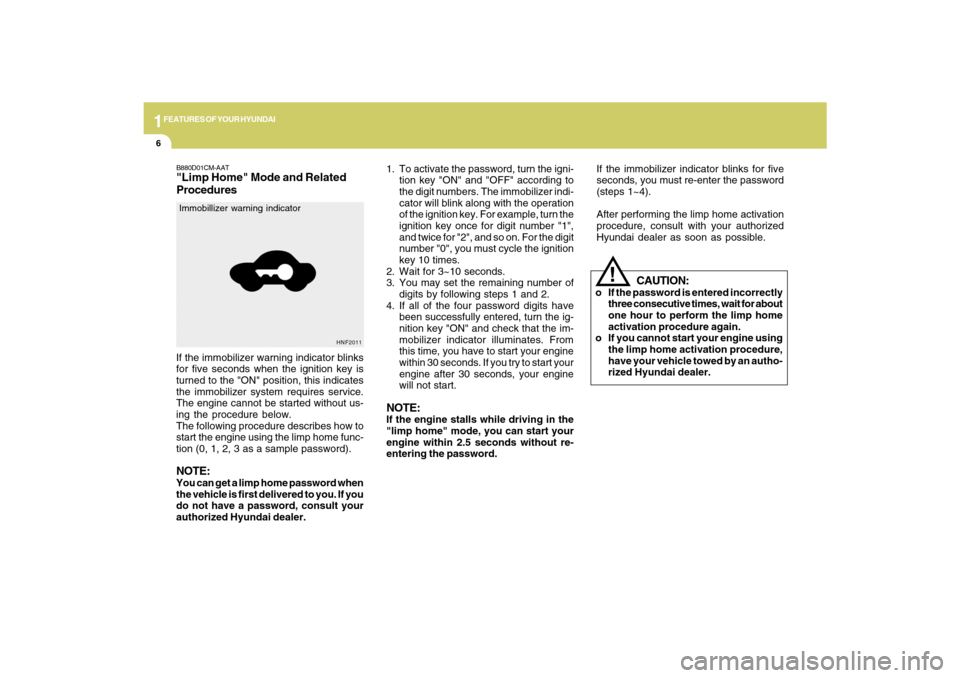

Immobillizer warning indicator
1. To activate the password, turn the igni-
tion key "ON" and "OFF" according to
the digit numbers. The immobilizer indi-
cator will blink along with the operation
of the ignition key. For example, turn the
ignition key once for digit number "1",
and twice for "2", and so on. For the digit
number "0", you must cycle the ignition
key 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of
digits by following steps 1 and 2.
4. If all of the four password digits have
been successfully entered, turn the ig-
nition key "ON" and check that the im-
mobilizer indicator illuminates. From
this time, you have to start your engine
within 30 seconds. If you try to start your
engine after 30 seconds, your engine
will not start.NOTE:If the engine stalls while driving in the
"limp home" mode, you can start your
engine within 2.5 seconds without re-
entering the password.If the immobilizer indicator blinks for five
seconds, you must re-enter the password
(steps 1~4).
After performing the limp home activation
procedure, consult with your authorized
Hyundai dealer as soon as possible.

1
FEATURES OF YOUR HYUNDAI
7
B030C01E-1
DOOR LOCKS!
B040A01CM-AAT B030C01CM-AAT

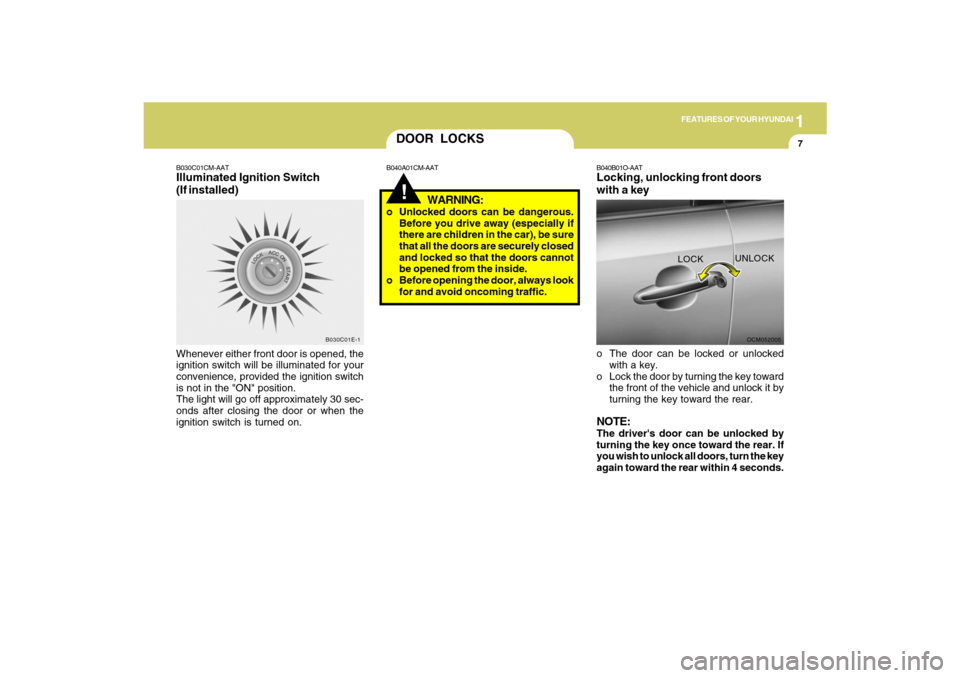

Illuminated Ignition Switch
(If installed)Whenever either front door is opened, the
ignition switch will be illuminated for your
convenience, provided the ignition switch
is not in the "ON" position.
The light will go off approximately 30 sec-
onds after closing the door or when the
ignition switch is turned on.
WARNING:
o Unlocked doors can be dangerous.
Before you drive away (especially if
there are children in the car), be sure
that all the doors are securely closed
and locked so that the doors cannot
be opened from the inside.
o Before opening the door, always look
for and avoid oncoming traffic.
UNLOCK
LOCK
OCM052005

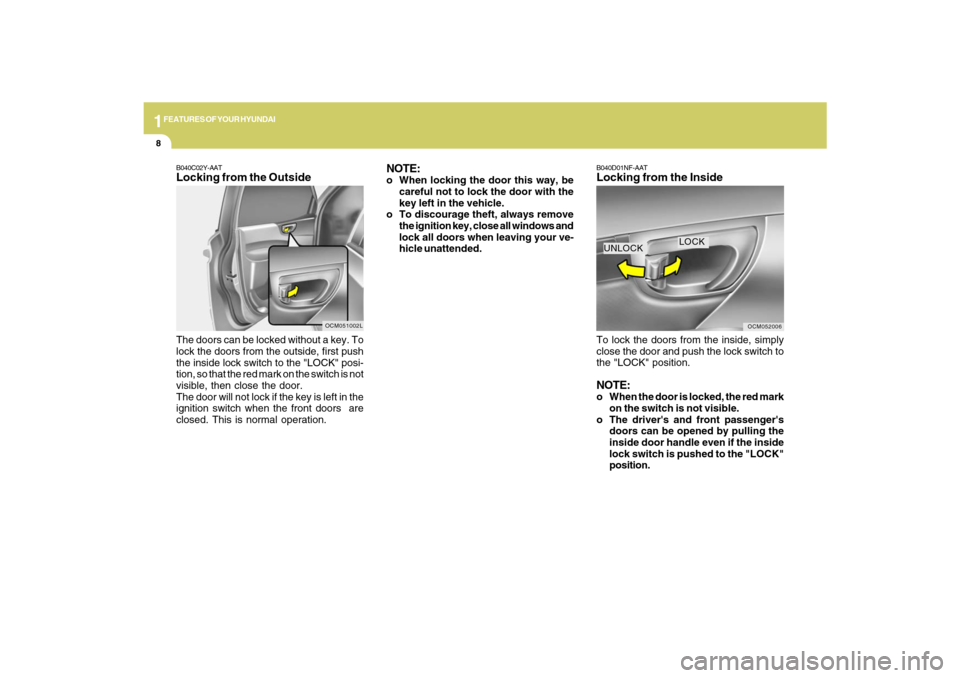

B040B01O-AATLocking, unlocking front doors
with a keyo The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward
the front of the vehicle and unlock it by
turning the key toward the rear.NOTE:The driver's door can be unlocked by
turning the key once toward the rear. If
you wish to unlock all doors, turn the key
again toward the rear within 4 seconds.

1FEATURES OF YOUR HYUNDAI8
B040C02Y-AATLocking from the OutsideThe doors can be locked without a key. To
lock the doors from the outside, first push
the inside lock switch to the "LOCK" posi-
tion, so that the red mark on the switch is not
visible, then close the door.
The door will not lock if the key is left in the
ignition switch when the front doors are
closed. This is normal operation.
OCM051002L
NOTE:o When locking the door this way, be
careful not to lock the door with the
key left in the vehicle.
o To discourage theft, always remove
the ignition key, close all windows and
lock all doors when leaving your ve-
hicle unattended.
B040D01NF-AATLocking from the InsideTo lock the doors from the inside, simply
close the door and push the lock switch to
the "LOCK" position.NOTE:o When the door is locked, the red mark
on the switch is not visible.
o The driver's and front passenger's
doors can be opened by pulling the
inside door handle even if the inside
lock switch is pushed to the "LOCK"
position.
OCM052006
LOCK
UNLOCK

1
FEATURES OF YOUR HYUNDAI
9
WARNING:
Be careful not to pull the inside door
handle while driving. If you pull the inside
door handle, the door can be opened and
you may be ejected from the vehicle and
can be injured or killed.
!
B040E04A-AATChild-Protector Rear Door LockYour Hyundai is equipped with left and
right side "child-protector" rear door locks.
When the lock mechanism is engaged, the
rear door cannot be opened from the in-
side. Its use is recommended whenever
there are small children in the rear seat.
To engage the child-protector feature so
that the door cannot be opened from the
inside, move the child-protector lever to
the "
" position and close the door. Move
the lever to the "
" position when normal
door operation is desired.
To open the door from the outside, pull the
outside door handle.
OCM052009

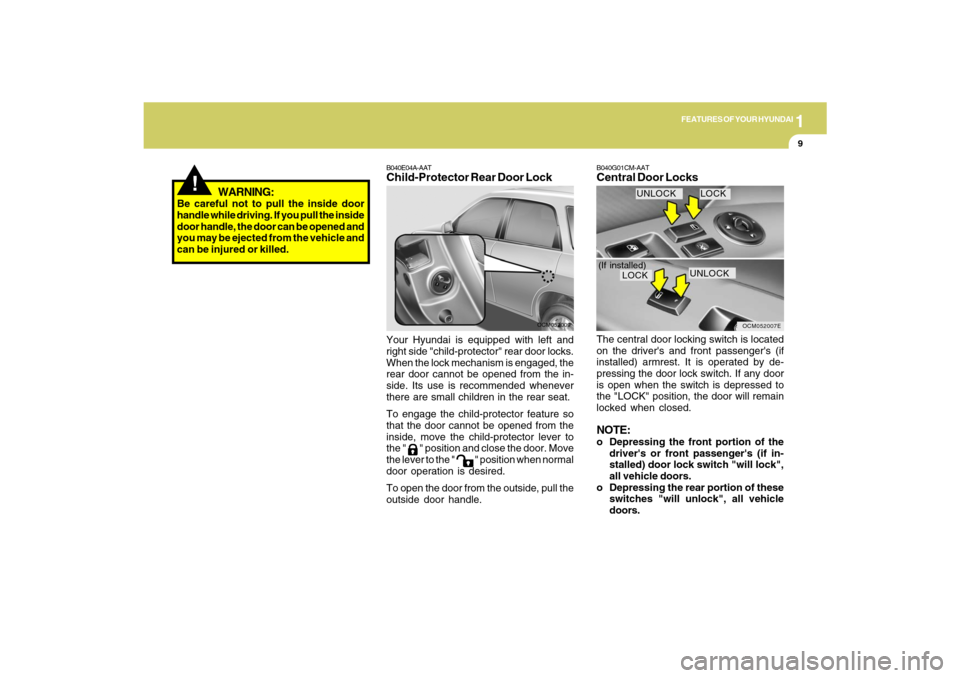

B040G01CM-AATCentral Door LocksThe central door locking switch is located
on the driver's and front passenger's (if
installed) armrest. It is operated by de-
pressing the door lock switch. If any door
is open when the switch is depressed to
the "LOCK" position, the door will remain
locked when closed.NOTE:o Depressing the front portion of the
driver's or front passenger's (if in-
stalled) door lock switch "will lock",
all vehicle doors.
o Depressing the rear portion of these
switches "will unlock", all vehicle
doors.
UNLOCK LOCK
LOCKUNLOCK
OCM052007E
(If installed)

1FEATURES OF YOUR HYUNDAI10
B070F01CM-AATKeyless Entry System (If installed)
NOTE:This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, in-
cluding interference that may cause
undesired operation.

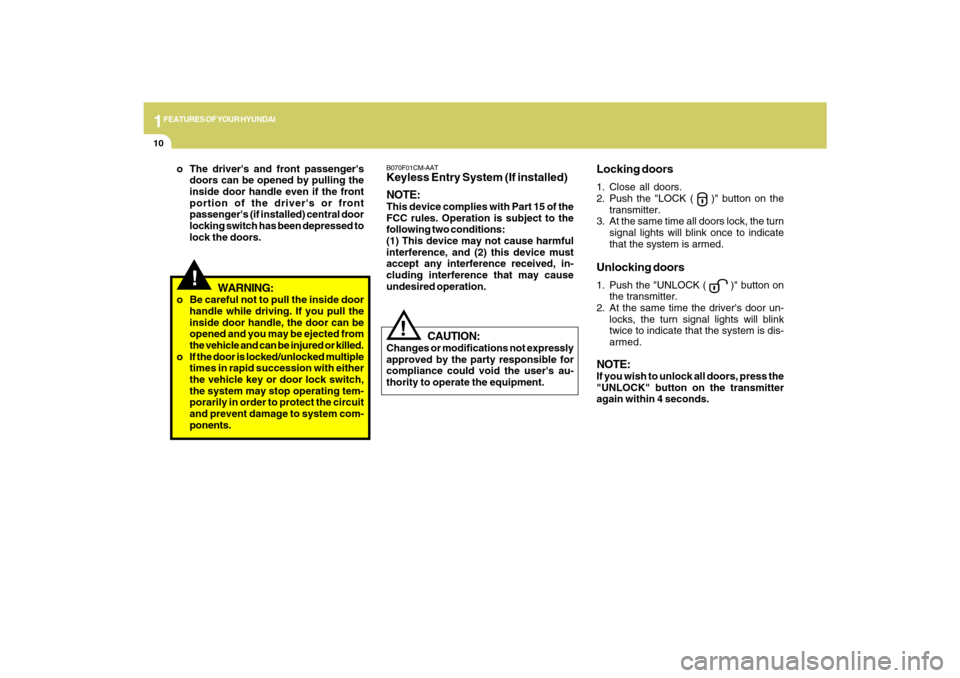

Locking doors1. Close all doors.
2. Push the "LOCK (
)" button on the
transmitter.
3. At the same time all doors lock, the turn
signal lights will blink once to indicate
that the system is armed.
Unlocking doors1. Push the "UNLOCK (
)" button on
the transmitter.
2. At the same time the driver's door un-
locks, the turn signal lights will blink
twice to indicate that the system is dis-
armed.
NOTE:If you wish to unlock all doors, press the
"UNLOCK" button on the transmitter
again within 4 seconds.
CAUTION:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's au-
thority to operate the equipment.
!
!
WARNING:
o Be careful not to pull the inside door
handle while driving. If you pull the
inside door handle, the door can be
opened and you may be ejected from
the vehicle and can be injured or killed.
o If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch,
the system may stop operating tem-
porarily in order to protect the circuit
and prevent damage to system com-
ponents. o The driver's and front passenger's
doors can be opened by pulling the
inside door handle even if the front
portion of the driver's or front
passenger's (if installed) central door
locking switch has been depressed to
lock the doors.

1
FEATURES OF YOUR HYUNDAI
11
HMR
THEFT-ALARM SYSTEM
B075B01CM-AATArmed StagePark the car and stop the engine. Arm the
system as described below.
1) Remove the ignition key from the igni-
tion switch.
2) Make sure that the hood and tail gate
are closed and latched.
3) Lock the doors using the transmitter of
the keyless entry system or key or cen-
tral door lock switch.
After completion of the steps above, the
turn signal lights will blink once and the
system will be armed after 30 seconds.
The system can also be armed by locking
the doors with the key; however, the turn
signal lights are not operated.
B070A01A-AAT(If installed)This system is designed to provide protec-
tion from unauthorized entry into the car.

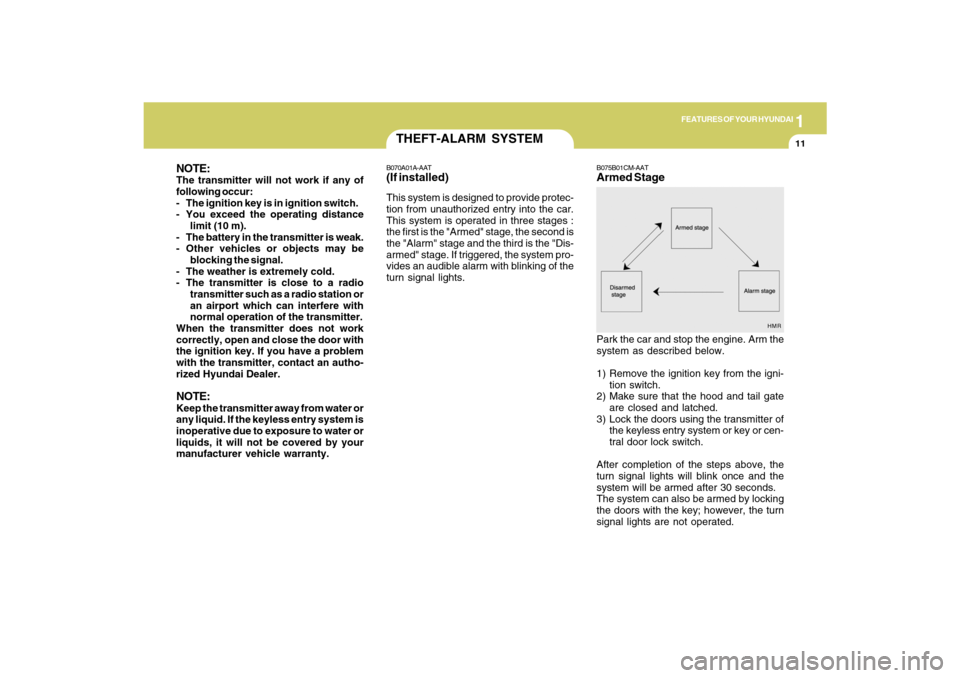

This system is operated in three stages :
the first is the "Armed" stage, the second is
the "Alarm" stage and the third is the "Dis-
armed" stage. If triggered, the system pro-
vides an audible alarm with blinking of the
turn signal lights.
NOTE:The transmitter will not work if any of
following occur:
- The ignition key is in ignition switch.
- You exceed the operating distance
limit (10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be
blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an autho-
rized Hyundai Dealer.NOTE:Keep the transmitter away from water or
any liquid. If the keyless entry system is
inoperative due to exposure to water or
liquids, it will not be covered by your
manufacturer vehicle warranty.

1FEATURES OF YOUR HYUNDAI12
B075C01CM-AATAlarm StageThe alarm will be activated if any of the
following occurs while the car is parked
and the system is armed.
1) A front or rear door is opened without
using the transmitter or the ignition key.
2) The tail gate is opened without using
the transmitter.
3) The engine hood is opened.
The siren will sound and the turn signal
lights will blink continuously for about 30
seconds (This will repeat 3 times). To turn
off the system, unlock the door or tail gate
using the transmitter or the ignition key.
CAUTION:
Avoid trying to start the engine while the
system is armed.
!
B075D01CM-AATDisarmed StageIf the follwing conditions are met, the sys-
tem will be disarmed.
o When the doors are unlocked with the
transmitter or the ignition key.
After depressing unlock button, you
must open the doors within 30 seconds
or all doors will automatically lock again
and theft-alarm system will be armed.
o When the ignition switch is in the "ON"
position.
The turn signal lights will blink twice when
the door is unlocked with the transmitter.
The alarm will be deactivated when:
o The lock/unlock button on the transmit-
ter is pressed.
o The doors are unlocked with the igni-
tion key.
o The ignition switch is in the "ON" posi-
tion for 30 seconds.NOTE:When the system is disarmed while the
"DOOR" button of the interior light is
depressed, the interior light will illumi-
nate for 30 seconds.
!
If any door, tailgate or engine hood is
opened within 30 seconds after entering
the armed stage, the system is disarmed to
prevent unnecessary alarm.NOTE:If any door, tailgate or engine hood re-
mains open, the system will not be armed.
If all doors, tailgate and engine hood are
closed, after pressing the "Lock" button
on the transmitter, the turn signal lights
blink once indicating the system is
armed.NOTE:If the "LOCK" button is pressed once
more within 4 seconds after pushing the
"LOCK" button on the transmitter, the
siren will sound once to indicate that the
system is armed.
CAUTION:
Do not arm the system until all passen-
gers have left the car. If the system is
armed while a passenger(s) remains in
the car, the alarm may be activated when
the remaining passenger(s) leaves the
car.

1
FEATURES OF YOUR HYUNDAI
13

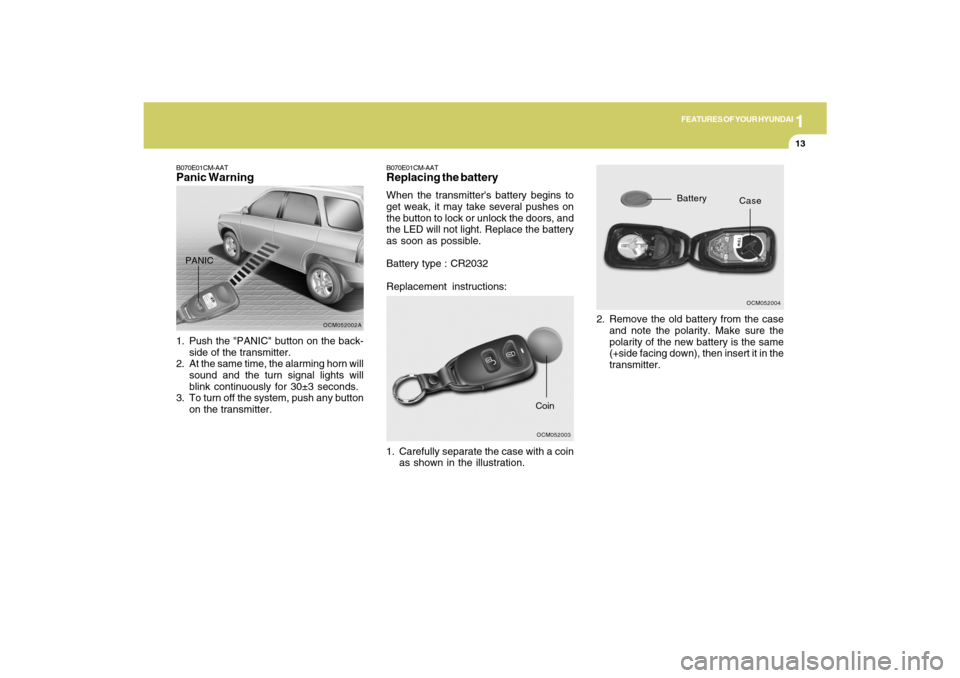

B070E01CM-AATReplacing the batteryWhen the transmitter's battery begins to
get weak, it may take several pushes on
the button to lock or unlock the doors, and
the LED will not light. Replace the battery
as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Carefully separate the case with a coin
as shown in the illustration.2. Remove the old battery from the case
and note the polarity. Make sure the
polarity of the new battery is the same
(+side facing down), then insert it in the
transmitter.
OCM052003Coin
OCM052004
Battery
Case
B070E01CM-AATPanic Warning1. Push the "PANIC" button on the back-
side of the transmitter.
2. At the same time, the alarming horn will
sound and the turn signal lights will
blink continuously for 30±3 seconds.
3. To turn off the system, push any button
on the transmitter.
OCM052002A
PANIC
